Compatible with most automatic pick & place machinery<BR/>Compact and space saving SMD type<BR/>Excellent Contact stability by twin Gold-Plated Contact<BR/>Low profile Design of 2.5 mm

Compatible with most automatic pick & place machinery<BR/>Compact and space saving SMD type<BR/>Excellent Contact stability by twin Gold-Plated Contact<BR/>Low profile Design of 2.5 mm

Compatible with most automatic pick & place machinery<BR/>Compact and space saving SMD type<BR/>Excellent Contact stability by twin Gold-Plated Contact<BR/>Low profile Design of 2.5 mm

Copal Electronics CFS-0102MB is a SPDT single position DIP switch having DC current rating of 100mA. The contact material is Copper whereas the contact finish is Gold. Its body is made up of Polyphenylene Sulfide (PPS). It has a wide variety like circuit composition, operating direction, terminal shape J-hook, Gull wing, through hole pins. CFS-0102MB SPDT DIP switch adopted twin-contact mechanism. These switches are ROHS compliant. CFS-0102MB SPDT DIP switches consists of 118 pieces per stick. On-On switch function with 1,000 electrical life cycles<BR/>Standardization of the silver as well as gold contacts<BR/>Uses a heat-resistant resin to support reflow soldering mounting<BR/>Raised actuator level<BR/>Excellent contact stability by twin Gold-plated contact

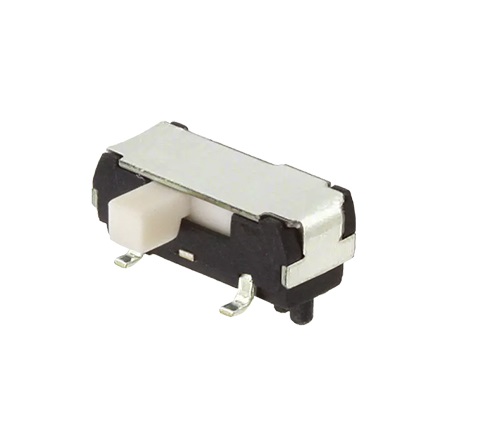

Copal Electronics CL-SA-12C4-22 is a SPDT 2-position slide switch having DC current rating of 2000mA. The contact material is Copper. Its polyamide (PA),nylon actuator is 2mm in length. It has a wide variety like circuit composition, operating direction, terminal shape J-hook, Gull wing, through hole pins. CL-SA-12C4-22 SPDT slide switch adopted twin-contact mechanism. These switches are ROHS compliant. CL-SB-12A-12 DPDT slide switches consists of 50 pieces per pack which weighs 5 grams. On-On switch function with 10,000 electrical life cycles with an operating force of 255gf<BR/>Standardization of the silver as well as gold contacts<BR/>Uses a heat-resistant resin to support reflow soldering mounting<BR/>The minimum insulation resistance is 100MΩ and maximum contact resistance is 50mΩ<BR/>Switch Travel Time is 200mm

Copal Electronics SS-10-15SP-LE is a SP5T 5-position DIP switch having DC current rating of 100mA. The contact material is Copper whereas the contact finish is Gold. Its body is made up of Polybutylene Terephthalate (PBT). It has a wide variety like circuit composition, operating direction, terminal shape J-hook, Gull wing, through hole pins. SS-10-15SP-LE DIP switch adopted twin-contact mechanism. These switches are ROHS compliant. SS-10-15SP-LE DIP switches consists of 25 pieces per tray. 500 electrical life cycles<BR/>Standardization of the silver as well as gold contacts<BR/>Uses a heat-resistant resin to support reflow soldering mounting<BR/>with raised actuator level, rotary with shaft<BR/>Excellent contact stability by twin Gold-plated contact<BR/>100 mΩ maximum contact resistance<BR/>1000 MΩ (DC100 V) minimum insulation resistance

Copal Electronics SS-10-16NP-LE is a 6-position DIP switch having DC current rating of 100mA. The contact material is Copper whereas the contact finish is Gold. Its body is made up of Polybutylene Terephthalate (PBT). It has a wide variety like circuit composition, operating direction, terminal shape J-hook, Gull wing, through hole pins. SS-10-16NP-LE DIP switch adopted twin-contact mechanism. These switches are ROHS compliant. SS-10-16NP-LE DIP switches consists of 50 pieces per tray. 500 electrical life cycles<BR/>Standardization of the silver as well as gold contacts<BR/>Uses a heat-resistant resin to support reflow soldering mounting<BR/>with raised actuator level, rotary with shaft<BR/>Excellent contact stability by twin Gold-plated contact<BR/>100 mΩ maximum contact resistance<BR/>1000 MΩ (DC100 V) minimum insulation resistance

Copal Electronics CS-4-13NA is a SP3T 3-position DIP switch having DC current rating of 100mA. The contact material is Copper whereas the contact finish is Gold. Its body is made up of Epoxy. It has a wide variety like circuit composition, operating direction, terminal shape J-hook, Gull wing, through hole pins. CS-4-13NA SP3T DIP switch adopted twin-contact mechanism. These switches are ROHS compliant. CS-4-13NA SP3T DIP switches consists of 50 pieces per pack. 200 electrical life cycles<BR/>Standardization of the silver as well as gold contacts<BR/>Uses a heat-resistant resin to support reflow soldering mounting<BR/>Flushed, Recessed actuator level<BR/>Excellent contact stability by twin Gold-plated contact

Copal Electronics CS-4-12XA is a SPDT 2-position DIP switch having DC current rating of 100mA. The contact material is Copper whereas the contact finish is Gold. Its body is made up of Epoxy. It has a wide variety like circuit composition, operating direction, terminal shape J-hook, Gull wing, through hole pins. CS-4-12XA SPDT DIP switch adopted twin-contact mechanism. These switches are ROHS compliant. CS-4-12XA SPDT DIP switches consists of 50 pieces per pack. 200 electrical life cycles<BR/>Standardization of the silver as well as gold contacts<BR/>Uses a heat-resistant resin to support reflow soldering mounting<BR/>Flushed, Recessed actuator level<BR/>Excellent contact stability by twin Gold-plated contact
