Blank Front Panels Shielded 2.5mm thick aluminium<BR/>Front anodised<BR/>Rear yellow chromate coated (conductive)<BR/>Type 2b available as kits: one panel, two press-in location dowels and EMC gasket material<BR/>Fixing accessories to be ordered separately: plastic studs

The nVent-Schroff's 10501 series is a Slim Aluminium profile front handle, 7 mm. The assembly of the handle will be done from the rear side. Static load-carrying capacity 10 kg/pair Works with Sub racks, Chassis, Front Panels<BR/>Comes with Aluminium material <BR/>RoHS compliant

The nVent-Schroff's 10501 series is a Slim Aluminium profile front handle, 7 mm. The handle can be assembled to a sub rack or 19" front panel. Available with clear or black anodized surface. Handles will be bolted from the rear side. Static load-carrying capacity 30 kg/pair Works with Sub rack<BR/>Comes with Aluminium material <BR/>RoHS compliant

IP40 minipac Diecast Aluminium Enclosure The Schroff minipac is a robust extruded aluminium enclosure designed to house printed circuit boards (PCBs). This versatile little case can accommodate applications such as a single-board computer or COM module, e.g. in industry, railway systems, measurement and control systems, data systems or network systems. The enclosure is available in two different designs, trapezoidal and rectangular, for different PCB widths and depths. Three versions available, desktop, wall mount or DIN rail<BR/>Accommodates standardised and non-standardised PCBs<BR/>High heat dissipation through aluminium case<BR/>IP40 protection<BR/>Black anodised body with plain anodised cover plates Trapezium shape Accommodates up to 3 PCBs of different heights - 50, 60 or 65 mm and board depth 100 or 160 mm<BR/>PCB thickness 1.6 mm, spacing 15.24 mm (3 HP)<BR/>Stock no. 783-3781 - no mounting option<BR/>Stock no. 783-3790 - for wall mounting on long side of trapezoid<BR/>Stock no. 783-3793 - for wall mounting on short side of trapezium<BR/>Stock no. 783-3797 - for mounting on a DIN support rail, DIN 43880 Rectangular shape Accommodates up to 4 standardised PCBs in euroboard format, height 100 mm (3 U) or up to 8 non-standardised PCBs, height 60 mm and board depth 160 mm<BR/>PCB thickness 1.6 mm, spacing 15.24 mm (2 HP)<BR/>Stock no. 783-3775 - desktop version<BR/>Stock no. 783-3784 - for wall mounting on long side<BR/>Stock no. 783-3787 - for wall mounting on short side

Basic Assembly Accommodates PCBs (horizontally) or non-standard components on a chassis<BR/>Extruded aluminium construction<BR/>Slotted side panels to fix chassis plates at variable heights and depths<BR/>HF-shielding can be fitted<BR/>Protection IP20 to IEC/EN 60529 (with closed covers)<BR/>Side panels: extruded aluminium natural finish, Front panel: extruded aluminium clear chromate finish, Rear panel: sheet aluminium clear chromate finish<BR/>Comprises one front and one rear panel, two side panels, one assembly kit

Basic Assembly Accommodates PCBs (horizontally) or non-standard components on a chassis<BR/>Extruded aluminium construction<BR/>Slotted side panels to fix chassis plates at variable heights and depths<BR/>HF-shielding can be fitted<BR/>Protection IP20 to IEC/EN 60529 (with closed covers)<BR/>Side panels: extruded aluminium natural finish, Front panel: extruded aluminium clear chromate finish, Rear panel: sheet aluminium clear chromate finish<BR/>Comprises one front and one rear panel, two side panels, one assembly kit

Basic Assembly Accommodates PCBs (horizontally) or non-standard components on a chassis<BR/>Extruded aluminium construction<BR/>Slotted side panels to fix chassis plates at variable heights and depths<BR/>HF-shielding can be fitted<BR/>Protection IP20 to IEC/EN 60529 (with closed covers)<BR/>Side panels: extruded aluminium natural finish, Front panel: extruded aluminium clear chromate finish, Rear panel: sheet aluminium clear chromate finish<BR/>Comprises one front and one rear panel, two side panels, one assembly kit

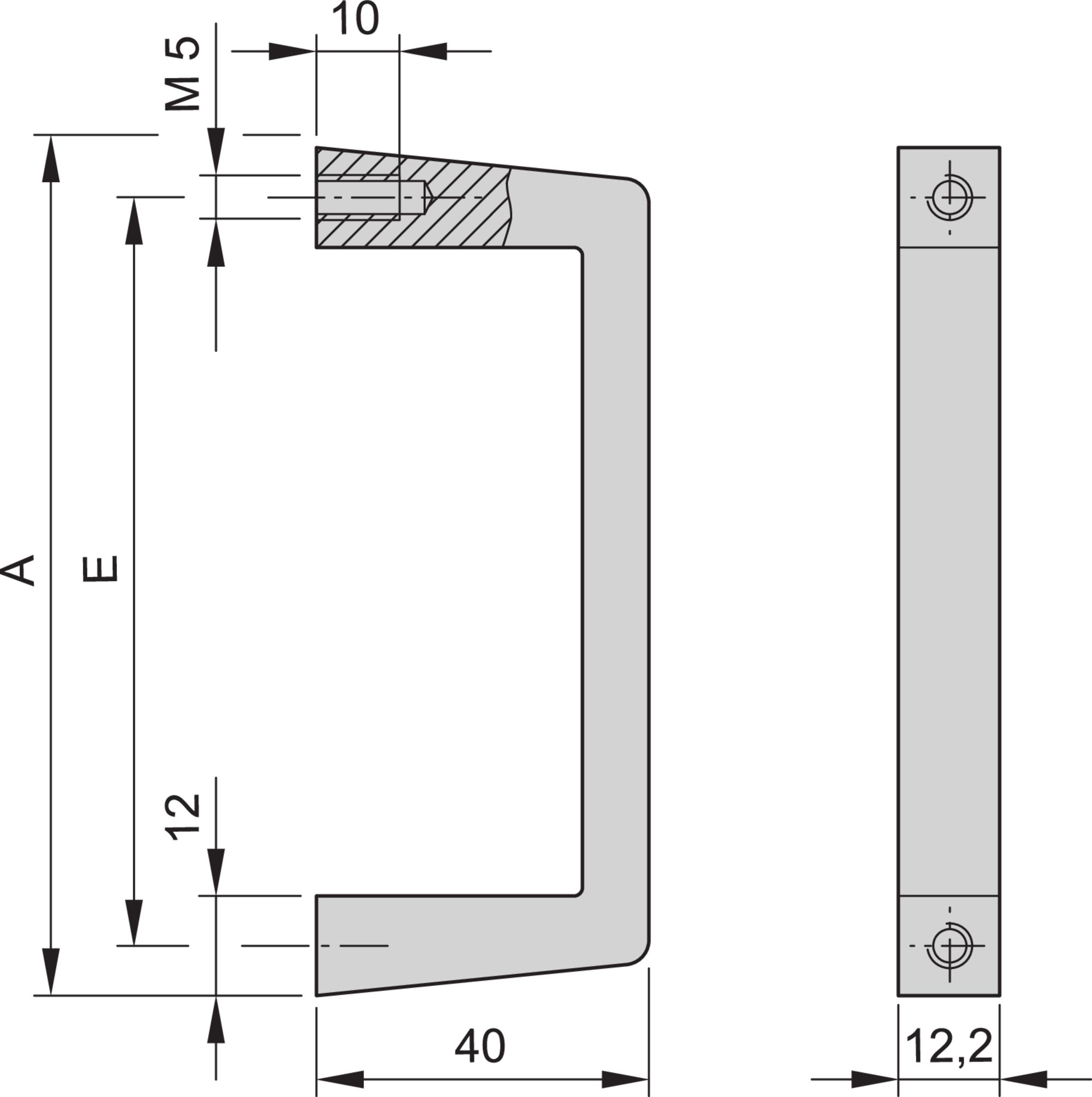

Handles Extruded Aluminium<BR/>Anodised<BR/>Supplied in pairs with fixing kit

Cover plate The cover plates can be used as either top or base plates, inserted into basic structure. Plain Cover Plate Sheet aluminium with a clear chromate finish<BR/>IP20 protection<BR/>Stock nos. <a href="/web/p/products/4691161">469-1161</a>, <a href="/web/p/products/4691234">469-1234</a> & <a href="/web/p/products/4691240">469-1240</a> Perforated Cover Plate Sheet aluminium with a clear chromate finish<BR/>Hole diameter 4 mm, perforation ratio 58%<BR/>Stock nos. <a href="/web/p/products/4691256">469-1256</a>, <a href="/web/p/products/4691262">469-1262</a> & <a href="/web/p/products/4691278">469-1278</a>

Basic Assembly Accommodates PCBs (horizontally) or non-standard components on a chassis<BR/>Extruded aluminium construction<BR/>Slotted side panels to fix chassis plates at variable heights and depths<BR/>HF-shielding can be fitted<BR/>Protection IP20 to IEC/EN 60529 (with closed covers)<BR/>Side panels: extruded aluminium natural finish, Front panel: extruded aluminium clear chromate finish, Rear panel: sheet aluminium clear chromate finish<BR/>Comprises one front and one rear panel, two side panels, one assembly kit

Basic Assembly Accommodates PCBs (horizontally) or non-standard components on a chassis<BR/>Extruded aluminium construction<BR/>Slotted side panels to fix chassis plates at variable heights and depths<BR/>HF-shielding can be fitted<BR/>Protection IP20 to IEC/EN 60529 (with closed covers)<BR/>Side panels: extruded aluminium natural finish, Front panel: extruded aluminium clear chromate finish, Rear panel: sheet aluminium clear chromate finish<BR/>Comprises one front and one rear panel, two side panels, one assembly kit
