Join the SBC evolution with the ROCK 5B board from OKdo, our sister IoT specialist emerging technology company. The ROCK 5B truly takes performance to a new level with the super powerful Rockchip RK3588 SoC, packed with some incredible class-leading features, such as 8K displays (yes 8K!) and Android support, capable to run even the most demanding multimedia and industrial applications. With a Quad Arm Cortex A76 CPU, Quad Arm DynamIQ Cortex A55 and an Arm Mali G610MC4 GPU, the ROCK 5B is a robust and high-performing single board computer that incorporates an onboard stereo audio jack, on/Off power button, dual HDMI ports supporting displays up to 8Kp60 resolution, a fan connector and an eMMC socket. What makes the ROCK 5B SBC incredible? Reliable hardware - robust performance based on the Rockchip RK3588 SoC, Arm DynamIQ Quad Cortex - A76 @ 2.2/2.4GHz, Quad Cortex - A55 @ 1.8GHz CPU, Arm Mali - G610MC4 GPU and 8GB 64bit LPDDR4 RAM. Incredible 8K display support - the Arm Mali G610MC4 graphics processing unit (GPU) allows the ROCK 5B to support the most advanced multimedia applications, including games, videos, and signage, supporting dual displays up to 8Kp60 and 4Kp60 resolution. Power On/Off button - allows safe shutdowns with no risk of corrupting storage. Compatible with several operating systems - including Android 12, Debian/Ubuntu Linux, the full implementation of the Arm architecture v8 instructions set, and others. Extensive storage capacity – features 8GB RAM and a high-speed eMMC socket for eMMC modules which can be used for OS and data storage. 40-pin GPIO expansion header - supports a wide range of interface options. PWM fan connector – with this onboard fan connector and 2 heatsink mounting holes, the ROCK 5B will stand anything, no matter how high-performance your application may be. Technical specifications SoC: Rockchip RK3588 Processor: Arm DynamIQ (Quad Cortex - A76 @ 2.2/2.4GHz, Quad Cortex - A55 @ 1.8GHz) GPU: Arm Mali G610MC4 GPU, supporting OpenGL® ES1.1, ES2.0, and ES3.2, OpenCL® 1.1, 1.2 and 2.2, Vulkan® 1.1 and 1.2, and embedded high-performance 2D image acceleration module Memory: 64bit LPDDR4 RAM Power Requirements: USB Type‑C™ PD Version 2.0 with 9V/2A, 12V/2A, 15V/2A and 20V/2A; 5V Power applied to the GPIO PIN 2 & 4. The recommended power source capacity is at least 24W without a M.2 SSD or 36W with a M.2 SSD HDMI: Dual HDMI ports supporting displays up to 8Kp60 resolution and 4Kp60; Micro-HDMI input port supporting up to 4Kp60 resolution USB: 2x USB2 HOST ports, 1x USB3 HOST port, 1x USB3 OTG/HOST port MIPI: 1x 4 lane DSI, 1x 4 lane CSI Storage: Micro SD / eMMC UARTS: 2x UART On/Off Power Button: Yes Software: Full implementation of the Arm architecture v8 instructions set, Debian/Ubuntu Linux support, Android 12 support, RKNPU2 NPU software stack, Hardware access/control library for Linux/Android Temperature: Operation temperature: 0∼50 ℃ / Storage temperature: -20∼80 ℃ Let's work together OKdo has manufacturing capabilities and technical engineering consultants to support long-term stock availability and design longevity. If you would like to collaborate on your next project, let’s design the future together: contact sales@okdo.com

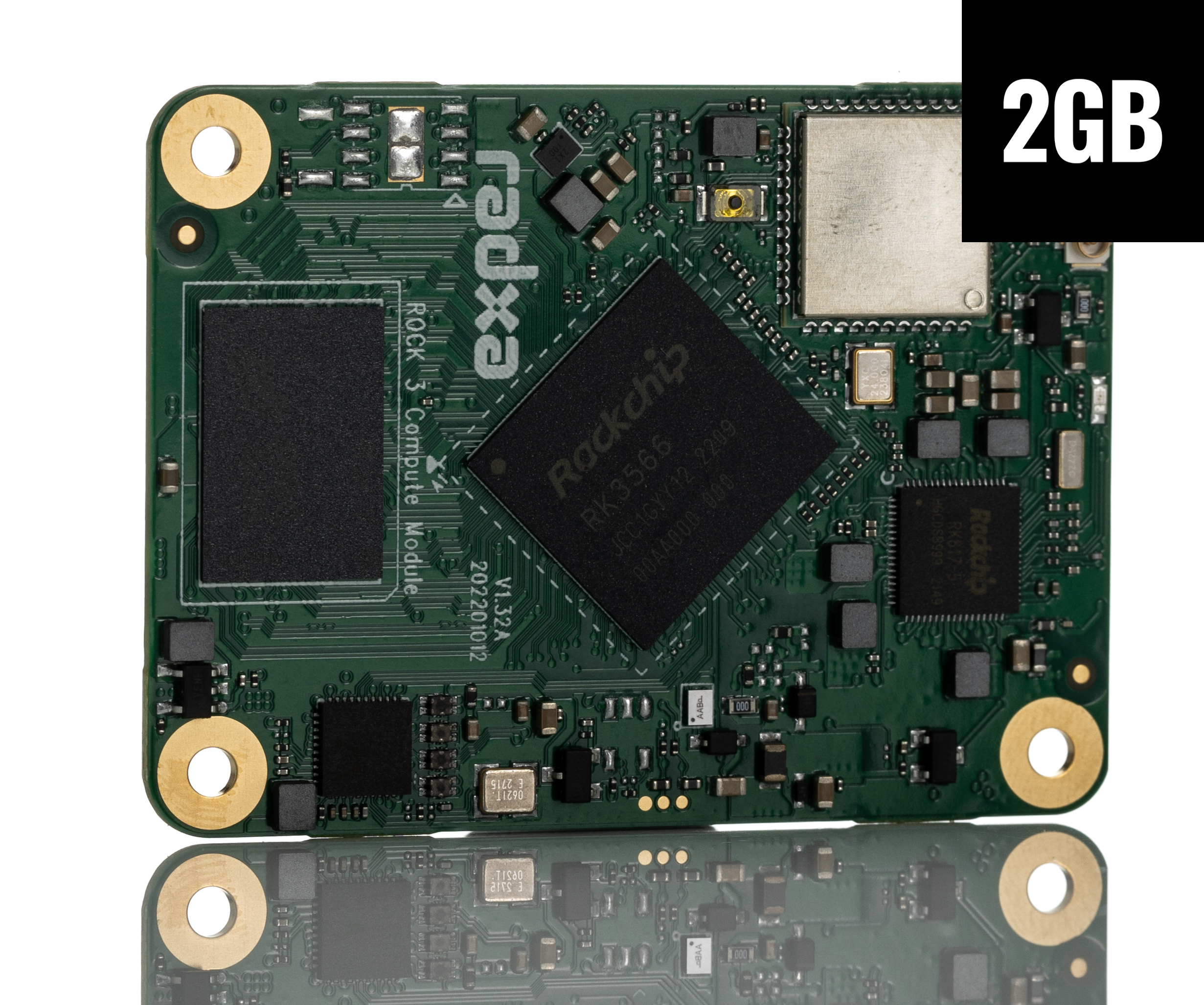

The ROCK 3 Compute Module (CM3) is a System on Module (SoM) based on a powerful Rockchip RK3566 System on Chip (SoC), Quad-core Arm® Cortex®-A55 CPU and Arm Mali™-G52-2EE GPU. This CM3 is designed to increase the performance and capabilities of your design applications. With a 2GB LPDDR4 RAM, 16GB eMMC flash storage and wireless connectivity, including WiFi 5 and Bluetooth® 5.0, and many other class-leading features incorporated in this compact board of just 55mm x 40mm, the ROCK 3 Compute Module can be easily integrated into different industrial and multimedia projects. CM3 is developed by OKdo Technology in collaboration with Radxa, providing an out-of-the-box, cost-efficient solution that expands the capabilities of various embedded applications. Key features of the ROCK CM3 2GB: Rockchip RK3566 SoC with 64-bit Quad Core low power cores up to 2.0GHz <BR/>GPU: Arm Mali™-G52-2EE, OpenGL® ES1.1/2.0/3.0/3.1/3.2, Vulkan® 1.1, OpenCL™ 2.1<BR/>CPU: Quad-core Arm® Cortex®-A55 (ARMv8) 64-bit @ 2.0GHz <BR/>NPU: 1 TOPs@INT8, support INT8, INT16, FP16, BFP16, support deep learning frameworks such as TensorFlow, Caffe, Tflite, Pytorch, Onnx, Android™ NN, etc. <BR/>RAM: 2GB LPDDR4 <BR/>Memory: 32bit DDR4/3/3L/LPDDR4/4X/3 and support eMMC 5.1 and SFC<BR/>Display: Single display engine, HDMI2.0, eDP 1.3, Dual MIPI-DSI, combo with single LVDS, 24bit RGB/BT1120 and EBC interface<BR/>Multimedia: 4K H.265/H.264/VP9 video decoder and 1080p@60fps H.264/H.265 video encoder <BR/>Video input: 8M Pixel ISP and 1 x 4 lanes or 2 x 2 lanes MIPI CSI-2 and DVP interface <BR/>Audio interface: I2S0/I2S1 with 8 channels, IS2/I2S3 with 2 channels, SPDIF0, PDM0 with 8 channels, TDM) with 8 channels and Voice Activity Detection (VAD). <BR/>High-Speed Interface: One USB 3.0 host, two SATA 3.0, one PCIE2.1, two SerDes (serialiser/deserialiser) lanes, dual USB 2.0 host and one USB 2.0 OTG and a single RGMII interface <BR/>Security: Arm TrustZone® security extension, Secure Video Path, Secure JTAG to debug, Secure boot, OTP and Crypto (AES/TDES/SM4/SM3/SHA256/SHA512/RSA) <BR/>Power Requirements: the power input into the SoM is 5VDC at 5A. Interfaces: 802.11 b/g/n/ac Wireless LAN (Wi-Fi 5)  <BR/>Bluetooth 5.0 with BLE<BR/>8 x I2C<BR/>4 x SPI<BR/>8 x UART<BR/>9 x PWM<BR/>50 x GPIO<BR/>2 x ADC <BR/>1 x Gigabit Ethernet PHY<BR/>Support PDM with microphone array  <BR/>I2S<BR/>2 x SATA<BR/>1 x PCIe 2.0, 1 lane host (5Gbps)<BR/>1 x USB 2.0<BR/>1 x USB 2.0 OTG<BR/>1 x USB 3.0 (5Gbps)<BR/>1 x SDIO 3.0<BR/>1 x HDMI up to 4K x 2k@60Hz<BR/>1 x eDP four lanes (2.7 Gbps per lane)<BR/>2 x MIPI DSI @ 1.6Gbps per lane<BR/>2 x MIPI CSI<BR/>1 x 2 lane MIPI CSI camera port  <BR/>1 x 4 lane MIPI CSI camera port<BR/>1 x LVDS combo four lanes, mux with MIPI DSIO<BR/>eMMC size: 16GB <BR/>3 x 100 pins 0.4mm pitch B2B connector Supported Software: Debian/Ubuntu Linux support<BR/>Android 11 support

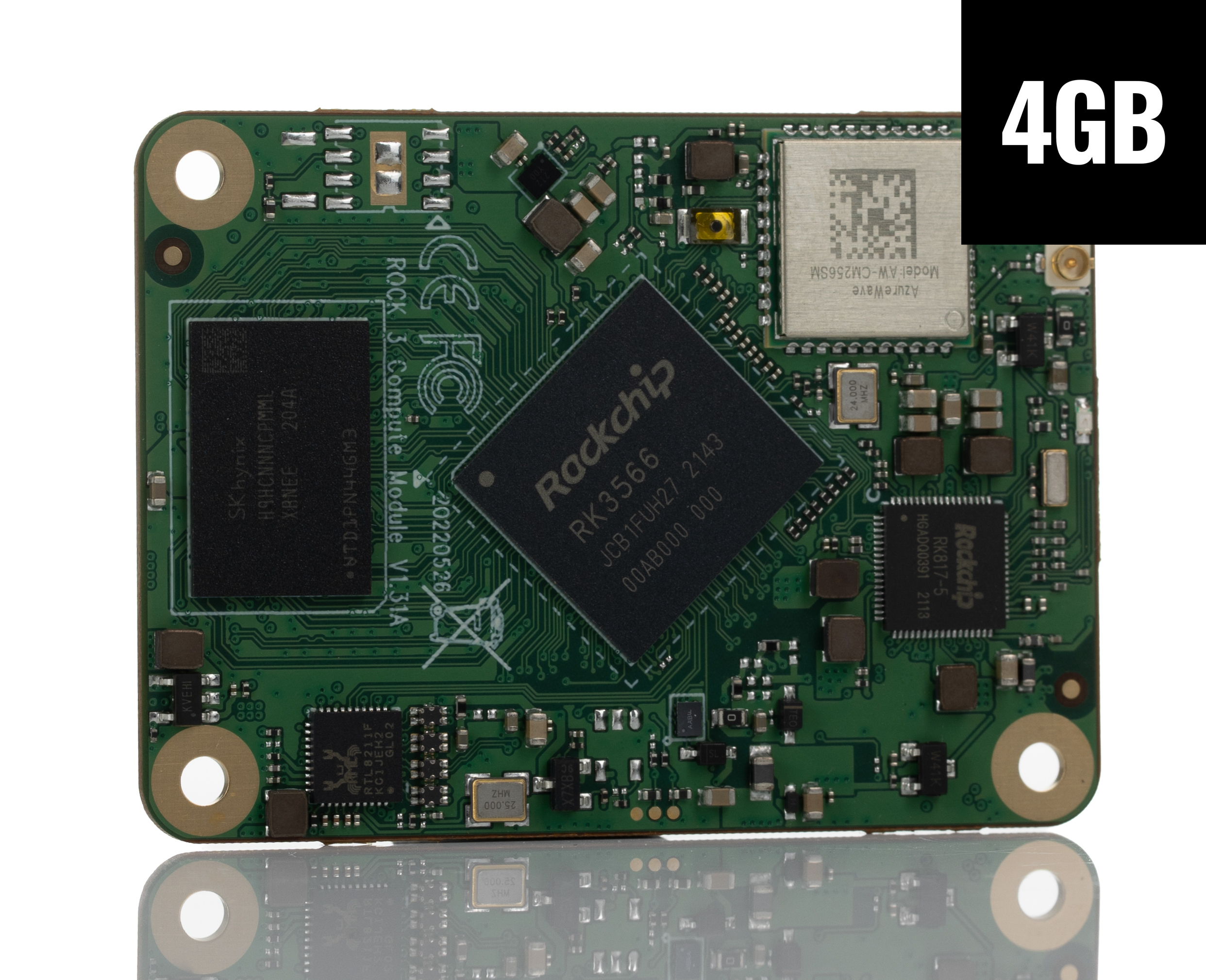

The ROCK 3 Compute Module (CM3) is an incredible System on Module (SoM) based on a powerful Rockchip RK3566 System on Chip (SoC) that will boost your design application and enlarge its capabilities. The ROCK CM3 features 4GB LPDDR4 RAM, Quad-core Arm® Cortex®-A55 CPU, Arm Mali™-G52-2EE GPU, DRAM memory, 32GB eMMC flash storage and wireless connectivity, including WiFi 5 and Bluetooth® 5.0. This compute module benefits from multiple outstanding features incorporated in a compact board of just 55mm x 40mm, allowing you to incorporate it into various multimedia and industrial designs easily. Developed by OKdo Technology in collaboration with Radxa, the CM3 offers a cost-efficient solution out of the box for various embedded applications, expanding incredibly the capabilities of your project. Key Features of the ROCK CM3 4GB: Rockchip RK3566 SoC with 64-bit Quad Core low power cores up to 2.0GHz <BR/><BR/>CPU: Quad-core Arm® Cortex®-A55 (ARMv8) 64-bit @ 2.0GHz <BR/><BR/>GPU: Arm Mali™-G52-2EE, OpenGL® ES1.1/2.0/3.0/3.1/3.2, Vulkan® 1.1, OpenCL™ 2.1 <BR/><BR/>NPU: 1 TOPs@INT8, support INT8, INT16, FP16, BFP16, support deep learning frameworks such as TensorFlow, Caffe, Tflite, Pytorch, Onnx, Android™ NN, etc. <BR/><BR/>RAM: 4GB LPDDR4 <BR/><BR/>Memory: 32bit DDR4/3/3L/LPDDR4/4X/3 and support eMMC 5.1 and SFC <BR/><BR/>Display: Single display engine, HDMI2.0, eDP 1.3, Dual MIPI-DSI, combo with single LVDS, 24bit RGB/BT1120 and EBC interface <BR/><BR/>Multimedia: 4K H.265/H.264/VP9 video decoder and 1080p@60fps H.264/H.265 video encoder <BR/><BR/>Video input: 8M Pixel ISP and 1 x 4 lanes or 2 x 2 lanes MIPI CSI-2 and DVP interface <BR/><BR/>Audio interface: I2S0/I2S1 with 8 channels, IS2/I2S3 with 2 channels, SPDIF0, PDM0 with 8 channels, TDM) with 8 channels and Voice Activity Detection (VAD). <BR/><BR/>High-Speed Interface: One USB 3.0 host, two SATA 3.0, one PCIE2.1, two SerDes (serialiser/deserialiser) lanes, dual USB 2.0 host and one USB 2.0 OTG and a single RGMII interface <BR/><BR/>Security: Arm TrustZone® security extension, Secure Video Path, Secure JTAG to debug, Secure boot, OTP and Crypto (AES/TDES/SM4/SM3/SHA256/SHA512/RSA) <BR/><BR/>Power Requirements: the power input into the SoM is 5VDC at 5A. Interfaces: 802.11 b/g/n/ac Wireless LAN (Wi-Fi 5)  <BR/><BR/>Bluetooth 5.0 with BLE  <BR/><BR/>8 x I2C  <BR/><BR/>4 x SPI  <BR/><BR/>8 x UART  <BR/><BR/>9 x PWM  <BR/><BR/>50 x GPIO  <BR/><BR/>2 x ADC  <BR/><BR/>1 x Gigabit Ethernet PHY  <BR/><BR/>Support PDM with microphone array  <BR/><BR/>I2S  <BR/><BR/>2 x SATA  <BR/><BR/>1 x PCIe 2.0, 1 lane host (5Gbps)  <BR/><BR/>1 x USB 2.0  <BR/><BR/>1 x USB 2.0 OTG  <BR/><BR/>1 x USB 3.0 (5Gbps)  <BR/><BR/>1 x SDIO 3.0  <BR/><BR/>1 x HDMI up to 4K x 2k@60Hz  <BR/><BR/>1 x eDP four lanes (2.7 Gbps per lane)  <BR/><BR/>2 x MIPI DSI @ 1.6Gbps per lane  <BR/><BR/>2 x MIPI CSI  <BR/><BR/>1 x 2 lane MIPI CSI camera port  <BR/><BR/>1 x 4 lane MIPI CSI camera port  <BR/><BR/>1 x LVDS combo four lanes, mux with MIPI DSIO  <BR/><BR/>eMMC size: 32GB <BR/><BR/>3 x 100 pins 0.4mm pitch B2B connector Supported Software: Debian/Ubuntu Linux support  <BR/><BR/>Android 11 support

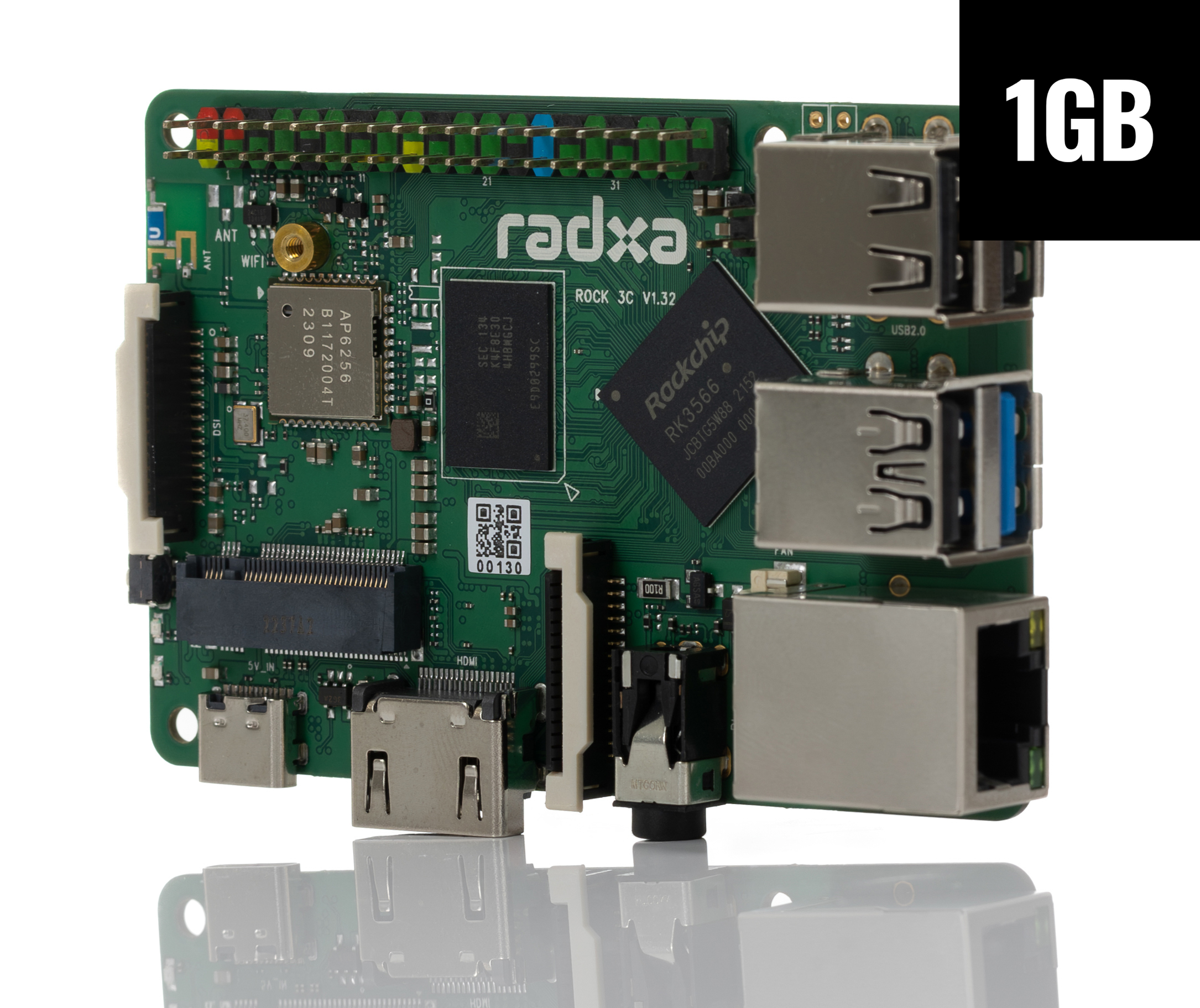

The OKdo ROCK 3 Model C (ROCK 3C) is a reliable single board computer based on the powerful Rockchip RK3566 SoC in a compact form factor. The ROCK 3C delivers outstanding performance while leveraging outstanding mechanical compatibility, it benefits from a Quad core Armv8.2‑A Cortex®‑A55 CPU, Arm Mali™ G52 GPU, Wireless support including WiFi 5, HDMI 2.0 port supporting displays up to 1080p resolution, multiple connectivity and storage possibilities, and it&#146;s compatible with a wide range of software operating systems. What makes the ROCK 3C SBC great? Reliable Hardware - ROCK 3C provides reliable and capable performance based on the Rockchip RK3566 SoC, Quad core Armv8.2‑A Cortex®‑A55 up to 1.6GHz, Arm Mali™ G52 GPU, and 32-bit LPDDR4 1GB RAM. Onboard WiFi - The ROCK 3C benefits from 802.11 b/g/n/ac Wireless LAN support including WiFi5 and Bluetooth 5.0 making it the ideal solution for supporting your IoT applications. Compatible with a range of operating systems - ROCK 3C is a practical board, as it is compatible with multiple operating systems, including Android 11, Debian/Ubuntu Linux, the full implementation of the Arm architecture v8‑A instructions set, and others. Extensive storage capacity - The ROCK 3C benefits from a high-speed eMMC socket for eMMC modules which can be used for data storage and OS. The eMMC socket is compatible with readily available industrial pinout and form factor hardware. Compatible with almost every SBC accessory - The ROCK 3C&#146;s 40-pin header supports a wide range of interface options, offering a plethora of connectivity capabilities making the 3C compatible with huge range of SBC accessories. The dual functionality of many of the pins opens the possibilities for advanced accessories. 1080p display support - With an Arm Mali™ G52 graphics processing unit (GPU) at its heart, the ROCK 3C is perfect for multimedia applications, such as videos, and signage. The board benefits from camera and display interfaces, HDMI 2.0 port supporting display up to 1080p resolution, near-CD-quality audio output through a 4-ring 3.5mm audio jack with mic input, and more. Technical Specifications SoC: Rockchip RK3566 Processor: Quad‑core Arm® Cortex®‑A55 (ARMv8) 64‑bit @ 1.6GHz GPU: Arm Mali™‑G52‑2EE GPU, supporting OpenGL® ES1.1/2.0/3.2, Vulkan® 1.1, OpenCL™ 2.0 Memory: 32-bit LPDDR4 1GB RAM Power Requirements: The ROCK 3C&#146;s recommended power source capacity is at least 5V/3A without M.2 SSD or 5V/4A using with M.2 SSD, USB Type‑C® 5V, or 5V Power applied to the GPIO PIN 2 & 4. HDMI: 1x HDMI 2.0 port supporting display up to 1080p resolution USB: 2x USB2 HOST ports - The upper middle port can be used as USB2 OTG/HOST port, 1x USB3 HOST port. Connectivity: M.2 M‑Key 2230 connector with PCIe 2.1 1‑lane and SATA 3.0 combo interfaces, providing high-speed storage access. MIPI: 1x 2 lane DSI, 1x 2 lane CSI Storage: eMMC UARTS: 5x UART External Antenna: NO Software: ARMv8 Instruction Set, Debian/Ubuntu Linux support, Android 11 support, Hardware access/control library for Linux/Android. Temperature: Operation temperature: 0∼50 ℃ Let's work together OKdo has manufacturing capabilities and technical engineering consultants to support long-term stock availability and design longevity. If you would like to collaborate on your next project, let&#146;s design the future together: contact sales@okdo.com

The ROCK 4C+ is a reliable, multifunctional and high-performing single-board computer based on a robust Rockchip RK3399T SoC, Dual Cortex® A72 CPU and Arm Mali™ T860MP4 GPU. Developed by OKdo Technology in collaboration with Radxa, the board incorporates class-leading functionality suitable for multiple multimedia and industrial applications, ensuring outstanding reliability.<BR/><BR/>With the onboard On/Off power button, ROCK 4C+ is an energy-efficient single-board computer. It also features multiple storage capabilities, such as 4GB 64-bit RAM and eMMC socket, an integrated fan control, an external antenna, an audio jack, dual-display support and two micro-HDMI ports supporting displays up to 4Kp60 resolution.<BR/><BR/>ROCK 4C+ is extremely practical, as it is compatible with multiple software options, including Android, Debian/Ubuntu Linux, the full implementation of the Arm architecture v8A instructions set, and others. The 40P GPIO extension supports a wide range of interface options, providing the board with high connectivity capabilities, such as Bluetooth 5.0 with BLE, Gigabit Ethernet and Wireless LAN and extensive compatibility with a wide range of accessories. What are the main benefits of the ROCK 4C+? On board on/off power button<BR/>Integrated fan control forthermal management<BR/>Dual-display support <BR/>Two micro-HDMI ports supporting displays up to 4Kp60 resolution<BR/>Multiple connectivity capabilities so less add on hardware required, including Bluetooth 5.0 with BLE, Gigabit Ethernet & Wireless LAN<BR/>A 40P GPIO expansion header provides extensive compatibility with a wide range of accessories<BR/>Get more multiple memory options, including 4GB RAM and a speed eMMC socket Key technical features of the ROCK 4C+: Rockchip RK3399T SoC<BR/>Arm® big.LITTLE™ technology (Dual Cortex®-A72 frequency 1.5GHz and a Quad Cortex-A53 frequency 1.0GHz)<BR/>Arm Mali™ T860MP4 GPU, supporting OpenGL® ES 1.1 /2.0 /3.0 /3.1 /3.2, Vulkan® 1.0, Open CL® 1.1 1.2, DirectX® 11.1 <BR/>Dual Arm Cortex – M0 <BR/>Dual channel 4GB 64bit LPDDR4<BR/>eMMC connectors <BR/>Display supporting mirror and extended modes<BR/>Dual micro-HDMI <BR/>MIPI DSI <BR/>H.265/VP9 (HEVC) hardware decode (up to 4Kp60) <BR/>H.264 hardware decode (up to 1080p60) <BR/>USB TypeC™ power input Interfaces: 802.11 b/g/n/ac (WiFi 5) Wireless LAN <BR/>Bluetooth 5.0 with BLE <BR/>1 x micro-SD card slot <BR/>2 x HDMI ports supporting displays up to 4Kp60 resolution and 2Kp60<BR/>2 x USB2 HOST ports <BR/>1 x USB3 OTG/HOST port, 1x USB3 HOST port <BR/>1 x Gigabit Ethernet port (supports PoE with addon PoE HAT)<BR/>1 x camera port (2lane MIPI CSI) <BR/>1 x display port (4lane MIPI DSI)<BR/>40 x user GPIO supporting a wide range of interface options: 2 x UART, 2 x SPI bus, 2 x I2C bus, 1 x PCM/I2S, 1 x SPDIF, 1 x PWM, 1 x ADC, 6 x GPIO, 2 x 5V DC power in, 2 x 3.3V power pin. Supported software: Full implementation of the Arm architecture v8A instructions set, Arm NEON Advanced SIMD (single instructions, multiple data) support for accelerating media and signal processing <BR/>Armv8 cryptography extensions <BR/>TrustZone® technology support<BR/>Debian/Ubuntu Linux support <BR/>Android 7.1/Android 5.0/Android 10/Android 11 support<BR/>GPU enabled Al stack <BR/>Hardware access/control library for Linux/Android

This USB cable features a standard Type-A USB connector on one end and a Type-B (Micro) connector on the other. The Type-A connector can be plugged into a computer, with the Micro Type-B connector into a Type-B port. <BR/>Devices like micro:bits, mobile phones, MP3 players, tablets, digital cameras and digital camcorders often have Micro Type-B ports. Features: <BR/>• USB 2.0 A MALE TO MICRO B MALE <BR/>• 28 AWG <BR/>• 1 metre <BR/>• PVC jacket <BR/>• Protective braiding <BR/>• Data and power capability

The Okdo fiberglass antenna will help to achieve optimal transmission and reception when attached to IoT equipment. The slim pole design can easily be attached to multiple surfaces using the clamp set included in the kit that fits around the grooves in the metal end of the aerial. It is typically used at the gateway side of a network link, this range of OKdo antennas could also be used with remote devices if dimensions are suitable. Frequency Range - 868MHz<BR/>Polarization - Vertical<BR/>Gain - 7 ± 1d Bi<BR/>Horizontal Beam width - 360°<BR/>Vertical Beam width - 50°<BR/>VSWR - ≤1.8<BR/>Nominal Impedance - 50Ω<BR/>Maximum Power - 50W

The Okdo Lona antenna cable used to connect an antenna with N-Type male connector to equipment fitted with an RP-SMA connector. This cable is manufactured from low loss components with excellent performance and long service life. Characteristic impedance - 50±2Ohm<BR/>Rated capacitance - 78±2 pf/m<BR/>Velocity - 81%<BR/>Operating frequency - 10 to 3000MHz

The Okdo Lona antenna cable used to connect an antenna with N-Type male connector to equipment fitted with an RP-SMA connector. This cable is manufactured from low loss components with excellent performance and long service life. Characteristic impedance - 50±2Ohm<BR/>Rated capacitance - 78±2 pf/m<BR/>Velocity - 81%<BR/>Operating frequency - 10 to 3000MHz

The Okdo Lona antenna cable used to connect an antenna with N-Type male connector to equipment fitted with an RP-SMA connector. This cable is manufactured from low loss components with excellent performance and long service life. Characteristic impedance - 50±2Ohm<BR/>Rated capacitance - 78±2 pf/m<BR/>Velocity - 81%<BR/>Operating frequency - 10 to 3000MHz

The Okdo fiberglass antenna will help to achieve optimal transmission and reception when attached to IoT equipment. The slim pole design can easily be attached to multiple surfaces using the clamp set included in the kit that fits around the grooves in the metal end of the aerial. It is typically used at the gateway side of a network link, this range of OKdo antennas could also be used with remote devices if dimensions are suitable. Frequency Range - 858-878MHz<BR/>Polarization - Vertical<BR/>Gain - 8 ± 1d Bi<BR/>Horizontal Beam width - 360°<BR/>Vertical Beam width - 50°<BR/>VSWR - ≤1.8<BR/>Nominal Impedance - 50Ω<BR/>Maximum Power - 50W

The Okdo fiberglass antenna will help to achieve optimal transmission and reception when attached to IoT equipment. The slim pole design can easily be attached to multiple surfaces using the clamp set included in the kit that fits around the grooves in the metal end of the aerial. It is typically used at the gateway side of a network link, this range of OKdo antennas could also be used with remote devices if dimensions are suitable. Frequency Range - 900-930MHz<BR/>Polarization - Vertical<BR/>Gain - 7 ± 1d Bi<BR/>Horizontal Beam width - 360°<BR/>Vertical Beam width - 50°<BR/>VSWR - ≤1.8<BR/>Nominal Impedance - 50Ω<BR/>Maximum Power - 50W
