7805 Linear Voltage Regulator, ON Semiconductor This remarkable ON Semiconductor linear voltage regulator comes under the 7805 family. These products are monolithic integrated circuits designed as fixed-voltage regulators for a wide range of applications including local, on-card regulation. The positive 7805 voltage regulator requires no external components and they incorporate internal thermal overload protection and current limiting plus safe area compensation. Output Voltage 5 VInternal Short Circuit Current LimitingOutput Transistor Safe-Area CompensationPb-Free Packages availableTolerances on the Output Voltage: 2% and 4%

Bridge Rectifiers with Push-on Terminals, GBPC 35 Series, Fairchild Semiconductor High Current 35 AmperesGlass Passivated junctionIntegrally molded heat-sink provided very low thermal resistance for maximum heat dissipationFast-on Terminals

Zener Diodes 225mW, BZX84, SZBZX84 Series, ON Semiconductor

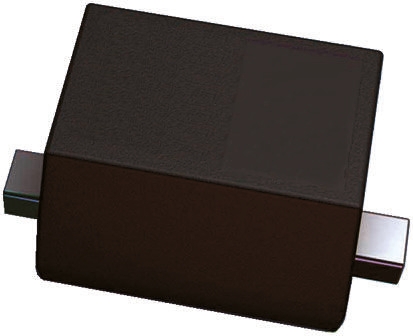

Zener Diodes 500mW, MM5ZxxxT1G / SZMM5ZxxxT1G Series, ON Semiconductor Surface Mount case: SOD-523

The ON Semiconductor Gate Driver are isolated dual−channel gate drivers with 4.5−A/9−A source and sink peak current respectively. They are designed for fast switching to drive power MOSFETs, and SiC MOSFET power switches. The NCP51561 offers short and matched propagation delays. Two independent and 5 kVrms internal galvanic isolation from input to each output and internal functional isolation between the two output drivers allows a working voltage of up to 1500 VDC. This driver can be used in any possible configurations of two low side, two high−side switches or a half−bridge driver with programmable dead time. An ENA/DIS pin shutdowns both outputs simultaneously when set low or high for ENABLE or DISABLE mode respectively. The NCP51561 offers other important protection functions such as independent under−voltage lockout for both gate drivers and a Dead Time adjustment function. 4.5 A Peak Source, 9 A Peak Sink Output Current CapabilityFlexible: Dual Low−Side, Dual High−Side or Half−Bridge Gate DriverIndependent UVLO Protections for Both Output DriversOutput Supply Voltage from 6.5 V to 30 V with 5−V and 8−V for MOSFET, 13−V and 17−V UVLO for SiC, Thresholds.Common Mode Transient Immunity CMTI > 200 V/nsPropagation Delay Typical 36 ns with 5 ns Max Delay Matching per Channel and 5 ns Max Pulse−Width DistortionUser Programmable Input Logic Single or Dual−Input Modes via ANB and ENABLE or DISABLE ModeUser Programmable Dead−Time

ON Semiconductor Schottky Barrier Diodes This ON Semiconductor Schottky power rectifier employs the Schottky barrier principle using a barrier metal to create the best forward voltage drop−reverse current exchange. Suitable for low voltage, high-frequency rectification as well as a freewheeling and polarity protection diode in a range of surface mount applications wherever a more compact size and weight are key. • Pb-Free• Designed for Optimal Automated Board Assembly• Stress protection guarding• Epoxy Moulded Case• Lightweight 11.7mg package

MC78L00A Linear voltage regulator, ON Semiconductor This remarkable ON Semiconductor 5-volt linear voltage regulator comes under the MC78L00A family. These products are monolithic integrated circuits designed as fixed-voltage regulators for a wide range of applications including local, on-card regulation. The positive voltage regulator requires no external components and incorporates internal thermal overload protection and current limiting plus safe area compensation. There is no need for external components although it is possible to adjust the voltage and current with external devices.

Bridge Rectifiers with Push-on Terminals, GBPC 25 Series, Fairchild Semiconductor High Current 25AGlass Passivated die constructionIntegrally molded heat-sink provided very low thermal resistance for maximum heat dissipationIsolated voltage from case to lead over 2500VFast-on Terminals

ON Semiconductor Schottky Barrier Diodes This ON Semiconductor Schottky power rectifier employs the Schottky barrier principle using a barrier metal to create the best forward voltage drop−reverse current exchange. Suitable for low voltage, high-frequency rectification as well as a freewheeling and polarity protection diode in a range of surface mount applications wherever a more compact size and weight are key. • Pb-Free• Designed for Optimal Automated Board Assembly• Stress protection guarding• Epoxy Moulded Case• Lightweight 11.7mg package

The On Semiconductor, designed to be inserted between a board that contains a Type-C controller and a source of voltage for OVP testing, test points and header switches are ready to test OVP and moisture detection functions on CC and SBU, LED indicators will show power status and Interrupt, if there is not access to a Type-C voltage source, test points (GND and VDD) are available on the board for direct power supply connections, the Type-C receptacle can accept a Type-C device such as Type-C charger or memory stick to demonstrate normal USB functionality. Dead battery mode provides default Rd presenting on CC1/224volt DC tolerant on CC and SBU35V surge protection on CC and SBUOver voltage protection on CC and SBUI2C interface with Interrupt for event notificationMoisture detection on CC and SBU pinsOn-chip IEC ESD protection with external capacitor on CAP pinCC Ron 0.3 ohm TypicalSBU Ron 3 ohm Typical50Mhz Bandwidth on SBU switch

The ON Semiconductor NCV1362ABDR2G is a highly integrated primary side quasi−resonant flyback controller capable of controlling rugged and high−performance off−line power supplies. This controller saves the secondary feedback circuitry for Constant Voltage and Constant Current regulation, achieving excellent line and load regulation without traditional opto coupler and TL431 voltage reference. The NCV1362 operates in valley lockout quasi−resonant peak current mode control mode at high load to provide high efficiency. The device has Wide Operation VCC Range up to 28 VThe Maximum switching frequency for this device is 110kHzIt offers CS & VS/ZCD pin short and open protectionThe device has an internal temperature shutdown

MC78L00A Linear voltage regulator, ON Semiconductor This remarkable ON Semiconductor 5-volt linear voltage regulator comes under the MC78L00A family. These products are monolithic integrated circuits designed as fixed-voltage regulators for a wide range of applications including local, on-card regulation. The positive voltage regulator requires no external components and incorporates internal thermal overload protection and current limiting plus safe area compensation. There is no need for external components although it is possible to adjust the voltage and current with external devices.
