OSRAM TOPLED Series LEDs - Single Colour The TOPLED series of LEDs, from Osram Opto Semiconductors, are compact and highly reliable LED devices. As Osram&#146;s first SMT LED with an integrated reflector, the TOPLED family of LEDs are ideal for applications such as: indoor/outdoor displays, display backlighting, signal and symbol illumination. The TOPLEDs are also a suitable replacement for micro incandescent bulbs or floor marker lighting.<BR/> 3.4 x 3.0 x 2.1 mm PLCC-2 package size <BR/>Viewing angle 120°

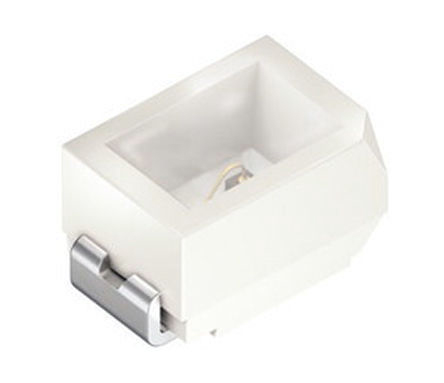

OSRAM Mini TOPLED Series LEDs The Mini TOPLED series of LEDs, from Osram Opto Semiconductors, are small package devices with a high quality, directed light output. The Mini TOPLED LEDs have an integrated reflector and an extremely wide viewing angle. With their high brightness class, the Mini TOPLEDs offer a pleasant white light which is suitable for interior illumination in automotive applications. Their compact form factor makes the Mini TOPLEDs ideal for applications where space is limited, such as: Indoor displays, optical indicators, coupling into light guides, backlighting (LCD, switches, keys, displays, illuminated advertising, general lighting) and interior automotive lighting. (e.g. dashboard backlighting).<BR/> Features of the Mini TOPLED LEDs:<BR/>Compact SMT package<BR/>Dimensions: 1.8 x 2.2 mm<BR/>Viewing angle: 120°<BR/>Operating current: 20mA<BR/>High quality light output<BR/>Long lifetime: 50,000 hours<BR/>ESD stability: 8kV<BR/>Corrosion stability<BR/>Meets automotive industry standards

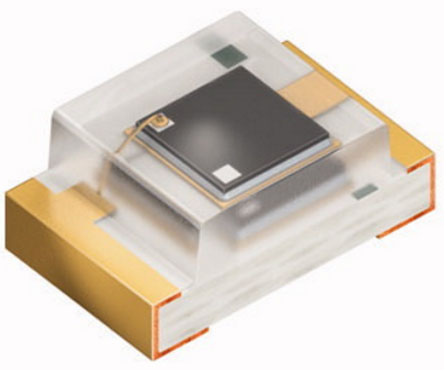

Ambient Light Sensors - Vlambda A range of NPN silicon phototransistors from OSRAM Opto Semiconductors, with improved V lambda characteristics. These compact phototransistors are suitable for a wide range of applications including; ambient light detectors, exposure meters for both daylight and artificial light, sensor for backlight dimming and for control and drive circuits.<BR/> Adapted to human eye sensitivity (Vλ)<BR/>

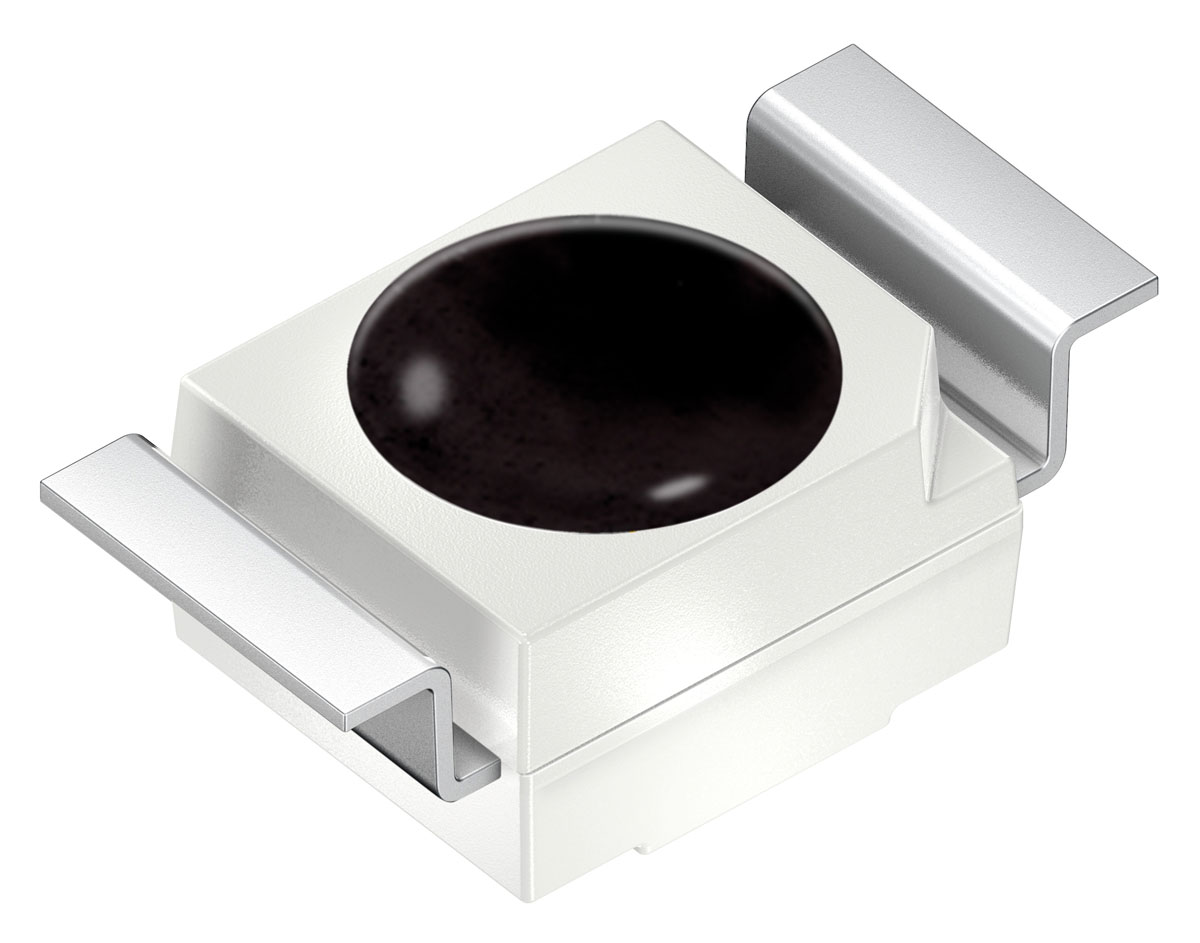

Phototransistor TOPLED® Package

PIN Photodiode - T-1 3/4 (5mm) Package This family of PIN photodiodes, from OSRAM Opto Semiconductors, are in standard T-1 3/4 (5mm) through-hole packages. They have a 1 x 1 mm² radiant sensitive area. The T-1 3/4 package photodiodes offer a short switching time. Suitable applications include high speed photointerrupters, industrial electronics and control and drive circuits. <BR/>

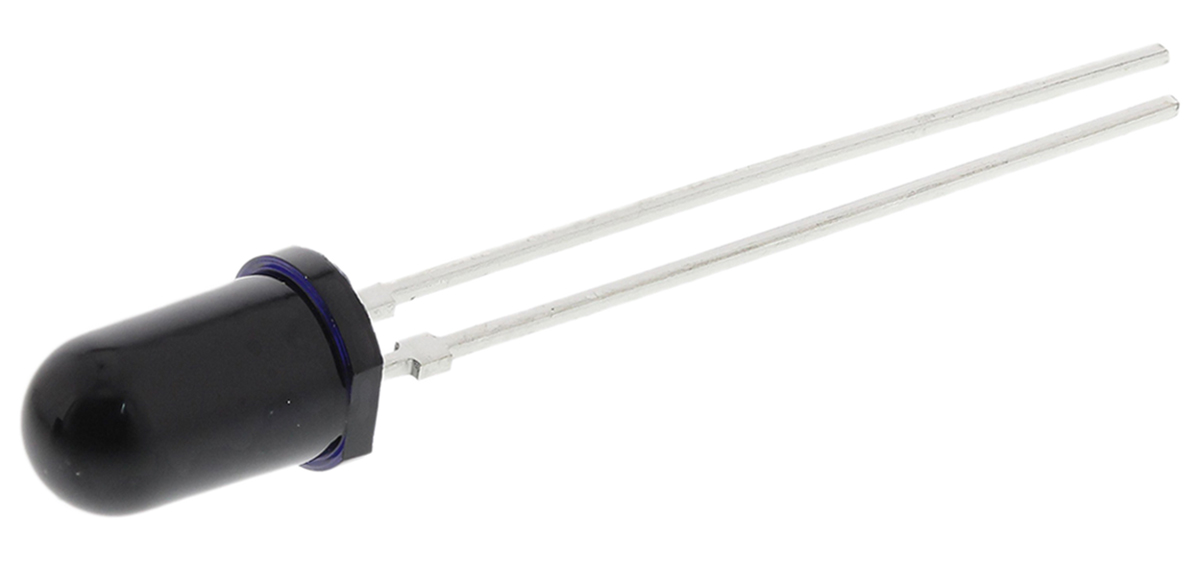

Phototransistor T-1 3/4 (5mm) Package This family of NPN silicon phototransistors, from OSRAM Opto Semiconductors, are a range of 5mm (T-1 3/4) through-hole devices. They have both clear or black plastic lenses, the diffused lenses being used for daylight filters. Suitable applications include; computer-controlled flashes, photointerrupters, industrial electronics and for control/drive circuits.<BR/> 5mm (T-1 3/4) packages<BR/>Through-hole mounting
