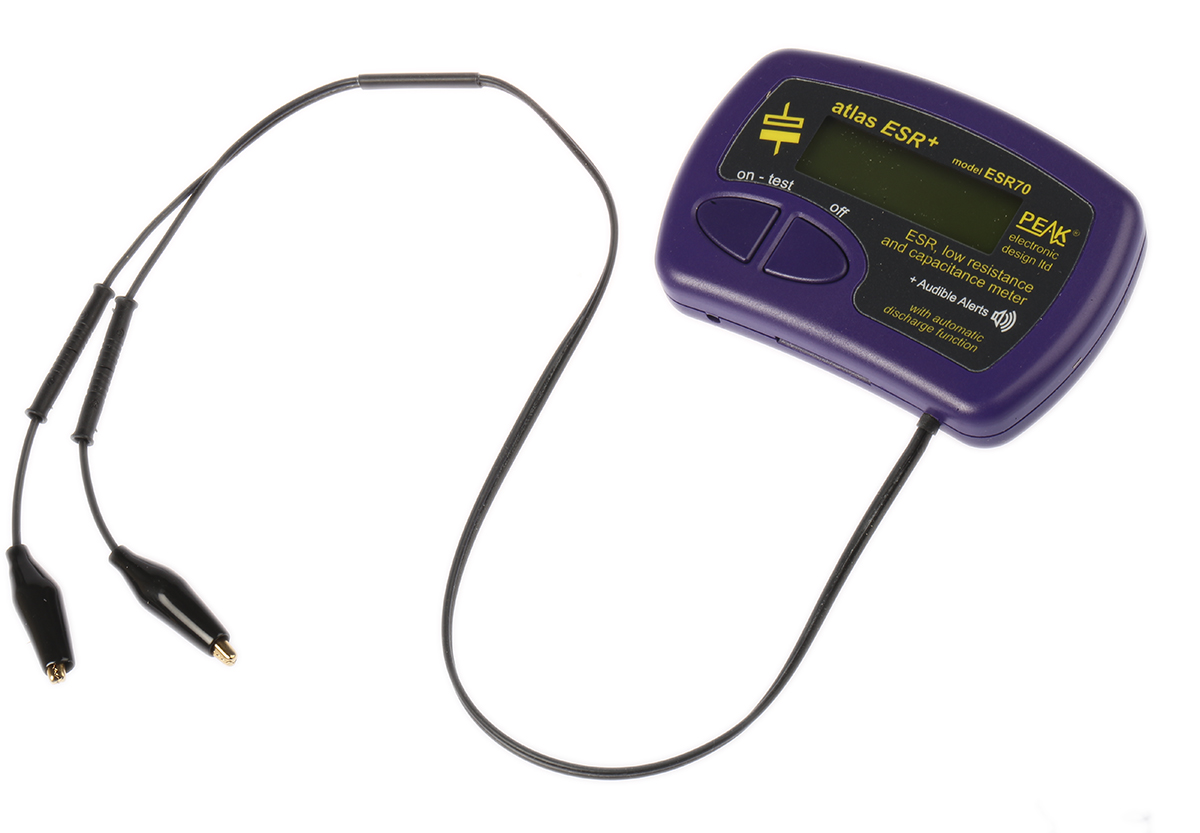

<B>Peak Electronic Design ESR70 Resistance and Capacitance LCR Meter</B> Measuring a capacitor's ESR (equivalent series resistance) is a good indicator of capacitor condition. You can use the Atlas ESR in-circuit, saving you the trouble of removing capacitors. When testing capacitors out-of-circuit, the unit will also display the capacitance. The ESR70 provides instant results when the test button is pressed, a range of tones are produced in feedback of the measurement results. Also included extra-long and extra-flexible test cables (450mm of Silicone covered cable), 2mm plugs and sockets with removeable gold plated crocodile clips, comprehensive illustrated user guide and GP23 Alkaline battery. <B>Features and Benefits:</B> &#149; Resolution down to 0.01 ohms<BR/>&#149; Analyses at industry standard of 100kHz<BR/>&#149; Capable of In-Circuit testing<BR/>&#149; Polarity free, connect any way round<BR/>&#149; ESR range 0.00 to 40 Ohms<BR/>&#149; Protected against highly-charged capacitors<BR/>&#149; Gold plated crocodile probes with 4-wire Kelvin connections<BR/>&#149; ESR70 has a special audio feature to aid quick measurement <BR/>&#149; Automatic analysis-start when you apply the probes.<BR/>&#149; Automatic capacitor discharge using controlled discharge function.<BR/>&#149; ESR (and low DC resistance) measurement (even in-circuit).<BR/>&#149; Optional probe alternatives easily fitted.

Thyristor and Triac Analyser The Atlas SCR will identify the device type, display the pinout and measure gate sensitivity. Connect any way round<BR/>Thyristor and Triac identification<BR/>Automatic pinout identification<BR/>Gate sensitivity checking from 100uA to 90mA<BR/>Load current test up to 100mA<BR/>Shorted junction testing<BR/>Auto power on and power off<BR/>Ultra-slim, compact and robust design
