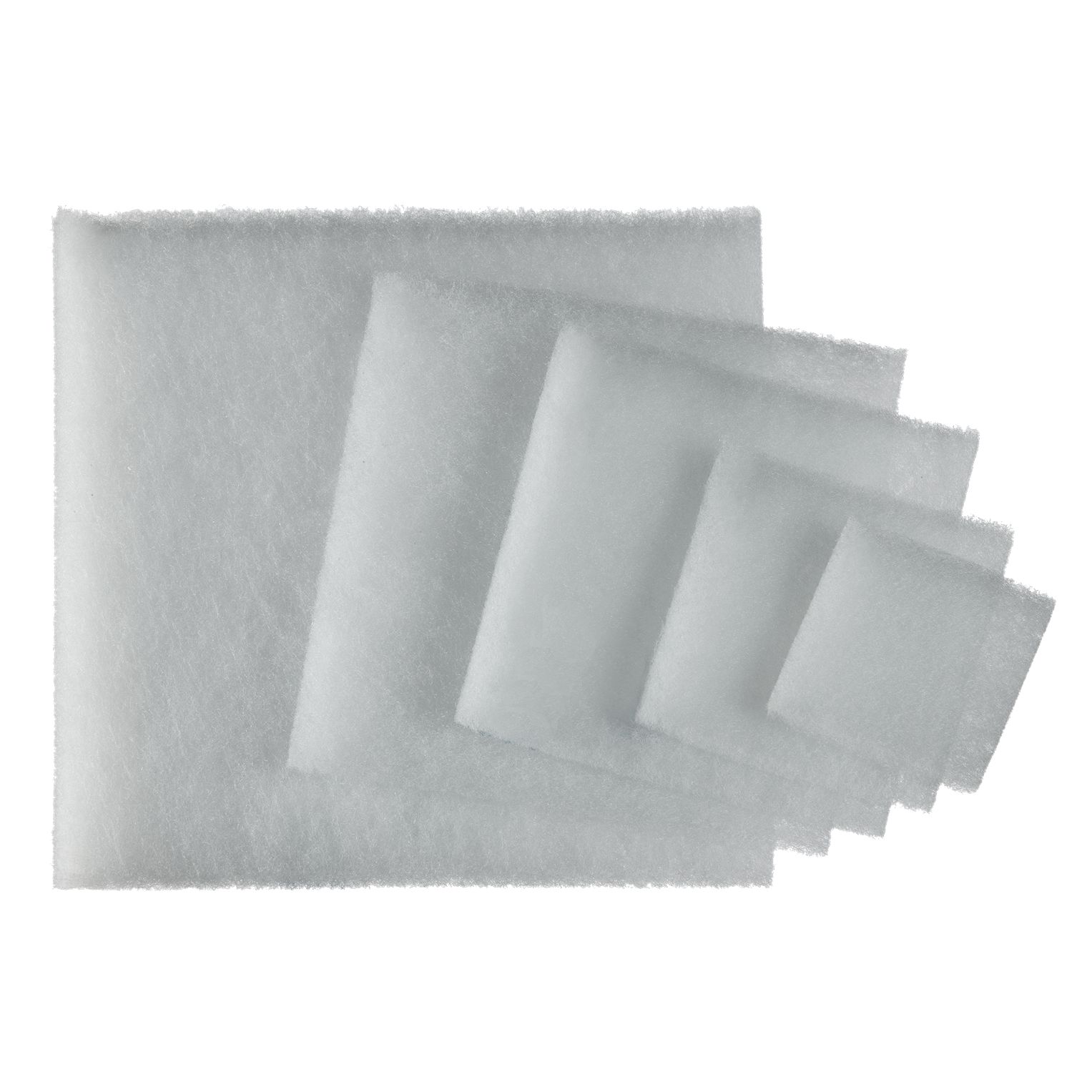

Pfannenberg 3rd Generation Replacement Filter Mats Replacement filter mats for the 3rd generation of Pfannenberg filter fans.

DIN Rail Thermostats - Pfannenberg FLZ Series When used in conjunction with a cabinet heater thermostats can be used to control the temperature inside a control cabinet. These thermostats can also be used with a filter fan to provide benefits in energy consumption, materials and time due to need-based use of the fans. Mechanical bi-metallic thermostat for temperature in enclosures<BR/>Spring contact<BR/>DC max 30W<BR/>Connection by 0.5-2.5mm² screw clamps<BR/>IP20 protection<BR/>Working/storage temperature range -20°C to +80°C<BR/>Mounting method is snap fastening for 35mm profile bars in accordance with EN 60715<BR/>Colour RAL 7035 - light grey

Fan Heater - Pfannenberg FLH 250 Plug-in terminal connection<BR/>Suitable for both 50Hz and 60Hz<BR/>Duty cycle 100%<BR/>Heating element is resistance type with temperature monitor<BR/>Fitting position is airflow vertical, exit at top<BR/>Airflow 50m³/h (50Hz), 61m³/h (60Hz)<BR/>Constructed from aluminium extrusion, clear anodised<BR/>Binding post connection capacity: single filament 2 x 0.5 - 2.5mm²; fine multi-filament (soldered, wire and sleeve, pin terminal) 2 x 0.5 - 1.5mm²<BR/>Snap-in mounting for 35mm DIN-rail in accordance with EN 50022<BR/>Operating temperature -20°C to +70°C<BR/>Storage temperature -40°C to +70°C<BR/>Protection rating IP44

DIN Rail Thermostats - Pfannenberg FLZ Series When used in conjunction with a cabinet heater thermostats can be used to control the temperature inside a control cabinet. These thermostats can also be used with a filter fan to provide benefits in energy consumption, materials and time due to need-based use of the fans. Mechanical bi-metallic thermostat for temperature in enclosures<BR/>Spring contact<BR/>DC max 30W<BR/>Connection by 0.5-2.5mm² screw clamps<BR/>IP20 protection<BR/>Working/storage temperature range -20°C to +80°C<BR/>Mounting method is snap fastening for 35mm profile bars in accordance with EN 60715<BR/>Colour RAL 7035 - light grey

DIN Rail Thermostats - Pfannenberg FLZ Series When used in conjunction with a cabinet heater thermostats can be used to control the temperature inside a control cabinet. These thermostats can also be used with a filter fan to provide benefits in energy consumption, materials and time due to need-based use of the fans. Mechanical bi-metallic thermostat for temperature in enclosures<BR/>Spring contact<BR/>DC max 30W<BR/>Connection by 0.5-2.5mm² screw clamps<BR/>IP20 protection<BR/>Working/storage temperature range -20°C to +80°C<BR/>Mounting method is snap fastening for 35mm profile bars in accordance with EN 60715<BR/>Colour RAL 7035 - light grey

Radiant Heaters - Pfannenberg FLH Series Suitable for both 50Hz or 60Hz operation<BR/>Duty cycle 100%<BR/>Heating element is PTC (positive temperature coefficient), temperature regulating<BR/>Can be mounted in any position (vertical preferred)<BR/>Made from extruded aluminium section, clear anodised<BR/>Plug-in terminal connection<BR/>Cable connection capacity: solid 2 x 0.5 - 2.5mm²; fine stranded (tinned, with bootlace ferrule or crimp pin) 2 x 0.5 - 1.5mm²<BR/>DIN-rail mounting (EN 50022 35mm)<BR/>Operating temperature -20°C to +70°C<BR/>Storage temperature -40°C to +70°C<BR/>Environmental rating IP20

Fan Heater - Pfannenberg FLH 400 Plug-in terminal connection<BR/>Suitable for both 50Hz and 60Hz<BR/>Duty cycle 100%<BR/>Heating element is resistance type with temperature monitor<BR/>Mounting position is airflow vertical, exit at top<BR/>Airflow 50m³/h (50Hz), 61m³/h (60Hz)<BR/>Constructed from aluminium extrusion, clear anodised<BR/>Binding post connection capacity: single filament 2 x 0.5 - 2.5mm²; fine multi-filament (soldered, wire and sleeve, pin terminal) 2 x 0.5 - 1.5mm²<BR/>Snap-in mounting for 35mm DIN-rail in accordance with EN 50022<BR/>Operating temperature -20°C to +70°C<BR/>Storage temperature -40°C to +70°C

Fan Heater - Pfannenberg FLH 400 Plug-in terminal connection<BR/>Suitable for both 50Hz and 60Hz<BR/>Duty cycle 100%<BR/>Heating element is resistance type with temperature monitor<BR/>Mounting position is airflow vertical, exit at top<BR/>Airflow 50m³/h (50Hz), 61m³/h (60Hz)<BR/>Constructed from aluminium extrusion, clear anodised<BR/>Binding post connection capacity: single filament 2 x 0.5 - 2.5mm²; fine multi-filament (soldered, wire and sleeve, pin terminal) 2 x 0.5 - 1.5mm²<BR/>Snap-in mounting for 35mm DIN-rail in accordance with EN 50022<BR/>Operating temperature -20°C to +70°C<BR/>Storage temperature -40°C to +70°C

Fan Heater - Pfannenberg FLH 400 Plug-in terminal connection<BR/>Suitable for both 50Hz and 60Hz<BR/>Duty cycle 100%<BR/>Heating element is resistance type with temperature monitor<BR/>Mounting position is airflow vertical, exit at top<BR/>Airflow 50m³/h (50Hz), 61m³/h (60Hz)<BR/>Constructed from aluminium extrusion, clear anodised<BR/>Binding post connection capacity: single filament 2 x 0.5 - 2.5mm²; fine multi-filament (soldered, wire and sleeve, pin terminal) 2 x 0.5 - 1.5mm²<BR/>Snap-in mounting for 35mm DIN-rail in accordance with EN 50022<BR/>Operating temperature -20°C to +70°C<BR/>Storage temperature -40°C to +70°C

DIN Rail Thermostats - Pfannenberg FLZ Series When used in conjunction with a cabinet heater thermostats can be used to control the temperature inside a control cabinet. These thermostats can also be used with a filter fan to provide benefits in energy consumption, materials and time due to need-based use of the fans. Mechanical bi-metallic thermostat for temperature in enclosures<BR/>Spring contact<BR/>DC max 30W<BR/>Connection by 0.5-2.5mm² screw clamps<BR/>IP20 protection<BR/>Working/storage temperature range -20°C to +80°C<BR/>Mounting method is snap fastening for 35mm profile bars in accordance with EN 60715<BR/>Colour RAL 7035 - light grey

DIN Rail Thermostats - Pfannenberg FLZ Series When used in conjunction with a cabinet heater thermostats can be used to control the temperature inside a control cabinet. These thermostats can also be used with a filter fan to provide benefits in energy consumption, materials and time due to need-based use of the fans. Mechanical bi-metallic thermostat for temperature in enclosures<BR/>Spring contact<BR/>DC max 30W<BR/>Connection by 0.5-2.5mm² screw clamps<BR/>IP20 protection<BR/>Working/storage temperature range -20°C to +80°C<BR/>Mounting method is snap fastening for 35mm profile bars in accordance with EN 60715<BR/>Colour RAL 7035 - light grey

Fan Heater - Pfannenberg FLH 250 Plug-in terminal connection<BR/>Suitable for both 50Hz and 60Hz<BR/>Duty cycle 100%<BR/>Heating element is resistance type with temperature monitor<BR/>Fitting position is airflow vertical, exit at top<BR/>Airflow 50m³/h (50Hz), 61m³/h (60Hz)<BR/>Constructed from aluminium extrusion, clear anodised<BR/>Binding post connection capacity: single filament 2 x 0.5 - 2.5mm²; fine multi-filament (soldered, wire and sleeve, pin terminal) 2 x 0.5 - 1.5mm²<BR/>Snap-in mounting for 35mm DIN-rail in accordance with EN 50022<BR/>Operating temperature -20°C to +70°C<BR/>Storage temperature -40°C to +70°C<BR/>Protection rating IP44
