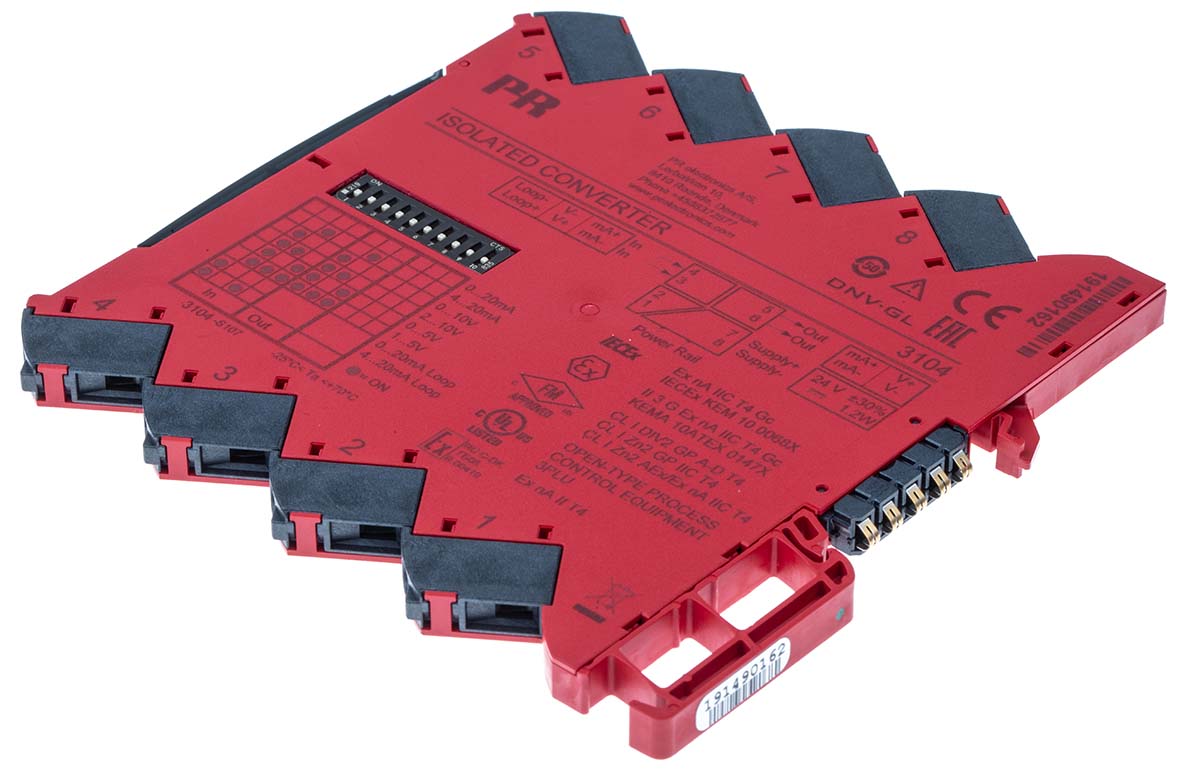

The PR Electronics Isolated converter powered by terminals is for isolation and conversion of standard DC signals. Its inputs and outputs are floating with galvanic separation of analogue current and voltage signals. Easy configuration via DIP switchesFactory calibrated measurement ranges

The PR Electronics Pulse Isolator for transmission of signals from NAMUR sensors and mechanical switches. It is used for extended self diagnostics and detection of cable fault. It can help with monitoring of error events and cable breakage via the individual status relay and/or a collective electronic signal via the power rail. Advanced monitoring of internal communication and stored dataConfiguration and monitoring by way of detachable display front

6334B 2-Wire Programmable Transmitter PR Electronics 6334B intrinsically safe 2-wire programmable temperature transmitter offers unrivalled performance in applications making heavy demands on accuracy to convert a wide array of input types to a 4 – 20 mA output signal. The 6334 transmitters provides unrivalled input versatility with galvanic isolation up to 1.5 kVAC for virtually any thermocouple and bipolar mV signals. Input sensor redundancy function maintains process availability and safety in the event of primary sensor failureThe 6300 series transmitters are quickly and easily programmable to the specific application. Configuration via a standard PC and user-friendly software, PReset, available as a free download. Parameters for input, output, sensor error detection and process calibration can be configured via PReset within a few minutes. Features and Benefits • DIN Rail mounting• Galvanic isolation• Can be installed in Ex zone 0• Sensor drift detection maintains measuring point reliability• Flexible input capability, with choice of output modes• Superior accuracy ensures true, reliable measurements• Fast response time easily supports safety and cost-critical applications• High immunity to conducted noise: tested against 10 Vrms in the range 15 Hz–100 MHz• Continuous check of vital stored data for safety reasons• Runtime meters provide a valuable history of the process temperature and the ambient temperature around the transmitter• Very low temperature coefficient ensuring maximum accuracy across changing ambient conditions

PR Electronics 3185 Loop Powered Isolator 3185 type is a 1 or 2 channel input loop powered isolator. Inputs and outputs are floating and galvanically separated. The converter eliminates ground loops and can be used for measuring floating signals. Also provides surge suppression and protects control systems from transients and noise. Features and Benefits • High basic 0.05% accuracy in all available signal ranges • 2.5 kVAC isolation and have excellent noise immunity • NAMUR NE21 burst A criteria • Transmits rapid changes in process measurements to PLC/DCS for fast and accurate monitoring of critical signals • Low temperature coefficient better than 0.01% / °C in a wide -25 to +70°C ambient temperature range for precise measurements • Long term accuracy better than 0.1% / 3 years with no need for re-calibration • Installation in ATEX Ex zone 2 / IECEx Zone 2 / FM division 2 DIP-switch programming Re-calibration is not needed after changing the DIP-switch range settings. Just change the DIP-switch, cycle the power to the unit and obtain the new, pre-calibrated I/O range. HART programming is enabled for selected devices. Mounting Devices can be mounted both vertically and horizontally with no air gap separation required. The devices snap onto a power rail or DIN rail and are easily detached by lifting the bottom lock. High level of isolation Safe galvanic isolation of 2.5 kVAC provides high noise immunity and prevents ground loops for accurate delivery of the process signal to your control system. Device status indicators A front LED indicates device status, e.g. an error in the set-up, sensor or hardware. Over voltage- / polarity protection All terminals can withstand up to ±31.2 VDC and are protected against incorrect supply wiring to ensure safe, error-free installation.

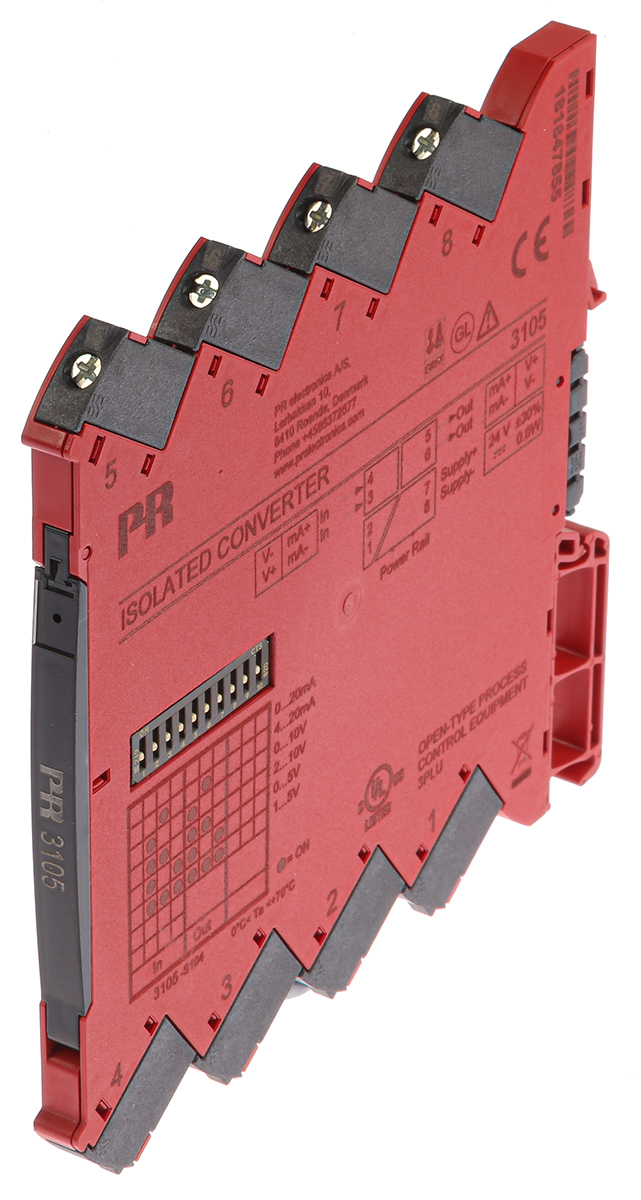

The PR Electronics Isolated converter powered by terminals is for isolation and conversion of standard DC signals. Its inputs and outputs are floating with galvanic separation of analogue current and voltage signals. Easy configuration via DIP switchesLow cost

The PR Electronics Pulse Isolator or Switch Amplifier interfaces a NAMUR sensor to typical control system input cards to provide NPN output. It monitors signal source for cable short circuit or cable break with alarm function on secondary output, power rail and LED status. All terminals are over voltage protectedPolarity protectedShort circuit protected

9202B Type - EX Pulse Isolator PR Electronics 9202B pulse isolator for transmission of signals to the safe area from NAMUR sensors and mechanical switches installed in hazardous areas. This signal conditioning isolator measures one or more pulse inputs and provides an identical number of isolated pulse outputs. The PR 9202B uses transformer and optical isolation techniques to provide 2.6 kV galvanic isolation between the input, output and power terminals. The high level of electrical isolation means that input pulses sensed at the 9202B are not electrically connected to the output pulse. The 9202B has been designed, developed and certified for use in SIL 2 applications according to the requirements of IEC 61508. Besides providing isolation, the PR 9202B is a barrier. This means that the module can make an intrinsically safe measurement of contacts and NAMUR sensors mounted in a zone 0/ Division 1 explosion hazard area. The PR 9202B limits the level of energy present at the contact or the NAMUR sensor to a low intrinsically safe level, thereby preventing ignition of a flammable atmosphere around the sensor – even if the sensor or the cable is damaged. Features and Benefits • Can be mounted in the safe area and in zone 2 / Class 1, Division 2 and receive signals from zone 0, 1, 2 and zone 20, 21, 22 including M1 / Class I/II/III, Division 1, Group A-G.• Configuration and monitoring by way of detachable display front (PR 4501) • 2.6 kVac galvanic isolation between input, output and supply• Selection of direct or inverted function for each channel via PR 4501• Advanced monitoring of internal communication and stored data• Designed, developed and certified for use in SIL 2 applications• Extended self-diagnostics and detection of cable fault • Monitoring of error events and cable breakage via the individual status relay and/or a collective electronic signal via the power rail• Front LED indicates operation status and malfunction• Can be supplied separately or installed on power rail, PR type 9400• DIN rail mounting Programming The 9202B universal transmitters are programmable via the PR 4510 detachable display module (238-0641). The 4510 module allows the programming of the vast array of input and output parameters easily and safely. Together with advanced functions including 2 point calibration, process simulation and diagnostics. With a simple menu and explanatory text the 4510 is extremely straightforward to navigate. Functions are clearly depicted on the 4 line LCD display even in low light conditions. Line 1 shows the input signal, line 2 shows the units, and line 3 shows analogue output or tag number. Line 4 shows the communication and relay status. In addition the 4510 features password protection. Programming access can be blocked by assigning a password which is conveniently saved in the 9202B transmitter. This ensures a high degree of protection is maintained and prevents any unauthorised modifications to the configuration.

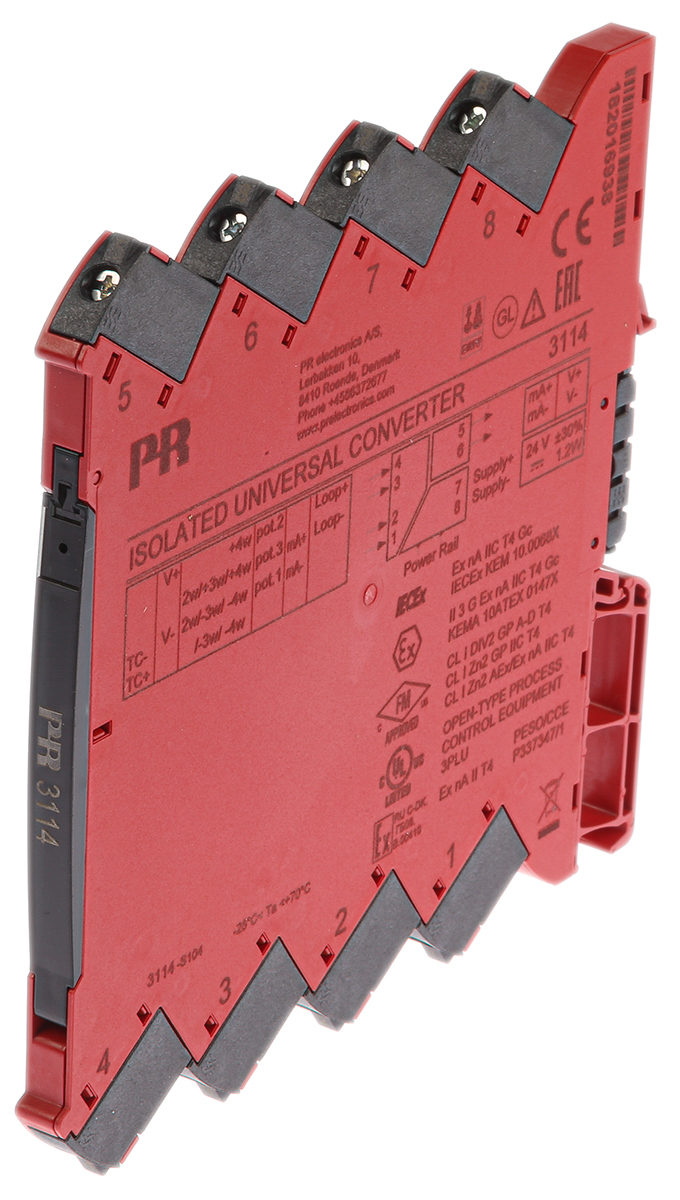

The PR Electronics Isolated universal converter helps with linearized, electronic temperature measurement with RTD or TC sensor. It allows conversion of linear resistance variation to a standard analogue current or voltage signal, that is from solenoids and butterfly valves or linear movements with attached potentiometer. All programming can be password protectedContinuous check of vital stored data for safety reasons

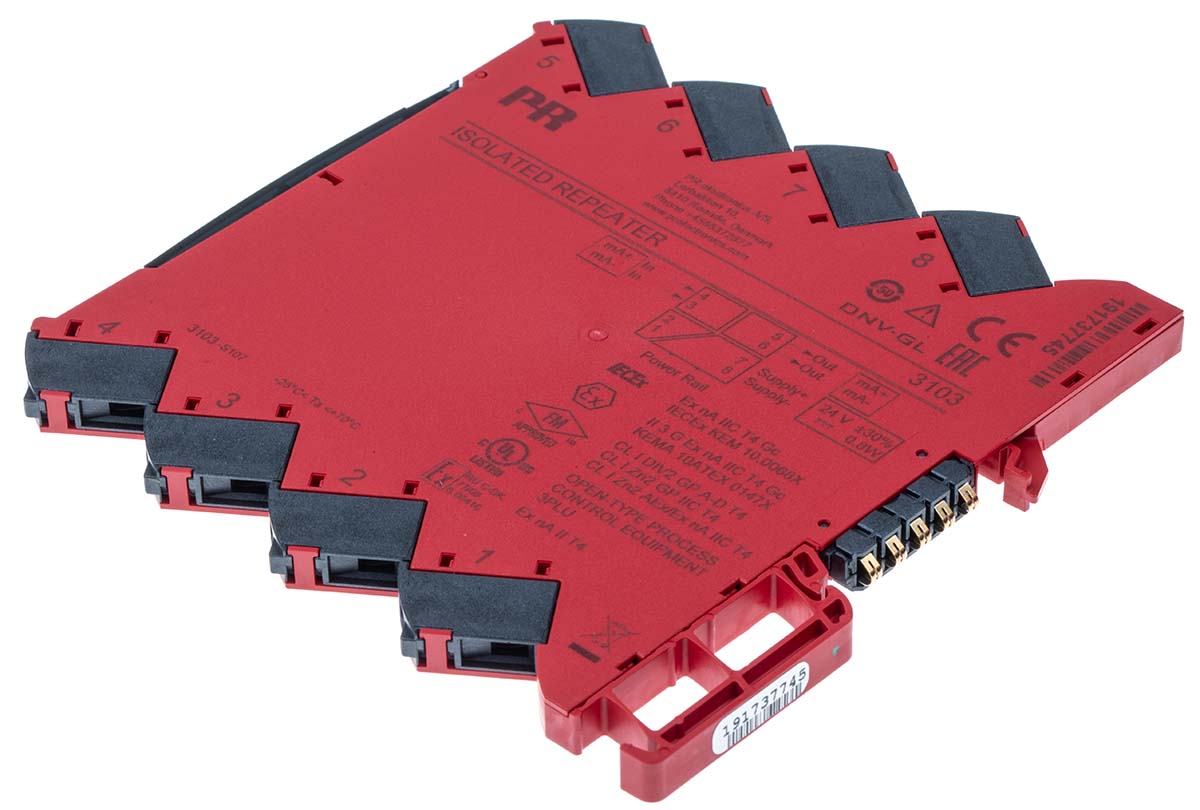

The PR Electronics HART transparent repeater is a one or two channel isolated repeater. The detachable displays and the green and red front LEDs indicate operation status for each channel. It is suitable for monitoring of error events and cable breakage on input via the individual status relay and/or a collective electronic signal via the power rail. Fast responseHigh accuracy

5300 Series - In-Head Temperature Transmitter PR Electronics 5300 series single input temperature transmitter offers unrivalled performance In applications making heavy demands on accuracy to convert a wide array of input types to a 4 – 20 mA output signal. The 5300 series transmitters are quickly and easily programmable to the specific application. Configuration via a standard PC and user-friendly software, PReset, available as a free download. Parameters for input, output, sensor error detection and process calibration can be configured via PReset within a few minutes. Features and Benefits • For DIN form B sensor head mounting• Sensor drift detection maintains measuring point reliability• Flexible input capability, with choice of output modes• Superior accuracy ensures true, reliable measurements• Fast response time easily supports safety and cost-critical applications• High immunity to conducted noise: tested against 10 Vrms in the range 15 Hz–100 MHz• Continuous check of vital stored data for safety reasons• Runtime meters provide a valuable history of the process temperature and the ambient temperature around the transmitter• Very low temperature coefficient ensuring maximum accuracy across changing ambient conditions

9202B Type - EX Pulse Isolator PR Electronics 9202B pulse isolator for transmission of signals to the safe area from NAMUR sensors and mechanical switches installed in hazardous areas. This signal conditioning isolator measures one or more pulse inputs and provides an identical number of isolated pulse outputs. The PR 9202B uses transformer and optical isolation techniques to provide 2.6 kV galvanic isolation between the input, output and power terminals. The high level of electrical isolation means that input pulses sensed at the 9202B are not electrically connected to the output pulse. The 9202B has been designed, developed and certified for use in SIL 2 applications according to the requirements of IEC 61508. Besides providing isolation, the PR 9202B is a barrier. This means that the module can make an intrinsically safe measurement of contacts and NAMUR sensors mounted in a zone 0/ Division 1 explosion hazard area. The PR 9202B limits the level of energy present at the contact or the NAMUR sensor to a low intrinsically safe level, thereby preventing ignition of a flammable atmosphere around the sensor – even if the sensor or the cable is damaged. Features and Benefits • Can be mounted in the safe area and in zone 2 / Class 1, Division 2 and receive signals from zone 0, 1, 2 and zone 20, 21, 22 including M1 / Class I/II/III, Division 1, Group A-G.• Configuration and monitoring by way of detachable display front (PR 4501) • 2.6 kVac galvanic isolation between input, output and supply• Selection of direct or inverted function for each channel via PR 4501• Advanced monitoring of internal communication and stored data• Designed, developed and certified for use in SIL 2 applications• Extended self-diagnostics and detection of cable fault • Monitoring of error events and cable breakage via the individual status relay and/or a collective electronic signal via the power rail• Front LED indicates operation status and malfunction• Can be supplied separately or installed on power rail, PR type 9400• DIN rail mounting Programming The 9202B universal transmitters are programmable via the PR 4510 detachable display module (238-0641). The 4510 module allows the programming of the vast array of input and output parameters easily and safely. Together with advanced functions including 2 point calibration, process simulation and diagnostics. With a simple menu and explanatory text the 4510 is extremely straightforward to navigate. Functions are clearly depicted on the 4 line LCD display even in low light conditions. Line 1 shows the input signal, line 2 shows the units, and line 3 shows analogue output or tag number. Line 4 shows the communication and relay status. In addition the 4510 features password protection. Programming access can be blocked by assigning a password which is conveniently saved in the 9202B transmitter. This ensures a high degree of protection is maintained and prevents any unauthorised modifications to the configuration.

The PR Electronics Isolated converter or splitter is for isolation and conversion of standard DC signals. The input is protected against overvoltage and polarity error and are floating and galvanically separated. DIP switch configuredFactory calibrated measurement ranges
