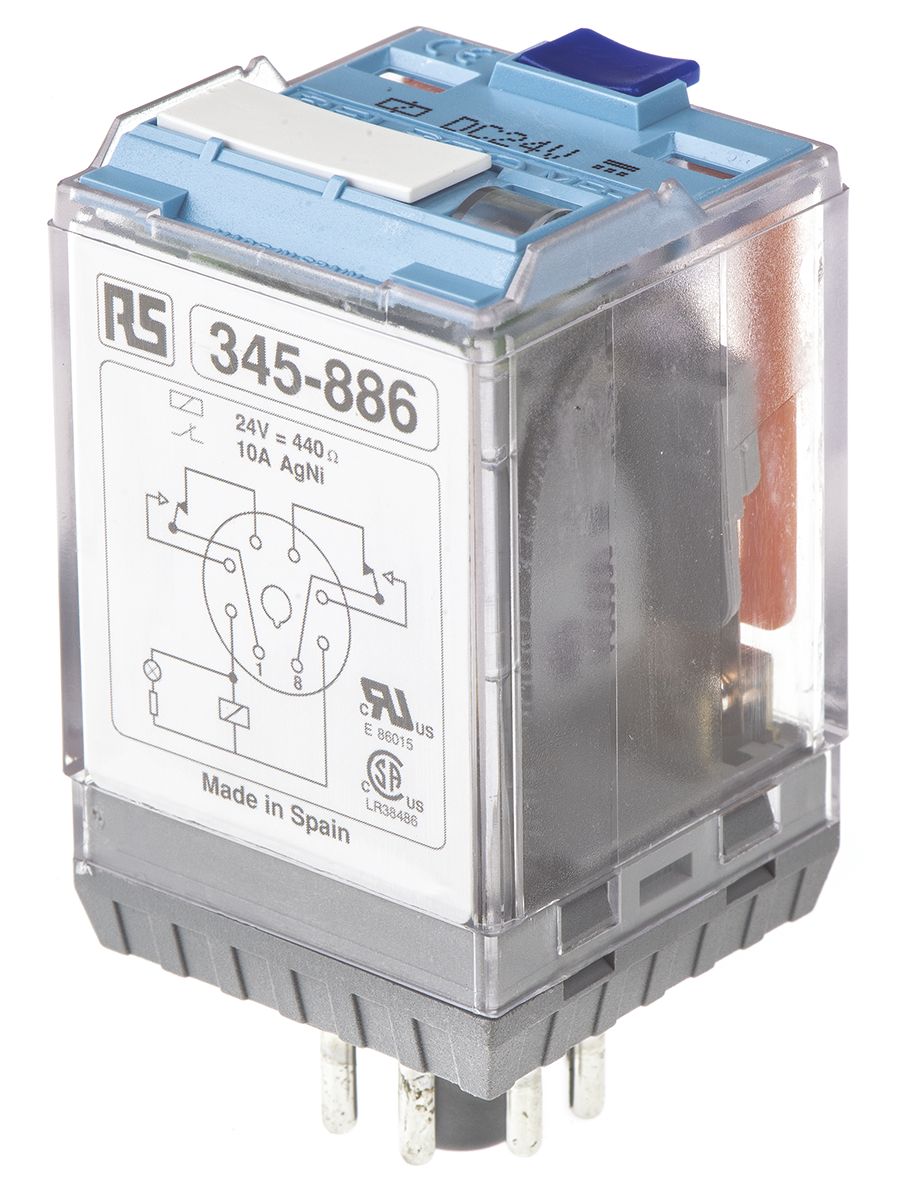

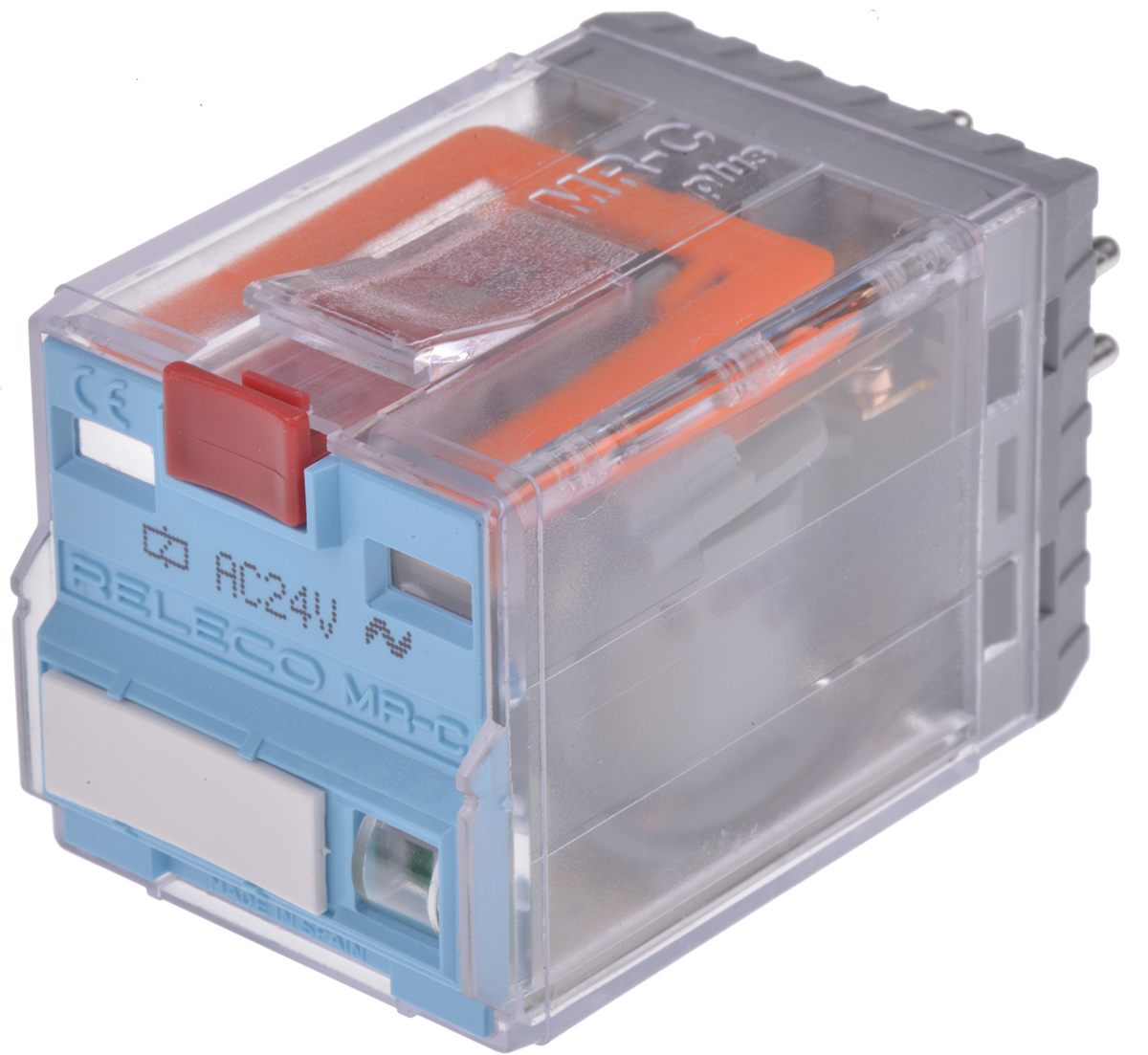

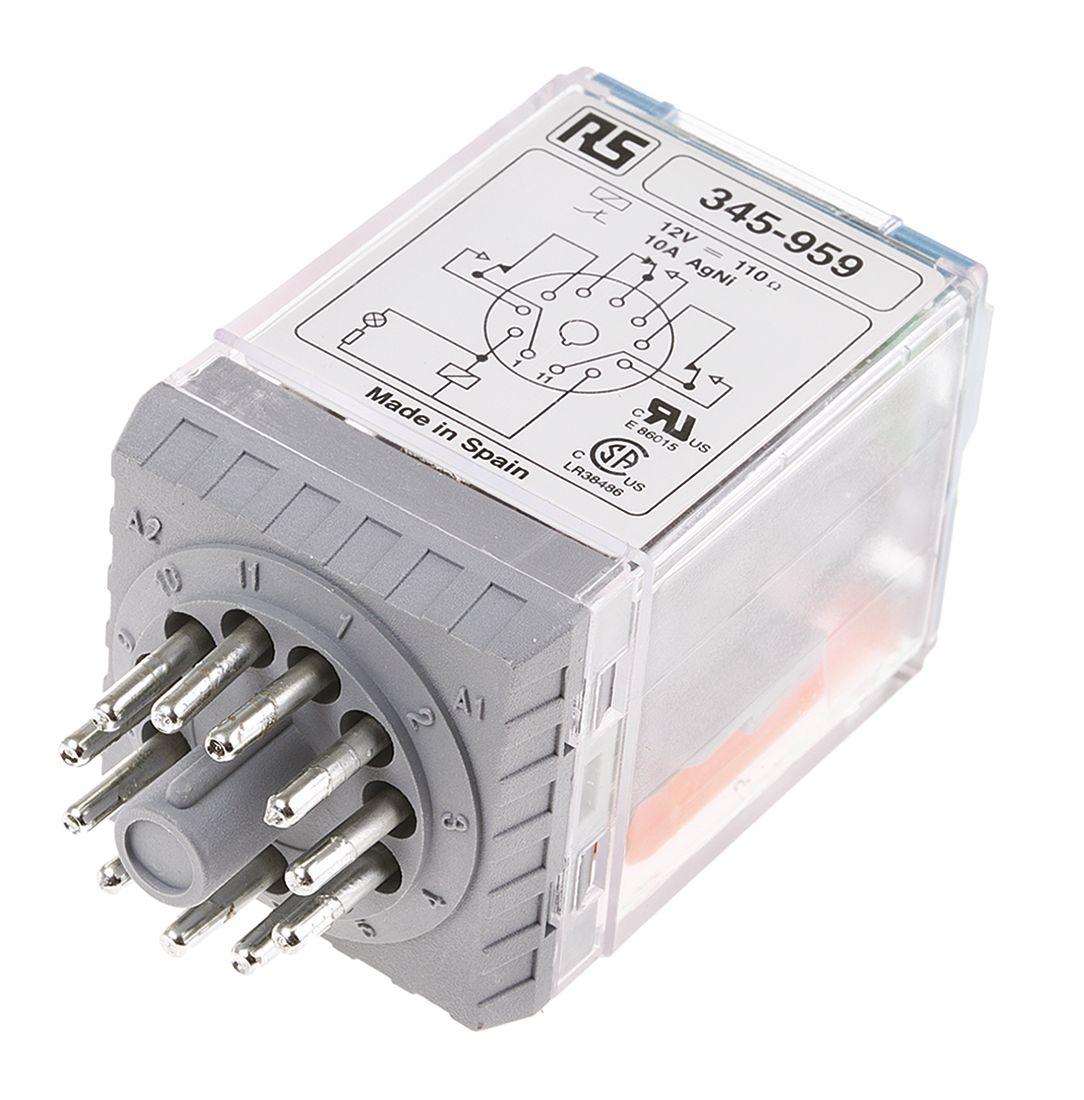

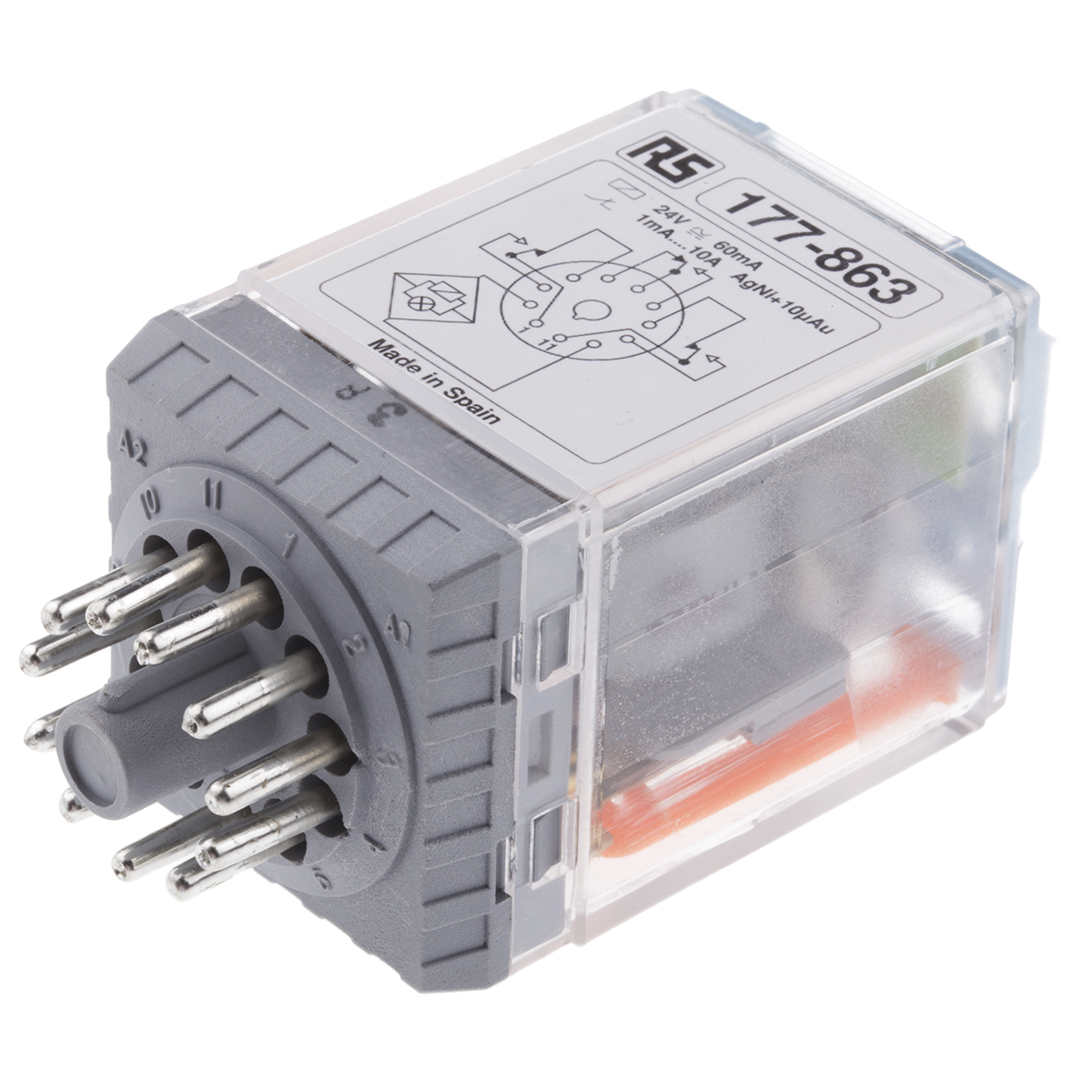

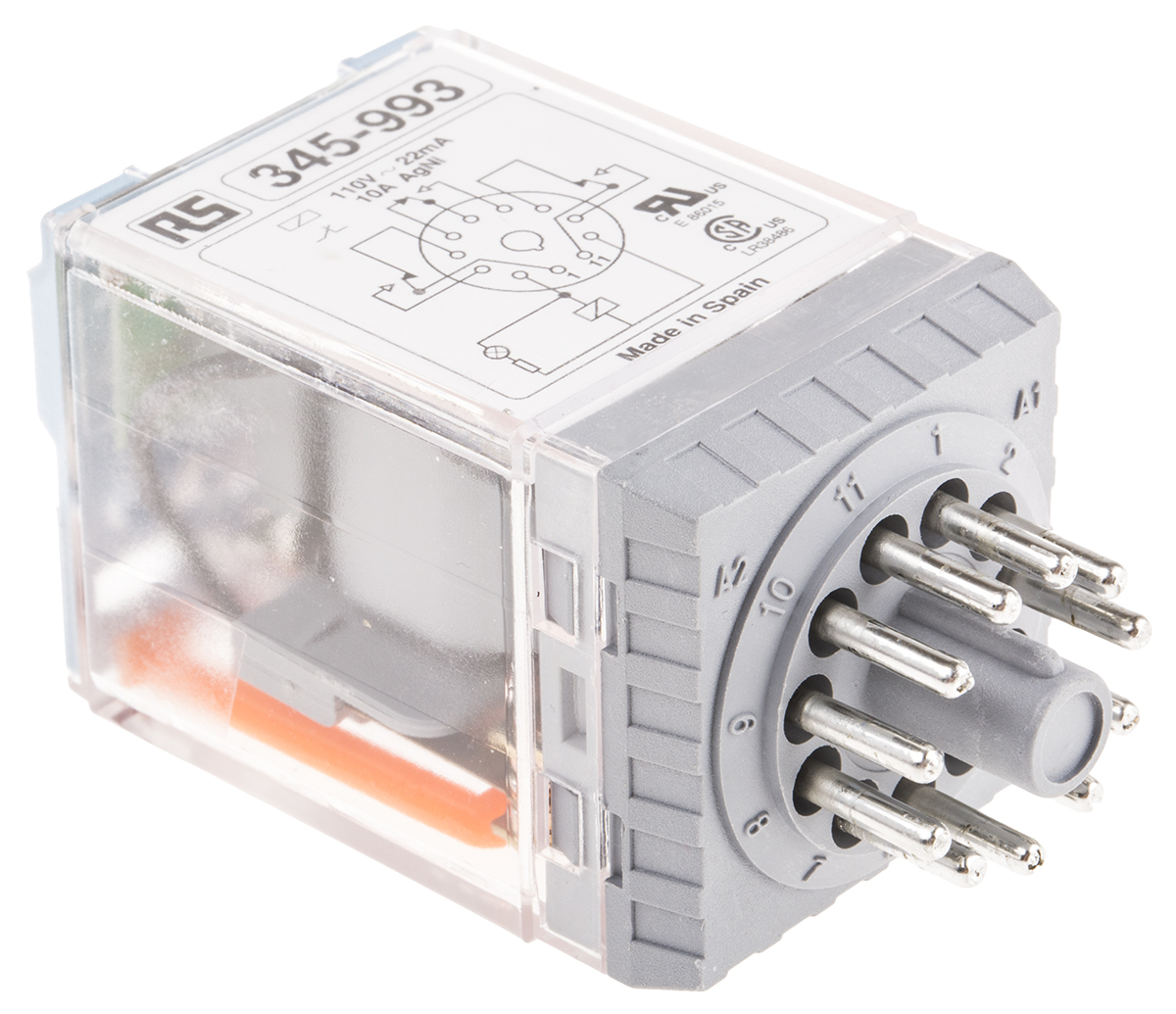

10A Plug-In Relays (8 or 11 Pin) Dual function, colour coded test button push to test or lift to latchMechanical flag indicator and coil LED as standard Operating Temperature Range -20 to +60°CContact material silver-nickel (AgNi)H71, W35, D35mm

10A Plug-In Relays (8 or 11 Pin) Dual function, colour coded test button push to test or lift to latchMechanical flag indicator and coil LED as standard Operating Temperature Range -20 to +60°CContact material silver-nickel (AgNi)H71, W35, D35mm

10A SPNO High DC - C7 Series Relays have a test button, LED indication and mechanical flag indicator fitted as standard. The test button is colour coded and dual function, push to test or lift to latch. A removable marking label is fitted to each relay. The maximum switching voltage is 250Vac and the operating temperature is -20 to +60°C. Double make open contact for improved DC switchingSuitable for 6A @ 110V DC1 or 1A @220V DC1

RELECO DPDT Relay The RELECO C7 series 2-pole PCB mount non-latching relay has a contact configuration of DPDT. It is actuated with a 24VDC coil voltage and 6A switching current. This relay has a test button, LED indicator and mechanical flag indicator. The test button is colour coded and dual function, push to test or lift to latch. A removable marking label is fitted to each relay. Features and Benefits Coil power is 900mWCoil resistance is 594ohmQuick terminal typeOperating temperature ranges between -20°C and 60°CBifurcated contacts for low level signal switchingSuitable for a minimum level of 5mA at 5VDC Certifications ANSI/ESD S20.20:2014 BS EN 61340-5-1:2007

10A Plug-In Relays (8 or 11 Pin) Dual function, colour coded test button push to test or lift to latchMechanical flag indicator and coil LED as standard Operating Temperature Range -20 to +60°CContact material silver-nickel (AgNi)H71, W35, D35mm

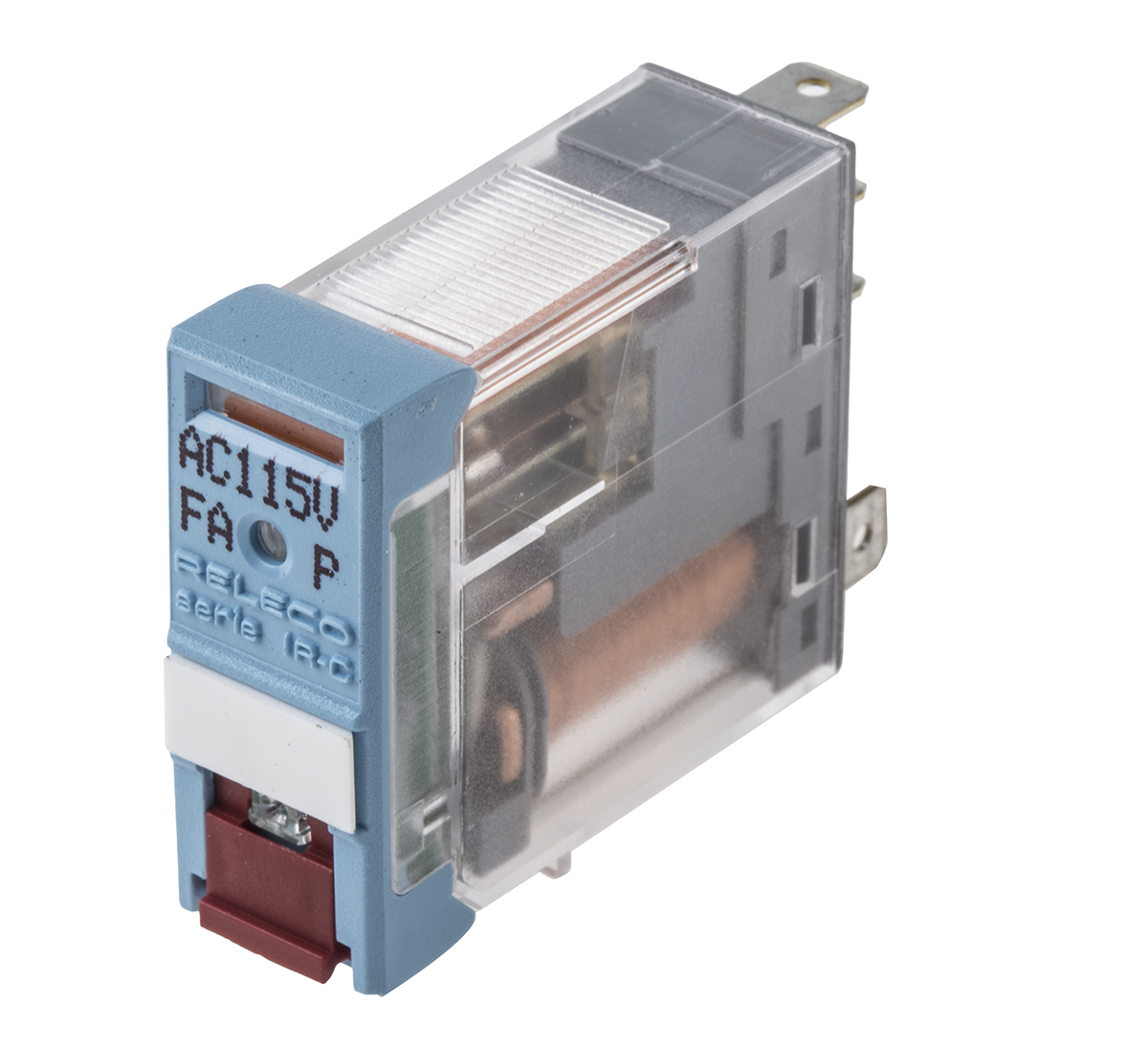

RELECO Non Latching Relay The RELECO C10 series 1-pole plug-in mount non-latching relay has a contact configuration of SPDT. It is actuated with a 230VAC coil and 10A switching current. This relay has a test button, LED indicator and mechanical flag indicator. The test button is colour coded and dual function, push to test or lift to latch. A removable marking label is fitted to each relay. Features and Benefits Coil power is 1.1WDin rail socket is only 16mm wideRobust industrial terminal bladesOperating temperature ranges between -20°C and 60°C Certifications CSAUL approved

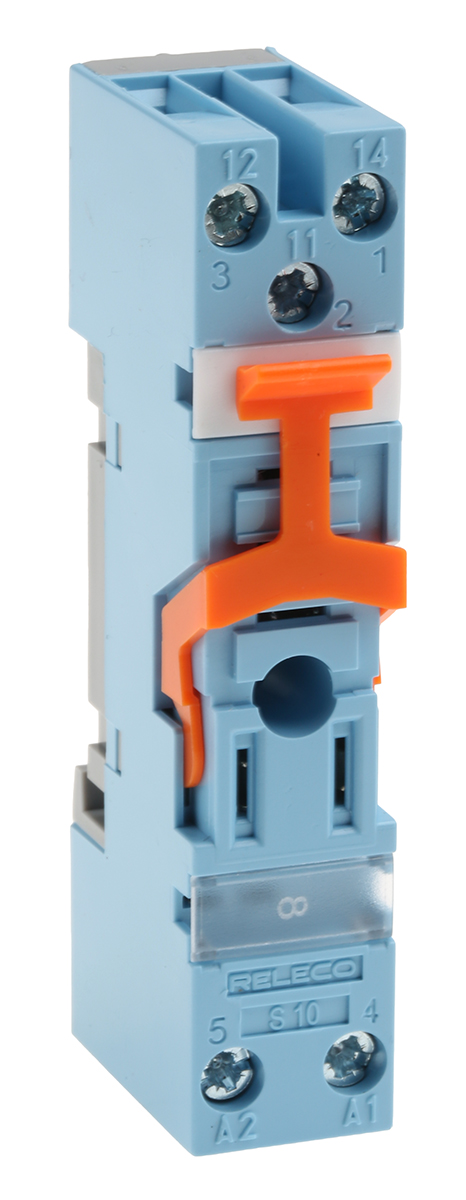

Socket for 11-pin standard relay Socket for use with standard 11 pin plug in relays with an alternative wiring layout.The screw terminals are configured on two levels.One side has the three relay poles and A1 & A2 coil connections.The other side has the connections for the N/O and N/C contacts.The socket is DIN rail mounted and comes complete with orange plastic retaining clip.

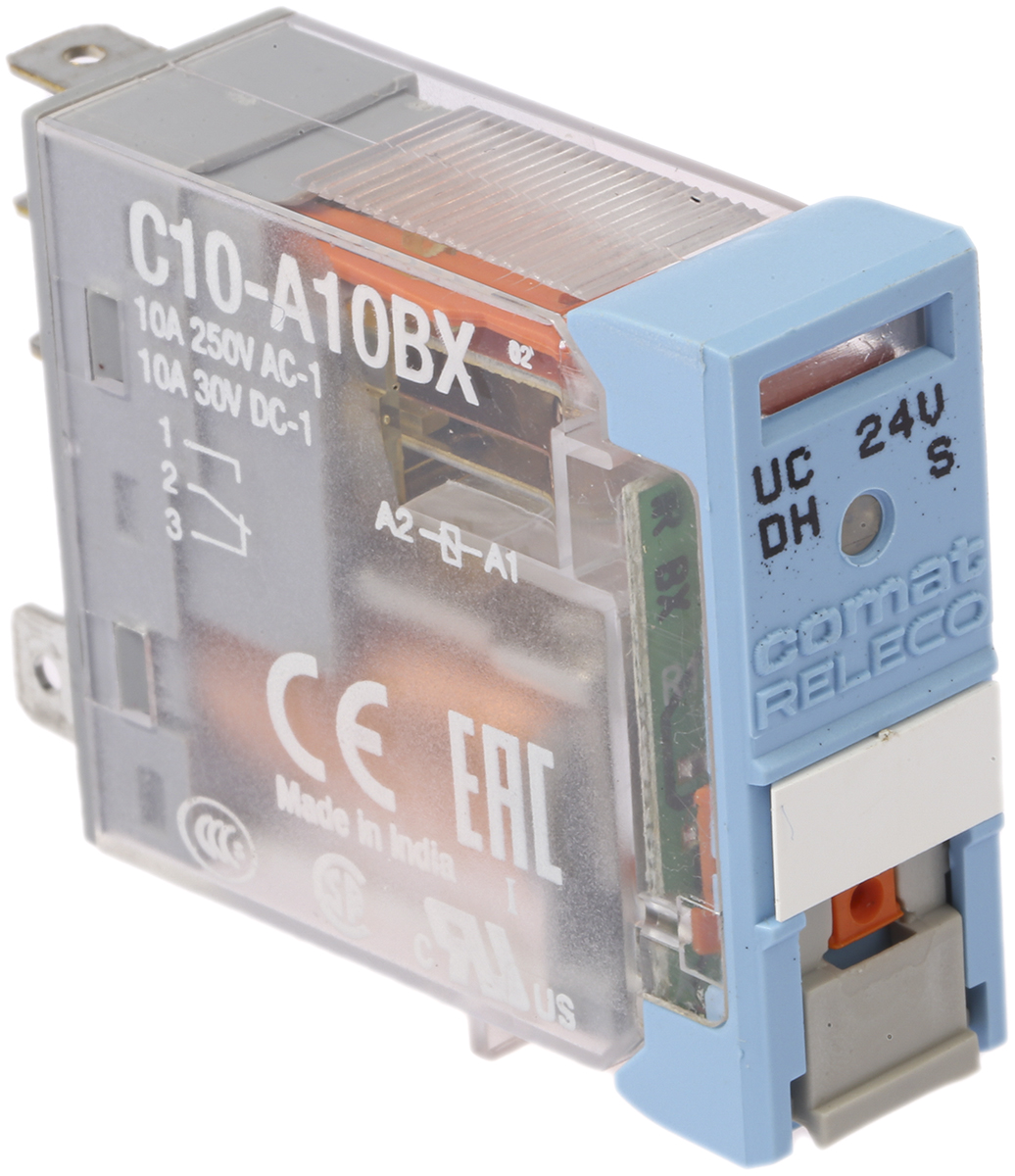

10A SPCO Standard / 6A SPCO Bifurcated Contact - C10 Series Relays have a test button, LED indication and mechanical flag indicator fitted as standard. The test button is colour coded and dual function, push to test or lift to latch. A removable marking label is fitted to each relay. The maximum switching voltage is 250Vac and the operating temperature is -20 to +60°C. Robust industrial terminal bladesBifurcated (for low level signal switching) and non-bifurcated contact versions availableDin rail socket only 16mm wideBridge bar available

Releco Relay Socket The Releco 14-pin DIN rail mount socket has screw terminal leads. It has a contact terminal current rating of 6A and voltage rating of 250VAC. The socketed relay is retained and ejected using a simple clip. This relay socket is used for 4-pole QRC relay series. Features and Benefits Screw torque is 1.2NmOperating temperature ranges between -40°C and 60°CDual function test buttonRemovable marking label Applications Office equipmentTemperature controllersProgrammable logic controllers

10A Plug-In Relays (8 or 11 Pin) Dual function, colour coded test button push to test or lift to latchMechanical flag indicator and coil LED as standard Operating Temperature Range -20 to +60°CContact material silver-nickel (AgNi)H71, W35, D35mm

Releco Relay Socket The Releco 8-pin DIN rail mount socket has screw terminal leads. It has a contact terminal current rating of 10A and voltage rating of 250VAC. The socketed relay is retained and ejected using a simple clip. This relay socket is used for C80 series time relays.Note:This socket replaces former socket S7-M and is fully compatible. Features and Benefits 1 level integrated clip and marking labelBridge bar availablePlug-in slot for overvoltageCoil bridge bus bar to connect in A2 Applications Office equipmentTemperature controllersProgrammable logic controllers

10A SPCO Standard / 6A SPCO Bifurcated Contact - C10 Series Relays have a test button, LED indication and mechanical flag indicator fitted as standard. The test button is colour coded and dual function, push to test or lift to latch. A removable marking label is fitted to each relay. The maximum switching voltage is 250Vac and the operating temperature is -20 to +60°C. Robust industrial terminal bladesBifurcated (for low level signal switching) and non-bifurcated contact versions availableDin rail socket only 16mm wideBridge bar available
