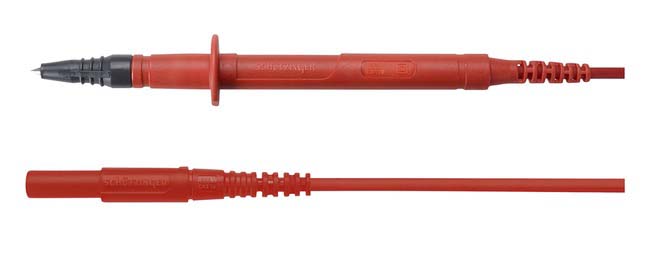

Schutzinger 1000V CAT IV 4mm Fused Safety Measuring Lead Sets Schutzinger 4mm safety program fused measuring lead sets, comprising of one red and one black lead with a safety lamella backet plug to lamella basket plug with a built in fuse holder on the opposing end, available in two lengths 100cm and 200cm and two fuse ratings, 0.5A and 1.6A. Assembled with highly flexible double insulated PVC cable 1mm2, a tip protection cap is included for the test probe. Rated at 1000V CAT IVRated Current 8AOperating temperature -10 to +70 °C

The Lamella Baskets Are Made Of High-Grade Copper-Beryllium and Are Characterized By Their High Current Carrying Capacity with Minimal Contact Resistance and Low Self-Heating.The Plug Connectors Are Extremely Robust, Secure Against Vibration When Plugged in and Guarantee Excellent Contact Reliability.All-Metal Versions as Well as Touch-Proof Versions for Use Up to 1000 V. Lamella-Basket PlugStraight, with Screw Terminal for Cables Up to 2.5 Mm²Additional Socket CrosswiseWith Sleeve, Unassembled

Schutzinger 1000V CAT III 32mm Crocodile Clip Safety Measuring Lead A selection of two 1000V CAT III safety measuring leads offered in red or black, assembled with highly flexible double insulated PVC cable (2.5mm2) and fitted with a 32mm safety crocodile clip one side to a 4mm angled lamella basket plug on the opposing end. • Rated voltage 1000V CAT III• Rated current 32A

Schutzinger 1000V CAT III 32mm Crocodile Clip Safety Measuring Lead A selection of two 1000V CAT III safety measuring leads offered in red or black, assembled with highly flexible double insulated PVC cable (2.5mm2) and fitted with a 32mm safety crocodile clip one side to a 4mm angled lamella basket plug on the opposing end. • Rated voltage 1000V CAT III• Rated current 32A

Electrical Test Terminal Post POL 6718 Series, for 4mm Plug, 36A A range of Schutzinger terminal post connectors with 4mm diameter socket and 2mm dia. radial cable quick connector . The POL 6718 series terminal post panel mount connectors feature a single pole and are utilised for the transmission of voltages, currents and electrical test data, part of the Shutzinger Ø 4mm Programme range. Insulation - body material POMBrass contact materialRated current 36A

The Schutzinger Lamella-basket plug HAS 10 A rated current and 30 VAC / 60 VDC rated voltage also solder terminal for cables up to 0.5 mm² with yellow color. Nickel-plated contact partsCable diameter up to 2 mmInsulation PA 6.6 (Polyamide)Operating temperature from -25 °C to +90 °C

All-Metal Versions as Well as Types for Insulated Fitting. Shock-Proof Safety Sockets for Use Up to 1000 V.Safety Sockets to Adapt From Old 4 Mm Sockets.Terminations for Printed Circuit Board, for Cable Lugs or with Push-On Connection.Loading Up to 32 A.Nickel-Plated or Gold-Plated Versions. Safety Threaded SocketFor Fixture in Panels Up to 6 Mm ThickFixed By: Slotted Nut M12 X 0.75 and Spring WasherHole Ø 12.2+0.1 MmFlat Tab Can Be Bent Up to 90° OnceTurned PartFixture Using Special Tools Mwz 8 and Mwz 15

All-Metal Versions as Well as Types for Insulated Fitting. Shock-Proof Safety Sockets for Use Up to 1000 V.Safety Sockets to Adapt From Old 4 Mm Sockets.Terminations for Printed Circuit Board, for Cable Lugs or with Push-On Connection.Loading Up to 32 A.Nickel-Plated or Gold-Plated Versions. Safety Threaded SocketFor Fixture in Panels Up to 9 Mm ThicknessFixed By: Slotted Nut M8 X 0.5 Hole Ø 8.2Fixture Using Special Tool Mwz 4 and Allen Key 6-Kant 1.5

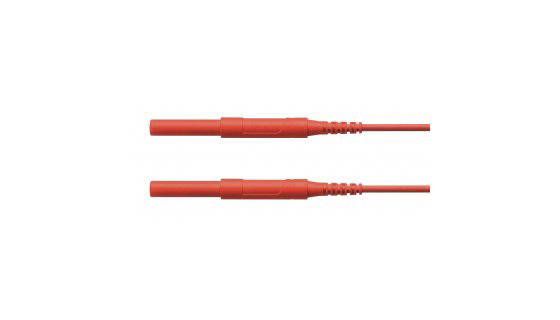

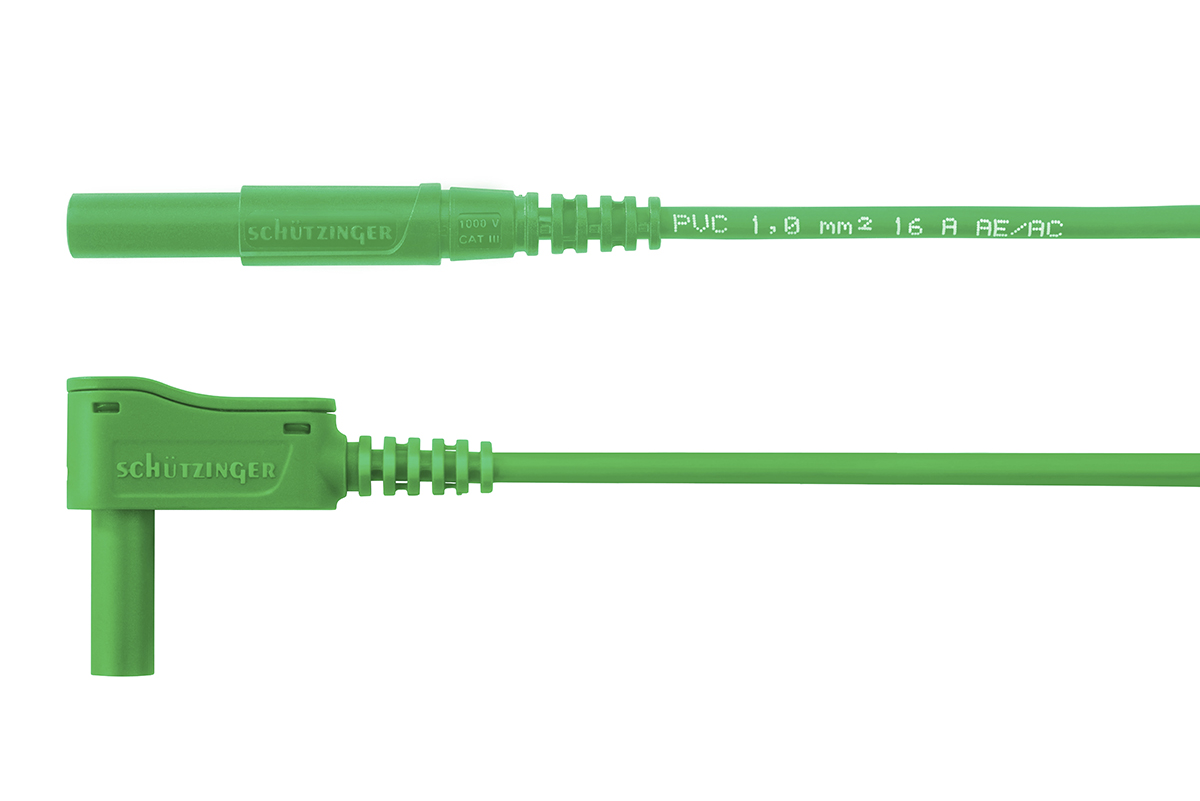

Also Shock-Proof Versions for Use Up to 1000 V.Adapter Leads to Connect From 2 Mm / 2.4 Mm to 4 Mm Systems.Highly Flexible Leads with Double Insulation for Double Safety.Reliable Solutions for Adaption to Safety Technology Required By the Trade Associations. Safety Measuring Lead2 Safety Lamella-Basket Plugs, Assembled On Highly Flexible Double-Insulated Pvc Cable 1 Mm²

Also Shock-Proof Versions for Use Up to 1000 V.Adapter Leads to Connect From 2 Mm / 2.4 Mm to 4 Mm Systems.Highly Flexible Leads with Double Insulation for Double Safety.Reliable Solutions for Adaption to Safety Technology Required By the Trade Associations. Safety Measuring Lead2 Safety Lamella-Basket Plugs, Assembled On Highly Flexible Double-Insulated Pvc Cable 1 Mm²

All-Metal Versions as Well as Types for Insulated Fitting. Shock-Proof Safety Sockets for Use Up to 1000 V.Safety Sockets to Adapt From Old 4 Mm Sockets.Terminations for Printed Circuit Board, for Cable Lugs or with Push-On Connection.Loading Up to 32 A.Nickel-Plated or Gold-Plated Versions. Laboratory SocketSuitable to Install a Permanent Measuring Point with a Socket. for that the Pin is Screwed or Clamped UnderPin Length 13.5 Mm

Also Shock-Proof Versions for Use Up to 1000 V.Adapter Leads to Connect From 2 Mm / 2.4 Mm to 4 Mm Systems.Highly Flexible Leads with Double Insulation for Double Safety.Reliable Solutions for Adaption to Safety Technology Required By the Trade Associations. Measuring Lead2 Lamella-Basket Plugs with Inline Socket, Assembled On Highly Flexible Double-Insulated Pvc Cable 1 Mm²
