TVS Diode Array for ESD and Latch-Up Protection 200W, SMF Series, Semtech 200 Watts Peak Pulse Power (tp = 8/20μs)Transient protection for data lines to: IEC 61000-4-2 (ESD) ±15kV (air), ±8kV (contact) IEC 61000-4-4 (EFT) 40A (5/50ns)Protects I/O linesLow leakage current

High-Current Lightning Protection, Semtech

RailClamp®, Low Capacitance TVS Diode Array, SRDA Series 500 Watts Peak Pulse Power (tp = 8/20μs)ESD protection to: IEC 61000-4-2 (ESD) ±15kV (air), ±8kV (contact) IEC 61000-4-4 (EFT) 40A (5/50ns) IEC 61000-4-5 (Lightning) 24A (8/20μs)Array of surge rated diodes with internal TVS DiodeProtects four I/O linesLow capacitance (<15pF) for high-speed interfaces

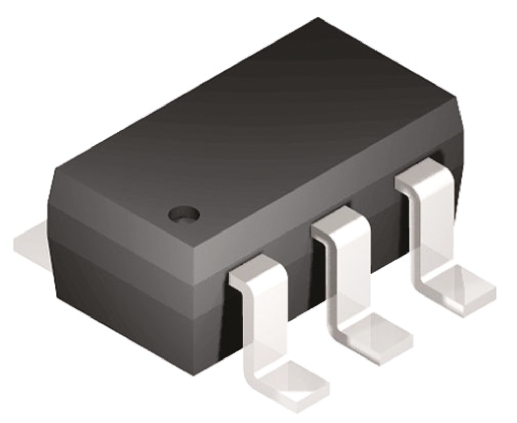

RailClamp®, Low Capacitance TVS Diode Array, SRV05-4 Series 300 Watts Peak Pulse Power (tp = 8/20μs)ESD protection to: IEC 61000-4-2 (ESD) ±15kV (air), ±8kV (contact) IEC 61000-4-4 (EFT) 40A (5/50ns) IEC 61000-4-5 (Lightning) 12A (8/20μs)Array of surge rated diodes with internal TVS DiodeProtects four I/O linesLow capacitance 3pF typical for high-speed interfaces

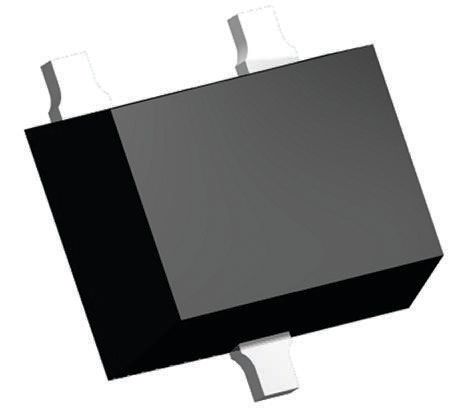

RailClamp®, Low Capacitance TVS Diode Array, RClamp Series The Semtech series of RailClamp® TVS Diodes protect sensitive electronics components from overvoltage. Due to their compact packaging, the RailClamp® TVS diodes are ideal for applications such as mobile phones, LCDs, USB 2.0/OTG, MMC interfaces, SD card interfaces, MDDI ports, SIM ports, key pads and Gigabit Ethernet.

The versatile AC/DC Hall Effect Current Transducer designed to convert measured current values into a 0 to 10 V industrial normalized signal. With a measuring range of up to 300 A, this transducer offers high accuracy and low power consumption. It is UL certified and features a freely settable measuring range via DIP-switches. Converts measured current values into a 0-10 V industrial normalized signalMeasuring range up to 300 A for accurate current measurementUL certified for quality and safetyLow power consumption for energy efficiencyFreely settable measuring range via DIP-switchesCompact design for easy installationSuitable for a wide range of applications in power distribution, industrial automation, and energy management

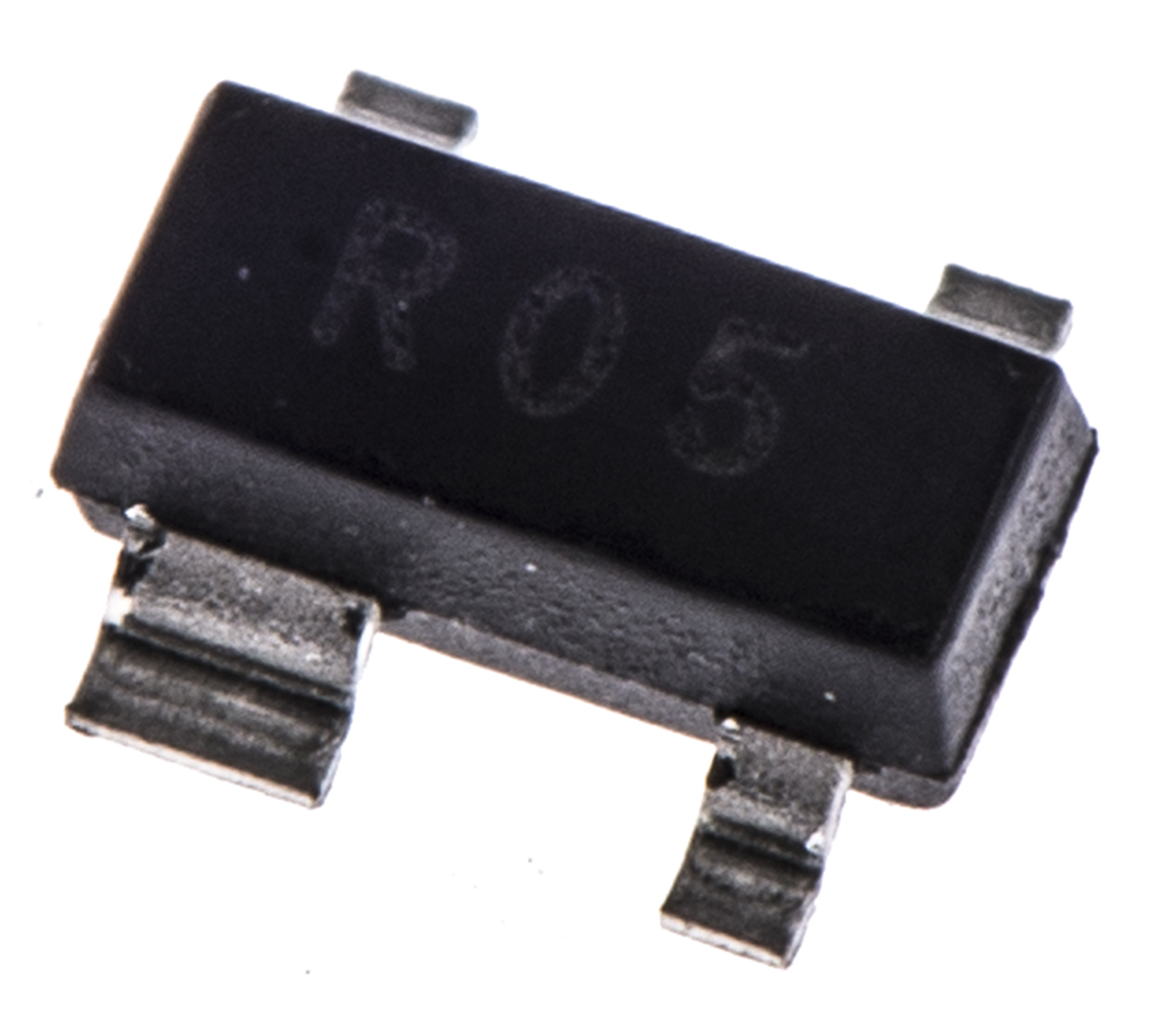

RailClamp®, Low Capacitance TVS Diode Array, SR Series 500 Watts Peak Pulse Power (tp = 8/20μs)ESD protection to: IEC 61000-4-2 (ESD) ±15kV (air), ±8kV (contact) IEC 61000-4-4 (EFT) 40A (5/50ns) IEC 61000-4-5 (Lightning) 24A (8/20μs)Array of surge rated diodes with internal TVS DiodeProtects two I/O linesLow capacitance (<10pF) for high-speed interfaces

High-Current Lightning Protection, Semtech

SX1276MB1MAS LoRa™ Transceiver mbed Shield The SX1276MB1MAS is a low-power 433/868MHz dual-band transceiver Shield-format evaluation module from Semtech featuring their long-range LoRa™ technology. The on-board SX1276 transceiver device offers wide area communication with extreme tolerance of interference. LoRa technology is ideal for Internet of Things (IoT) applications, enabling connection to LoRaWAN™ gateways. Example applications include sensor circuits and wireless battery-powered devices. SX1276 dual-band RF transceiver set up with operating frequencies of 433 and 868MHzLoRa™ Chirp Spread-Spectrum technologyPE4259 RF antenna switchesControlled via serial SPI bus @10MbpsUART and I²C serial busses available for sensor connectionsmbed compatible headersSplit Rx/Tx architecture for optimum performance2 x SMA antenna connectors
