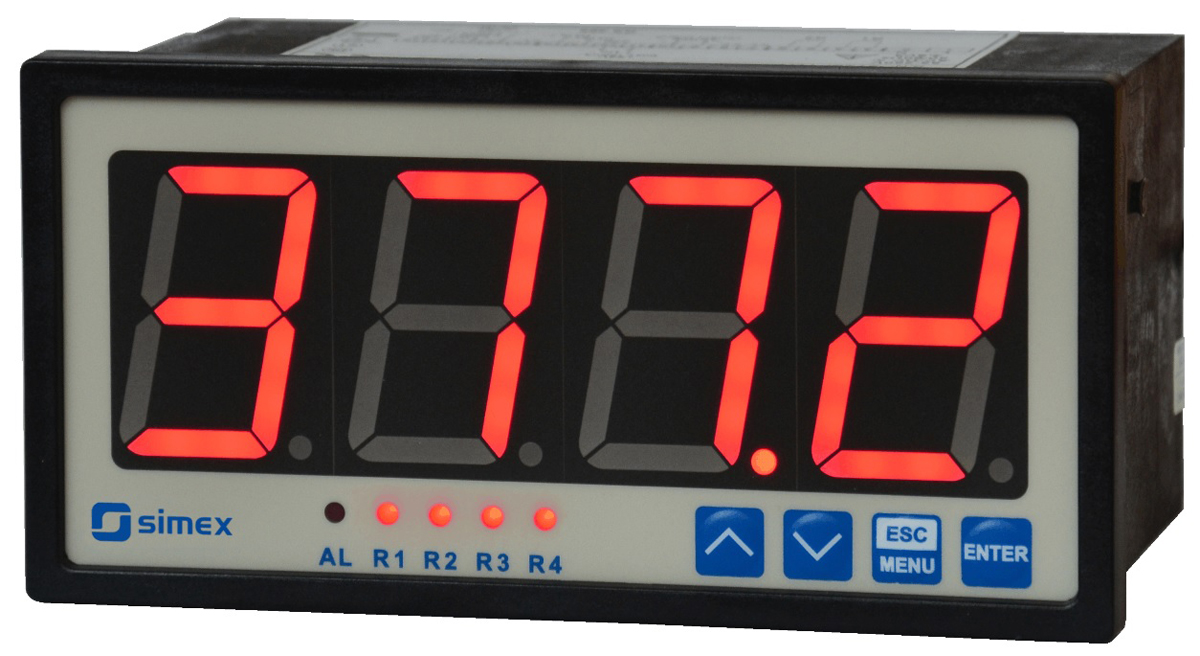

SRP-147 Process Meter The SRP-147 process meter is designed for measuring typical current or voltage signals. One of the main features of this meter is the large 38 mm high LED display. The output on this meter is designed to supply measuring transducers and the RS485 port enables data transmission in production process monitoring systems. • Large 4-digit (38 mm) LED display• Analogue output- active or passive• 0/4-20 mA, 0/1-5 V, 0/2-10 V, 0-60/75/100/150 mV inputs• Wide range of characteristic curves- linear, square root, quadratic, user-defined and volume characteristic for cylindrical tanks• RS485/Modbus RTU communication port• Configuration with local keyboard or free S-Config software via RS485 port• Signal peak value detection• Free configuration software S-Config

SPI-N118/SPP-N118 Flow Meter The SPI-N118 and SPP-N118 flow meters are designed to work together with flow transducers equipped with analogue inputs (SPP-N118) or contact/electronic inputs (SPI-N118). The purpose of the flow meter is to measure the instantaneous flow value and record the total flow of media like liquids, gases or loose materials. The meters are encased in a tight, IP67 rated housing making them suitable for use in harsh environments. The SPI-N118 and SPP-N118 have built-in batcher function allowing the flow meters to be used in many industries such as food, pharmaceutical or paint and varnish. • 6-digit (13 mm) LED display • Flow meter, batcher, totaliser • 1 Pulse counting input & 3 control inputs (SPI-N118) • 1 Input 0/4-20 mA & 1 programmable function input (SPP-N118) • Analogue output: active or passive • RS485/Modbus RTU communication port • Configuration by IR remote controller ( 914-8502 ) or with free S-Config software via RS485 communication port • Display of instantaneous and the total flow values • Batching and counting of doses • Wall mounted, IP67 housing Simex Multi function Meters

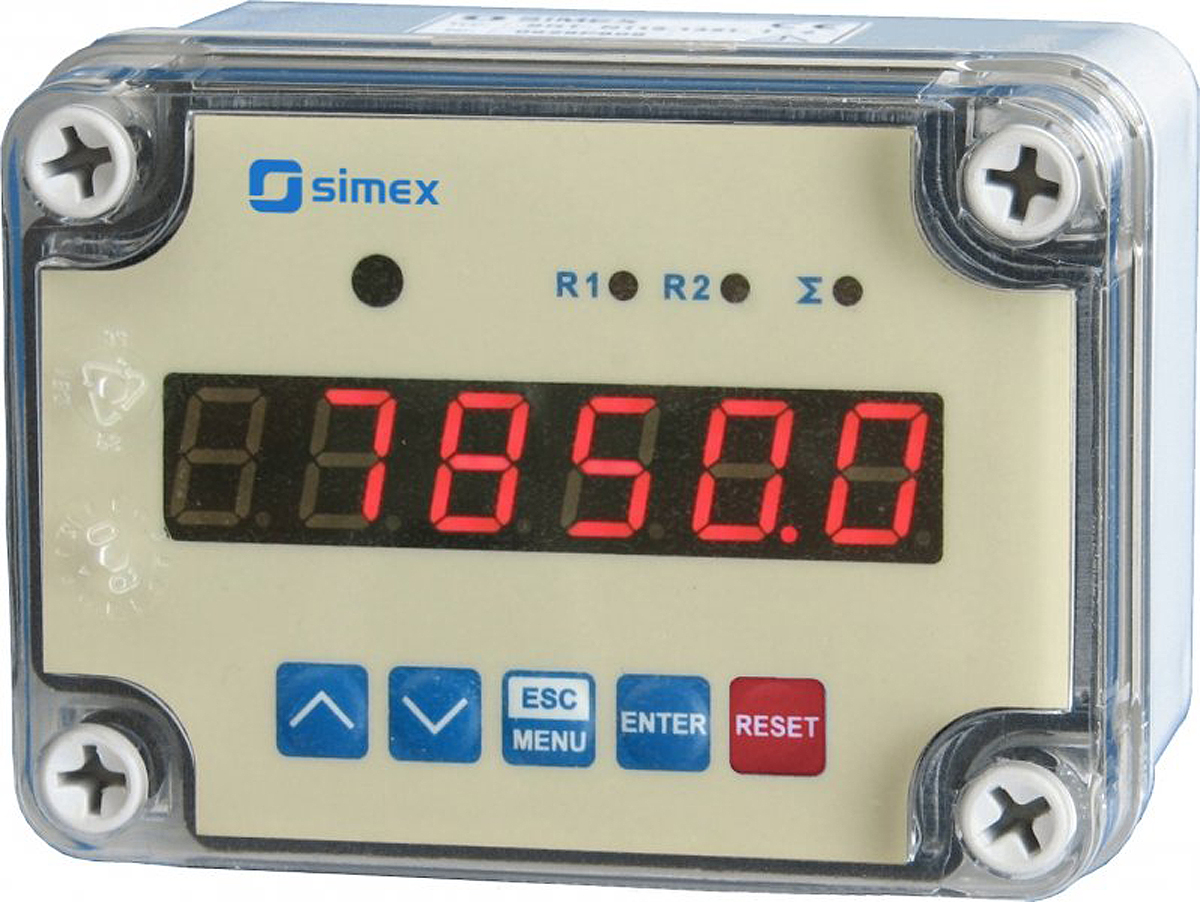

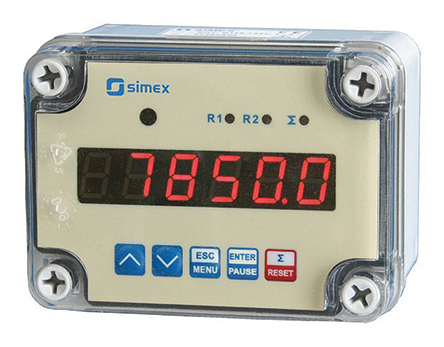

SLIK-N118 Universal LED Counter The SLIK-N118 is a highly programmable, universal LED counter. Encased in a tight, IP67 wall-mounted housing, this counter is designed for use in hard environment conditions.The counter comes equipped with independent counting inputs that operate in various configurations (pulse or quadrate). Extra programmable inputs can change basic functions of counting inputs or hold counting without clearing. • 6-digit (13 mm) LED display• 5 Buttons to control main preset programming• Keyboard mounted under transparent cover to high protection level• Batching function• 2 Pulse counting inputs & 1 programmable function inputs• 1 counter-reset input• 0 or 2 REL/OC outputs• Digital debouncing filter• 4 counter-reset sources (manual, ext, auto & Modbus)• RS485 communication interface• Free configuration software S-Config

SPI-N118/SPP-N118 Flow Meter The SPI-N118 and SPP-N118 flow meters are designed to work together with flow transducers equipped with analogue inputs (SPP-N118) or contact/electronic inputs (SPI-N118). The purpose of the flow meter is to measure the instantaneous flow value and record the total flow of media like liquids, gases or loose materials.The meters are encased in a tight, IP67 rated housing making them suitable for use in harsh environments. The SPI-N118 and SPP-N118 have built-in batcher function allowing the flow meters to be used in many industries such as food, pharmaceutical or paint and varnish. • 6-digit (13 mm) LED display• Flow meter, batcher, totaliser• 1 Pulse counting input & 3 control inputs (SPI-N118)• 1 Input 0/4-20 mA & 1 programmable function input (SPP-N118)• Analogue output: active or passive• RS485/Modbus RTU communication port• Configuration by IR remote controller (914-8502) or with free S-Config software via RS485 communication port• Display of instantaneous and the total flow values• Batching and counting of doses• Wall mounted, IP67 housing

ProSens Digital Universal Meter The ProSens multi function universal meter and controller has an intelligible display and is built in a closed-in tight housing. It can be used in many industrial applications as a standalone device or, thanks to its built-on RS-485 Port and Modbus protocol, it can be part of a bigger net of devices. The meter can be equipped with up to two universal measurement inputs, one digital sensor input and also up to two control outputs. Features and Benefits Large, clear 2.9” graphic LCD display1 or 2 measuring channels available, with or without probeIntegrated or cable probes made of 316L steel, used to measure temperature or temperature and humidityReplaceable filter made of PTFE or 316L mesh, 25 μmBinary and analogue outputs for indication and controllingIndication of 1, 2 or 4 parameters on one screenIndividual descriptions of measuring channelsOptional elaboration of personalised graphic units, displayed at measurementsRS-485 Modbus RTU interface for integration with superordinate visualisation or control systemsDevice configuration performed by local buttons, optional remote controller or free S-config 2 softwareIP67 (without display) or IP65 (with display)

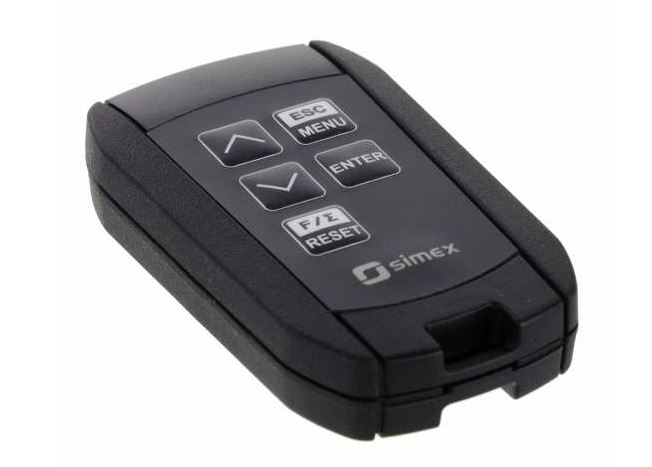

The Simex infrared remote control may be used as external programming keyboard for all SIMEX devices equipped with IR receivers and remote programming functions. Pressing of any local IR controller key, causes transmission of it's code to the device. Infrared transmitterKeyboard multifunctionalOperation range up to 5 mErgonomic industrial housing

ProSens Digital Universal Meter The ProSens multi function universal meter and controller has an intelligible display and is built in a closed-in tight housing. It can be used in many industrial applications as a standalone device or, thanks to its built-on RS-485 Port and Modbus protocol, it can be part of a bigger net of devices. The meter can be equipped with up to two universal measurement inputs, one digital sensor input and also up to two control outputs. Features and Benefits Large, clear 2.9” graphic LCD display1 or 2 measuring channels available, with or without probeIntegrated or cable probes made of 316L steel, used to measure temperature or temperature and humidityReplaceable filter made of PTFE or 316L mesh, 25 μmBinary and analogue outputs for indication and controllingIndication of 1, 2 or 4 parameters on one screenIndividual descriptions of measuring channelsOptional elaboration of personalised graphic units, displayed at measurementsRS-485 Modbus RTU interface for integration with superordinate visualisation or control systemsDevice configuration performed by local buttons, optional remote controller or free S-config 2 softwareIP67 (without display) or IP65 (with display)

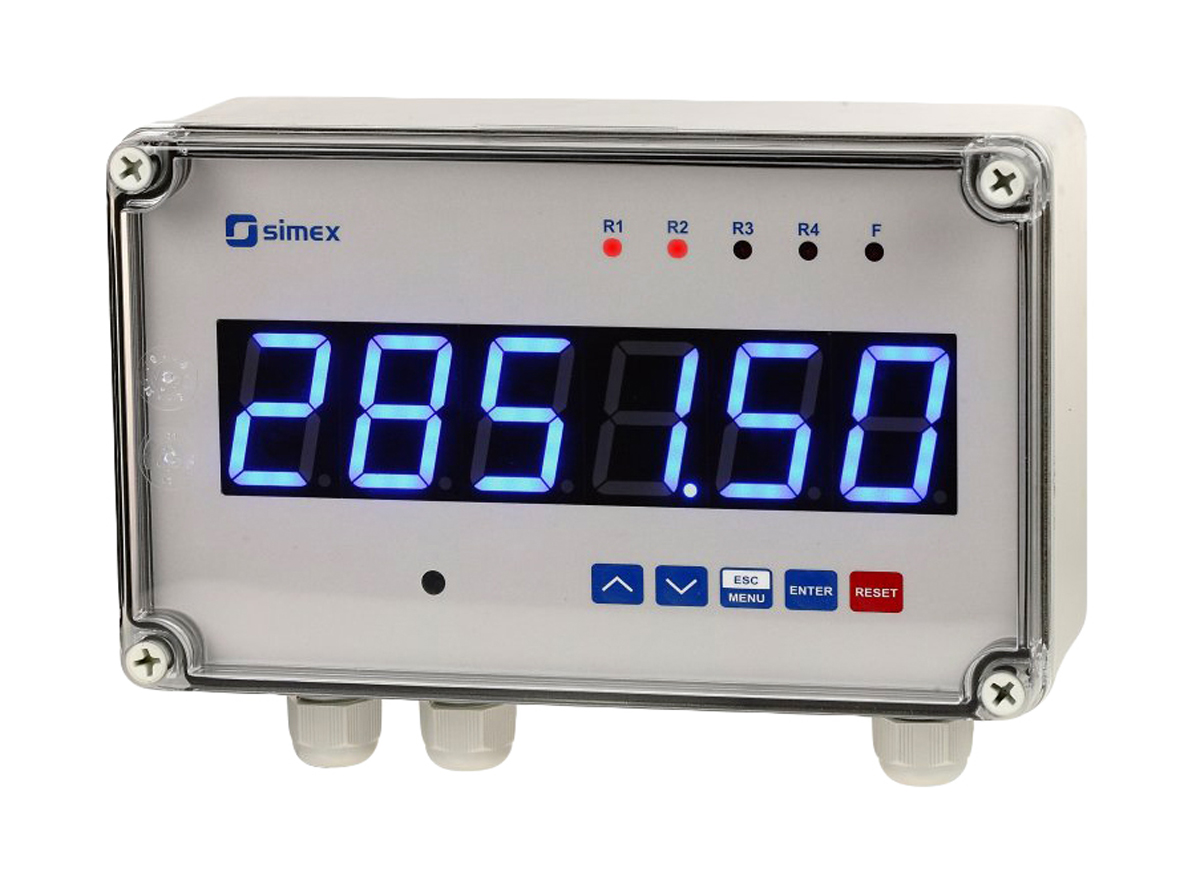

SLIK-638 Universal Pulse Counter SLIK-638 universal programmable counters are encased in a secure, wall-mounted housing. The counters are equipped with a 6-digit LED display and have 2 independent counting inputs. The inputs can operate in various configurations, either pulse or quadrate. The SLIK-638 can be configured without the need to open the casing by using either remote controller, local keyboard or with free S-Config software via the RS485 communication port. Features and Benefits Ultra-bright red, green and blue LED display6 38 mm high digitsIP67 HousingBatching function2 Pulse counting inputs + 1 programmable function input1 Counter reset inputBinary outputs REL/OCDigital debouncing filter4 Counter reset sources (manual, ext, auto, Modbus)Free configuration software S-Config
