The Si83408ADA-KIT allows designers to evaluate the Si834x 4 channel, high-side (sourcing), isolated smart switch with an SPI interface and channel indicators. The included evaluation board is populated with the Si83408ADA-IF isolated smart switch, test points to monitor all critical signal paths, as well as easy-to-use screw terminals for the logic interface and switch power supplies, as well as the channel outputs. The board is populated with a convenient pair of sockets and leads allowing you to quickly daisy-chain Si834x evaluation boards that have an SPI interface and evaluate them using a single pair of power supply connections and one SPI bus. The board also includes convenient LED indicators attached to the channel indicator outputs and fault output. The kit allows designers to quickly evaluate the isolated smart switches&#146; functionality and performance driving typical loads with a wide range of power supplies. Si83408ADA-EVB evaluation board<BR/>Si83408ADA-IF 4 ch. high-side isolated smart switch with SPI interface & ch. indicators in a 9x9 DFN package<BR/>CP2130 USB to SPI evaluation board<BR/>USB A to micro USB cable<BR/>10-pin female to female ribbon cable

The Si83408AFA-KIT allows designers to evaluate the Si834x 4 channel, high-side (sourcing), isolated smart switch with a parallel input and SPI interface. The included evaluation board is populated with the Si83408AFA-IF isolated smart switch, test points to monitor all critical signal paths, as well as easy-to-use screw terminals for the logic interface and switch power supplies, as well as the channel inputs and outputs. The board is populated with a convenient pair of sockets and leads allowing you to quickly daisy-chain Si834x evaluation boards that have an SPI interface and evaluate them using a single pair of power supply connections and one SPI bus. The board also includes a convenient LED indicator attached to the fault output. The kit allows designers to quickly evaluate the isolated smart switches&#146; functionality and performance driving typical loads with a wide range of power supplies. Si83408AFA-EVB evaluation board<BR/>Si83408AFA-IF 4 ch. high-side isolated smart switch with parallel input & SPI interface in a 9x9 DFN package<BR/>CP2130 USB to SPI evaluation board<BR/>USB A to micro USB cable<BR/>10-pin female to female ribbon cable

The Si83418AFA-KIT allows designers to evaluate the Si834x 4 channel, low-side (sinking), isolated smart switch with a parallel input and SPI interface. The included evaluation board is populated with the Si83418AFA-IF isolated smart switch, test points to monitor all critical signal paths, as well as easy-to-use screw terminals for the logic interface and switch power supplies, as well as the channel inputs and outputs. The board is populated with a convenient pair of sockets and leads allowing you to quickly daisy-chain Si834x evaluation boards that have an SPI interface and evaluate them using a single pair of power supply connections and one SPI bus. The board also includes a convenient LED indicator attached to the fault output. The kit allows designers to quickly evaluate the isolated smart switches&#146; functionality and performance driving typical loads with a wide range of power supplies. Si83418AFA-EVB evaluation board<BR/>Si83418AFA-IF 4 ch. low-side isolated smart switch with parallel input & SPI interface in a 9x9 DFN package<BR/>CP2130 USB to SPI evaluation board<BR/>USB A to micro USB cable<BR/>10-pin female to female ribbon cable

The Si83418ADA-KIT allows designers to evaluate the Si834x 4 channel, low-side (sinking), isolated smart switch with an SPI interface and channel indicators. The included evaluation board is populated with the Si83418ADA-IF isolated smart switch, test points to monitor all critical signal paths, as well as easy-to-use screw terminals for the logic interface and switch power supplies, as well as the channel outputs. The board is populated with a convenient pair of sockets and leads allowing you to quickly daisy-chain Si834x evaluation boards that have an SPI interface and evaluate them using a single pair of power supply connections and one SPI bus. The board also includes convenient LED indicators attached to the channel indicator outputs and fault output. The kit allows designers to quickly evaluate the isolated smart switches&#146; functionality and performance driving typical loads with a wide range of power supplies. Si83418ADA-EVB evaluation board<BR/>Si83418ADA-IF 4 ch. low-side isolated smart switch with SPI interface & ch. indicators in a 9x9 DFN package<BR/>CP2130 USB to SPI evaluation board<BR/>USB A to micro USB cable<BR/>10-pin female to female ribbon cable

Si83408ADA-IF isolated smart switches are available in Sourcing configurations. With a low RON, the device is capable of providing high continuous current while demagnetizing an unlimited amount of energy from inductive loads. Si83408ADA-IFswitches are are a 4 configuration integrating safety rated isolation in a compact QFN package. The logic interface is SPI, and the Si83408ADA-IF is loaded with protection features to prevent switch damage. It also provides 8 different diagnostic reports to the microcontroller (MCU), ensuring detailed information about how the switches and their loads are behaving on the other side of the isolation barrier.

Clock Buffers, Silicon Laboratories

The Si83404AAA-KIT allows designers to evaluate the Si834x 4 channel, high-side (sourcing), isolated smart switch with a parallel input interface, channel indicators, and switch power supply warning indicator. The included evaluation board is populated with the Si83404AAA-IF isolated smart switch, test points to monitor all critical signal paths, as well as easy-to-use screw terminals for the logic interface and switch power supplies, as well as the channel inputs and outputs. The board also includes convenient LED indicators attached to the channel indicator outputs, fault output, and the switch supply warning output. The kit allows designers to quickly evaluate the isolated smart switches&#146; functionality and performance driving typical loads with a wide range of power supplies.

The Si83414AAA-KIT allows designers to evaluate the Si834x 4 channel, low-side (sinking), isolated smart switch with a parallel input interface, channel indicators, and switch power supply warning indicator. The included evaluation board is populated with the Si83414AAA-IF isolated smart switch, test points to monitor all critical signal paths, as well as easy-to-use screw terminals for the logic interface and switch power supplies, as well as the channel inputs and outputs. The board also includes convenient LED indicators attached to the channel indicator outputs, fault output, and the switch supply warning output. The kit allows designers to quickly evaluate the isolated smart switches&#146; functionality and performance driving typical loads with a wide range of power supplies.

Si875x Isolated FET Drivers, Silicon Labs The Si875x combines robust CMOS isolation technology with a MOSFET driver to establish a complete, isolated switch.<BR/>Input side voltages on the Si8751 are flexible from 2.25 V to 5.5 V. Si8751 digital CMOS pin control input<BR/>Si8752 diode emulation input<BR/>10 V output with 1 mA input current<BR/>Internally generated secondary side power supply<BR/>Miller clamp cap support for reducing inductive chatter<BR/>Output supports driving DC or AC load configurations<BR/>Solid State Relays (SSR) or Electro-Mechanical Relays replacement

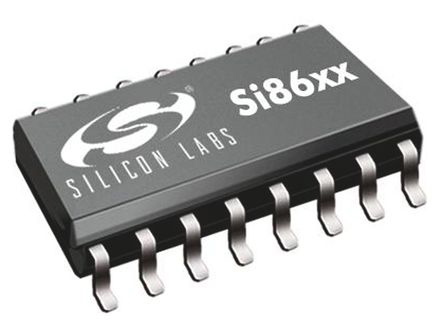

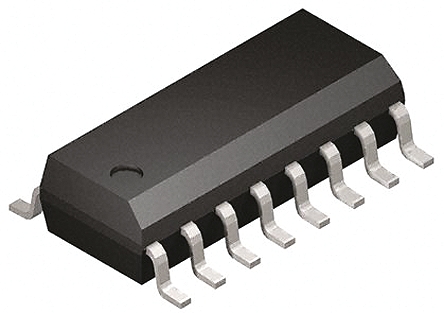

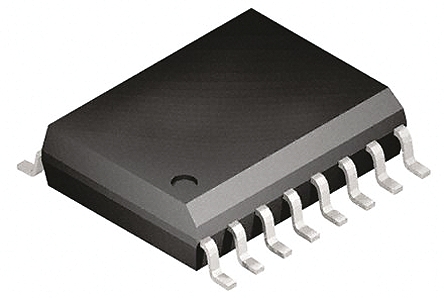

Si84x Series Digital Isolators The CMOS digital isolators gives the ability to create small size, high performance, lower power, and reliable isolated circuits that compete with optocoupler designs. High Speed<BR/>High-Efficiency<BR/>Forward and Reverse Channels<BR/>High Electromagnetic Immunity

Si84x Series Digital Isolators The CMOS digital isolators gives the ability to create small size, high performance, lower power, and reliable isolated circuits that compete with optocoupler designs. High Speed<BR/>High-Efficiency<BR/>Forward and Reverse Channels<BR/>High Electromagnetic Immunity

Si84x Series Digital Isolators The CMOS digital isolators gives the ability to create small size, high performance, lower power, and reliable isolated circuits that compete with optocoupler designs. High Speed<BR/>High-Efficiency<BR/>Forward and Reverse Channels<BR/>High Electromagnetic Immunity
