SolaHD Hazardous Location Transformers These heavy-duty encapsulated transformers have been designed for use in hazardous locations (Class 1, Division 2, Group A-D). They are also suited to harsh industrial environments. The encapsulation and rugged NEMA 3R enclosures help to provide protection from dust, moisture and also provide extra shock and vibration resistance. Available in both single and 3 phase options. Rated for hazardous locations and harsh industrial environments UL listed Available in both single and 3 phase options Single phase: 0.05 kVA to 0.250 kVA Single Phase: (0.50 → 25 kVA), 3 Phase (3 → 45 kVA) Conduit knockouts for side entry into roomy wiring compartment Copper lead wire terminations 0.500 kVA → 10 kVA units are encapsulated with electrical grade silica sand and epoxy for industrial applications

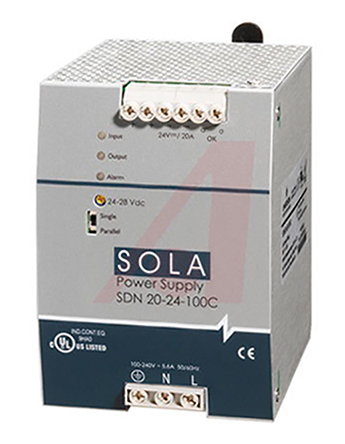

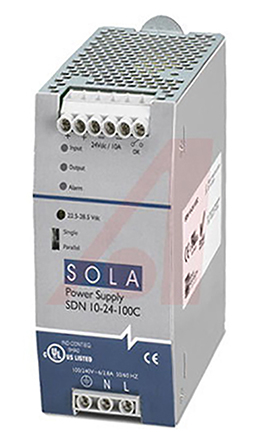

SolaHD DIN Rail Power Supply The SolaHD SDN-C series DIN rail power supply has a universal input voltage ranging between 85VAC to 264VAC and 90VDC to 375VDC with a built-in passive PFC function. It is equipped with sag immunity, power factor correction, high efficiency and high MTFB. The rated output current is 20A at 24VDC output voltage. Features and Benefits Cooling by free air convectionDC output voltage adjustableHigh efficiency up to 92%Highly efficient switching technologyLED indicator for power ONOperation temperature ranging between -30°C and 70°CPower rating is up to 480WRipple factor and noise is 100mVShort circuit and overvoltage protection Applications Amusement park equipmentConveying equipmentIndustrial/Machine controlMaterial handlingPackaging equipmentProcess controlSemiconductor fabrication equipmentVending machines Certifications ATEXCE certifiedCRUusCULusIECEx
