Distribution Panel Spike & Surge Device Mains spike/surge protection devices that are ideal for protecting all sensitive electronic equipment. Features and Benefits: Protection from voltage transients that can occur between phases (L-N, L-E, N-E)Designed to be installed close to the incoming electrical supply panelWired in parallel with the supplyThe unit should be connected via HRC fuses or a circuit breaker to protect the connecting cableTwo-led status indicator indicate level of protection available

Trailing Multiway Socket with Spike & Surge Protection Multiway adaptor with cable and maching plugSuitable for protection of all electronic equipmentInternal surge and spike protection L-N, L-E and N-E

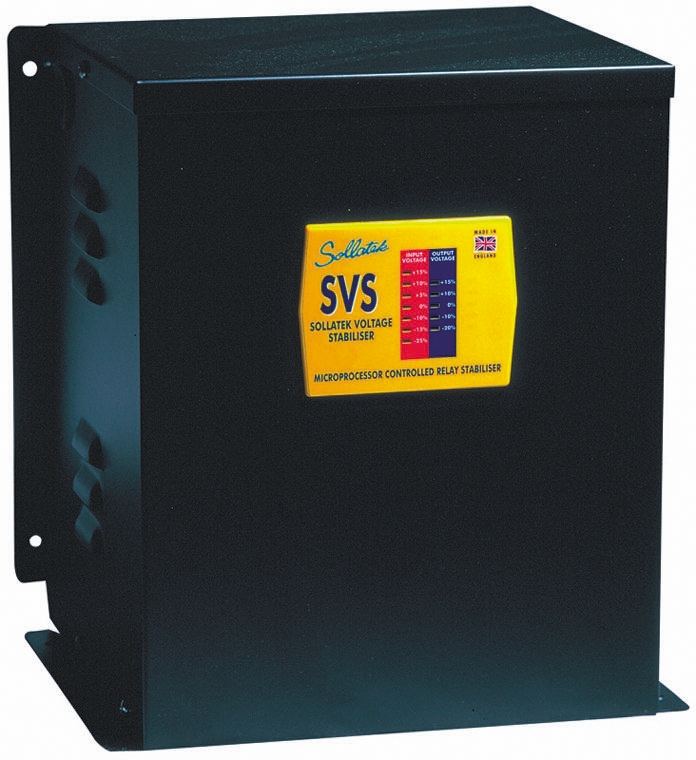

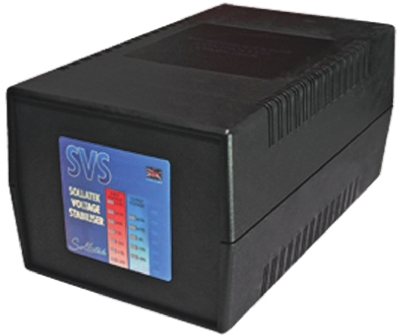

Microprocessor Controlled Voltage Stabilisers - SVS Range From Sollatek, the Voltright SVS range of voltage stabilisers protects electrical equipment by monitoring the mains voltage and stabilising any rises or drops, ensuring a constant voltage and suppressing any surges or spikes. The SVS series accommodates voltage fluctuations across a very wide range, and maintains an output voltage that is accurate to within fine tolerances. The Voltright voltage stabiliser have microprocessor controlled operation resulting in extremely fast reaction times.Suitable for all electronic and electrical devices, Sollatek voltage stabilisers are particularly useful in applications such as medical refrigeration and air conditioning. Features and Benefits: • All-electronic construction with no moving parts • Easy to install and has a small foot print• Input Range: 230Vac -29% → +23% • Output Accuracy: Input = 171 → 275V, Output = 230Vac ± 6%, Input = 164 → 171V, Output = 230Vac ± 10%, Input = 274 → 285V, Output = 230Vac ± 10% • Correction Speed: 750Volts / Second • Response Within 15 Millisecond • Wave form distortion: None • Electronic switching • Frequency: 45-75Hz • Input connection: UK13 = BS1363 3 Pin (Flat Blade) Plug, Euro = Schuko Plug , TC = Screw terminals • Output connection: UK13 = BS1363 3 Pin (Flat Blade) Socket, Euro = Schuko Socket, TC = Screw terminals

Microprocessor Controlled Voltage Stabilisers - SVS Range From Sollatek, the Voltright SVS range of voltage stabilisers protects electrical equipment by monitoring the mains voltage and stabilising any rises or drops, ensuring a constant voltage and suppressing any surges or spikes. The SVS series accommodates voltage fluctuations across a very wide range, and maintains an output voltage that is accurate to within fine tolerances. The Voltright voltage stabiliser have microprocessor controlled operation resulting in extremely fast reaction times.Suitable for all electronic and electrical devices, Sollatek voltage stabilisers are particularly useful in applications such as medical refrigeration and air conditioning. Features and Benefits: • All-electronic construction with no moving parts • Easy to install and has a small foot print• Input Range: 230Vac -29% → +23% • Output Accuracy: Input = 171 → 275V, Output = 230Vac ± 6%, Input = 164 → 171V, Output = 230Vac ± 10%, Input = 274 → 285V, Output = 230Vac ± 10% • Correction Speed: 750Volts / Second • Response Within 15 Millisecond • Wave form distortion: None • Electronic switching • Frequency: 45-75Hz • Input connection: UK13 = BS1363 3 Pin (Flat Blade) Plug, Euro = Schuko Plug , TC = Screw terminals • Output connection: UK13 = BS1363 3 Pin (Flat Blade) Socket, Euro = Schuko Socket, TC = Screw terminals

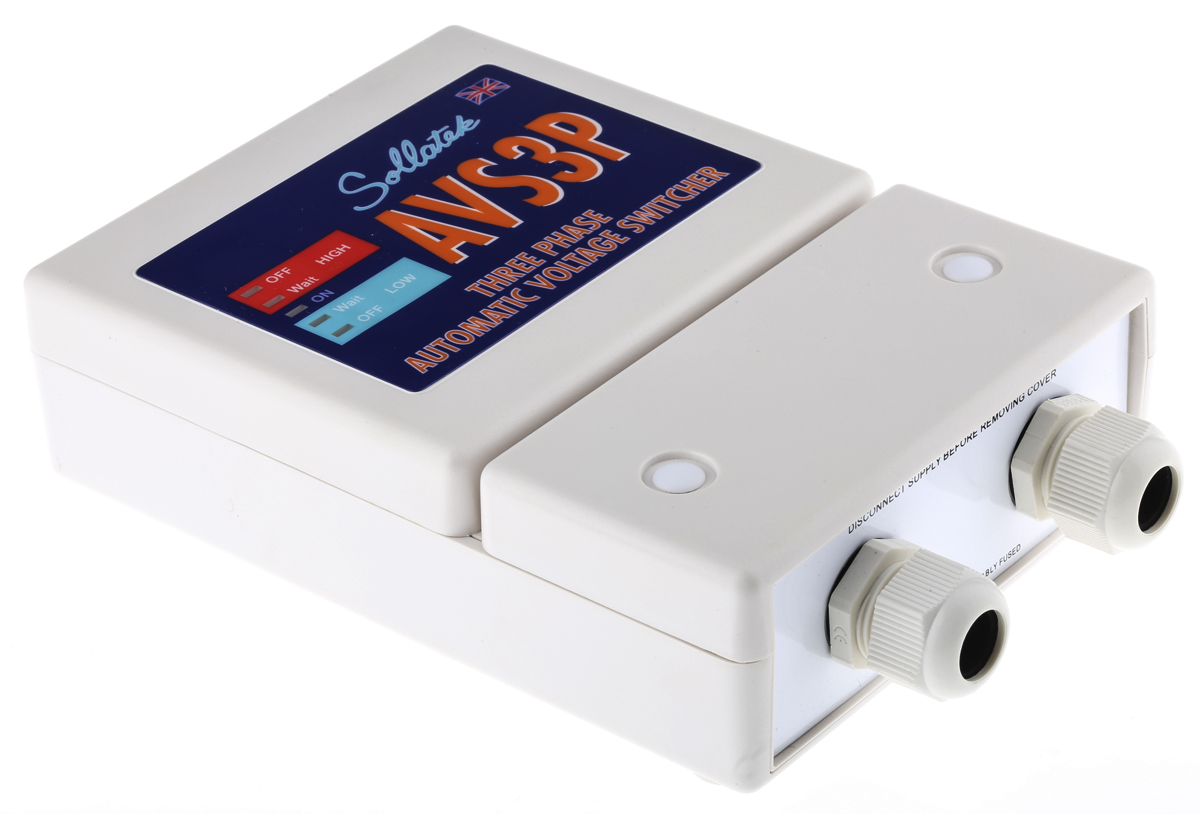

3-Phase Plant Over/Under Voltage Protector Over and under voltage fluctuations damage 3-phase electrical plant. The AVS3P-0 offers full automatic protection against both these harmful conditions. Connects either to a normally open contact or a switched AC lineControls the contactor or starterMonitors all 3 phases separatelyAutomatic disconnection if mains 'BAD'Automatic reconnection when 'GOOD'Disconnects all phases if any single phase badReconnection delay to ensure stabilityMicroprocessor controlSpare relays to drive alarms, etcWall mount plastic enclosure5 LED array status indicator 5 LED Status Array

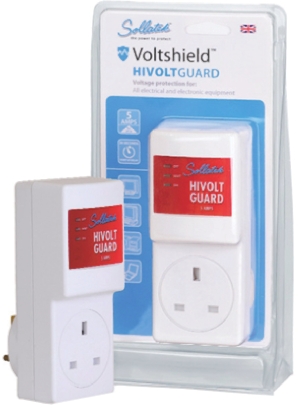

Combined Over/Under Voltage Plus Transients Protection Hivoltguard protects all electronic equipment against over voltage, surges, and spikes. Fridgeguard protects against low voltage conditions which are specifically harmful to all motors, pumps, and compressors in fridges and freezers. Automatically disconnects when mains "BAD"Automatically reconnects again when "GOOD"Fast response to fluctuations (10ns)Full status indication from LED arrayReset when mains OK for a pre-set period of 1 minute for Hivoltguard, 3 minutes for FridgeguardDimensions (L x W x D) 135 x 60 x 55mm

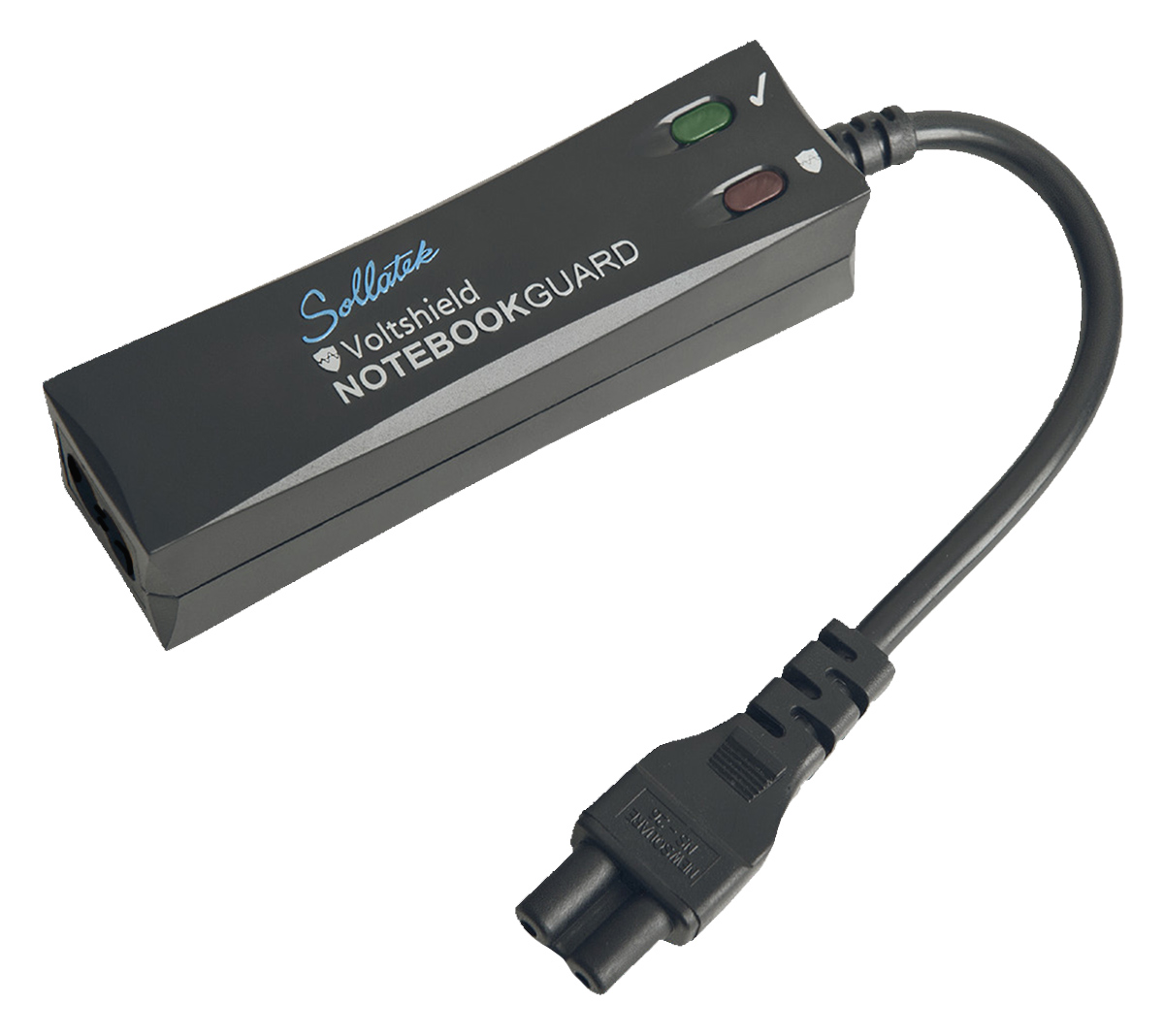

Notebook Guard The NotebookGuard is a compact plug-in adapter that prevents damage to equipment from high-voltage levels. Features and Benefits: Notebook Guard is a plug-in adaptorSpike and over voltage protectionPower back surges protection10 second startup delayCompact and available in Clover leaf or figure 8 connectorsUniversal voltage for worldwide use LED indicators showing statusIdeal for protection of notebooks, laptops and netbooks

Combined Surge & Noise Protection This unit will filter out surges, spikes, noise harmonics and radio frequency interference (RFI) from the 230Vac mains supply. Economical protection for sensitive electronic equipmentFast response time (<10ns)

Microprocessor Controlled Voltage Stabilisers - SVS Range From Sollatek, the Voltright SVS range of voltage stabilisers protects electrical equipment by monitoring the mains voltage and stabilising any rises or drops, ensuring a constant voltage and suppressing any surges or spikes. The SVS series accommodates voltage fluctuations across a very wide range, and maintains an output voltage that is accurate to within fine tolerances. The Voltright voltage stabiliser have microprocessor controlled operation resulting in extremely fast reaction times.Suitable for all electronic and electrical devices, Sollatek voltage stabilisers are particularly useful in applications such as medical refrigeration and air conditioning. Features and Benefits: • All-electronic construction with no moving parts • Easy to install and has a small foot print• Input Range: 230Vac -29% → +23% • Output Accuracy: Input = 171 → 275V, Output = 230Vac ± 6%, Input = 164 → 171V, Output = 230Vac ± 10%, Input = 274 → 285V, Output = 230Vac ± 10% • Correction Speed: 750Volts / Second • Response Within 15 Millisecond • Wave form distortion: None • Electronic switching • Frequency: 45-75Hz • Input connection: UK13 = BS1363 3 Pin (Flat Blade) Plug, Euro = Schuko Plug , TC = Screw terminals • Output connection: UK13 = BS1363 3 Pin (Flat Blade) Socket, Euro = Schuko Socket, TC = Screw terminals

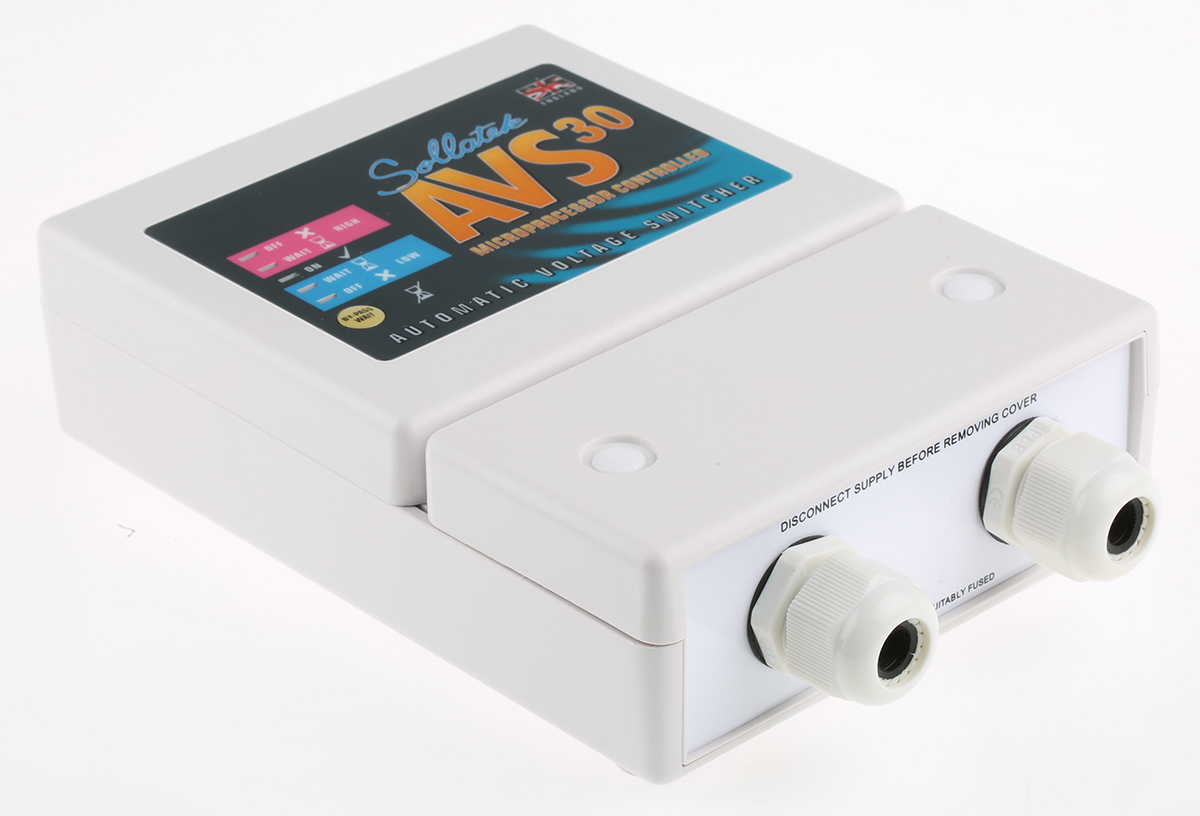

Combined Over/Under Voltage Protection The AVS range offers full automatic protection against both over- and under-voltage fluctuations of the 230Vac mains supply. Automatically disconnects when mains "BAD"Automatically reconnects again when "GOOD"Fast response to fluctuations (LED status indicationAdjustable reset period

Microprocessor Controlled Voltage Stabilisers - SVS Range From Sollatek, the Voltright SVS range of voltage stabilisers protects electrical equipment by monitoring the mains voltage and stabilising any rises or drops, ensuring a constant voltage and suppressing any surges or spikes. The SVS series accommodates voltage fluctuations across a very wide range, and maintains an output voltage that is accurate to within fine tolerances. The Voltright voltage stabiliser have microprocessor controlled operation resulting in extremely fast reaction times.Suitable for all electronic and electrical devices, Sollatek voltage stabilisers are particularly useful in applications such as medical refrigeration and air conditioning. Features and Benefits: • All-electronic construction with no moving parts • Easy to install and has a small foot print• Input Range: 230Vac -29% → +23% • Output Accuracy: Input = 171 → 275V, Output = 230Vac ± 6%, Input = 164 → 171V, Output = 230Vac ± 10%, Input = 274 → 285V, Output = 230Vac ± 10% • Correction Speed: 750Volts / Second • Response Within 15 Millisecond • Wave form distortion: None • Electronic switching • Frequency: 45-75Hz • Input connection: UK13 = BS1363 3 Pin (Flat Blade) Plug, Euro = Schuko Plug , TC = Screw terminals • Output connection: UK13 = BS1363 3 Pin (Flat Blade) Socket, Euro = Schuko Socket, TC = Screw terminals

Voltshield A/C Guard Microprocessor Voltage Switcher, Air conditioning and Commercial Fridges Sollatek Voltshield AC Guards have been developed for use with office and home Air Conditioning equipment (including split units) and commercial and industrial refrigeration equipment. Voltshield AC Guards protect Air Conditioning and refrigeration units from low voltage &#146;brownouts&#146;, power fluctuations, power back surges, surges and spikes. When a problem occurs, the AC Guard instantly switches off the Air Conditioning unit and once the mains supply has stabilised, it reconnects. These voltage switchers automatically provide complete protection when wired between your appliance and the mains. Voltshield AC guards can cater for voltage fluctuations across a large range, and the output voltage is accurate to within fine tolerances. All electronic construction with no moving partsSingle phaseOverload and short circuit protection is provided by the circuit breakerDirect wiring adds extra securityOverload protection4 min intelligent start-up delay before power reconnection protects against back surges, prevents frequent start stops and avoids unnecessary down time16A, 20A and 25A options are available in this range
