Souriau Circular Connector The Souriau UTG Metalok Bantam series 12-contacts male circular cable plug connector has 13A current rating. This connector features a spring-loaded metal bayonet ring that ensures easy, reliable and durable mating attenuation. It has a rugged and robust design to resist every environmental and mechanical requirement for indoor and outdoor applications. The connector housing is made from thermoplastic and coupling ring made from nickel-plated brass.<BR/>This connector is available in 8 shell sizes, 11 insert arrangements, all intermateable, interchangeable and intermountable with the TRIM TRIO &#147;UT0&#148; and &#147;UTP industrial connector families.<BR/>Trim Trio Metalok Bantam plastic circular connectors, derived from MIL-C-26482, with a secure metal coupling system to provide a complete solution for lightweight, robust industrial interconnections. The shell material is glass filled thermoplastic, with a rated operating temperature ranging between -55°C and 125°C. Contacts to be ordered separately. <BR/>Plastic connectors, nickel-plated to outer body and bayonet ring to satisfy EMC requirements. Cable mount shells are supplied with a metal PG tube, containing twin ferrule system for 360° cable shield continuity. The 2 shells are polarised and locked together by a bayonet action metal ring.<BR/>The COM8-1 tool 266-6860, provides an 8-point impression crimp assuring maximum tensile strength on wire sizes up to 2.5mm². The cycle controlled, precision ratchet assures consistent and accurate crimping over many operations.<BR/>Note:<BR/>Panel mount plug shells with pin inserts will only mate with cable mount shells with socket inserts. Panel mount shells with socket inserts will only mate with cable mount plug shells with pin inserts. Contacts must be ordered separately. Features and Benefits Straight body orientation<BR/>Crimp termination<BR/>Lightweight and robust coupling<BR/>Durability of 500 mating cycles<BR/>High vibrations and shock resistance<BR/>Shell size is 14mm<BR/>Shielding capacity<BR/>Moulded keyways ensure error-free mating<BR/>Operating temperature ranges between -55°C and 125°C Applications Civil engineering<BR/>Submarine instrumentation<BR/>Water treatment and heavy industry Certifications IP40 rated<BR/>UL approved

Short Cable Clamp with Large Strain Relief Nut

Souriau Accessories UTG Series A comprehensive range of Souriau UTG series connector accessories, including receptacle dust cap and strain relief cable clamps. All models are highly reliable and excellent quality.

Souriau Industrial Plastic Connector The Souriau clipper series 14-contacts male industrial plastic connector has a plug-type connection. This in-line connector has a 7A current rating per contact. It features a retention plate system allowing insertion/extraction of the contacts without the need for tooling. It has an adaptor with electrical PG thread for PG backshells with 1/2 turn bayonet coupling allowing a quick-connection to the system. This connector has thermoplastic housing with gold plated copper alloy contacts. <BR/>Clipper series<BR/>Plastic industrial connectors, which provide sealing to IP67. The system offers connector shells with a retention plate system, allowing easy insertion/extraction of the crimp contacts without tooling. Contacts to be purchased separately. The cable mount sockets can accept straight cable clamps, conduit adaptors or sealing glands giving great flexibility in usage. For added safety, the connectors are designed to be scoop proof: in that, they may be coupled and uncoupled without the risk of damaging contacts, even if blind mating is necessary. High-density formats are available using 1mm contacts. Features and Benefits Crimp termination<BR/>Straight body orientation<BR/>180° screw coupling with positive audible safety latch<BR/>Contact resistance is less than 10Mohm<BR/>Durability of 250 mating cycles<BR/>High vibration resistance<BR/>Operation temperature ranges between -40°C and 125°C<BR/>Scoop proof contacts<BR/>Shell size is 2mm<BR/>Unshielded Applications Factory automation and machine tools<BR/>Test and measurement instrumentation Certifications IP68 rated

Machined Contacts and Tooling Suitable for UTO Series (size 16) and UTOW Series (size 20) Solid machined or stamped crimp and solder pins and sockets<BR/>Support crimp tool and positioner

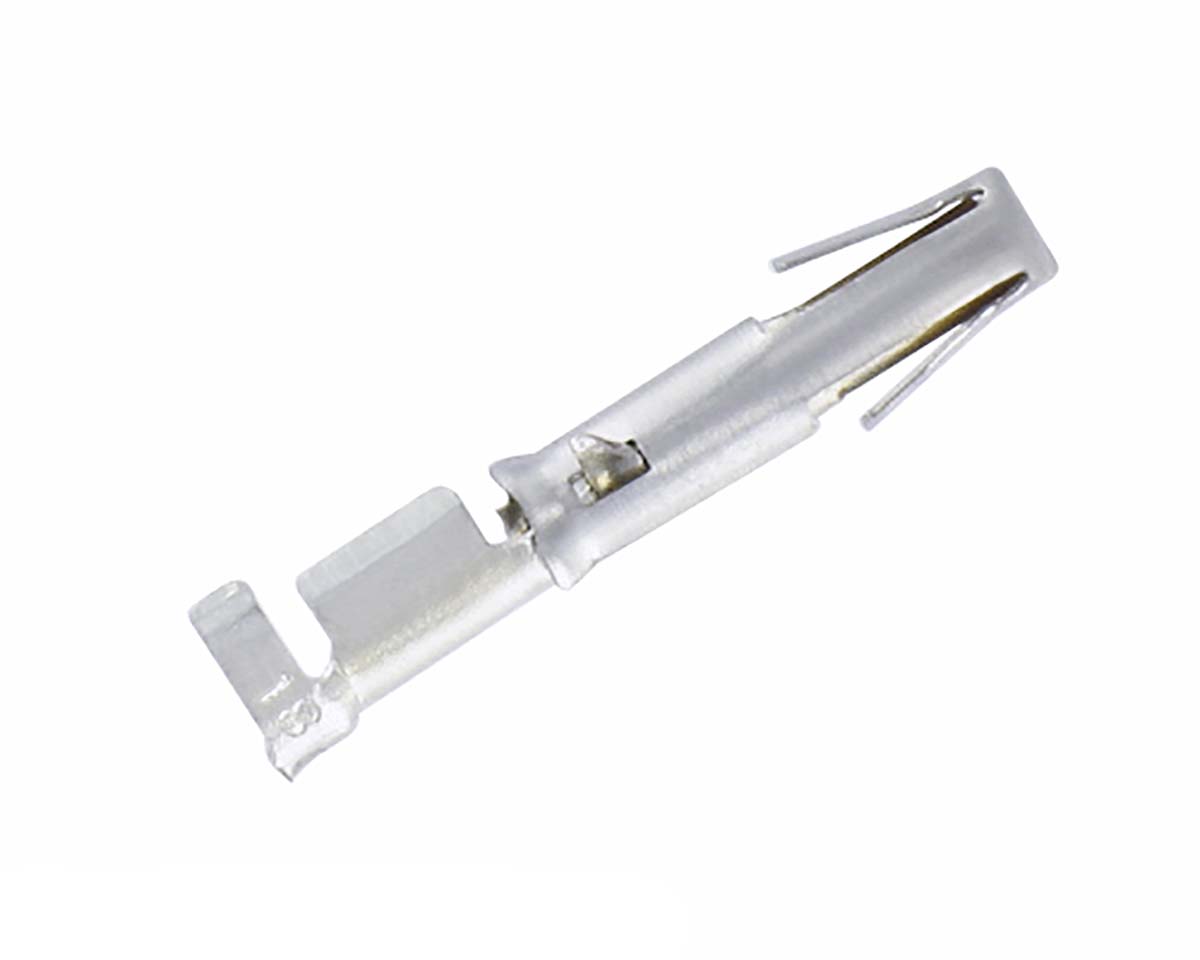

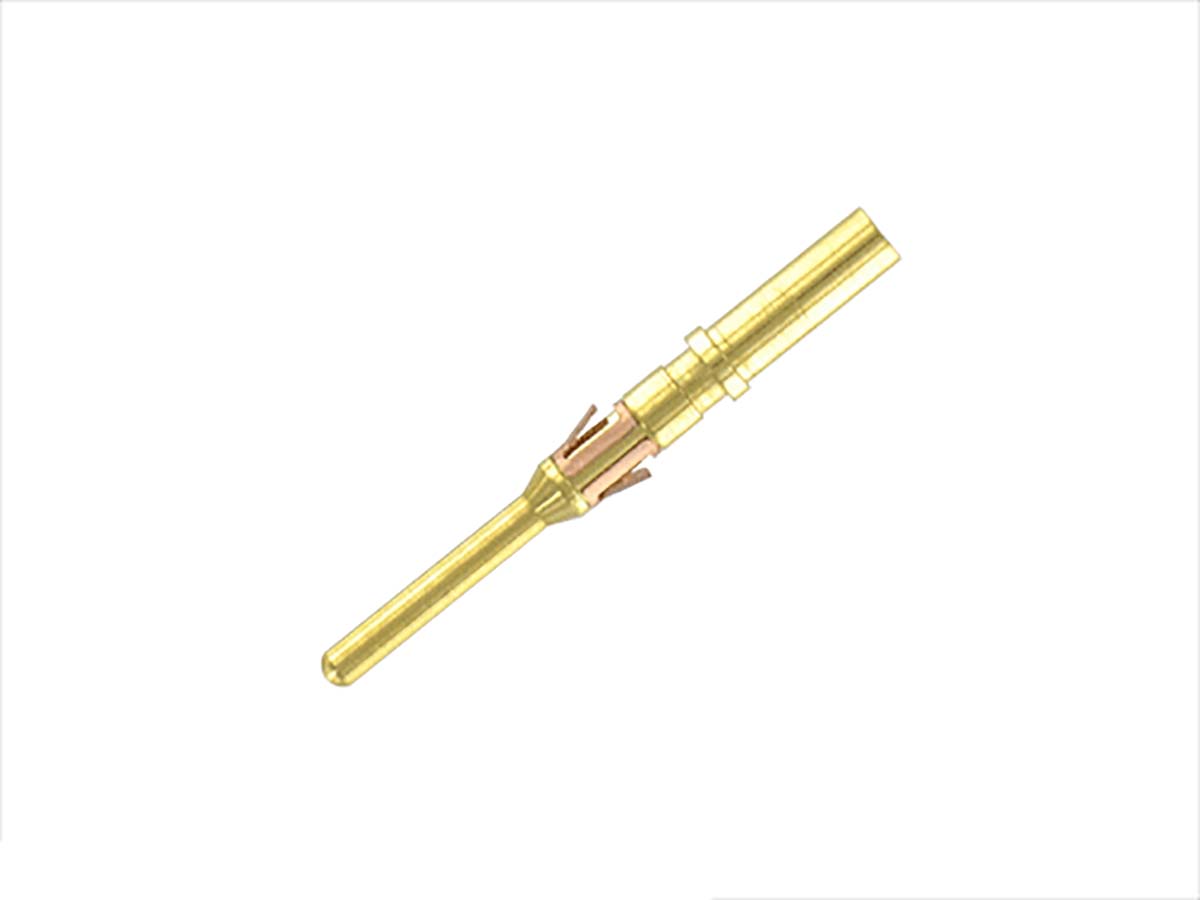

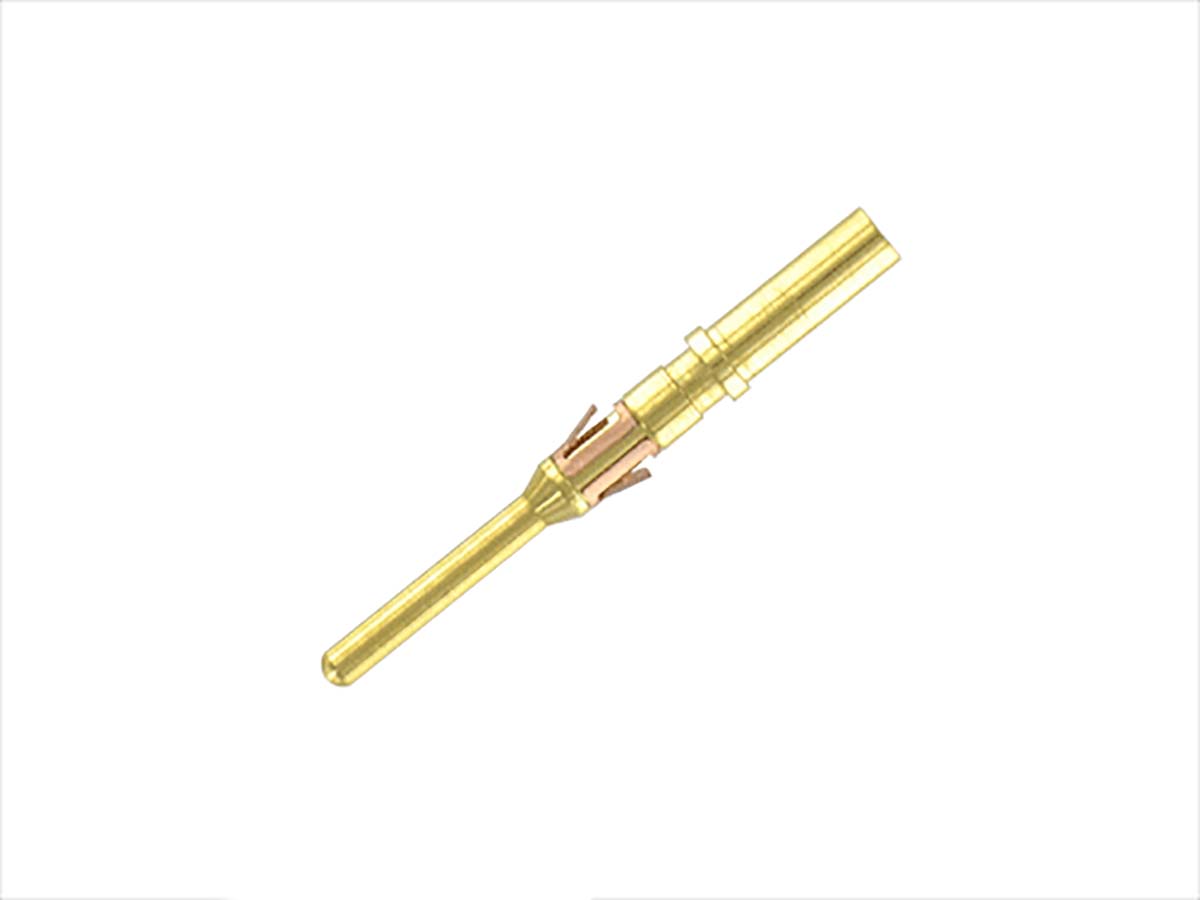

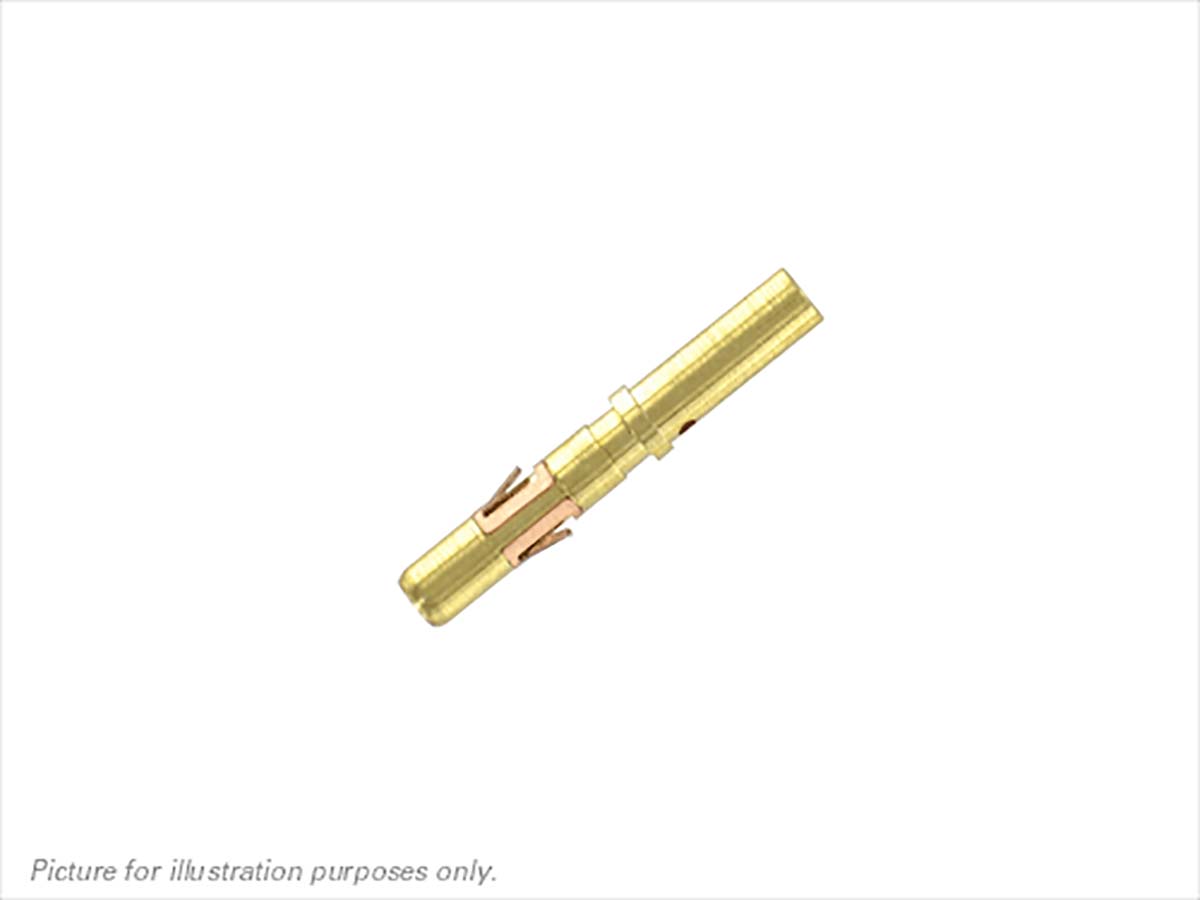

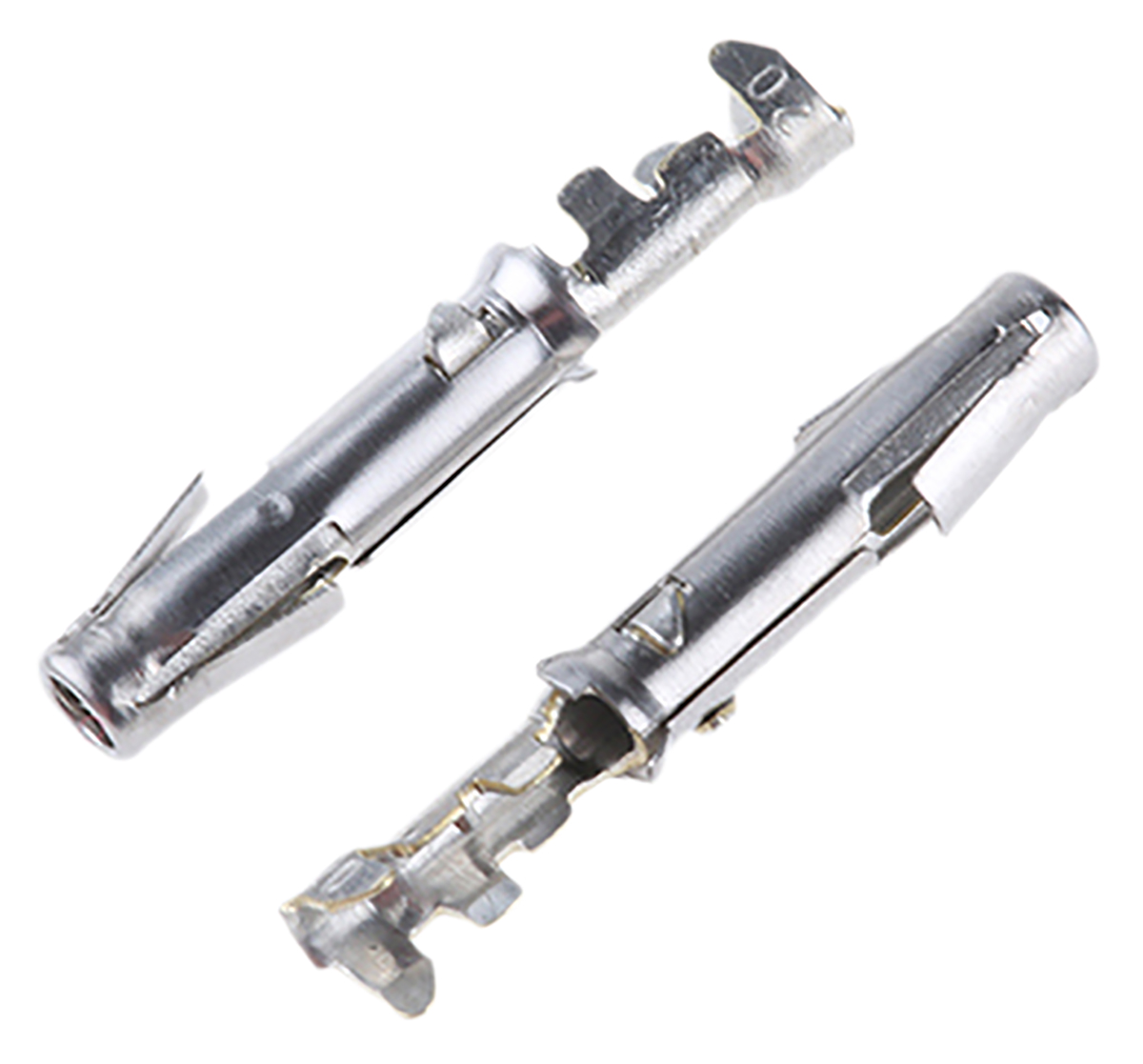

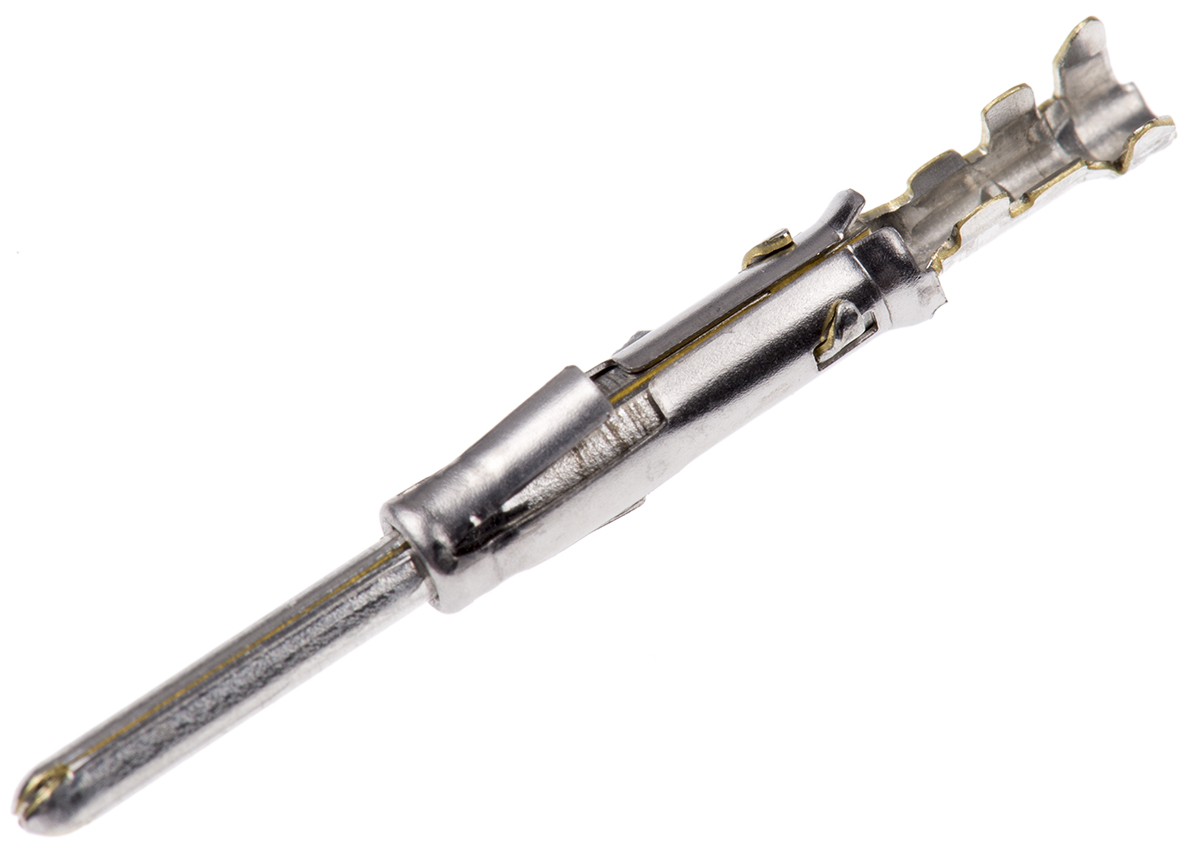

Crimp Contacts High quality stamped pins and sockets made from copper alloy and plated gold over nickel in contact area. Cable insulation range for 26//24 awg contacts is 0.89-1.57mm diameter, and for 22//20 awg contacts 1.17-2.08mm.

Souriau Connector Backshell The Souriau UTG series black circular connector backshell has shell size of 14. This is a plastic standard circular connector cable clamp with strain relief nut for water protected applications. It offers protection with screw cable clamping and a neoprene sealing gland insert, which is pre-split in decreasing circular gradients. The length of the cable clamp is 62mm.<BR/>Sealok - Plastic<BR/>Intermateable, interchangeable and technically comparable with MIL-C-26482 series 1 connectors, the Sealok range offers a cheaper alternative to traditional metal types. Ideal for industrial application. These connectors have a metal bayonet coupling ring for security and durability and have a built-in interfacial seal to meet IP65 sealing requirements. It is available in 6, 10, 19 and 26 way, in pin or socket configurations for cable or chassis mount. It is available in standard shell sizes. Two styles of backshell are also offered.<BR/>. Features and Benefits Cable opening ranges between 7mm and 18.50mm<BR/>Operating temperature ranges between -55°C and 125°C<BR/>Outside diameter of the connector is 26.97mm<BR/>Thread size is PG13.5 Applications Commercial applications<BR/>Military Certifications IP67 rated

Souriau Connector Backshell The Souriau UTG series black circular connector backshell has shell size of 12. This is a plastic standard circular connector cable clamp with strain relief nut for water protected applications. It offers protection with screw cable clamping and a neoprene sealing gland insert, which is pre-split in decreasing circular gradients. The length of the cable clamp is 57mm. <BR/>Sealok - Plastic<BR/>Intermateable, interchangeable and technically comparable with MIL-C-26482 series 1 connectors, the Sealok range offers a cheaper alternative to traditional metal types. It is ideal for industrial application. These connectors have a metal bayonet coupling ring for security and durability and have a built-in interfacial seal to meet IP65 sealing requirements. It is available in 6, 10, 19 and 26 way, in pin or socket configurations for cable or chassis mount. It is available in standard shell sizes. Two styles of backshell are also offered. Features and Benefits Cable opening ranges between 7mm and 16mm<BR/>Operating temperature ranges between -55°C and 125°C<BR/>Outside diameter of the connector is 24mm<BR/>Thread size is PG11 Applications Commercial applications<BR/>Military Certifications IP67 rated

Souriau Connector Backshell The Souriau UTG series black circular connector backshell has shell size of 16. This is a plastic standard circular connector cable clamp with strain relief nut for water protected applications. It offers protection with screw cable clamping and a neoprene sealing gland insert, which is pre-split in decreasing circular gradients. The length of the cable clamp is 68mm.<BR/>Sealok - Plastic<BR/>Intermateable, interchangeable and technically comparable with MIL-C-26482 series 1 connectors, the Sealok range offers a cheaper alternative to traditional metal types. It is ideal for industrial application. These connectors have a metal bayonet coupling ring for security and durability and have a built-in interfacial seal to meet IP65 sealing requirements. It is available in 6, 10, 19 and 26 way, in pin or socket configurations for cable or chassis mount. It is available in standard shell sizes. Two styles of backshell are also offered. Features and Benefits Cable opening ranges between 8mm and 20.50mm<BR/>Operating temperature ranges between -55°C and 125°C<BR/>Outside diameter of the connector is 30.20mm<BR/>Thread size is PG16 Applications Commercial applications<BR/>Military Certifications IP67 rated

Backshells Standard backshells offer screw cable clamping. Two sizes of clamping bars are supplied to cater for various cable diameters.,IP65 backshells offer further protection with screw cable clamping and a neoprene sealing gland insert which is pre-split in decreasing circular gradients so that it may be cut to suit the cable diameter being used.

Crimp Contacts High quality stamped pins and sockets made from copper alloy and plated gold over nickel in contact area. Cable insulation range for 26//24 awg contacts is 0.89-1.57mm diameter, and for 22//20 awg contacts 1.17-2.08mm.

840 series - Bases Bases fitted with male or female solder contacts.
