The Spelsberg Mounting socket is a type of accessory used for the lateral assembly on various different enclosures, as well as Plus types. IP54 protection rating

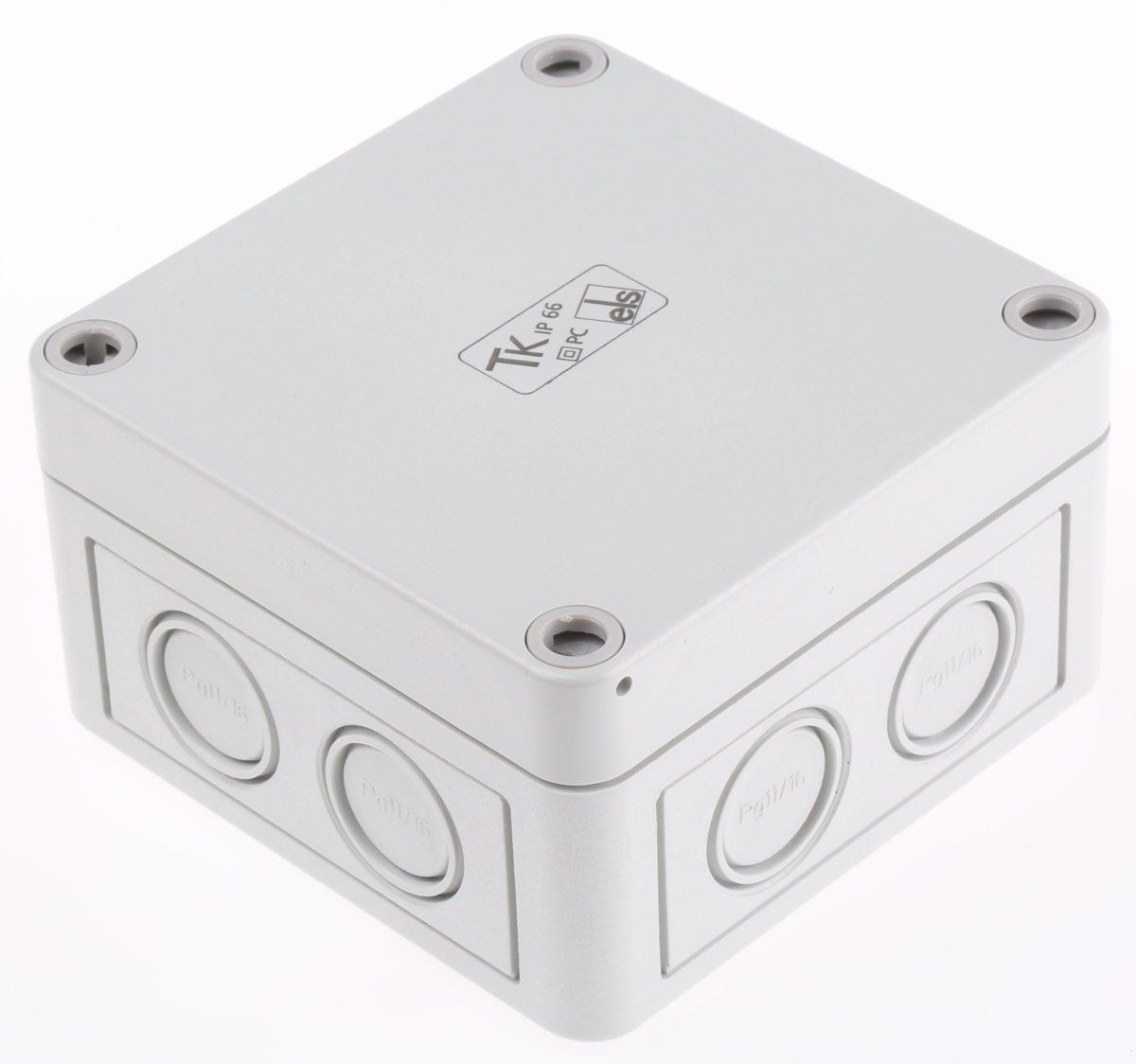

Spelsberg TK-PC IP66 Enclosure without Metric Knockouts The TK-PC series from Spelsberg is an empty enclosure without pre-pressed metric knockouts designed to house a wide range of electrical, electronic and pneumatic equipment. The enclosure base is made from grey polycarbonate and there is a choice of either a transparent or grey polycarbonate lid. The TK-PC has a IP66 rating and is resistant to most acids and alkalis. Featues and Benefits: • IP66 ingress protection acc. EN 60529 / DIN VDE 0470-1• IK07 impact resistant acc. DIN EN 5012 / VDE 0470 Part 100• Flammability rating: VDE 0471, UL94, 960 °C / V2• Operating temperature range -35 to +80 °C• Wall mounting using through holes below lid fixing screws• Surface mounting using knockouts in bottom of base (sealing plugs provided)• Integrated polyurethane cover gasket• Halogen Free FAQ: What does IP rating mean? The IP rating is used to define levels of sealing effectiveness of electrical enclosures against intrusion from foreign bodies (tools, dirt etc) and moisture. For more information please, visit SOLUTIONS section at the top of the page or click on Selection Guide of an Enclosures. What is supplied? • Base + lid • Lid monuting screws

Spelsberg TK-PC IP66 Enclosure without Metric Knockouts The TK-PC series from Spelsberg is an empty enclosure without pre-pressed metric knockouts designed to house a wide range of electrical, electronic and pneumatic equipment. The enclosure base is made from grey polycarbonate and there is a choice of either a transparent or grey polycarbonate lid. The TK-PC has a IP66 rating and is resistant to most acids and alkalis. Featues and Benefits: • IP66 ingress protection acc. EN 60529 / DIN VDE 0470-1• IK07 impact resistant acc. DIN EN 5012 / VDE 0470 Part 100• Flammability rating: VDE 0471, UL94, 960 °C / V2• Operating temperature range -35 to +80 °C• Wall mounting using through holes below lid fixing screws• Surface mounting using knockouts in bottom of base (sealing plugs provided)• Integrated polyurethane cover gasket• Halogen Free FAQ: What does IP rating mean? The IP rating is used to define levels of sealing effectiveness of electrical enclosures against intrusion from foreign bodies (tools, dirt etc) and moisture. For more information please, visit SOLUTIONS section at the top of the page or click on Selection Guide of an Enclosures. What is supplied? • Base + lid • Lid monuting screws

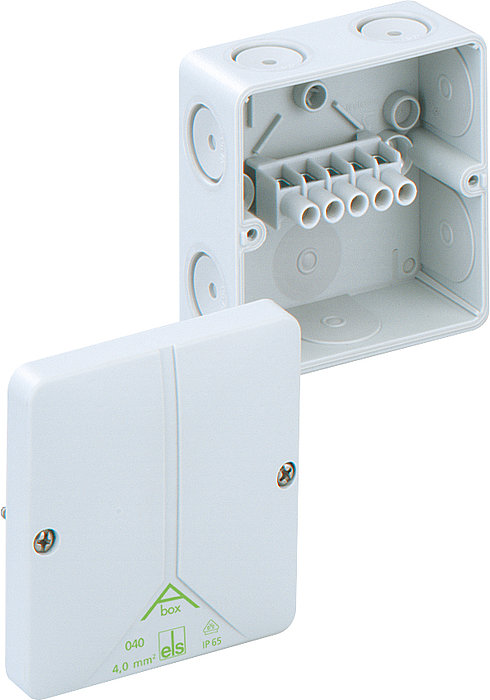

The Spelsberg junction box has nominal cross-section of 4 mm² for conductor. It is certified according to VDE. Rated insulation voltage AC 690 VProtection class II

AKe IP55 Distribution Units Mini distribution boxes with PE/N terminalsIP55 RatingHinged transparent front coversWith cover and marker strips, insulating seals and entry spouts

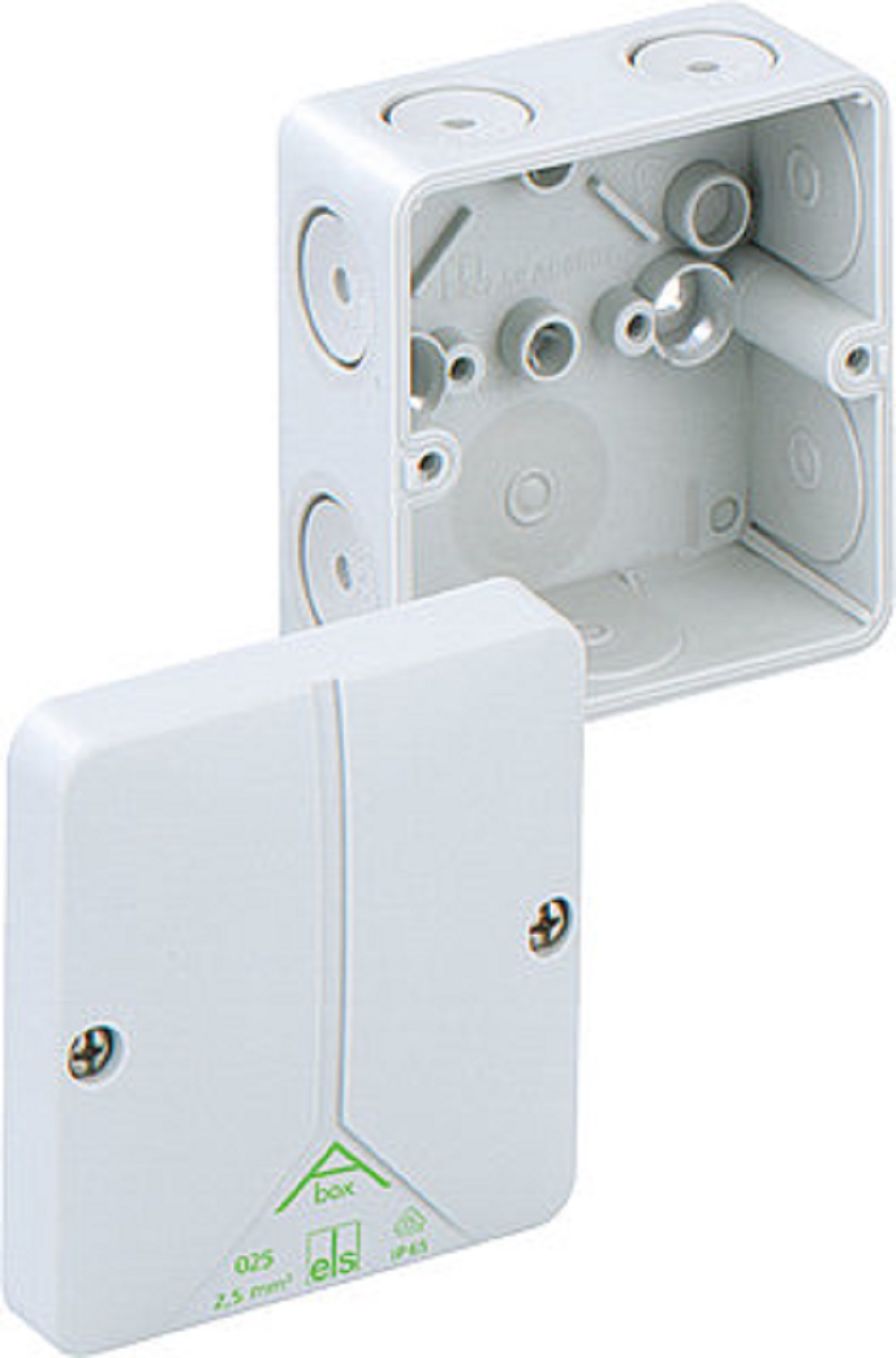

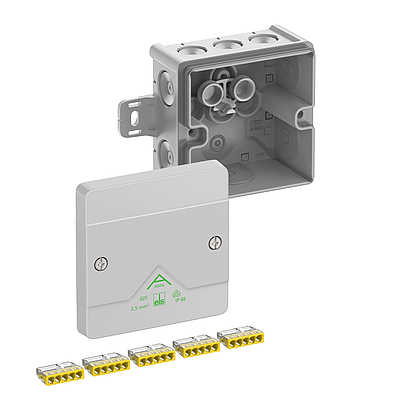

The Spelsberg junction box has nominal cross-section of 2.5 mm² for conductor. It is certified according to VDE. Rated insulation voltage AC 690 VProtection class II

Halogen-Free Enclosures, IP66 Introducing the range of professional, halogen-free junction boxes from Spelsberg. Manufactured from high-quality, glass-fibre reinforced polycarbonate, that guarantees increased impact protection, flames, UV and chemicals resistance. These boxes are suitable to be used in harsh environments such as power stations, marine or railway. Selection of knockouts guarantees comfortable operation with a number of cables. Boxes are supplied with non-corrosive screws.Features and Benefits:• Box made from high-quality polycarbonate • Metric knockouts• Operating temperature from -35 °C to +80 °C• IP66 - acc. EN 60529 / DIN VDE 0470-1• High impact resistance (IK08)• SIlicon and halogen-free construction• Flame retardant up to 960°C acc. VDE 0471/ EN 60695)• Finished in grey RAL7035Spelsberg junction boxes are available in a selection of sizes:• 94mm x 65mm x 57mm - 263-0322• 94mm x 94mm x 57mm - 263-0338• 130mm x 94mm x 57mm - 263-0344• 130mm x 130mm x 75mm - 263-1022• 110mm x 110mm x 66mm - 263-0350• 182mm x 180mm x 90mm - 263-0366• 254mm x 180mm x 90mm - 263-0388Suitable terminals are: Cable Mount, 2.5 - 4mm² cable diameter - 202-6745Cable Mount, 2.5mm² cable diamter - 263-0401Cable Mount, 10mm² cable diamter - 263-0423Cable mount, 25mm² cable diameter - 263-0451Typical Application:Junctions Boxes are primarily used in building construction and are designed to provide protection to wiring circuits and electrical connections for easy access. Boxes are usually made from metal or heavy-duty plastic and in most situations can be used both indoor and outdoor due to water and impact resistance. Typically junction boxes are used for:• Connecting additional sockets to circuits• Adding lighting points• Extending circuits• Electricity circuit repairsApprovals & Certification:• Protection class II - isolate protection acc. VDE 0106• IP66 acc. EN 60529 / DIN VDE 0470-1• IK08 acc. DIN EN 5012VDE 0470• Combustion Behaviour 960°C acc. VDE 0471/ EN 60695FAQs:Does this box come with terminal?No, boxes do not come with terminals. Terminals are available separately. What's included in the set? Boxes are supplied complete with:• lid screws• instruction sheet

The Spelsberg Enclosure wall with insert via double membrane seals and opening for flange types including flange connector is for sealing the face of AK-F enclosures. IP65 protectionCSA certified

IP67 ABS Enclosure, TG Series The TG series from Spelsberg is an industrial ABS enclosure which provides quick, aesthetic protection of electrical applications and comes with a recessed cover. These IP67 enclosures are resilient to most harsh environments making them suitable for various indoor and outdoor applications. Features and Benefits High-quality design with a stylish gloss appearanceGrey enclosure base (similar to RAL7035) with either a grey or transparent coverTime saving fast closure systemRecess in the cover facilitates the placement of design foils or membrane keyboardsSmooth side walls for added flexibilityIntegrated cover retainerAttachment notches in the usual positionsMounting plate, DIN rail, inside hinge set and external mounts available separately Typical Applications Cable/Wire Management Traffic Control IT/Server Solar Power Batteries Food and Beverage Industry Telecommunication Industry (IP) Ingress Protection and what it means IP rating classifies the degrees of protection provided against the intrusion of solid objects (including body parts like hands and fingers), dust, accidental contact, and water in electrical enclosures. FAQ's Can the enclosure be used outside? Being IP67 rated this enclosure is fully waterproof/weatherproof. What is Supplied? Captive Stainless Steel lid screws and a polyurethane gasket as standard.

Lock fittings, for installation in hinged doors of distribution boxes AK 03 to AK/AKi 70 and AK/AKi Plus 14 to 56, with 2 keys and installation instructions

IP67 ABS Enclosure, TG Series The TG series from Spelsberg is an industrial ABS enclosure which provides quick, aesthetic protection of electrical applications and comes with a recessed cover. These IP67 enclosures are resilient to most harsh environments making them suitable for various indoor and outdoor applications. Features and Benefits High-quality design with a stylish gloss appearanceGrey enclosure base (similar to RAL7035) with either a grey or transparent coverTime saving fast closure systemRecess in the cover facilitates the placement of design foils or membrane keyboardsSmooth side walls for added flexibilityIntegrated cover retainerAttachment notches in the usual positionsMounting plate, DIN rail, inside hinge set and external mounts available separately Typical Applications Cable/Wire Management Traffic Control IT/Server Solar Power Batteries Food and Beverage Industry Telecommunication Industry (IP) Ingress Protection and what it means IP rating classifies the degrees of protection provided against the intrusion of solid objects (including body parts like hands and fingers), dust, accidental contact, and water in electrical enclosures. FAQ's Can the enclosure be used outside? Being IP67 rated this enclosure is fully waterproof/weatherproof. What is Supplied? Captive Stainless Steel lid screws and a polyurethane gasket as standard.

The Spelsberg junction box has nominal cross-section of 6 mm² for conductor. It is certified according to VDE. Rated insulation voltage AC 690 VProtection class II
