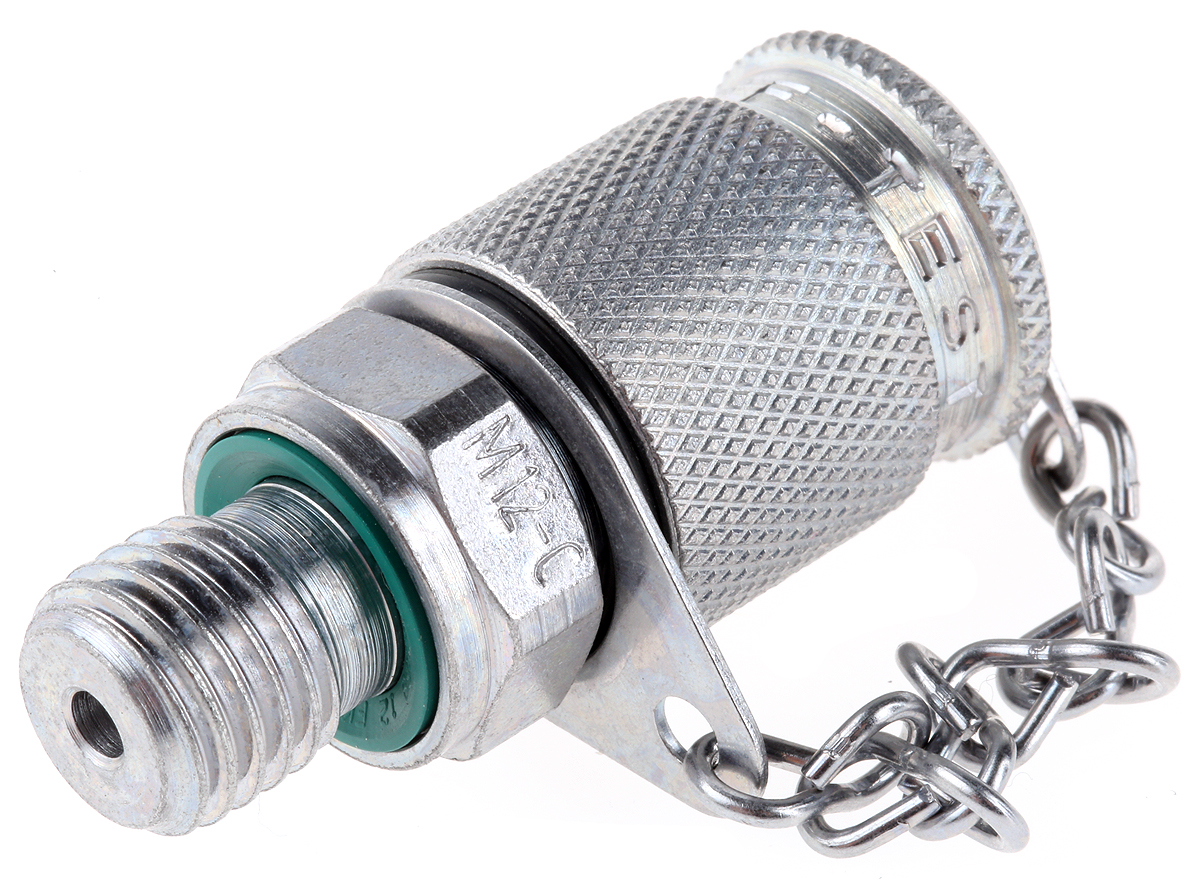

Test Coupling SMK Test point thread M16 x 2

Gauge Adaptor SMA Pressure gauge to test hose connecting adaptor suitable for bulkhead fixingAllows secure solid connection between pressure gauge and M16 female swivel end flexible test hoseCan be secured to pre-drilled fabrication by lock nut suppliedUseful when remote readings required or direct gauge to test coupling impractical

Direct Gauge Adaptor Female BSP threaded side allows quick connection of pressure gaugeSwivel side fits directly to test coupling

Test Hose SMS Gauge adaptor and test hose allow remote monitoring of hydraulic systemsBurst pressure 1100 bar5mm hose outside diameterMinimum bend radius 20mmPressure/temperature factor 122% (to 0°C), 110% (at 30°C), 100% (at 50°C), 86% (at 80°C), 77% (at 100°C)

Bulkhead Test Coupling Connection SSK Often used in multi-point remote panel applicationsThe long M16 male thread often used to connect test point hose to other test couplings or items some distance awayFlexible hose can be fitted both sides of connector

Test Coupling SMK Test point thread M16 x 2

BSP Inline 60° Test Point Adaptor Test point thread M1660º coned BSP male thread one end and female swivel nut on other endAllows in-line direct mounting between flexible hose assemblies or other suitably machined parts

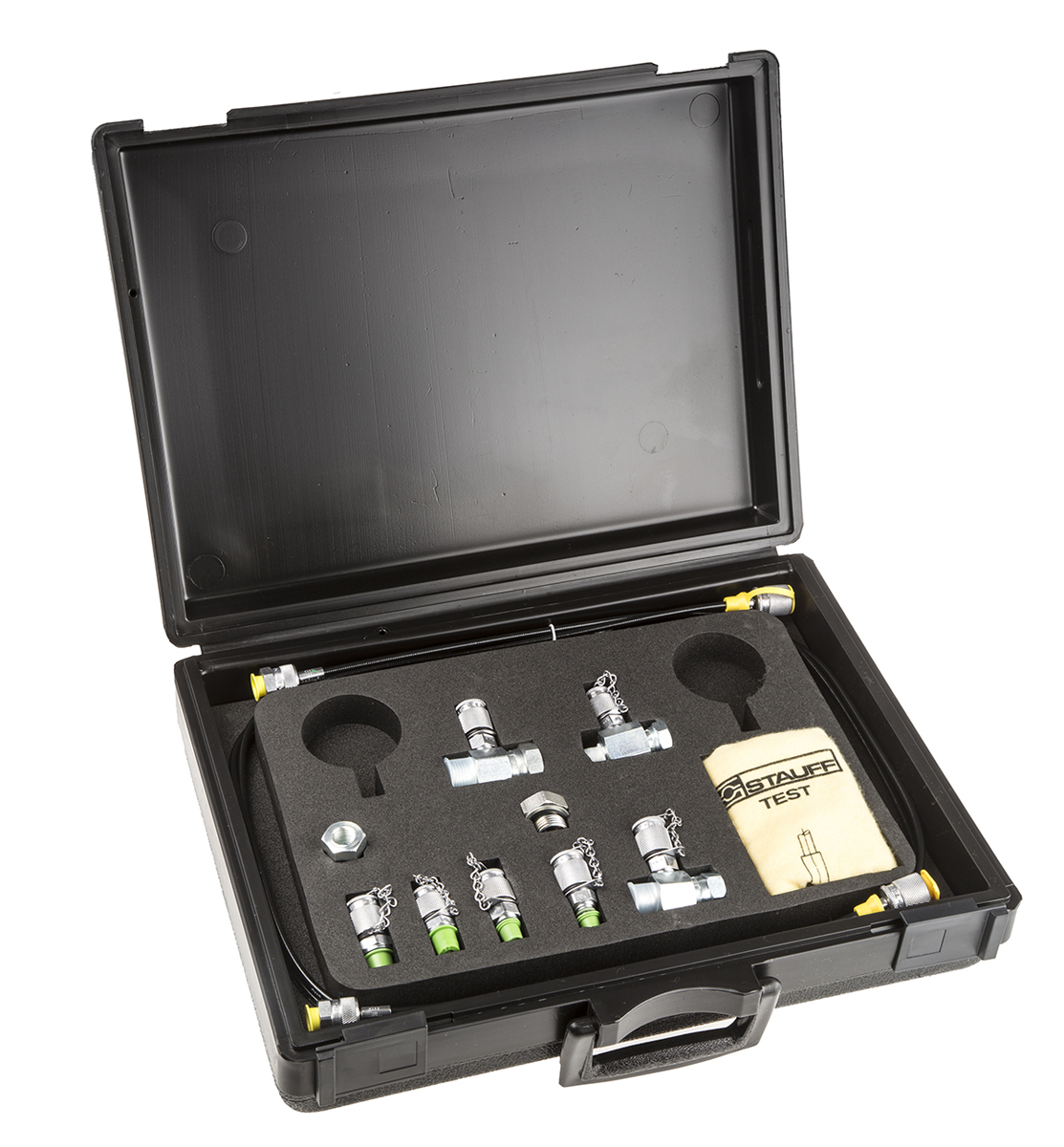

SMK1 Test Kit 1 BSP and metric couplingsMaximum pressure: 630 bar

Test Coupling SMK Test point thread M16 x 2

Test Coupling SMK Test point thread M16 x 2

Test Hose SMS Gauge adaptor and test hose allow remote monitoring of hydraulic systemsBurst pressure 1100 bar5mm hose outside diameterMinimum bend radius 20mmPressure/temperature factor 122% (to 0°C), 110% (at 30°C), 100% (at 50°C), 86% (at 80°C), 77% (at 100°C)

Test Coupling SMK Test point thread M16 x 2
