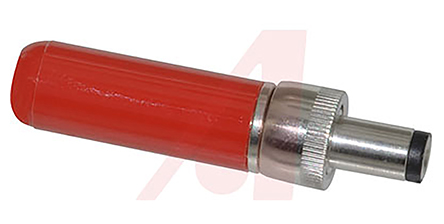

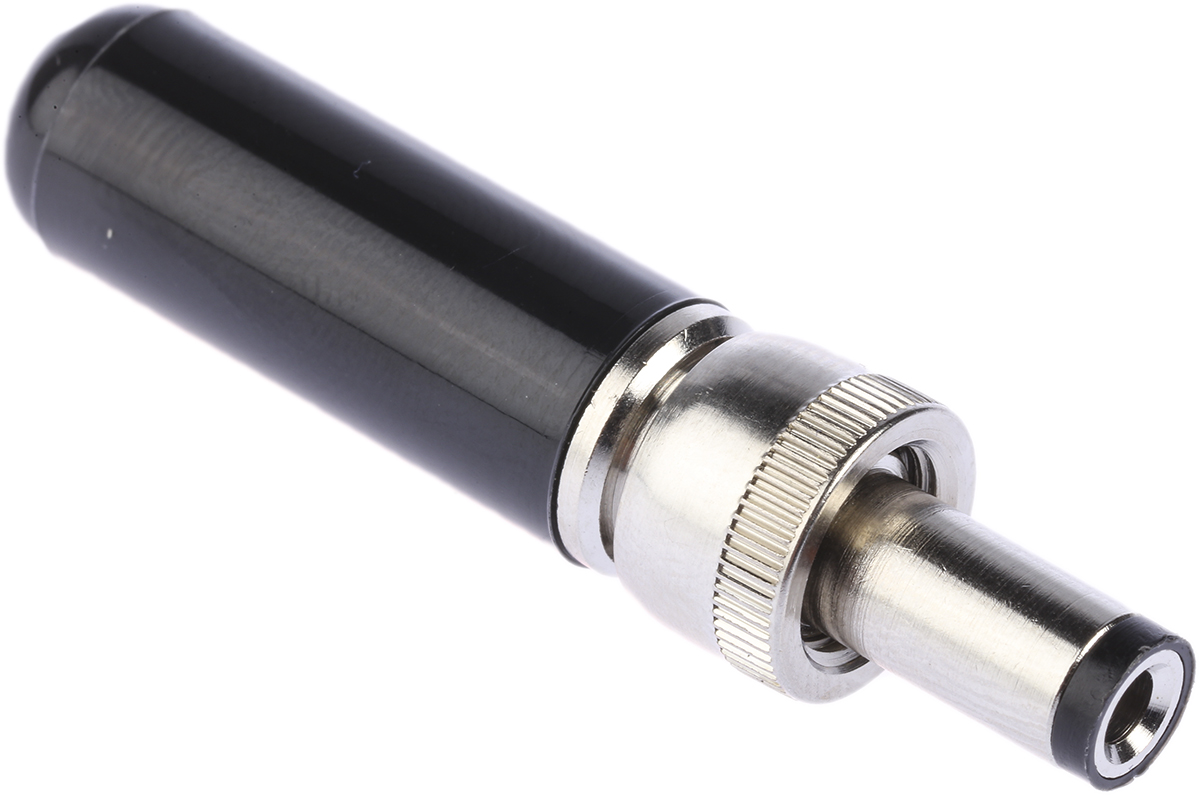

Switchcraft DC Power Plugs, 2.1mm and 2.5mm Switchcraft 2 conductor DC power plugs with a hollow centre pin and molded plastic covers for use with 2.1mm and 2.5mm Jacks. The sleeve terminal also serves as a cable clamp. Available in red or black cover versions and in versions that lock when mated into a suitable jack socket. Features and Benefits • Current rating 5A at 12VDC• Over 10,000 mating cycles • Plug Sleeve and Pin - Nickel-Plated Copper Alloy• Lock-Ring Thread Size - 5/16 - 32 UNEF 2B• Finger Insulator and handle - Moulded Plastic• Insulating Washers - Rigid Plastic• Sleeve Terminal - Electro-Tinned Copper Alloy• Handle Thread Size: 5/16 - 24 UNF 2B

Switchcraft Chassis Mount Power Jack Sockets Switchcraft straight DC power jacks feature threaded bushings to allow use of both standard and locking power plugs, suitable for panel mount applications, fitted with hex nut and washer, available with a range of mating pin diameters Features and Benefits • Right-angle power jack for PC mounting • Kinked terminals allow snap-in PC board mounting • Split centre pin shaped to hold mating plug firmly • Current rating 5A at 12VDC• Contact resistance 0.01 Ohms max.• Dielectric withstand voltage 500 V ac max• Over 10,000 mating cycles• Panel thickness 3.1mm

Switchcraft DC Power Plugs, 2.1mm and 2.5mm Switchcraft 2 conductor DC power plugs with a hollow centre pin and molded plastic covers for use with 2.1mm and 2.5mm Jacks. The sleeve terminal also serves as a cable clamp. Available in red or black cover versions and in versions that lock when mated into a suitable jack socket. Features and Benefits • Current rating 5A at 12VDC• Over 10,000 mating cycles • Plug Sleeve and Pin - Nickel-Plated Copper Alloy• Lock-Ring Thread Size - 5/16 - 32 UNEF 2B• Finger Insulator and handle - Moulded Plastic• Insulating Washers - Rigid Plastic• Sleeve Terminal - Electro-Tinned Copper Alloy• Handle Thread Size: 5/16 - 24 UNF 2B

Switchcraft DC Power Plugs, 2.1mm and 2.5mm Switchcraft 2 conductor DC power plugs with a hollow centre pin and molded plastic covers for use with 2.1mm and 2.5mm Jacks. The sleeve terminal also serves as a cable clamp. Available in red or black cover versions and in versions that lock when mated into a suitable jack socket. Features and Benefits • Current rating 5A at 12VDC• Over 10,000 mating cycles • Plug Sleeve and Pin - Nickel-Plated Copper Alloy• Lock-Ring Thread Size - 5/16 - 32 UNEF 2B• Finger Insulator and handle - Moulded Plastic• Insulating Washers - Rigid Plastic• Sleeve Terminal - Electro-Tinned Copper Alloy• Handle Thread Size: 5/16 - 24 UNF 2B

Heavy Duty Jack Plugs From Switchcraft, this selection of heavy duty jack plugs feature a one piece tip rod for added strength and reliability. With heavy duty nickel handles and large solder terminals, these jack plugs ensure a robust and reliable connection. They are available with either a nickel plated or gold plated plug finger. All models are highly reliable and excellent quality.

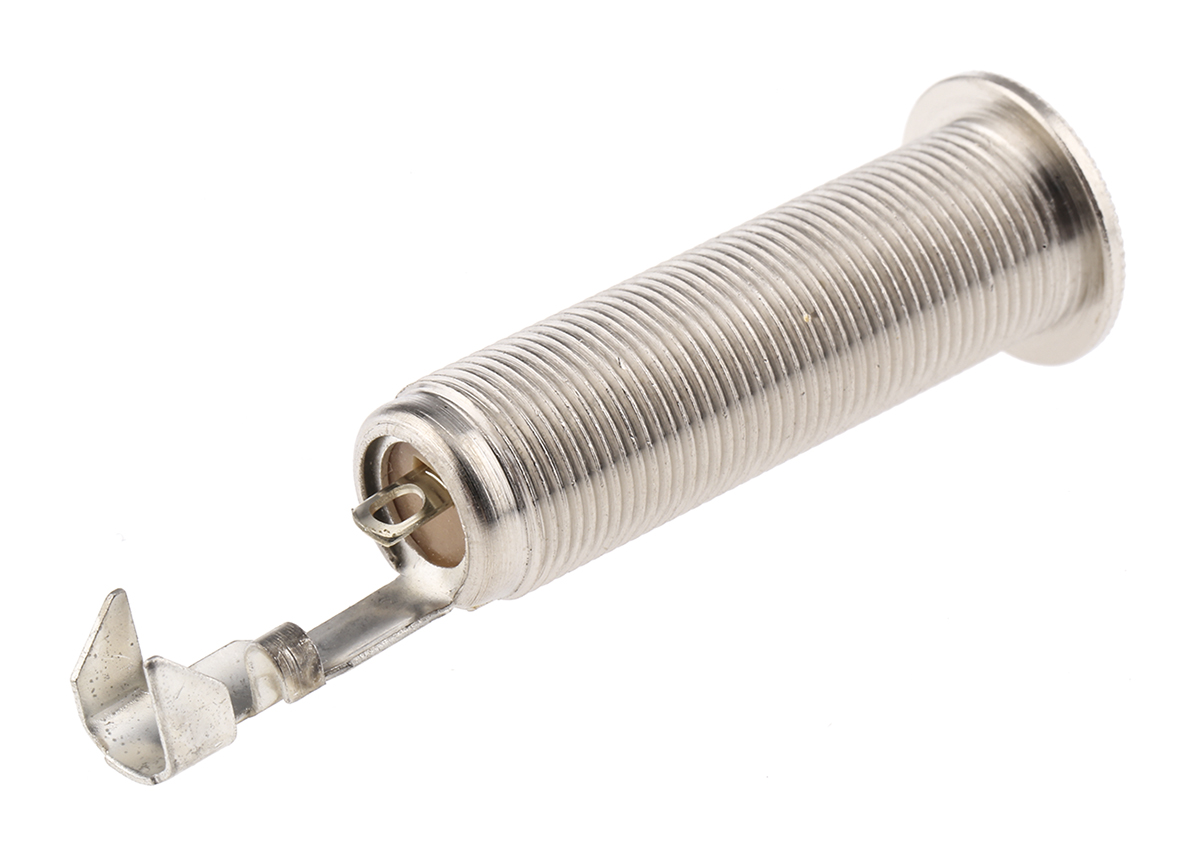

Switchcraft Panel Mount Plugs and Sockets Brought to you by Switchcraft, a selection of miniature panel mount jack plugs and jack sockets commonly used in headphone applications. A sturdy and robust design, these jacks ensure that your application performs to the highest standard. All models are highly reliable and excellent quality. The Switchcraft selection of Panel Mount Plugs and Sockets includes:• 850 Solders readily for optimum electrical connection• 851 Integral threaded collar to prevent accidental disconnect, mates with the TR2A panel socket• TR2A Can be wired for open or closed circuit operation• MDSL2A/MDSL2ARA Insulated box construction

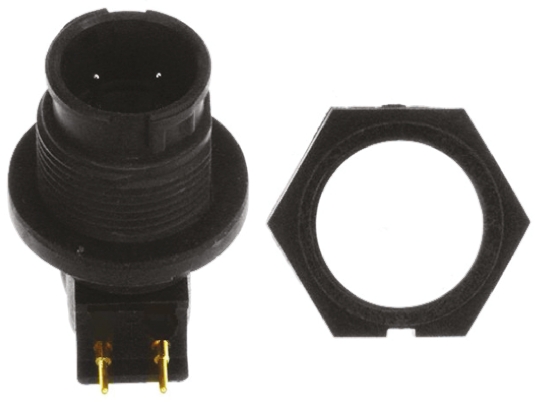

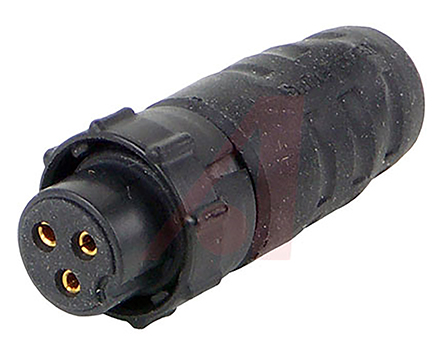

EN2 & EN3 Series Cable Mount Connectors Premium construction range of cable mount connectors from Switchcraft offer the the user various pin/socket configurations to ensure your application is covered. Utilizing an integral O-Ring & gasket design, making this series suitable for a comprehensive range of applications Various termination methods available, including Solder, Crimp & Faston

2.5mm Micro Plugs A series of micro plugs from Switchcraft. These subminiature phone plugs are extremely small, rugged and can be wired for open or closed circuit operation, mates with TR24 jacks. Internally keyed insulators interlock all parts and jack tip springs grip mating plugs. All models are highly reliable and excellent quality.

1/4 in. 90° Jack Plugs High-quality mono and stereo plugs from Switchcraft that offer fast termination and assembly with large terminals and 3 piece construction. Accepts cable up to 6.35 mm diameter. All metal exterior body guarantees high performance in demanding conditions and the slimline width of only 12.7 mm makes the plug ideal for use in space restricted areas. All models are highly reliable and excellent quality.

EN2 & EN3 Series Cable Mount Connectors Premium construction range of cable mount connectors from Switchcraft offer the the user various pin/socket configurations to ensure your application is covered. Utilizing an integral O-Ring & gasket design, making this series suitable for a comprehensive range of applications Various termination methods available, including Solder, Crimp & Faston

Switchcraft EN3 Series Connector Accessories A range of connector accessories suitable for use with the Switchcraft EN3 series of connectors. Dustcap material: Santopene rubber

Switchcraft RJ Adapters The Switchcraft EH broadcast series Cat5e RJ45 adapter is a shielded, panel mount connector with standard XLR housing. This adapter has a single panel cut-out that allows the end-user to mount multiple formats. Features and Benefits Thermoplastic housing plateCopper alloy nickel plated shielding Applications A/V and dataPro audioSystems integration Certifications ANSI/ESD S20.20:2014BS EN 61340-5-1:2007
