TE Connectivity IT942-000-0105-1110, Inclinometers All SINGLE AXIS 240 DEG 4-20MA TILT SENSOR

AMP+ HVA280 High Current Cable Assemblies TE Connectivity’s AMP+ HVA280 touch-proof cable assemblies are designed for flexibility with options for various electrical vehicle device applications. These EV cable connectors have a current carrying capability up to 40A at 85°C and a 2-4mm2 multicore wire range. Multiple latching options and an integrated internal HVIL with multiple routing options allow package size optimization and flexibility. Current rating: Up to 40A @ 85°C Temperature range: -40°C to 140°C Shielding: 360° from wire to device Touch proof IP6K9K rated Integrated internal HVIL Approvals USCAR, RoHS TE Connectivity AMP+

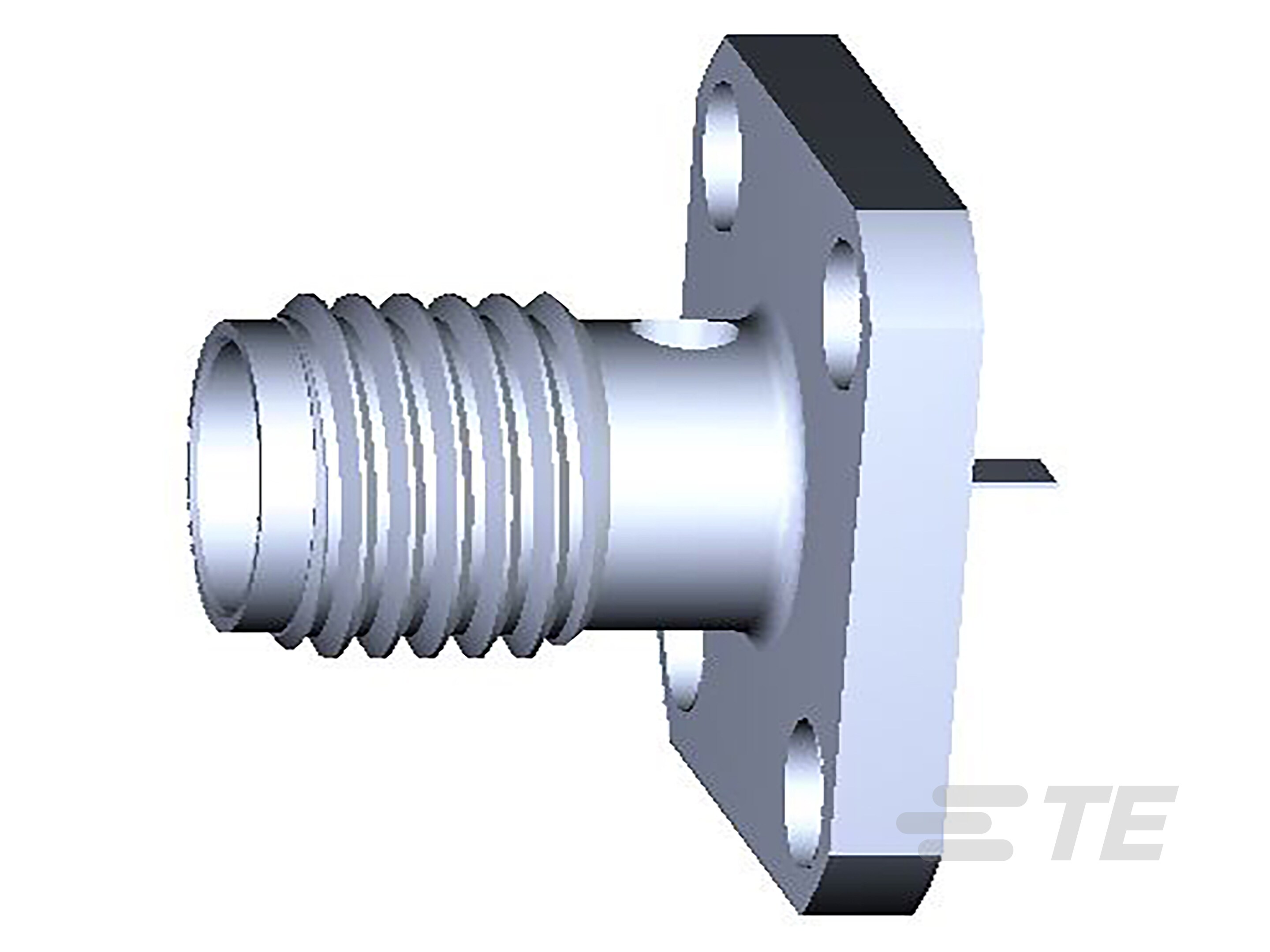

TE Connectivity SMA RF Coaxial Cable Connectors – Clamp Termination SMA RF coaxial plug and jack cable connectors for with a lightweight, compact design ideal for use in applications where space is limited. These SMB RF coaxial cable connectors offer an excellent electrical performance from DC to 18 GHz with an interface is that is fully compatible with MIL-C-39012. The threaded coupling mechanism of these SMA RF coaxial cable connectors provides a secure vibration proof connection. These SMA RF coaxial cable connector use a MIL-clamp cable termination which offers a robust connection and allows assembly in the field wihtout the need for any special tooling. SMA RF coaxial cable connectors are constructed from stainless steel or brass with a choice of platings including, nickel, gold and white bronze for use in different applications. Features and Benefits • Subminiature space saving design • Excellent electrical performance from DC to 18 GHz • Threaded vibration proof coupling mechanism • MIL-clamp cable termination for robust connection and easy assembly • Choice of platings dependent on application Applications These SMA RF coaxial cable connectors are for use in the wireless telecommunications industry. Applications include radio, mobile phone and WiFi antennas, base stations, instrumentation, PC/LAN, fixed and broadcast Satellite Communications, Standard Frequency and Time Satellite Gold Plated Connectors with stainless steel bodies and gold plating, which will mate with connectors conforming to MIL-C-39012 and BS 9210 N0006. Available for a variety of cable sizes, mounting configurations and cable and contact termination arrangements. Good high frequency performance at high power ratings in small diameters Connector variants suitable for semi-rigid or flexible cab...

TE Connectivity PIDG Faston 250 Receptacle Wire Crimp Terminals PIDG (Pre-Insulated Diamond Grip) FASTON 250 receptacle wire crimp terminals designed for uniform reliability in the most difficult circuit environments. These PIDG receptacle terminals consist of a precision-formed high conductivity copper body and barrel. The wire barrel is surrounded with both a copper and nylon colour coded sleeve. The copper sleeve surrounding the barrel provides improved wire insulation support after crimping allowing the wire to bend without fraying the insulation or breaking the conductor. The nylon sleeves are colour coded according to wire-size to assist with identification. Inside the PIDG receptacle terminal wire barrel are serrations which provide maximum contact and tensile strength after crimping. The construction of these PIDG terminals and the use of specialised tool dies allows for uniform insulation thickness under crimping pressure. This pressure is then transmitted evenly to the centre of the crimping area to produce a uniform and reliable crimp. These PIDG receptacle terminals also feature a funnelled wire entry which prevents turned back wire strands and allows fast wire insertion during high-speed production. Available with various wire sizes, these PIDG receptacle terminals offer a versatile solution to a wide range of wiring applications High conductivity copper body Copper sleeve for improved wire insulation support Serrations in wire barrel for maximum contact and tensile strength Colour coded sleeves for easy wire size and tooling identification Funnelled wire entry for easy wire insertion Designed enables a reliable and uniform crimp Application These PIDG wire terminals are suitable for use in a wide range of applications with many terminals meeting or exceeding the requirements of MIL-T-7928, Type II, Class 1 and 2. Applications include i...

TE Connectivity Duraseal Terminal and Splice Service and Repair Kit 1 This Duraseal terminal and splice service and repair kit contains a range of insulated Duraseal crimp terminals, with a wire size range of 0.5mm to 6mm2, coloured blue, red and yellow. Storage for the Duraseal crimp terminal and splice service and repair kit comes in a sturdy plastic case, with convenient compartments and a locking lid. For details of kit contents please see table. Kit Contents Terminal Type Terminal Size Terminal Colour Number Contained in Kit Manufacturer Part Number Replacement Stock Number Duraseal Ring M5 Red 10 DR-2-50 465-643 Duraseal Ring M5 Blue 10 DR-6-50 465-659 Duraseal Splice 0.5 - 1 mm 2 Red 50 DS-18-22 533-673 Duraseal Splice 1.5 - 2.5 mm 2 Blue 25 DS-14-16 533-667 Duraseal Splice 4 - 6 mm 2 Yellow 10 DS-10-12 533-651 Duraseal Receptacle 0.5 - 1.5mm 2 Red 10 DP-2-63 465-700 Duraseal Receptacle 1.5 - 2.5mm 2 Blue 10 DP-6-63 465-716 Approvals UL Approvals UL Duraseal Heatshrinkable TE heat shrinkable pre-insulated nylon splices and crimp terminals provide reliable connections, especially where environmental sealing is important. Covering cable sizes from 0.5mm - 6.0mm², they are designed for use where water or condensation may be encountered, or where abrasion or mechanical abuse could be problematic. To complete a joint, the cable connector is crimped in the traditional manner, and the sleeving is then heated to shrink around the cable insulation. Special adhesive flows during the heating to seal the joint. • The TE Duraseal kit is especially suited for use in automotive (approved by most car manufacturers) and marine builds, where environmental sealing is important • Kits are also available comprising various heat...

TE Connectivity MULTILOCK 040/070 Cable Mount Hybrid I/O Plug Housing Connectors TE Connectivity MULTILOCK Connectors and Contacts This is a miniature high density connector system offering a wire to wire and wire to board I/O solution commonly used in the automotive industry but suitable for many varying signal transfer applications. Snap in, crimp contacts for cable receptacles Board mounting options are pre-loaded with male contacts For wire to board connections utilise a cable and a board receptacle Cable cap accepts female contacts, cable plug accepts male contacts Cable cap mates cable plug to allow wire to wire connections High density wiring connectors with 2.5mm contact centres 040 Series 070 Series Current rating 8A 15A Withstand voltage 1kVac for 1 minute 1kVac for 1 minute Low level resistance 10mΩ max (initial) 1mΩ max (initial) Overall resistance 20mΩ max (final) 10mΩ max (final) Operating temperature -30°C to +150°C -30°C to +105°C

TE Connectivity PLASTI-GRIP Butt Splice Wire Crimp Terminals PLASTI-GRIP closed barrel butt splice wire crimp terminals made of high conductivity tin plated copper with an expanded high dielectric strength 94V-0 rated vinyl insulation sleeve. The inner barrel of these PLASTI-GRIP butt splice crimp connectors is serrated in order to provide maximum electrical contact and tensile strength after crimping. The funnelled entry on the wire barrel enables the stripped wire to be inserted more easily. TE Connectivity Plasti-Grip Terminals Temperature range: PVC -25°C to +90°C Nylon -55°C to +105°C Termination material: Tin plated Copper Termination insulation: Rings, spades, wire pins 6.35mm blades, splices PVC 6.35mm receptacles Nylon 6.6 (including shrouded)

Rayrim™ Adhesive Edging Strip Protective self-adhering heatshrinkable edging material used for the protection of internal and external radii, as well as straight edges. The profile offers a clean and rapid means of covering metal, wood and glass edges for all-round protection. Features and benefits • Fast and effectively cover metal, wood, and glass edges • On heating profile changes from 'V' to 'U' section • Manufactured from radiation cross-linked polyolefin

Contacts Single piece, formed construction Tin plated Wire seals are crimped individually with the contact AMP DIN 72585 Based on DIN 72585, this range of sealed connectors has been developed to meet the demand for superior performance. Vibration proofed Resistant to physical shock Wide temperature range Single wire sealing system Contact Compatibility Plug/Socket Contact 7 Way 1.5mm 2 to 4 Way 2.5mm Shell Material Glass filled PBT Current Rating 1.5mm 25A 2.5mm 30A Contact Resistance 10mΩ IP Rating IP67 & IP69K Temperature Range -40 to +130°C

TE Connectivity CERTI-CRIMP II Straight Action Hand Crimp Tools CERTI-CRIMP II Premium grade straight action hand tools (SAHT) for crimping a wide range of terminals and contacts on to wire. The dies of these straight action hand crimp tools close in a straight line. These CERTI-CRIMP II premium grade hand crimp tools are designed to high specifications using high-quality materials to produce high-quality consistent terminations with optimal electrical and mechanical performance. Premium grade hand crimping tools require minimum operator skill to produce high quality crimps to specified parameters. Each hand crimp tool incorporates crimping dies, locating and straightening features that enable the terminals crimped by these tools to meet requirements of applicable TEC application (114-) specifications. These CERTI CRIMP II crimp tools feature contact locators, support and wire stops. Stock numbers 782-9741 , 782-9120 , 782-1122 , 366-1816 , 864-3715 and 864-3719 have a flip locator that provides increased accuracy for the location of small terminals. The CERTI-CRIMP II crimp tools for crimping insulated terminals also feature 4 position insulation crimp height adjustment. The whole design of the CERTI-CRIMP II straight action crimp tool ensures that the dies are bottomed independent of operator technique, fatigue or tool wear & tear. The crimp tool features a CERTI-CRIMP ratchet which is factory set to stay locked until the handles of the tool are fully closed and the dies are bottomed. This ratchet mechanism ensures that the tool only opens once a complete crimp cycle is achieved preventing partial crimps. The handles of the crimp tool are set to specific pressures to meet different crimp force requirements. To aid identification wire size information is displayed on the head of the crimp tool. Features and Benefits High specification design using high-quality materials Fixed crimp dies for specific...

Refill Adhesive Lined 3:1 CGAT RaySpool system tubing offer a convenient dispensing system for heat shrink tubing. The CGAT series of heat shrink tubing are flexible with an adhesive lining. They have a flame retardant jacket which offers both electrical insulation and environmental sealing. Features and Benefits • Easy to store • Easy to dispense • Well suited for repairs • Adhesive lined tubings • Wide variety of sizes • RoHS compliant • 3:1 shrink ration • Operating temperature range: -30 °C to +80 °C Product Application Information Applications include, electrical insulation, strain relief, cable bundling and environmental protection. Approvals UL

TE Alcoswitch Illuminated Tactile Switch Series The Alcoswitch tactile illuminated switches are easy to operate. They are provided in various board-mounted applications. Illuminated switches are ideal for use with illuminated interfaces via push button style switches.Features and Benefits Switches durability rating up to 500,000 electrical life cyclesDesign flexibilityLED Indicators high or low intensityBoard space savingIntegrated superbright LEDQuick board assemblyEase of use with tactile and audible feedbackApplications: Industrial EquipmentBuilding / AutomationHVAC equipmentInstrumentationCommunication equipmentControl equipmentTactile
