The Teledyne LeCroy output Sine Square Ramp pulse Noise DC and 45 built-in waveforms. The arbitrary waveforms can be accessed and edited by the EasyScope PC software. USB connection module connects to the oscilloscope to generate output sine square ramp pulse DC noise and 45 arbitrary waveformsMaximum output frequency of 50 MHz for HD models and 25 MHz for non-HD modelsArbitrary Waveform Generator Module is designed for use with the T3DSOHD Series Digital Storage OscilloscopesUSB connection module connects to the oscilloscope to generate output

Teledyne LeCroy T3VNA3200 Desktop Dual Vector Network/Spectrum Analyser, 9 kHz - 3.2 GHz The Teledyne Test Tools T3VNA3200 Vector Network Analyser has a Vector Network Analysis frequency range of 100 kHz up to a maximum of 3.2 GHz and a Spectrum Analysis frequency range from 9 kHz up to a maximum of 3.2 GHz. The small footprint and easy user interface is augmented by a high performance specification with many advanced measurement functions and capabilities. Features & Benefits 156 dBm/Hz Displayed Average Noise Level (Typ.)-98 dBc/Hz @10 kHz Offset Phase Noise (1 GHz, Typ.)Total Amplitude Accuracy Distance to fault capability using VNA time domain analysis as standardCalibration and Utility Kits as standardStandard PreamplifierBuilt-in Advanced Measurement capability as standard (CHP, ACPR, OBW, CNR, TOI, etc)10.1 lnch WVGA (1024 x 600) Display1 Hz Minimum Resolution Bandwidth (RBW)All-Digital IF Technology

Teledyne LeCroy Passive Probe PP022 Passive probes are the standard probe provided with most oscilloscopes. They are also sold as separate items and as replacements. The PP022 (PP022-1 single pack, PP022-2 two pack) has 500 MHz bandwidth, 10 pF input capacitance and 2.5 mm probe tip diameter. It is typical of passive probes in that it provides a 10:1 attenuation and features a high resistance of 10 MΩ. Its high input resistance makes the passive probe a choice instrument for low frequency signals, because circuit loading at such frequencies is minimised. Passive probes are designed to handle voltages of at least 400 V. The PP022 handles up to 500 V. Teledyne LeCroy passive probes feature an attenuation sense pin which activates the oscilloscope to scale waveforms automatically, with no operator input.

The Teledyne LeCroy rackmount occupies a height of 5USupport the oscilloscope for rack installation. Designed for use with the T3DSOHD Series Digital Storage Oscilloscopes.kit occupies a 5U rack size height and saves the oscilloscope from occupying needed benchtop spaceSaves oscilloscope from occupying needed benchtop space

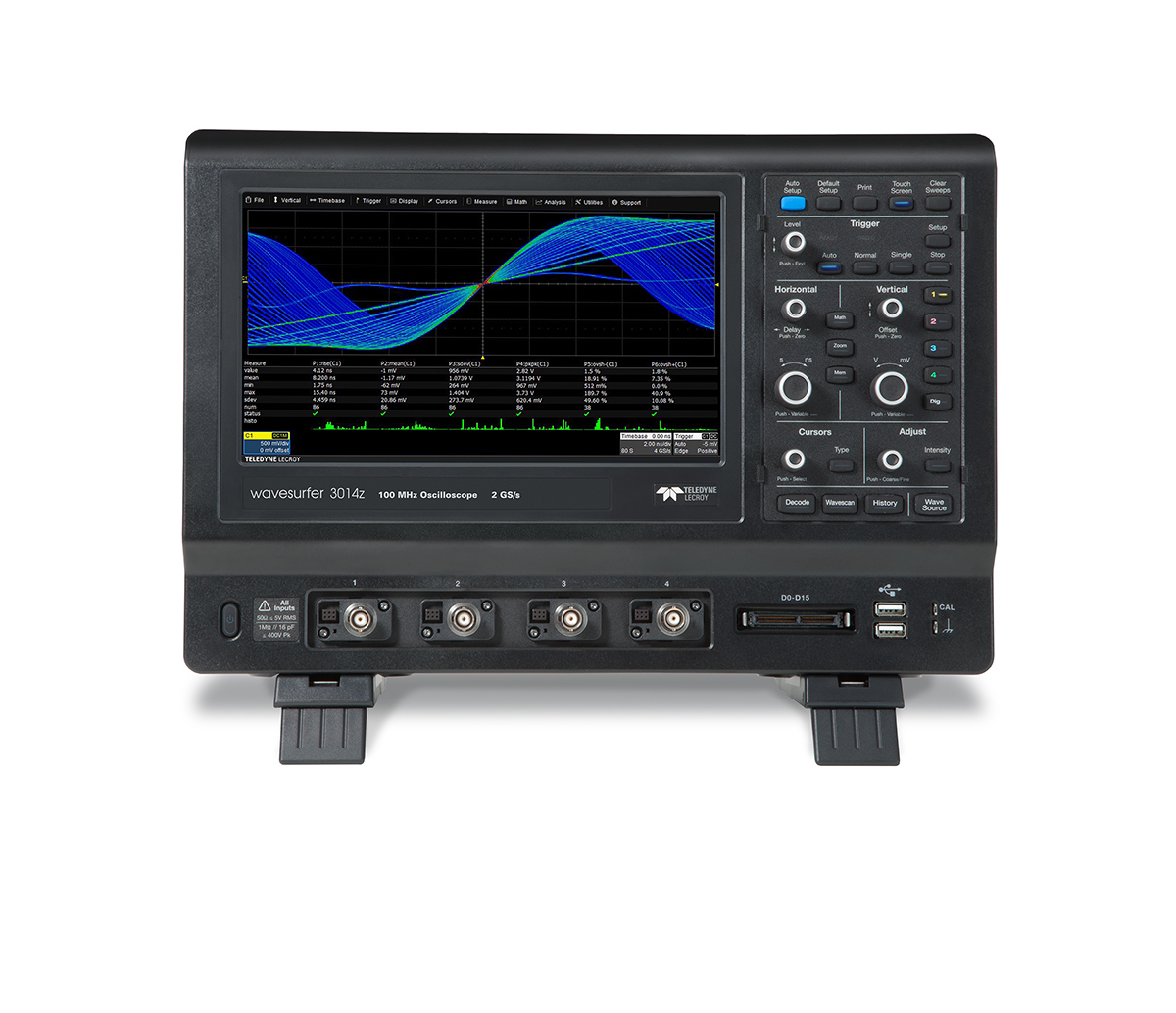

Teledyne LeCroy WaveSurfer 3000z Oscilloscopes Teledyne LeCroy bring you a range of digital WaveSurfer 3000z oscilloscopes all built with a premium quality. The 3000z range of oscilloscopes provide brilliant features such as; capacitive touch screen, history mode, powerful triggering, segmented memory acquisition and advanced anomaly detection. WaveSurfer oscilloscopes are equipped with free embedded auto and function generator options as standard. The WaveSurfer range of oscilloscopes are powerful and versatile with multi-instruments and measurement capabilities to ensure they're tailored for any need. With an easy to use 10.1-inch touchscreen built for simplicity and an effortless interface, you'll find this digital oscilloscope a breeze to use. Furthermore, the WaveSurfer includes future-proofing with upgradable bandwidth and upgradable software and hardware in the field, to make your user experience that much easier. Oscilloscopes are tools used by engineers, designers, and technicians to analyse and measure complicated electronic signals. Oscilloscopes enable you to develop and verify high-performance systems and electronic designs. They are an indispensable tool in any workshop, laboratory or test station. Features and Benefits: Intuitive DSO interface for ease of use 100MHz to 1GHz analogue bandwidth Sample rate of up to 4GS/s16 Digital channel MSO option Large memory up to 20Mpts Large screen estate of 10.1 – LCD Touch screenAdvanced anomaly detection Super-fast waveform update feature History mode – Waveform updateWaveScan – Search and find feature Protocol analysis featureOptional Serial trigger and decode, for common busses including I2C, SPI, UART, CAN, CAN FD, LIN, RS232, FlexRay, AudiobusDigital voltmeter and frequency counter Applications: The WaveSurfer 3000z digital oscilloscopes are used in a wide array of applications in a multitude of different industries. The oscilloscope is a vital piece of equipment for any professional who is designing, testing or repairing electronic equipment. Some of the most common are;Educational laboratories Electronics troubleshooting and measurement Embedded electronics Mixed-signal and video designing Automotive electronics Data analysis Need additional accessories? Software packages: 174-8865, 174-8864, 863-3759, 830-3196Carry Case: 830-3203MSO option: 830-3212Function Generator: 830-3206HV differential probe: 174-8869 For a limited time, included in the FULLY LOADED models are serial trigger and decode options:• WS3K-EMB (830-3196)• WS3K-PWR (174-8865)• WS3K-FG (830-3206)• WS3K-AUDIOBUS • WS3K-AUTO (863-3759)• WS3K-CAN FD• WS3K-FLEXRAYBUS Why Teledyne LeCroy? Teledyne LeCroy oscilloscopes and probes have been designed, manufactured and tested to the highest standards. This ensures high reliability and quality. In the unlikely event, you experience any problems all Teledyne LeCroy digital oscilloscopes are covered by a 3-year manufactures warranty and probes a 1-year warranty.

Teledyne LeCroy Passive Probes LeCroy passive probes automatically scale the oscilloscope waveforms without user input. They are optimised for maximum waveform fidelity, including high frequency signal components, in a rugged design suitable for everyday use.

Teledyne LeCroy Deskew Calibration Source The LeCroy Deskew calibration source generates time-aligned voltage and current pulses for precise deskew of voltage and current probes. It is critical for measurements in which small propagation delay differences between probes can have a large impact on the calculated measurement. For example, instantaneous power semiconductor device loss measurements. Features and Benefits Signal fall time(80-20%) is 10nsOnly 1 ns static skewOperating temperature ranges between 0 and 50 °C Signal fall time and static skew is 10ns and 1ns respectively Time-aligned output signals of 5V and 100mA Loop size compatible with 30A, 150A and 500A current probes Compatible with standard and high-sensitivity current probes Applications Science and engineeringMedicineAutomotive industryGeneral-purpose use in laboratoryTelecom industry

Teledyne LeCroy HVD3000A Series Probes Teledyne LeCroy’s HVD3605A series of high voltage differential probes cover the fullest range of applications. Featuring a 6kV, 100 MHz High Voltage Differential Probe with Auto Zero Disconnect, the HVD3605A series are a reliable and versatile tool you can trust. The 1% gain accuracy coupled with exceptional common-mode rejection ratio provides an accurate and versatile probe suitable for use with a wide range of oscilloscopes. Features and Benefits Exceptional common-mode rejection ratio (CMRR) across a broad frequency range1% gain accuracyHigh offset capability at both high and low attenuationAC and DC couplingProBus active probe interface with automatic scalingAutoZero with auto disconnect switch Applications AutomotivePower ApplicationsMotor Drive DevelopmentProduct Design Applications

The Teledyne LeCroy T3EL150303P series Programmable DC Electronic Load has a 3.5 inch TFT-LCD display, a user-friendly interface and superb performance specifications, feature an input range of 150 V/30 A 300 W with measurement resolution of 1 mV/1 mA and adjustable current rise times from 0.001 A/μs – 2.5 A/μs. Steady state operating modeWaveform trend chart functionBattery discharge function4-wire SENSE compensation mode functionExternal analog control

Teledyne LeCroy USB-TMPD-M02-X USB Analyser for USB 2.0 Power Delivery Feature Set The Teledyne LeCroy Mercury T2C adds USB Type-C and Power Delivery 3.0 support to the industry’s smallest and most affordable hardware-based USB 2.0 protocol analysers. The Mercury combines the de-facto standard CATC Trace™ display, USB class decoding and Power Delivery 3.0 support in an analyser that fits in a shirt pocket.View and Understand USB Protocol Featuring the industry-leading CATC Trace™ expert analysis software, the Mercury system provides an easy-to-use display that graphically decodes Power Delivery 3.0 protocol, in addition to USB 2.0 protocol traffic. With the Standard or Advanced edition, all protocol layers can be expanded to show the underlying transactions and packets. Tooltips help explain protocol events making it easier for non-experts to identify errors. Real Time Triggering Isolating specific protocol events with real time triggering is essential to capturing intermittent problems. The Mercury system provides sophisticated triggering with dragand-drop selections for PID type, data patterns, standard requests, errors and bus events. The Mercury features up to 512 MB of on-board memory and supports spool-to-diskcapture for extended recording. USB Power Delivery Support The Mercury system supports USB Type-C and BMC Power Delivery 3.0 with capture and decode of all Power Delivery packets. View all PD negotiations over the CC wire including VDM’s, role swaps, and entry/exit from alternate modes. The Mercury T2P provides all the PD support plus Power Tracker for vBUS & vCONN analysis and 512MB recording memory. Find the Issues Fast The Mercury system provides many mechanisms to measure and report on USB traffic. The Bus Utilization display showsdata, packet length and bus usage by device. Using the Traffic Summary window, users can evaluate statistical reports at a glance or navigate to individual fields. Real time statistics show throughput by endpoint. Features and Benefits Supports USB Power Delivery 2.0 and 3.0Captures all CC and PD events and displays them in the easy-to-understand CATC Trace viewSupports USB 2.0 Capable of capturing all USB 2.0 speeds (LS, FS, HS) over Type-A, B, & C devicesPortable and Affordable Compact bus-powered system weighs under 8 oz.256/512 MB Recording Memory Extend capture time with spool-to-disk recording (512 MB for T2P)High Impedance probe - Non-intrusive probe preserves real world signal and timing conditionsAdvanced Triggering - Isolates important traffic, specific errors or patternsExtensive Decodes - Mass storage, Bluetooth HCI, Hub, PTP/ Still Image, Printer, Human Interface (HID), Audio, Video, Communication and moreHardware Filtering - Automatically exclude non-essential trafficEvent Reporting - Quickly identify and track error rates, abnormal bus activity or timing conditionsPower Tracker™ VBUS, VCONN, & CC power analysis (T2P only) Applications Software Development in new product designs

LeCroy WaveAce 100 and 200 Series Dimensions 225 x 265 x 390 mm 2.3kg (2 channel), 225 x 265 x 450 mm 6.5kg (4 channel)32 standard measurements, upto 4 on screen with waveform or all 32 with no waveformEdge, Pulse, Width, Video, Slope (Rise Time) and Alternate TriggersMeasure, Math and Wave Recorder functionsUSB hot port on the front panel and USB picbridge printer or PC port on the rear5.7 inch colour, 320 x 240 resolution display

Teledyne LeCroy, T3DSO1204HD, T3DSO1000HD Series, Digital Bench Oscilloscope, 4 Analogue Channels, 200 MHz, 10.1" Colour Display The Teledyne LeCroy 12-bit, High Definition oscilloscope introduces a new generation of high-speed display technology which features a maximum waveform capture rate of up to 120,000 wfm/s (normal mode, up to 500,000 wfm/s in Sequence mode), 256-level intensity grading display function plus a color temperature display mode. It also employs an innovative digital trigger system with high sensitivity and low jitter. The trigger system supports multiple powerful triggering modes including serial bus triggering. Tools such as History waveform recording, Search and Navigate functions, Mask Test, Bode Plot,Power Analysis and Histogram allow for extended waveform records to be captured, stored, and analysed.An impressive array of measurement and math capabilities, options for a 25 MHz arbitrary waveform generator, as well as serial decoding are also features of the T3DSO1000HD.The large 10.1’’ display capacitive touch screen supports multi-touch gestures, with the addition of user friendly UI design, can greatly improve the operation efficiency. It also supports mouse control, and remote web control over LAN. Features and Benefits 12-bit Analog-Digital Converters with sample rate up to 2 GSa/s4 analog channels10.1” display with 1024x600 resolutionCapacitive touch screen, supporting multi-touch gestures, can move or scale the waveform traces quickly by fingert ouch movements, which greatly improves the operation efficiencyWaveform capture rate up to 120,000 wfm/s (normal mode), and 500,000 wfm/s (sequence mode)Serial bus triggering and decoder, supports protocols I²C, SPI, UART, CAN, LIN, CAN-FD (decode only), FlexRay (decode only) as standardBode Plot & Power Analysis functionality as standard.Waveform capture rate up to 120,000 wfm/s (normal mode), and 500,000 wfm/s (sequence mode)Up to 200 Mpts/ch record lengthBuilt-in web server supports remote control over the LAN port using a web browser. Supports SCPI remote control commands. Supports external mouse and keyboard. Applications Automotive industryPower electronics industryEducationTelecommunicationsMilitary MechatronicsDiagnostics FAQ’sWhat probes are available? Rogowski Coil Current Probes 228-8065 is for the T3RC0060-LF228-8067 is for the T3RC0120-UM195-4336 is for the T3RC0300-UM195-4337 is for the T3RC0600-HF195-4338 is for the T3RC3000-HF195-4339 is for the T3RC3000-LF195-4340 is for the T3RC6000-LF Current Probes240-6603 is for the T3CP100-2228-8060 is for the T3CP150-12228-8061 is for the T3CP30-100228-8062 is for the T3CP30-50228-8063 is for the T3CP500-5228-8064 is for the T3CP50-50Differential Probe240-6607 is for the T3LVD20-200HV Differential Probes240-6604 is for the T3HVD1500-200240-6605 is for the T3HVD1500-70240-6606 is for the T3HVD7000-100
