Telegartner BNC Plug - Plug Cable, 75 Ohms RG58B/U

Telegartner 50 Ω and 75 Ω Straight BNC Crimp Plugs From Telegartner, a range of 50 Ω and 75 Ω BNC straight male cable mount connectors. The crimp plugs have copper nickel gold alloy plated beryllium copper contacts and a PTFE insulator. Featuring a simple bayonet coupling mechanism the BNC plugs can be used up to 4 GHz. Requiring only a quarter turn to connect and disconnect this connection method makes the BNC plug one of the most commonly used RF connectors around. Features and Benefits • Bayonet coupling• Up to 4 GHz Applications • Signal• Data• Video transmission

Telegärtner DataVoice TOC IP68 Outdoor Cat 6 RJ45 AMJ-S Module T568B Bulkhead Set TOC IP68 outdoor cat 6 RJ45 AMJ-S module T568B bulkhead set suitable for use in harsh environment machine and plant engineering applications with a temperature range of -40 to +85°C. Installation requires just one turning movement to lock and seal the connection. This cat 6 RJ45 AMJ-S module T568B bulkhead set is suitable for10 Gigabit ethernet transmission acc. to IEEE 802.3an and PoE+ acc. to IEEE 802.3at and has a nickel plated brass bulkhead housing, a white PC UL94 V0 insulation body and 360° shielding. The flange of this cat 6 RJ45 AMJ-S module bulkhead set has four mounting holes and a panel mount cut out of 30.5mm diameter is required. The maximum cable insulation diameter for this TOC IP68 RJ45 bulkhead set is 0.9 to 1.6mm. An IP68 bulkhead protective cap is available separately, please see stock number 878-2494.

SMA, R-SMA Straight Plugs From Telegartner, a series of professional quality 50 Ω SMA cable mount plugs. The SMA connectors feature a screw type coupling mechanism ensuring a secure connection is achieved. These compact SMA plugs provide excellent electrical performance from DC to 18 GHz and outstanding mechanical durability. The SMA plugs in this range have gold plated bodies, PTFE insulators and silicone gaskets. The vibration proof connectors are suitable for a wide range of coaxial cable types Features and Benefits • Lightweight, compact and vibration proof design• Secure screw coupling interface• DC to 18 GHz Applications • Communications• Test equipment• Satellite• Antennas• Instrumentation

Telegartner RJ45 Connector The Telegartner MFP8 series Cat.6A male RJ45 connector is a cable mount fully shielded plug. This plug is designed for fast and reliable cable links repair and connection of peripheral devices in the existing networks. This male connector has cable entry from four directions in 4 x 90° steps, standardised plug interface supports Power over Ethernet Plus (PoE+). It can be used to make connections with all standard cable types with transfer rates of up to 10 Gigabit Ethernet/s (10GBase-T). Also, the use of a full range of cable types with solid or stranded conductors from AWG24/1 to 22/1 and AWG27/7 to 22/7 (refer to datasheet for details) makes it ideal for various applications. The housing of this plug is made from Die-cast zinc and has 360° shielding enabling secure and reliable data transmission in industrial environments even with outside interference.Additional informationMore features of these MFP8 Cat.6A field assembly RJ45 plugs include a long release latch to make insertion and withdrawal easy in confined spaces and a pre-assembled protection cap to protect contacts against dirt and damage. Features and Benefits 4P4C number of waysContact material is spring steelContact plating is gold over nickelExcellent qualityHighly reliable Applications Data centresHome cabling systemsIndustry systemsOffice buildings Certifications EN 60603-7-51IP20 rated

SMA Angled Plugs

SMA, R-SMA Straight Jacks

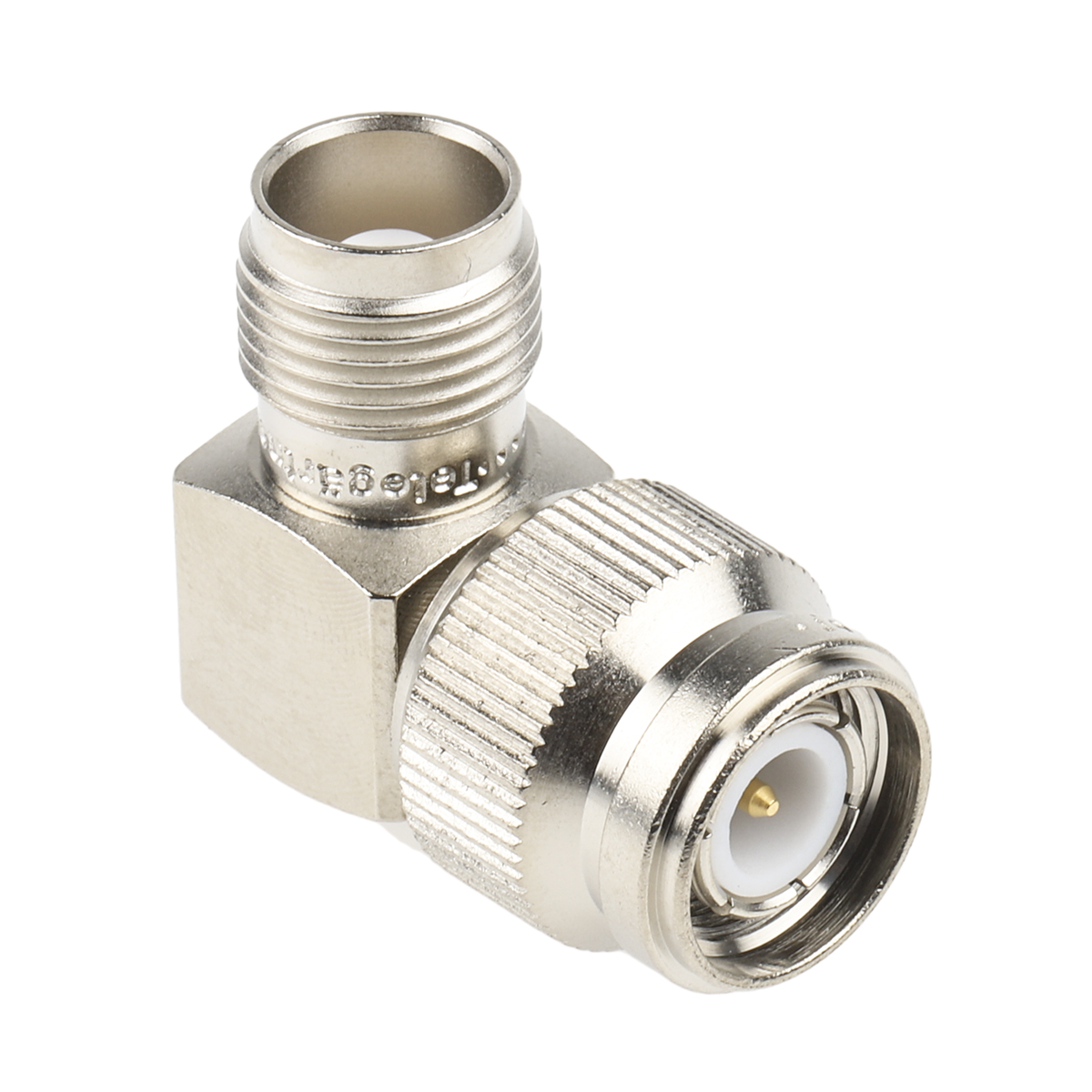

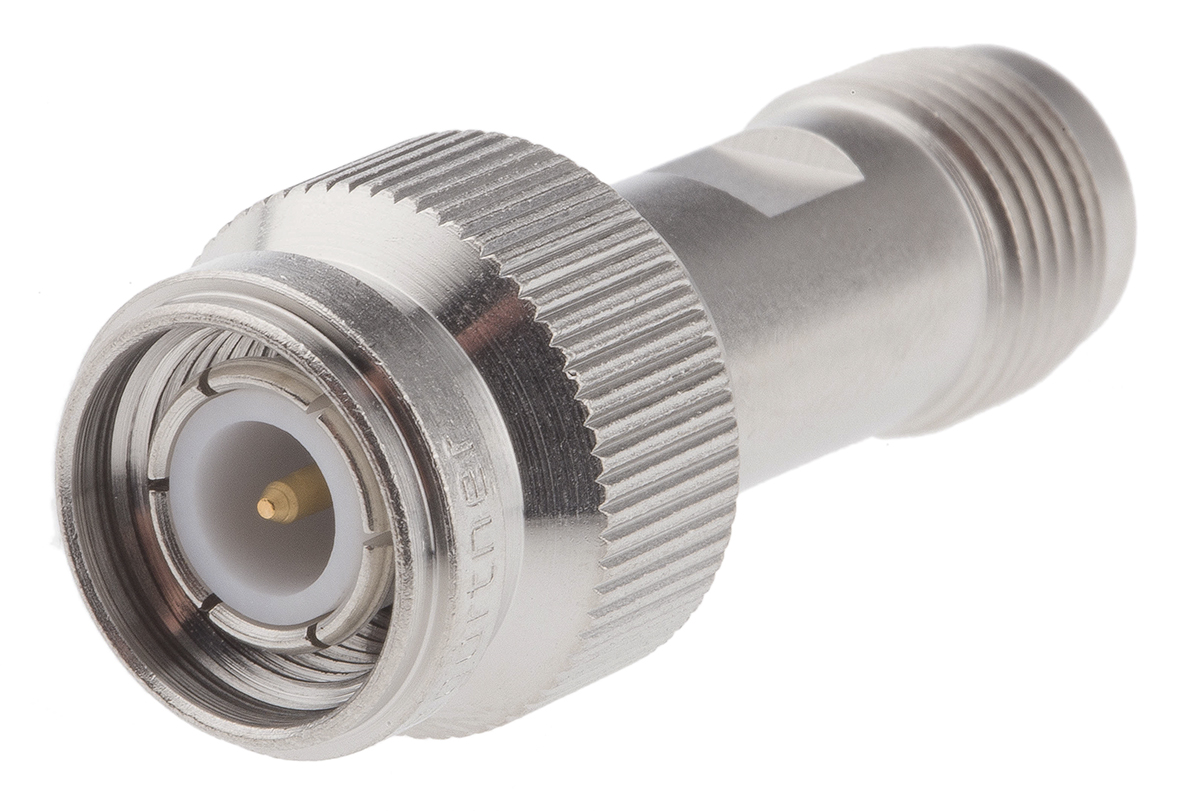

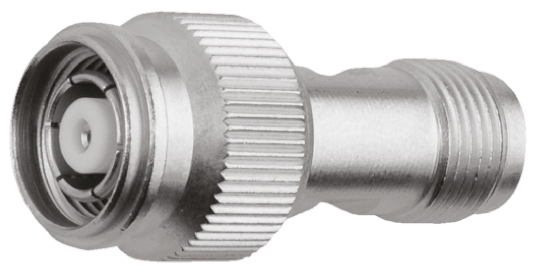

Telegärtner Range of RF Adaptors From Telegärtner, this selection of RF adaptors is suitable for inter-series connection of RF coaxial connectors. Robust and compact, these RF coaxial adaptors are well suited to audio visual and laboratory applications.

N Angle Plug

MMCX PCB Plugs and Angle Receptacles

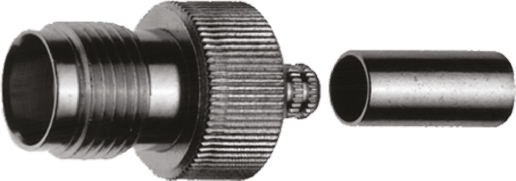

R-TNC Cable Plug Reverse polarity IP68crimp

N Straight Plug
