Tachometer Relay Series 2 Monitors the speed of rotating machinery using any 3-wire NPN sensor or other volt-free contact and will switch the output at the pre-selected speed Response time of On-board 15Vdc supply to drive a proximity sensor1mA FSD moving coil meter outputLED indication of output status45mm x 45mm panel cut-outSPCO output

Octal Base Function 111LED indication of power on and relay energisedDPDT contact configurationAgCdO contact material

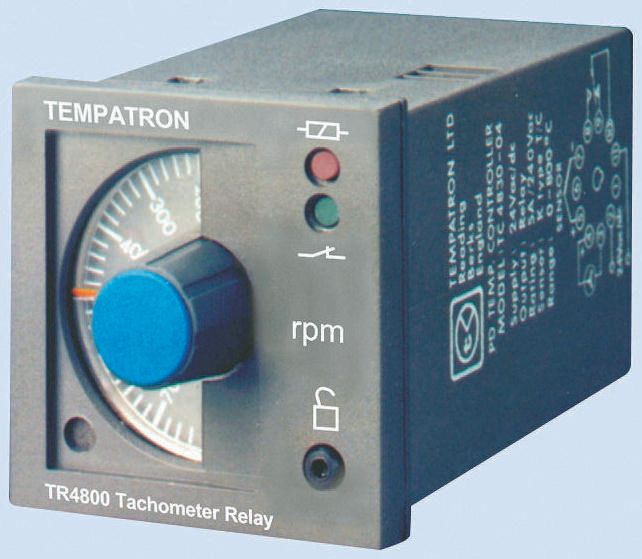

Tachometer Relay DIN standard case, which may be front panel or chassis mounted (11-pin socket 403-869). Monitors the speed of machinery via the inputs from RS inductive proximity switches, open collector transistor or relay contact type devicesOn-board 24V dc supply for proximity device and an output suitable to drive a 100μA FSD moving coil meter for monitoring rpm of machineryLED indication of relay status and supply45mm x 45mm panel cut-outSPCO output

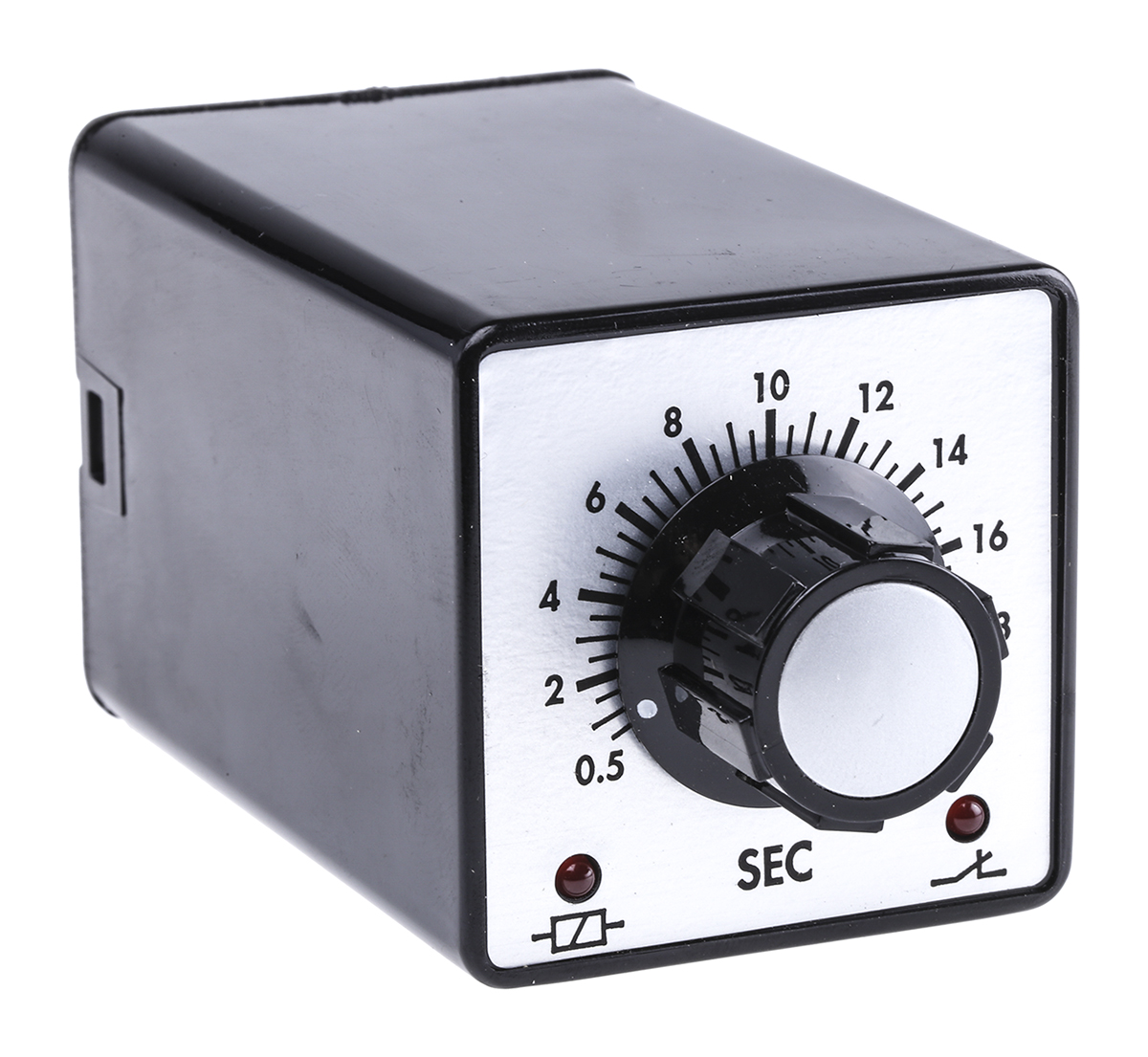

Octal Base Function 111LED indication of power on and relay energisedDPDT contact configurationAgCdO contact material

Octal Base Panel Mount Function 111Can be panel mounted from 48 x 48mm front bezel or chassis/DIN rail mounted via a plug-in socketLED indication of power on and relay energisedDPDT contact configurationAgCdO contact material

Tachometer Relay Series 2 Monitors the speed of rotating machinery using any 3-wire NPN sensor or other volt-free contact and will switch the output at the pre-selected speed Response time of On-board 15Vdc supply to drive a proximity sensor1mA FSD moving coil meter outputLED indication of output status45mm x 45mm panel cut-outSPCO output

The Tempatron TF48 dual 4 digit timer relay powered from 7-24Vac/9-30Vdc is a multifunction, multi-time range time delay relay suitable for industrial applications. It has 1 changeover and 1 NO relay output and these contacts can be configured as two timed outputs, or one timed and one instantaneous output. Green LCD display timer13 programmable timing modesEEPROM memory (minimum 10 years)

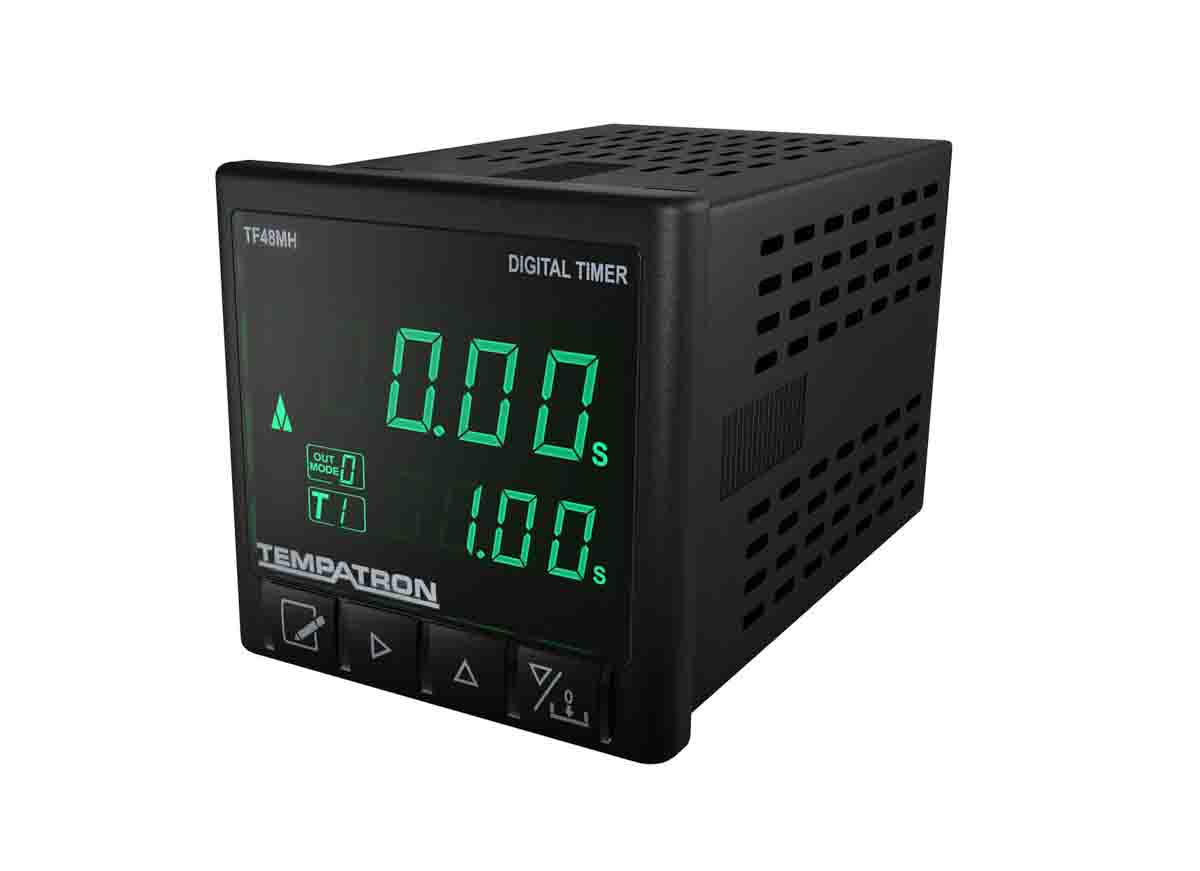

The Tempatron TF48 dual 4 digit timer relay powered from 90-250Vac is a multifunction, multi-time range time delay relay suitable for industrial applications. It has 1 changeover and 1 NO relay output and these contacts can be configured as two timed outputs, or one timed and one instantaneous output. Green LCD display timer13 programmable timing modesEEPROM memory (minimum 10 years)

Shaft Rotation SSR Senses pulses from a proximity detector mounted near a machine shaft rotating at up to 10000rpmLED indication of relay status and supplyDIN standard case, which may be front panel or chassis mounted (11-pin socket 403-869)Additional fail safe with time delay adjustment between 1-30 seconds45mm x 45mm panel cut-outSPCO output

Three Digit LCD – UDT Type Functions - 121, 211, 411, 453, 662LCD display can be set to count down or count upFor a suitable base with easy to configure rear terminals see stock no. 403-869Panel mount

10A Free Relay Sockets Flame retardant materialTin plated phosphor bronze contacts Grub screw cable clamp

Time Delay Modules - Internal Control, On Delay Function- 111Encapsulated solid state timersReset by removing the power supplyReset time 50 msOutput sink current 150 mA
