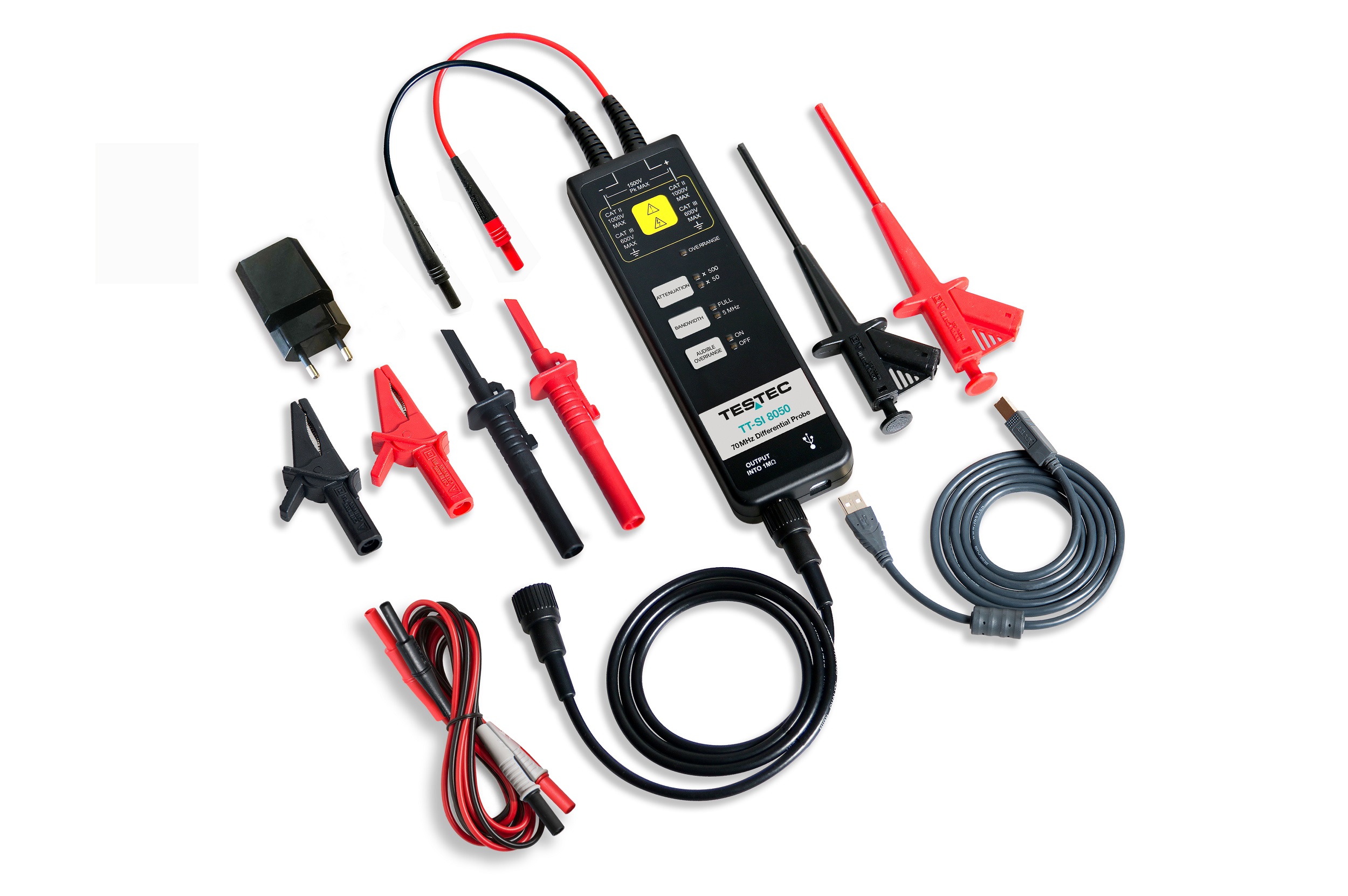

TT-SI 8050 <BR/>active differential probe The Testec active differential probe TT-SI 8050 allows safe and accurate high voltage measurements between two voltage points, none being connected to ground. This probe is designed for a variety of measurements with up to 70MHz / ±1500V and compatible with grounded oscilloscopes (1MOhm input) of all common manufacturers. The probe can be powered with the supplied USB cable and the AC adapter. <BR/>The probe is supplied in a hardcase with extensive accessories and factory calibration certificate. Bandwidth: 70MHz <BR/>Rise time: 5ns <BR/>Attenuation ratio: x50 / x500 <BR/>DC accuracy: ±2% <BR/>Maximum input voltage: <BR/>Differential mode: ±150V (DC + AC Peak) @ x50 <BR/> ±1500V (DC + AC Peak) @ x500 <BR/>Common mode: ±1500V (DC + Peak AC) <BR/>Each side to ground: 600Vrms CAT III / 1000Vrms CAT II <BR/>Safety standard: IEC61010-031: 2015 Scope of delivery: 1 x probe series 8000 <BR/>1 x hardcase <BR/>2 x test leads with insulated banana plug 4mm (red & black) <BR/>2 x hook clips (red & black) <BR/>2 x pincer hook clip (red & black) <BR/>2 x crocodile clips (red & black) <BR/>1 x insulated BNC test lead 100cm <BR/>1 x USB power cord <BR/>1 x power adapter EU version <BR/>1 x factory calibration certificate <BR/>1 x user manual

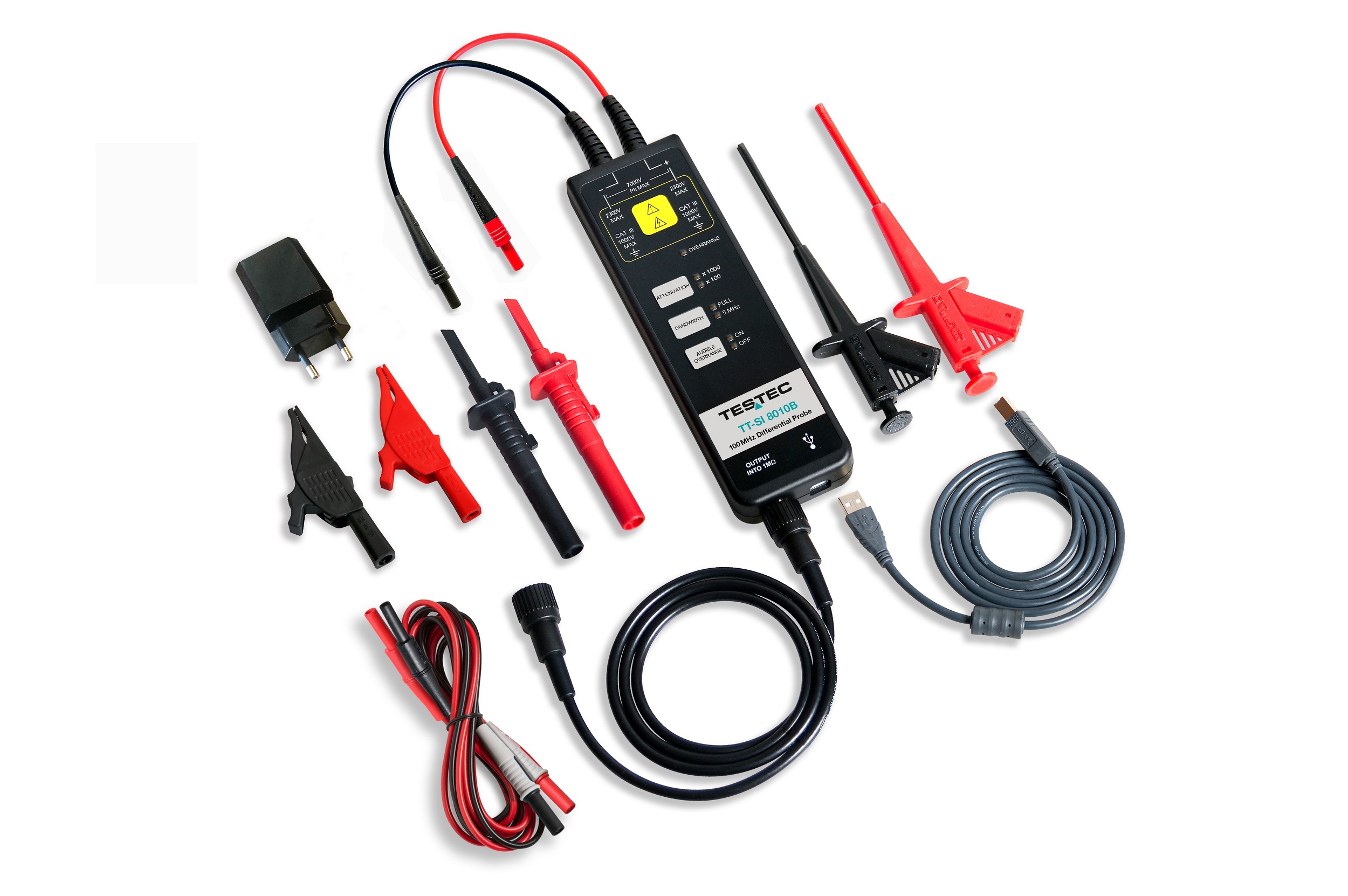

TT-SI 8010B <BR/>active differential probe The Testec active differential probe TT-SI 8010B allows safe and accurate high voltage measurements between two voltage points, none being connected to ground. This probe is designed for a variety of measurements with up to 100MHz / ±7000V and compatible with grounded oscilloscopes (1MOhm input) of all common manufacturers. The probe can be powered with the supplied USB cable and the AC adapter. The probe is supplied in a hardcase with extensive accessories and factory calibration certificate. Bandwidth: 100MHz <BR/>Rise time: 3,5ns <BR/>Attenuation ratio: x100 / x1000 <BR/>DC accuracy: ± 2% <BR/>Maximum input voltage: <BR/>Differential mode: ±700V (DC + AC Peak) @ x100 <BR/> ±7000V (DC + AC Peak) @ x1000 <BR/>Common mode: ±7000V (DC + Peak AC) <BR/>Each side to ground: 1000Vrms CAT III / 2300Vrms <BR/>Safety standard: IEC61010-031: 2015 Scope of delivery: 1 x probe series 8000 <BR/>1 x hardcase <BR/>2 x test leads with insulated banana plug 4mm (red & black) <BR/>2 x hook clips (red & black) <BR/>2 x pincer hook clip (red & black) <BR/>2 x crocodile clips (red & black) <BR/>1 x insulated BNC test lead 100cm <BR/>1 x USB power cord <BR/>1 x power adapter EU version <BR/>1 x factory calibration certificate <BR/>1 x user manual

TT-SI 8071 <BR/>active differential probe The Testec active differential probe TT-SI 8071 allows safe and accurate high voltage measurements between two voltage points, none being connected to ground. This probe is designed for a variety of measurements with up to 70MHz / ±700V and compatible with grounded oscilloscopes (1MOhm input) of all common manufacturers. The probe can be powered with the supplied USB cable and the AC adapter. <BR/>The probe is supplied in a hardcase with extensive accessories and factory calibration certificate. Bandwidth: 70MHz <BR/>Rise time: 5ns <BR/>Attenuation ratio: x10 / x100 <BR/>DC accuracy: ± 2% <BR/>Maximum input voltage: <BR/>Differential mode: ±70V (DC + AC Peak) @ x10 <BR/> ±700V (DC + AC Peak) @ x100 <BR/>Common mode: ±700V (DC + Peak AC) <BR/>Each side to ground: 600Vrms CAT III / 1000Vrms CAT II <BR/>Safety standard: IEC61010-031: 2015 Scope of delivery: 1 x probe series 8000 <BR/>1 x hardcase <BR/>2 x test leads with insulated banana plug 4mm (red & black) <BR/>2 x hook clips (red & black) <BR/>2 x pincer hook clip (red & black) <BR/>2 x crocodile clips (red & black) <BR/>1 x insulated BNC test lead 100cm <BR/>1 x USB power cord <BR/>1 x power adapter EU version <BR/>1 x factory calibration certificate <BR/>1 x user manual

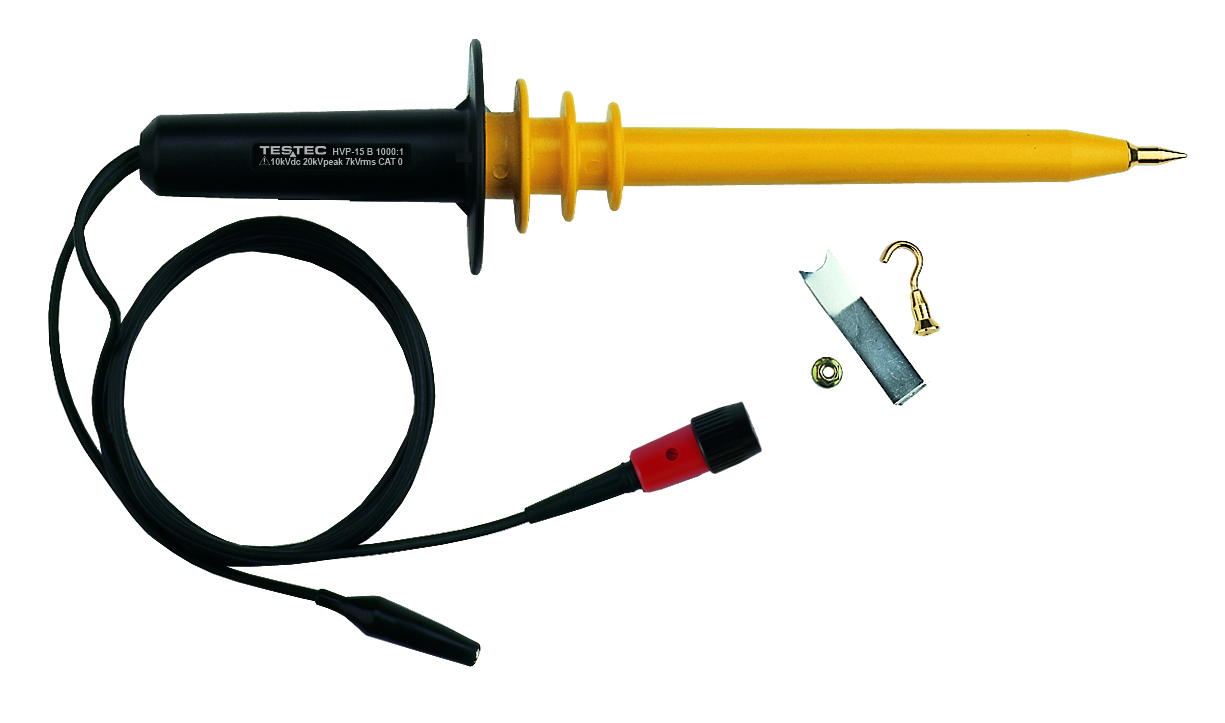

The Testec high voltage probe is an accessory to be used with an analogue or digital oscilloscope. It is designed to prevent accidental shock to the operator in an abnormal condition. It also has 1M? input resistance and nominal input capacitance ranging between 15pF and 30pF. Temperature coefficient is less than 200ppm/°C<BR/>Accuracy is ±6% for DC volts<BR/>40MHz bandwidth<BR/>Operating temperature ranges between 0°C and 50°C <BR/>Cable length is upto 2m

TT-SI 8051 <BR/>active differential probe The Testec active differential probe TT-SI 8051 allows safe and accurate high voltage measurements between two voltage points, none being connected to ground. This probe is designed for a variety of measurements with up to 100MHz / ±1500V and compatible with grounded oscilloscopes (1MOhm input) of all common manufacturers. The probe can be powered with the supplied USB cable and the AC adapter. <BR/>The probe is supplied in a hardcase with extensive accessories and factory calibration certificate. Bandwidth: 100MHz <BR/>Rise time: 3,5ns <BR/>Attenuation ratio: x50 / x500 <BR/>DC accuracy: ±2% <BR/>Maximum input voltage: <BR/>Differential mode: ±150V (DC + AC Peak) @ x50 <BR/> ±1500V (DC + AC Peak) @ x500 <BR/>Common mode: ±1500V (DC + Peak AC) <BR/>Each side to ground: 600Vrms CAT III / 1000Vrms CAT II <BR/>Safety standard: IEC61010-031: 2015 Scope of delivery: 1 x probe series 8000 <BR/>1 x hardcase <BR/>2 x test leads with insulated banana plug 4mm (red & black) <BR/>2 x hook clips (red & black) <BR/>2 x pincer hook clip (red & black) <BR/>2 x crocodile clips (red & black) <BR/>1 x insulated BNC test lead 100cm <BR/>1 x USB power cord <BR/>1 x power adapter EU version <BR/>1 x factory calibration certificate <BR/>1 x user manual

TT-SI 8010A<BR/>active differential probe The Testec active differential probe TT-SI 8010A allows safe and accurate high voltage measurements between two voltage points, none being connected to ground. This probe is designed for a variety of measurements with up to 70MHz / ±7000V and compatible with grounded oscilloscopes (1MOhm input) of all common manufacturers. The probe can be powered with the supplied USB cable and the AC adapter. The probe is supplied in a hardcase with extensive accessories and factory calibration certificate. Bandwidth: 70MHz <BR/>Rise time: 5ns <BR/>Attenuation ratio: x100 / x1000 <BR/>DC accuracy: ± 2% <BR/>Maximum input voltage: <BR/>Differential mode: ±700V (DC + AC Peak) @ x100 <BR/> ±7000V (DC + AC Peak) @ x1000 <BR/>Common mode: ±7000V (DC + Peak AC) <BR/>Each side to ground: 1000Vrms CAT III / 2300Vrms <BR/>Safety standard: IEC61010-031: 2015 Scope of delivery: 1 x probe series 8000 <BR/>1 x hardcase <BR/>2 x test leads with insulated banana plug 4mm (red & black) <BR/>2 x hook clips (red & black) <BR/>2 x pincer hook clip (red & black) <BR/>2 x crocodile clips (red & black) <BR/>1 x insulated BNC test lead 100cm <BR/>1 x USB power cord <BR/>1 x power adapter EU version <BR/>1 x factory calibration certificate <BR/>1 x user manual

TT-SI 8110 <BR/>active differential probe The Testec active differential probe TT-SI 8110 allows safe and accurate high voltage measurements between two voltage points, none being connected to ground. This probe is designed for a variety of measurements with up to 100MHz / ±2800V and compatible with grounded oscilloscopes (1MOhm input) of all common manufacturers. The probe can be powered with the supplied USB cable and the AC adapter. <BR/>The probe is supplied in a hardcase with extensive accessories and factory calibration certificate. Bandwidth: 100MHz <BR/>Rise time: 3,5ns <BR/>Attenuation ratio: x100 / x1000 <BR/>DC accuracy: ±2% <BR/>Maximum input voltage: <BR/>Differential mode: ±280V (DC + AC Peak) @ x100 <BR/> ±2800V (DC + AC Peak) @ x1000 <BR/>Common mode: ±2800V (DC + Peak AC) <BR/>Each side to ground: 600Vrms CAT III / 1000Vrms CAT II <BR/>Safety standard: IEC61010-031: 2015 Scope of delivery: 1 x probe series 8000 <BR/>1 x hardcase <BR/>2 x test leads with insulated banana plug 4mm (red & black) <BR/>2 x hook clips (red & black) <BR/>2 x pincer hook clip (red & black) <BR/>2 x crocodile clips (red & black) <BR/>1 x insulated BNC test lead 100cm <BR/>1 x USB power cord <BR/>1 x power adapter EU version <BR/>1 x factory calibration certificate <BR/>1 x user manual

TT-SI 8052 <BR/>active differential probe The Testec active differential probe TT-SI 8052 allows safe and accurate high voltage measurements between two voltage points, none being connected to ground. This probe is designed for a variety of measurements with up to 200MHz / ±1500V and compatible with grounded oscilloscopes (1MOhm input) of all common manufacturers. The probe can be powered with the supplied USB cable and the AC adapter. <BR/>The probe is supplied in a hardcase with extensive accessories and factory calibration certificate. Bandwidth: 200MHz <BR/>Rise time: 1,75ns <BR/>Attenuation ratio: x50 / x500 <BR/>DC accuracy: ±2% <BR/>Maximum input voltage: <BR/>Differential mode: ±150V (DC + AC Peak) @ x50 <BR/> ±1500V (DC + AC Peak) @ x500 <BR/>Common mode: ±1500V (DC + Peak AC) <BR/>Each side to ground: 600Vrms CAT III / 1000Vrms CAT II <BR/>Safety standard: IEC61010-031: 2015 Scope of delivery: 1 x probe series 8000 <BR/>1 x hardcase <BR/>2 x test leads with insulated banana plug 4mm (red & black) <BR/>2 x hook clips (red & black) <BR/>2 x pincer hook clip (red & black) <BR/>2 x crocodile clips (red & black) <BR/>1 x insulated BNC test lead 100cm <BR/>1 x USB power cord <BR/>1 x power adapter EU version <BR/>1 x factory calibration certificate <BR/>1 x user manual

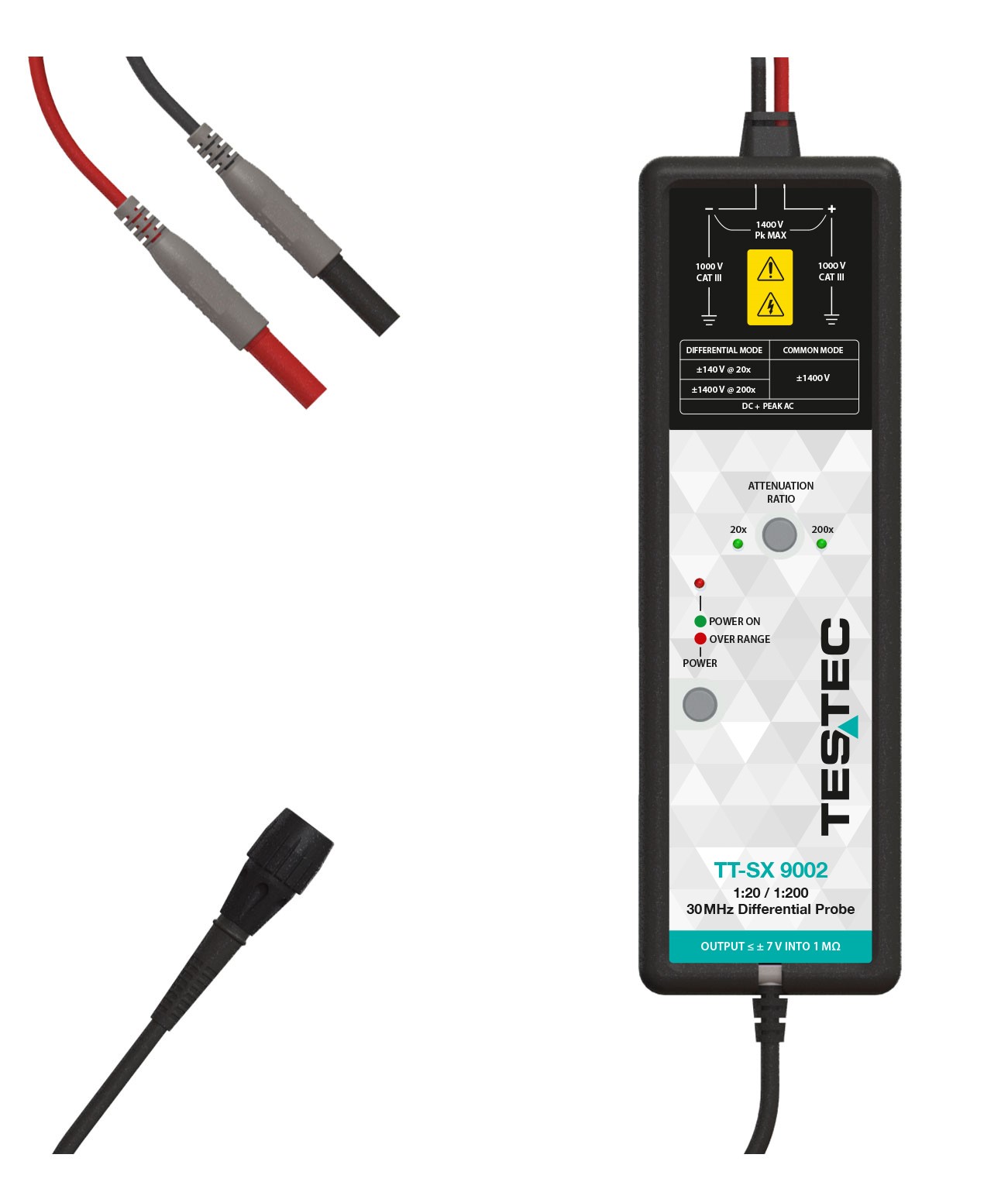

Product Details TT-SX 9002 - 30MHz active differential probe - x20 / x200 The Testec TT-SX 9002 High-Voltage Differential probes allow conventional earth-grounded oscilloscopes to be used for floating signal measurements - up to1400V differential or common mode voltage (x200). This model offers user selectable attenuation setting (x20 & x200), making the probe highly versatile and usable for a broad range of applications including power supply measurements and motor controls. This probe is compatible with any oscilloscope with a 1 MΩ BNC female input<BR/>and feature up to 30 MHz of bandwidth. The probe can be powered by an oscilloscope USB port (USB Power Cord USB-A to USB-C included), internal batteries (4 x AA batteries), or USB power adapter, both not included in the scope of delivery. The probe is shipped standard with a factory calibration certificate. 30 MHz bandwidth<BR/>Up to 1400V differential (DC + pk AC)<BR/>1,000V CAT III rated<BR/>cTUVus safety certified<BR/>Voltage over range indicator<BR/>Switchable attenuation ranges <BR/>Multiple power options - batteries, oscilloscope, or mains<BR/>Insulated BNC interface<BR/>Protective rubber boot Applications power supply measurments<BR/>motor controls<BR/>product design applications<BR/>automotive testing Supplied with/Kit contains: 2 x hook clips (red and black) <BR/>1 x USB Power Cord (1 m) - USB-A to USB-C<BR/>1 x calibration certificate What other Probes are available in this Testec range? TT-SX 9001 Approvals/Certification EN61010-031:2015 Ed. 2.0<BR/>EN61010-1:2010/AMD:2016<BR/>2014/35/EU<BR/>EN61326-2013<BR/>2014/30/EU<BR/>cTUVus<BR/>CE<BR/>UKCA<BR/>RoHS 2<BR/>China RoHS2

Product Details TT-SX 9001 - 30MHz active differential probe - x10 / x100 The Testec TT-SX 9001 High-Voltage Differential probes allow conventional earth-grounded oscilloscopes to be used for floating signal measurements - up to 700V differential or common mode voltage (x100). This model offers user selectable attenuation setting (x10 & x100), making the probe highly versatile and usable for a broad range of applications including power supply measurements and motor controls. This probe is compatible with any oscilloscope with a 1 MΩ BNC female input and feature up to 30 MHz of bandwidth. The probe can be powered by any oscilloscope USB port (USB Power Cord USB-A to USB-C included), internal batteries (4 x AA batteries), or USB power adapter, both not included in the scope of delivery. The probe is shipped standard with a factory calibration certificate. 30 MHz bandwidth<BR/>Up to 700V differential (DC + pk AC)<BR/>1,000V CAT III rated<BR/>cTUVus safety certified<BR/>Voltage over range indicator<BR/>Switchable attenuation ranges <BR/> Multiple power options - batteries, oscilloscope, or mains<BR/> Insulated BNC interface<BR/> Protective rubber boot Applications power supply measurments<BR/>motor controls<BR/>product design applications<BR/>automotive testing Supplied with/Kit contains: 2 x hook clips (red and black) <BR/>1 x USB Power Cord (1 m) - USB-A to USB-C<BR/>1 x calibration certificate What other Probes are available in this Testec range? TT-SX 9002 Approvals/Certification EN61010-031:2015 Ed. 2.0<BR/>EN61010-1:2010/AMD:2016<BR/>2014/35/EU<BR/>EN61326-2013<BR/>2014/30/EU<BR/>cTUVus<BR/>CE<BR/>UKCA<BR/>RoHS 2<BR/>China RoHS2
