Single Channel Analogue Timeswitches The SYN161D, SUL181D and SUL191W are a range of analogue time switches from Theben / Timeguard which feature a large variety of functionality including both daily and weekly programs, summer/winter correction, DuoFix spring terminals and switching status display. Single channel analogue timeswitchQuartz controlledClock hand displaySimple summer/winter time correctionTime can be changed clockwise or anti-clockwiseDuoFix spring terminalsWire or strand (with or without wire end sleeve)Wire diameter: 0.5 → 2.5 mm²Button for releasing plug-in connectionSwitching pre-selectionManual switch with 3 positions: Continuous ON/AUTO/Continuous OFFSwitching status displayTheben / Timeguard also offer a panel mounting kit as an accessory to all three of these analogue time switches, please see RS stock number (738-8742)

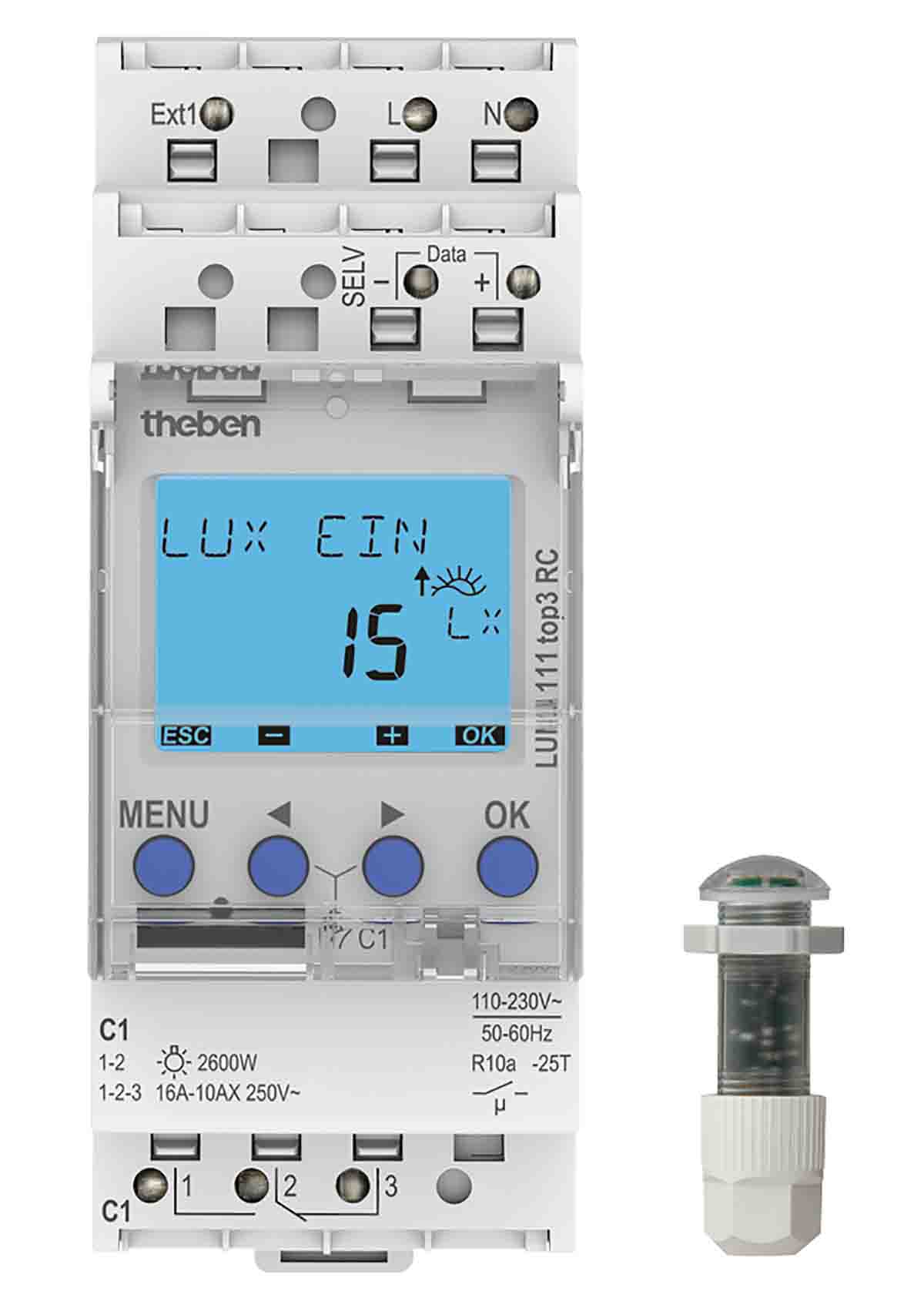

The Theben LUNA 111 top3 is a single channel and single input digital, DIN rail, time and light control twilight switch or light controller. The external light sensor included in the scope of supply. The input is external and the light can be programmed by application. The switching brightness is digitally adjustable. Zero cross-switching for relay-saving switching and high lamp loadsUp to 4 number of sensors can be attachedUp to 10 number of devices can be connected to a digital sensor

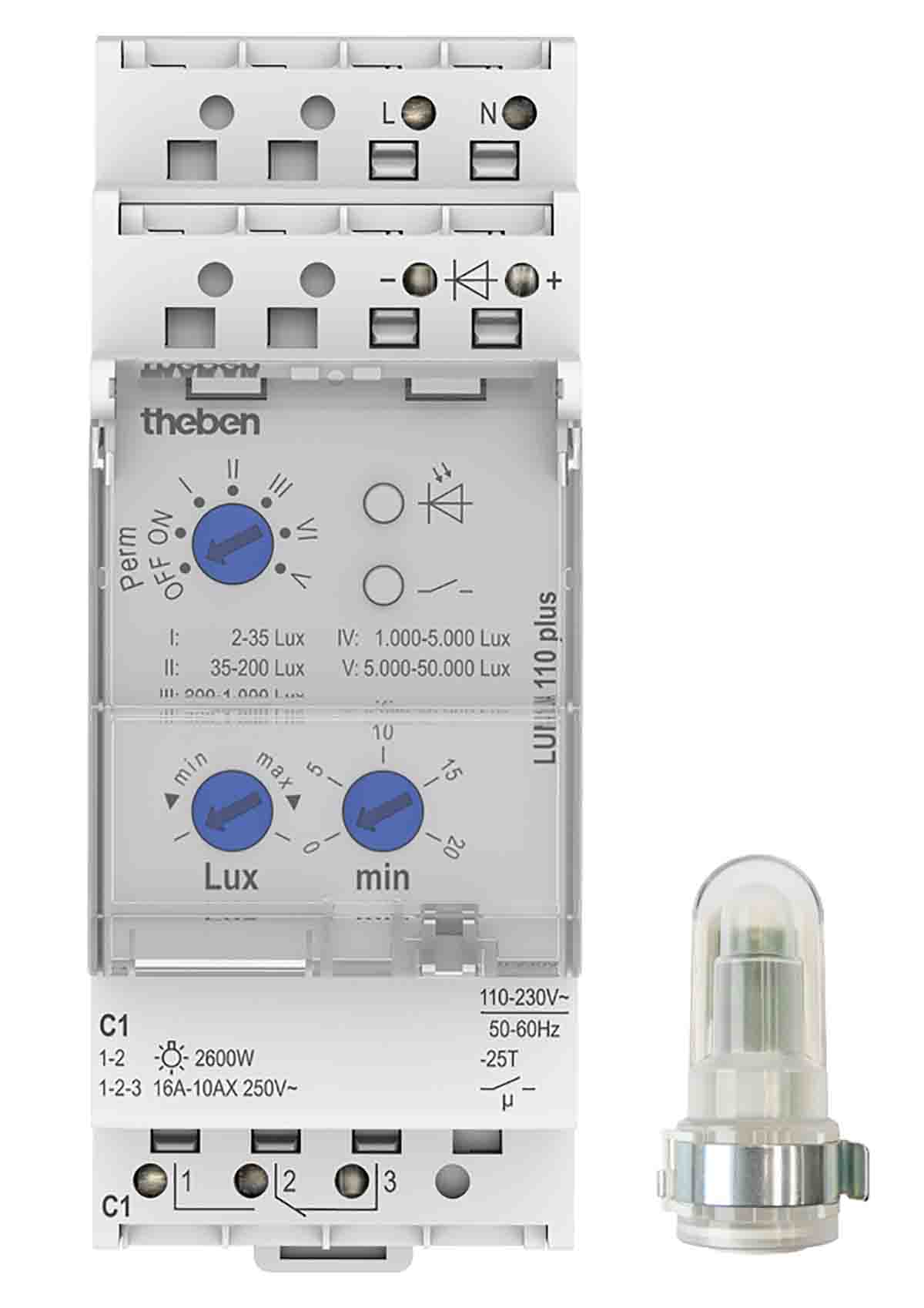

The Theben LUNA 110 plus EL digital, DIN rail, time and light control twilight switch or light controller. It comes with an external light sensor with adjustable on and off switching delay. It also has a display of channel and switching status with DuoFix load line connections. Zero cross-switching to avoid wear and tear to relay contact and lamp for prolonged service lifeA permanent ON and a permanent OFF function can be set on the potentiometerIt has a freely adjustable switching brightness

The Theben LUNA 110 plus EL digital, DIN rail, time and light control twilight switch or light controller. It comes with an external light sensor with adjustable on and off switching delay. It also has a display of channel and switching status with DuoFix load line connections. Zero cross-switching to avoid wear and tear to relay contact and lamp for prolonged service lifeA permanent ON and a permanent OFF function can be set on the potentiometerIt has a freely adjustable switching brightness

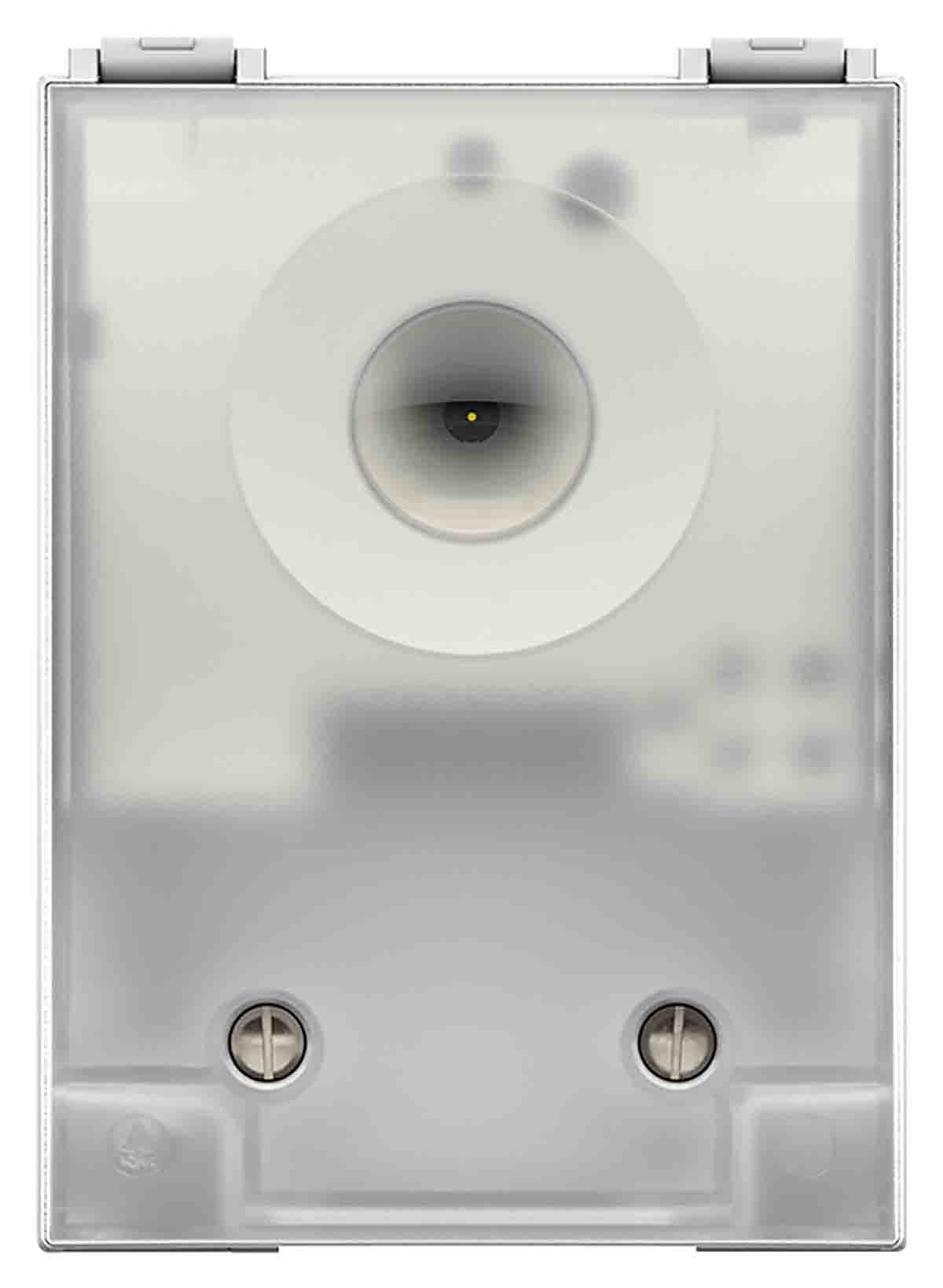

The Theben LUNA 127 star is a wall mount or mast installation time and light control twilight switch with integrated light sensor. It has a cable feed from the back and from below possible and a test and a teach-in function. It also has a timer function (1 hour on). It has a large terminal areaThe brightness value can be set without opening the deviceComes with large light exposure angle

Single Channel Analogue Timeswitches The SYN161D, SUL181D and SUL191W are a range of analogue time switches from Theben / Timeguard which feature a large variety of functionality including both daily and weekly programs, summer/winter correction, DuoFix spring terminals and switching status display. Single channel analogue timeswitchQuartz controlledClock hand displaySimple summer/winter time correctionTime can be changed clockwise or anti-clockwiseDuoFix spring terminalsWire or strand (with or without wire end sleeve)Wire diameter: 0.5 → 2.5 mm²Button for releasing plug-in connectionSwitching pre-selectionManual switch with 3 positions: Continuous ON/AUTO/Continuous OFFSwitching status displayTheben / Timeguard also offer a panel mounting kit as an accessory to all three of these analogue time switches, please see RS stock number (738-8742)

RAMSES series room thermostats Wall-mounted room thermostats, compatible with all types of heating.Adjustable from +5 °C → +30 °C with mechanical restrictor or lock.The RAM 705 model is fitted with an ON / OFF switch for the heating.

SELEKTA Astronomical Digital Timeswitches The SELEKTA series from Theben / Timeguard features astronomical digital time switches with weekly programs. There are both single and dual channel versions available from Theben / Timeguard with up to 16 A resistive load switching capabilities. Other key features of the SELEKTA range include a 1 minute segment length, automatic summer / winter changeover, a battery life of up to 10 years and up to 84 memory locations. Astronomical time switch with weekly programOffset for adjusting of sunrise and sunset timesPosition data via coordinates or country/city lists can be programmedFixed ON-OFF switching times can be programmed (e.g. night time interruption)Simulation of switching times (calculated astronomical times and programmed ON/OFF switching times)Reversible astronomical mode (evenings ON - mornings OFF or evenings OFF - mornings ON) or can be deactivatedDuoFix spring terminalsWire diameter: 0.5 → 2.5 mm²Easy to operate button for releasing via plug-in connectionText-oriented user guidance in displayInterface for OBELISK top2 memory card (PC programming)10 year power reserve (lithium battery)Zero-cross switching for relay-saving switching and high lamp loadsPermanent switching ON/OFFIntegrated operating hour counterReset option availableDisplay back light (can be turned off if desired)Automatic summer/winter time changeoverDate rule options are already stored for Europe, the USA and other countries

TR685 Top 2- Digital Time Switch TR684 Top 2 digital time switches with weekly programming. Features and Benefits 1 Channel (138-5660) or 2 channels (138-5665)Timer module without plug-in baseConnection by 4.8 mm AMP flat plug for original installation standard devicesFor installation in regulation and controlText-based operator guidance in the display56 Memory locationsInterface for OBELISK top2 memory card (PC Programming)10-Year power reserve (lithium battery)On/Off switching timesSwitching preselectionPermanent On/Off switchingIntegrated hour counterHoliday programBack lighting (can be turned off)PIN codingAutomatic summer/winter time changeover

Single Channel Analogue Timeswitches The SYN161D, SUL181D and SUL191W are a range of analogue time switches from Theben / Timeguard which feature a large variety of functionality including both daily and weekly programs, summer/winter correction, DuoFix spring terminals and switching status display. Single channel analogue timeswitchQuartz controlledClock hand displaySimple summer/winter time correctionTime can be changed clockwise or anti-clockwiseDuoFix spring terminalsWire or strand (with or without wire end sleeve)Wire diameter: 0.5 → 2.5 mm²Button for releasing plug-in connectionSwitching pre-selectionManual switch with 3 positions: Continuous ON/AUTO/Continuous OFFSwitching status displayTheben / Timeguard also offer a panel mounting kit as an accessory to all three of these analogue time switches, please see RS stock number (738-8742)

PC Programming Kit - Termina top 2 This OBELISK programming kit offers everything you need to program a Termina top 2 timeswitch on your PC,Clearly structured, easy to understand. Even complicated programs can be created in minutes by mouse click. The switch on phases are clearly displayed in a chart and automatically recorded in a table. So it is possible to save, print or export the programs to Excel.,A program created on PC using this software can be transferred via USB to the memory card, and from the card to the timeswitch. So no PC or laptop is required on site

Theben Time Switch The Theben digital time switch is a single channel, DIN rail, single pole double throw (SPDT) device. It is an astronomical time switch with a weekly program and 56 memory locations. It has a supply voltage ranges between 12VAC and 24VAC. The housing material of this switch is highly temperature resistant made with self-extinguishing thermoplastic. This device enables safe transfer via optional Bluetooth low energy OBELISK top3. It is useful for industrial applications. Features and Benefits DuoFix spring terminals with wire diameter 0.5mm² and 2.5mm² (with or without wire end sleeve)Wire or strand button for releasing the plug-in connectionText-oriented user guidance in displayPre-set date and timeFully operable without mains connectionZero-cross switching for relay-saving switching and high lamp loadsAutomatic summer/ winter time changeoverSwitching preselectionPermanent switching on/ offPIN codingHoliday programDisplay back light (can be turned off)Shortest switching time is 1 minuteThe ambient temperature ranges between -30°C and 55°C Certifications IP20 ratedEN 60 730-1VDE
