Parker Transair 6698 series pipe cutter is for use with 1/2 in (16.5mm) to 3in (76mm) rigid aluminium pipe. The Transair tools for compressed air line installation are easy to operate and built to provide years of dependable service. Easy to useLightweight

The Parker Transair 6698 series drill bit is used to install wall bracket of compressed air systems . It is also used to create the 2 holes needed for double-clamp ring connectors. This drill bit is compatible for aluminium pipe diameter of 40mm to 63mm. Easy to useLightweight

The Parker Transair 6639 series wall bracket is a single port , 45deg connecting tool to a compressed air piping system with outer diameter of 16.5mm.The wall brackets is designed with a drain outlet for ease of bleeding the air lines of moisture or excess air. No corrosionFull-bore designQuick connection technology This fitting is only compatible with the aluminium pipes of the same brand.

The Parker Transair 6697 series fixing clip is used with compressed air rigid aluminium pipe. The fixing clip has a diameter of 25mm and made of polymide fiberglass material. Transair pipe can only be hung using these accessories, to overcome most pipe changing challenges Easy to installLightweightNon-flammable materials (UL94V-2 compliant)

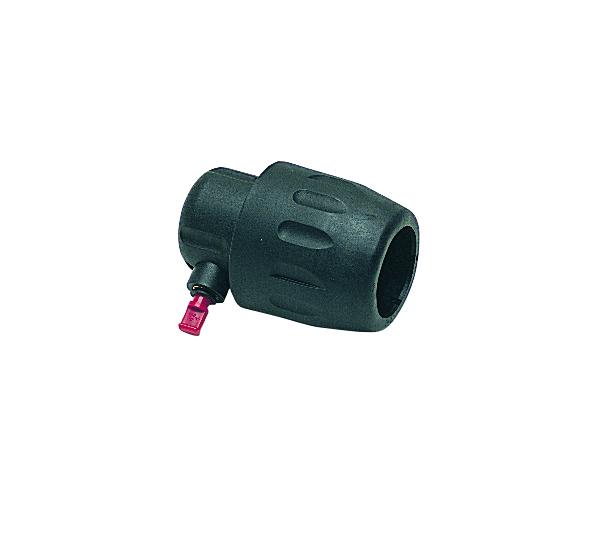

The Parker Transair 6625 series vented end cap of pipe connector has an outer diameter of 16.5mm. This features a pressure rating of 232 psi and is made of a plastic material. The pipe connectors use a quick connection technology to provide quick and easy installation of compressed air, vacuum, and inert gas piping systems. Interchangeable and reusableFull bore designNon-flammable materials This fitting is only compatible with the aluminium pipes of the same brand.

The Parker Transair 6625 series vented end cap of pipe connector has an outer diameter of 40mm. This features a pressure rating of 232 psi and is made of a plastic material. The pipe connectors use a quick connection technology to provide quick and easy installation of compressed air, vacuum, and inert gas piping systems. Interchangeable and reusableFull bore designNon-flammable materials This fitting is only compatible with the aluminium pipes of the same brand.

The Parker Transair 6661 series drop bracket has a female thread quick assembly variation with diameter of 25mm to 16.5mm. This bracket eliminates the need for extra fittings due to the orientation of openings. Only a drill and a drilling jig are needed to install a drop bracket. Full bore designNon-flammable materials This fitting is only compatible with the aluminium pipes of the same brand.

The Transair flexible compressed hose has a 3ft9in height with a minimum bend radius of 16, required minimum space for installation. This flexible hose has synthetic braiding reinforcement with SBR outer cover which resistant to most compressor oils and fire. The flexible hose can be routed around obstacles and provides a link between the compressor and piping network. Using a flexible hose eliminates many of the layout constraints encountered when using a rigid piping system which reduces the mechanical stress in the compressed air system. Quick connection technologyPipe diameter is 40mmImmediate pressurizationLightweightFire resistant This pipe only compatible with fittings from the same brand.

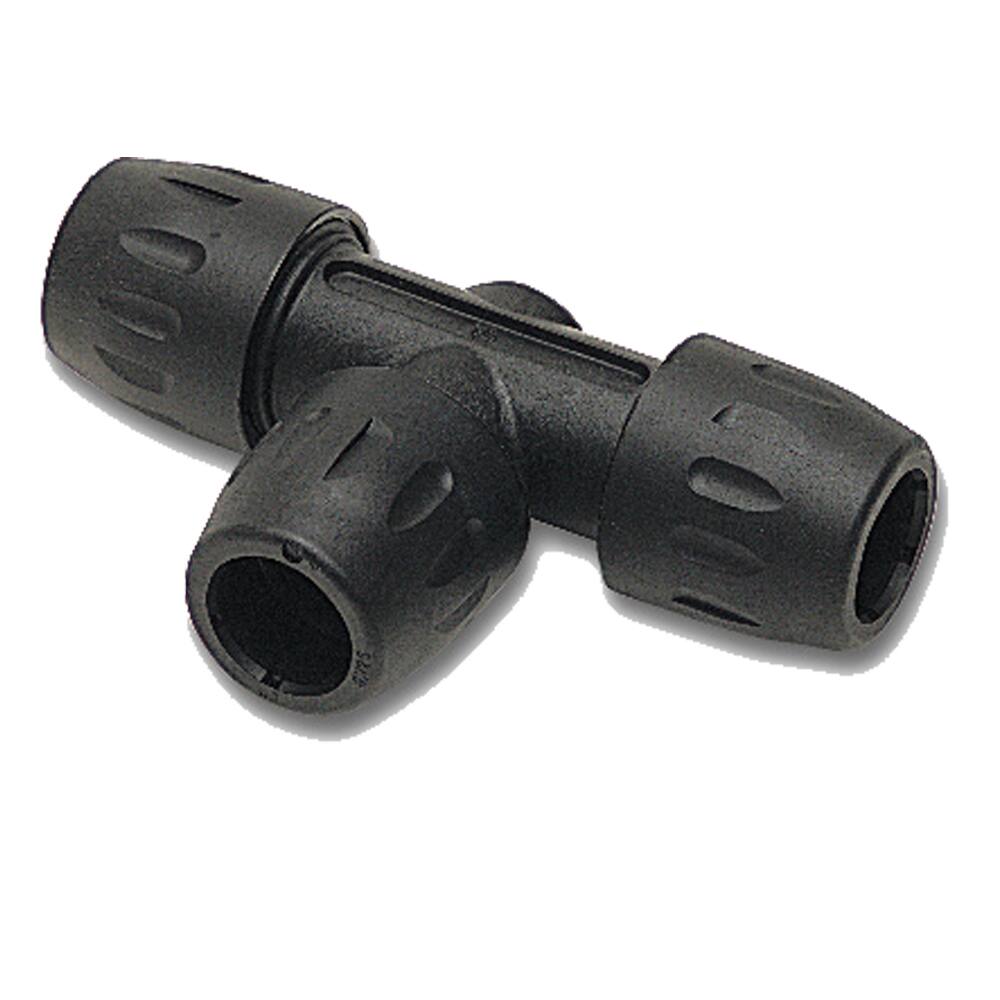

The Parker Transair 6604 series is a black, equal tee shape pipe to pipe/stud connector with a outer diameter of 17mm. This features a pressure rating of 232 psi and is made of polyamide with fiberglass body. The pipe connectors use a quick connection technology to provide quick and easy installation of compressed air, vacuum, and inert gas piping systems. Interchangeable and reusableFull bore designNon-flammable materials This fitting is only compatible with the aluminium pipes of the same brand.

The Parker Transair 6604 series is a black, equal tee shape pipe to pipe/stud connector with a outer diameter of 40mm. This features a pressure rating of 232 psi and is made of polyamide with fiberglass body. The pipe connectors use a quick connection technology to provide quick and easy installation of compressed air, vacuum, and inert gas piping systems. Interchangeable and reusableFull bore designConsistent inner diameter for both pipe and connectorsNon-flammable materials This fitting is only compatible with the aluminium pipes of the same brand.

The Parker Transair ball valve is a push-to-connect lockable double female valve with a outer diameter of 16.5mm. The valves are made from treated brass with plastic handle. The maximum operating pressure of the valve is 15.9 bar. This ball valves placed valves at strategic points within the facility (i.e. compressor outlets, dryers, storage tanks, point of use, etc.) allows for system isolation for maintenance or layout reconfigurations. Full-bore DesignQuick connectionSilicone-free valvesLower Installation Costs This fitting is only compatible with the aluminium pipes of the same brand.

The Parker Transair 6698 series tool case is used to installing or modifying a compressed air piping system easier. This tool case includes pipe cutters, drill bits, deburring tools, crimping tools, marking tool and spanner all diameters (1/2“(16,5mm) to 6” (168mm) of aluminium compressed air pipes can be installed four times faster than the traditional options of copper and steel. Easy to useLightweight
