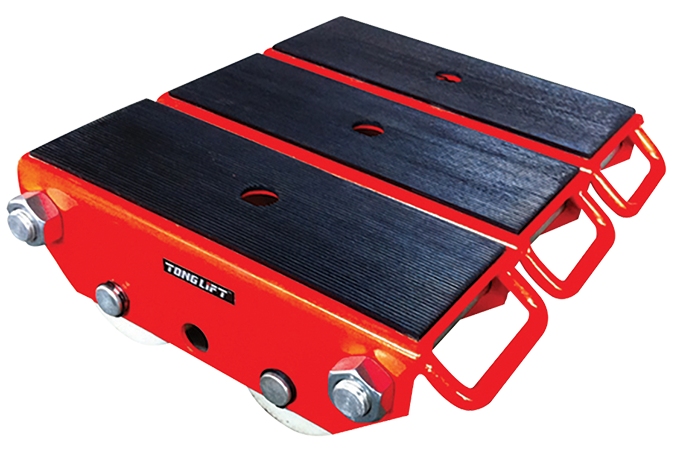

Features: • The adjustable skates are actually 2 skates each. They are connected by two steel rods making one skate adjustable from 500mm to 1400mm (model CM60) and 720mm to 1500mm (model CM120 and CM240). • Model no. “-N” means the wheels are made of Nylon • Model no. “-P” means the wheels are made of Polyurethane material Capacity - 6 Ton Load Wheels - 6pcs Wheel Size - ø 82mm x 100mm (3.2" x 3.9”) Skate Size - 345mm x 270mm x 110mm (13.9" x 10.6" x 4.3”) Weight - 25Kg (55Lbs)

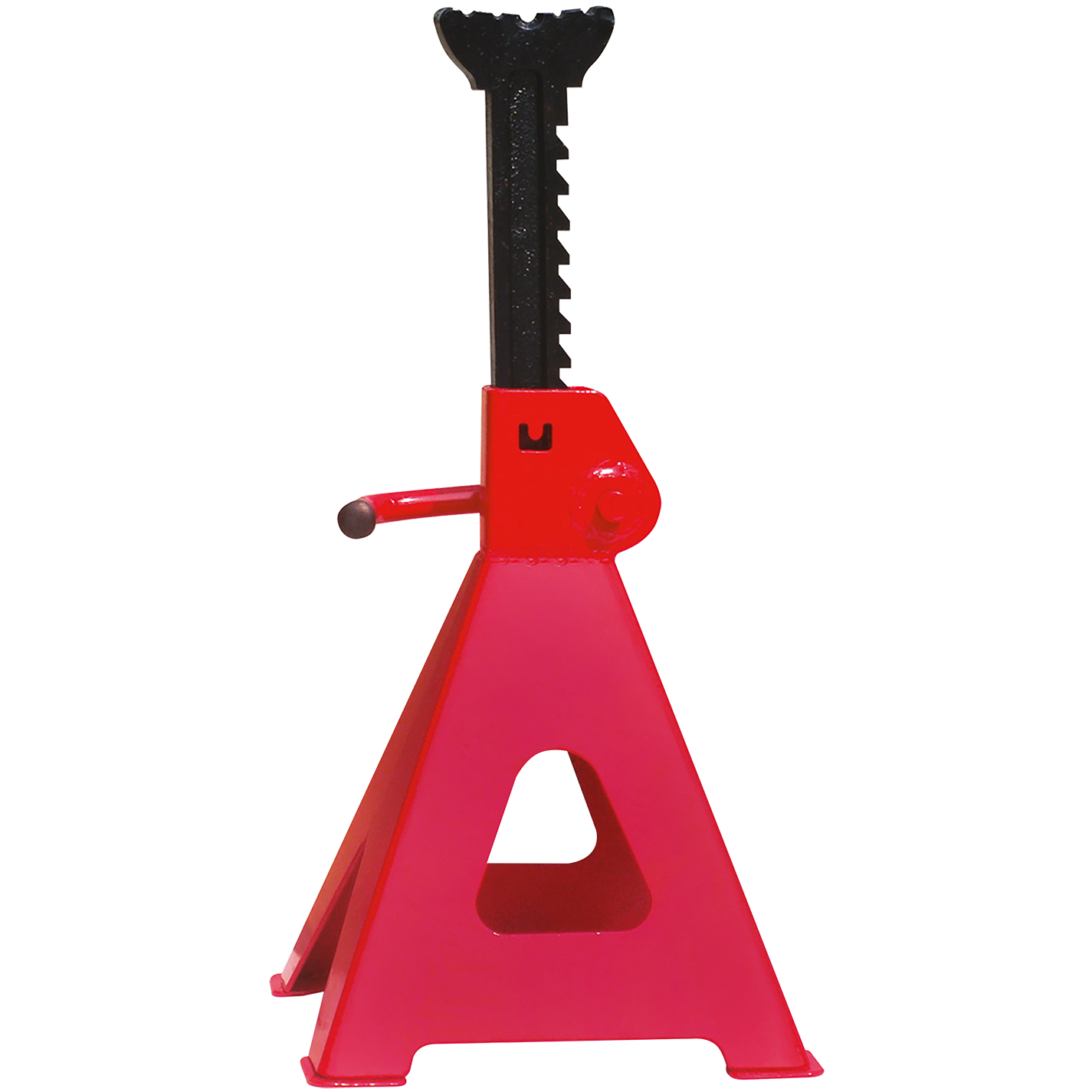

Jack Stand Capacity - 3 Ton Minimum Height - 287mm Maximum Height - 430mm Weight - 6.8KG Package Size - 220mm x 200mm x 345mm

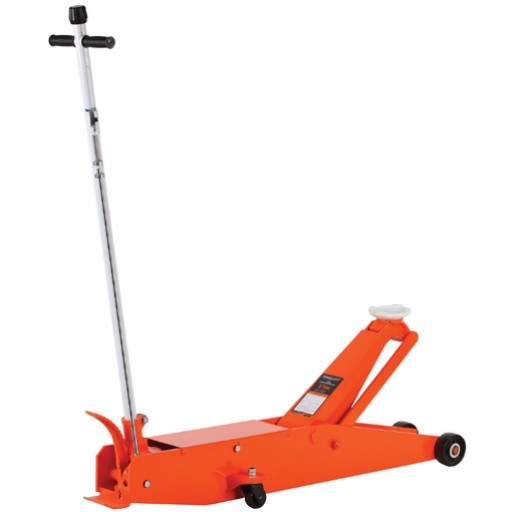

Specification Model - TL-1003 Capacity - 3 Ton Min.Height - 130 mm Max.Height - 600mm Net Weight - 65 KG Gross Weight - 70 KG Package Size - 1450mm x 380mm x 210mm

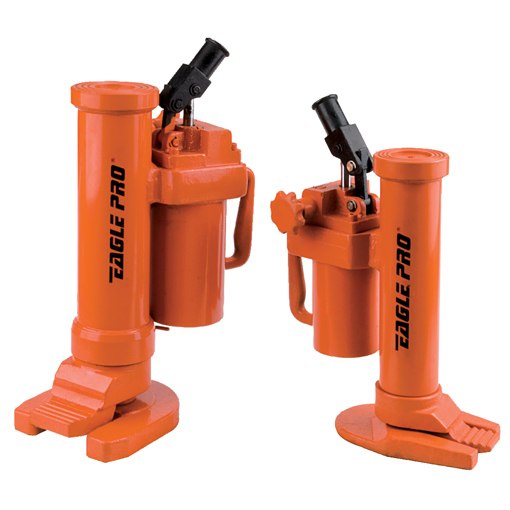

Specification ETJ205 5 Ton Lift Capacity 360° Rotation Toe Minimum Height - 24.89mm Head Minimum Height - 368.05mm Toe Maximum Height - 230.12mm Head Maximum Height - 572.01mm Weight - 24.95 KG / 55 LBS

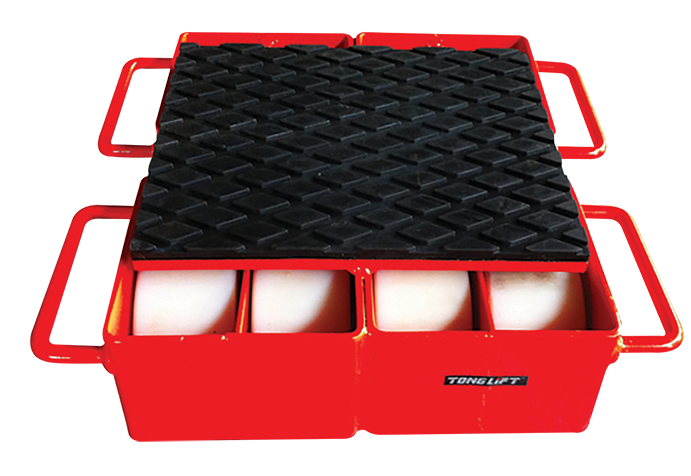

• The adjustable skates are actually 2 skates each. They are connected by two steel rods making one skate adjustable from 500mm to 1400mm (model CM60) and 720mm to 1500mm (model CM120 and CM240). • Model no. “-N” means the wheels are made of Nylon • Model no. “-P” means the wheels are made of Polyurethane material Capacity - 12 Ton Load Wheels - 8pcs Wheel Size - ø 115mm x 60mm (4.5" x 2.4”) Skate Size - 400mm x 345mm x 145mm (15.7" x 13.6" x 5.7”) Weight - 40Kg (88Lbs)

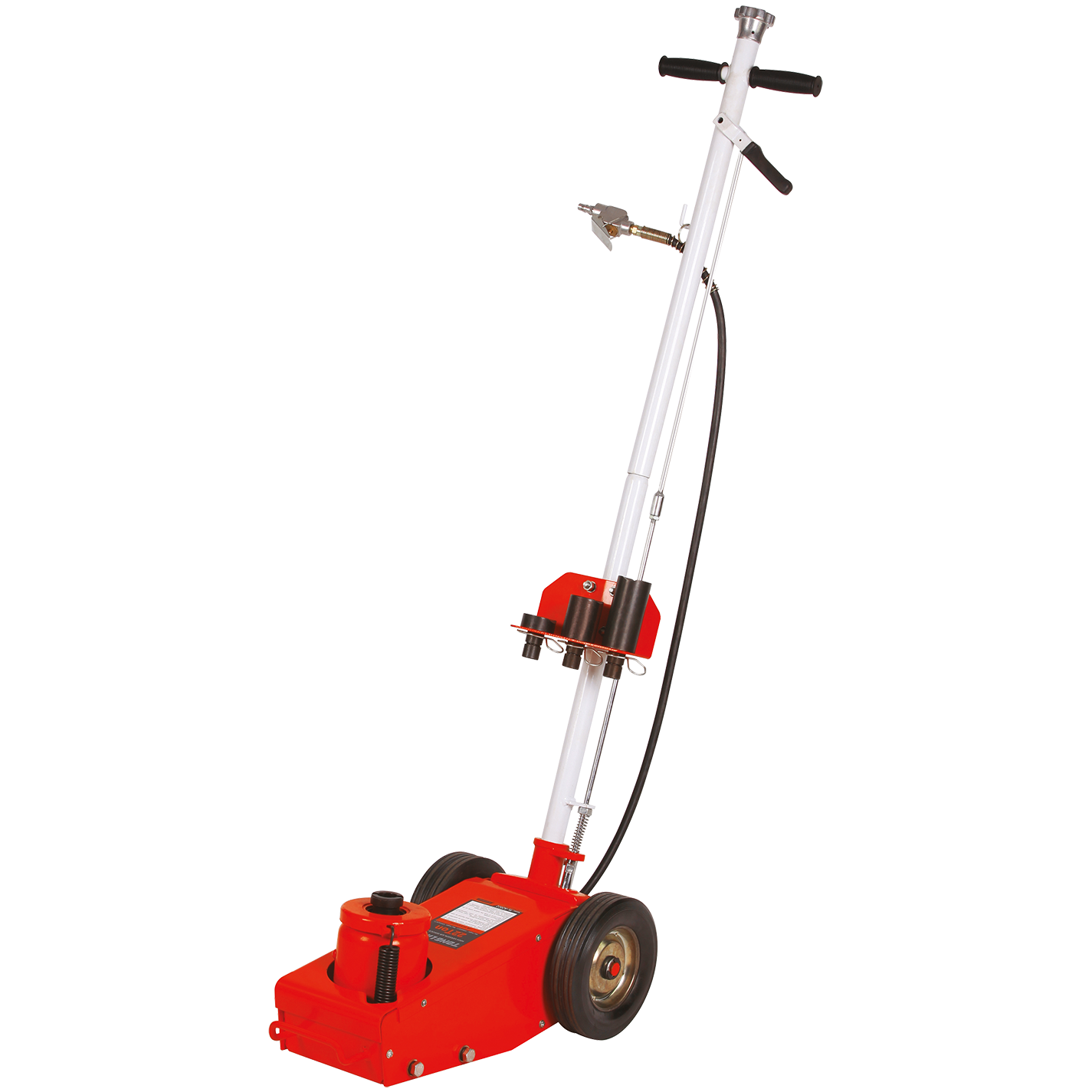

Heavy-duty air and hydraulic performance for garages, equipment dealers, commercial service and more. Welded hydraulic pump and cylinder construction provides increased strength and leak prevention. Both manual and pneumatic operation. Chrome plated ram for additional rust resistance. Wiper seals protect hydraulic system from contaminates. Convenient foot pedal for no load lifts. Front wheels with roller bearings and ball bearing-mounted rear caster wheels provide stability and easy maneuverability. Overload and by-pass safety valves prevent use beyond the rated capacity and over extension of the ram. Handle can be locked into one of three positions from horizontal to vertical and has independent release knob. Meets ANSI/ASME PALD and CE standards. Model - TL-A2022 Capacity - 22 Ton Min.Height - 210mm Max.Height - 525mm Air Pressure - 0.7-1.0Mpa Net Weight - 46 KG Gross Weight - 50 KG Package Size - 660mm x 360mm x 280mm

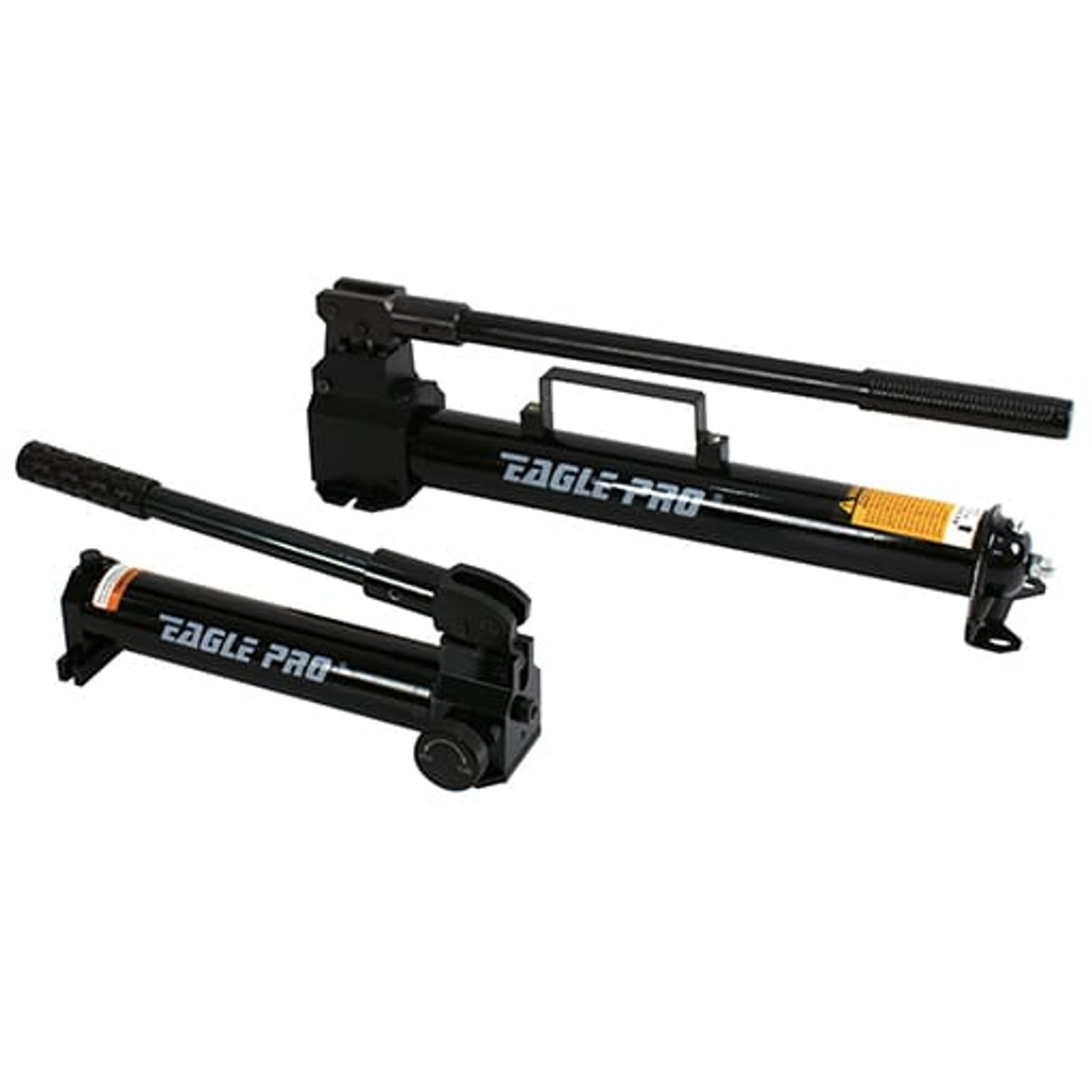

Specification EPA-10521 Useable Oil Volume - 20 in³ 1st Stage Pressure Rating - 14 Bar / 200 PSI 2nd Stage Pressure Rating - 690 Bar / 10,000 PSI 1st Stage Oil Output Per Stroke - 0.48 in³ 2nd Stage Oil Output Per Stroke - 0.05 in³ Handle Force - 35 KG / 77 LBS Output Oil Thread - 3/8" -18 NPT Weight - 2.18KG / 4.8 LBS Two speed single acting hand pump, 20 IN3 High strength alloy steel construction. Engineered for use in extreme environment. Compact, easy to carry. User friendly design. Built-in safety valve. Used for various cylinders and tools. Dual Speed hand pumps provide quicker lift times Eagle Pro Crossover Guide Eagle Pro Model: EPA-10521 Enerpac: P-142 Simplex: P22 Power Team: P19 Williams: 5HS1S60 Ram-Pac: HP-35 BVA: P350

Specification ENS-007 Compact design for use in tight spaces. Single acting, spring return cylinder. Unique angled head design. Nut splitter blade can be replaced. Bolt Range - 1.50"-1.88" Hex Nut Range - 2.38"-2.88" Capacity - 90 Ton Oil Capacity - 27.94 in³ Weight - 35KG / 77 LBS

Specification ENS-002 Compact design for use in tight spaces. Single acting, spring return cylinder. Unique angled head design. Nut splitter blade can be replaced. Bolt Range - 0.50"-0.63" Hex Nut Range - 0.75"-0.94" Capacity - 10 Ton Oil Capacity - 1.22 in³ Weight - 2KG / 4.4 LBS

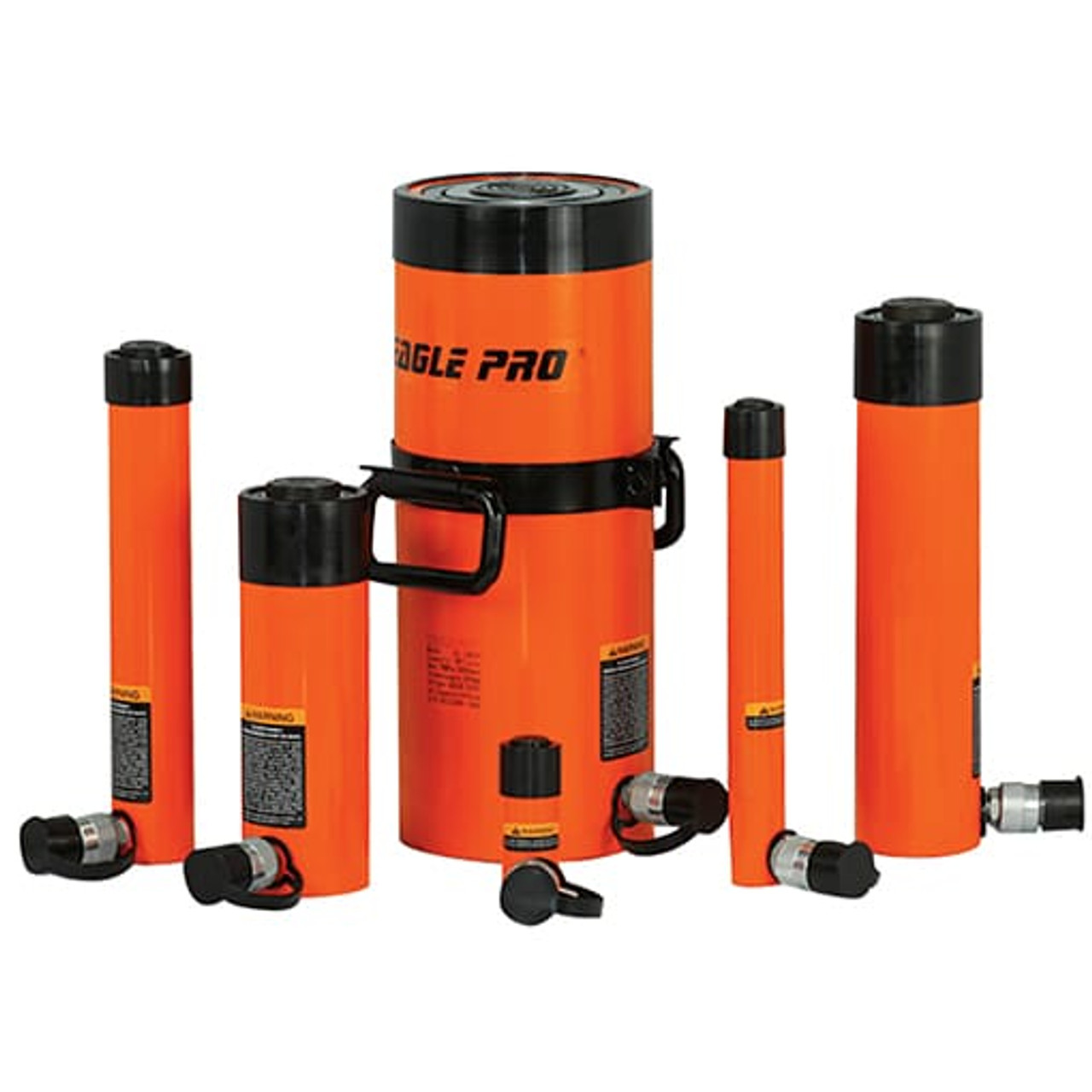

Specification ES-51 Stroke - 0.98" Cylinder Effective Area - 1.10"² Oil Capacity - 1.09"³ Collapsed Height - 4.33" Extended Height - 5.31" Collar Thread - 1 1/2"-16 Collar Thread Length - 1.10" Outside Diameter - 1.50" Piston Rod Diameter - 0.98" Piston Internal Thread - 3/4"-16 UNF Piston Thread Length - 0.63" Base Fix Holes Bolt Circle U - 0.98" Base Fix Holes Thread - 1/4"-20UNC Base Fix Holes Thread Depth - 0.55" Weight - 1 KG / 2.2 LBS Hardened and chromed piston increases durability and reduces wear Collar threads, piston threads and base mounting holes enable easy fixturing Heavy duty, straight pull return spring Eagle Pro Crossover Guide Eagle Pro Model: ES-51 Enerpac: RC-51 Simplex: R51 Power Team: C51C Williams: 6C05T01 Ram-Pac: N/A BVA: H0501

Specification ES-502 Stroke - 2.01" Cylinder Effective Area - 10.99"² Oil Capacity - 22.06"³ Collapsed Height - 6.93" Extended Height - 8.94" Collar Thread - 5"-12 Collar Thread Length - 2.17" Outside Diameter - 5.00" Piston Rod Diameter - 3.15" Base Fix Holes Bolt Circle U - 3.74" Base Fix Holes Thread - 1/2"-13UNC Base Fix Holes Thread Depth - 0.75" Weight - 14.4 KG / 31.7 LBS 50 ton general purpose single acting cylinder Hardened and chromed piston increases durability and reduces wear Collar threads, piston threads and base mounting holes enable easy fixturing Heavy duty, straight pull return spring Eagle Pro Crossover Guide Eagle Pro Model: ES-502 Enerpac: RC-502 Simplex: R552 Power Team: C552C Williams: 6C55T02 Ram-Pac: RC-50-SA-2 BVA: H5502

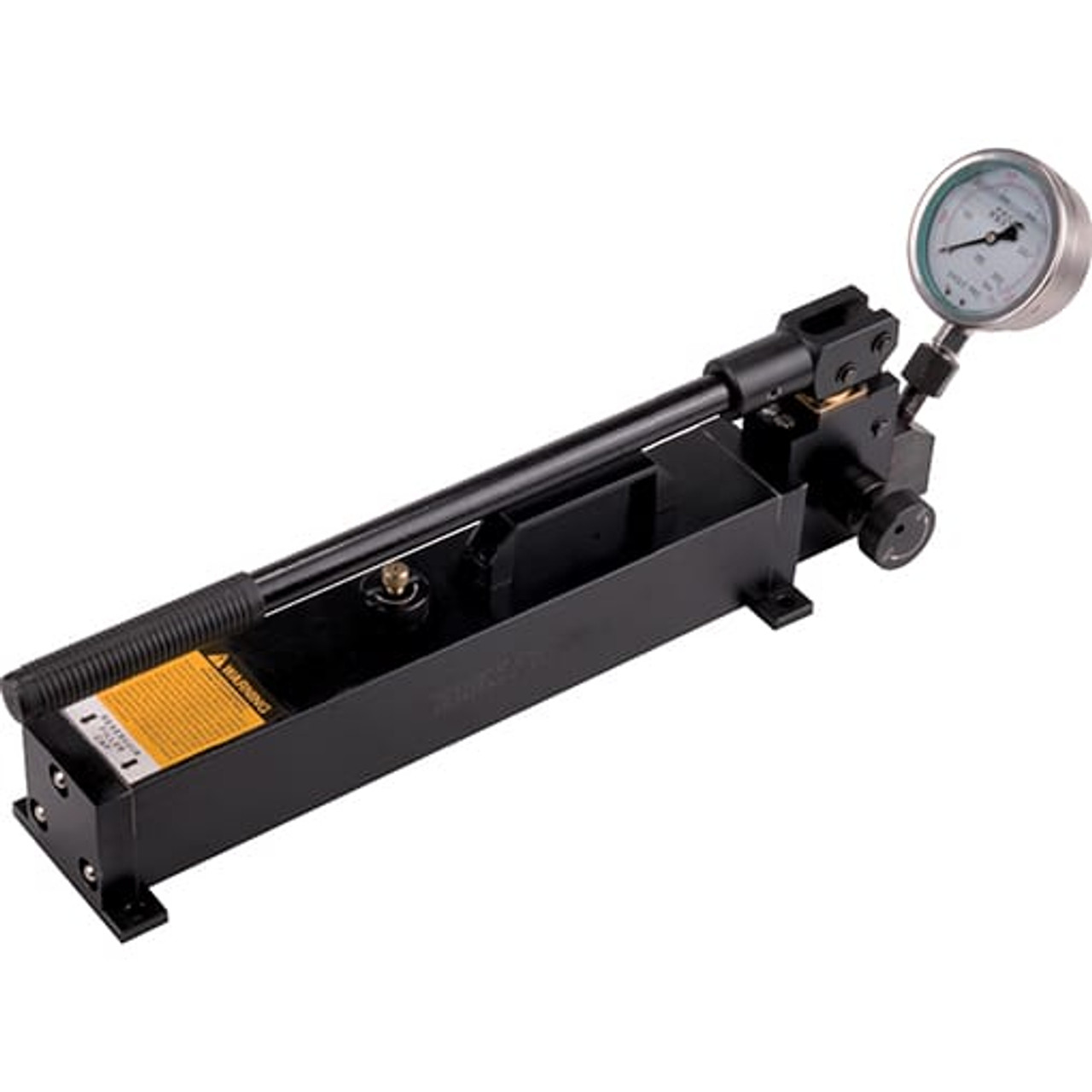

Specification EPA-41621 Speed - Double Useable Oil Volume - 1600cm³ 1st Stage Pressure Rating - 18 Bar / 261 PSI 2nd Stage Pressure Rating - 2100 Bar / 30,458 PSI 1st Stage Oil Out Per Stroke - 1.95in³ 2nd Stage Oil Out Per Stroke -0.05in³ Handle Force - 41.73 KG / 92 LBS Output Oil Thread - 1/4" BSP Weight - 8 KG / 17.6 LBS Maximum Pressure - 2757 Bar / 40,000 PSI 1600cm³ Oil Capacity 2-Stage Dual Speed Pump Built-in safety valve for overload protection Unique handle designed to require less effort, saving you time & energy Convenient high strength design, engineered for use in extreme environments, CDual speed pump, built-in safety valve for overload protection, unique handle designed to require less effort, saving you time and energy. Eagle Pro warrants all of it's products to be free from defects in material and workmanship for the life of the product.
