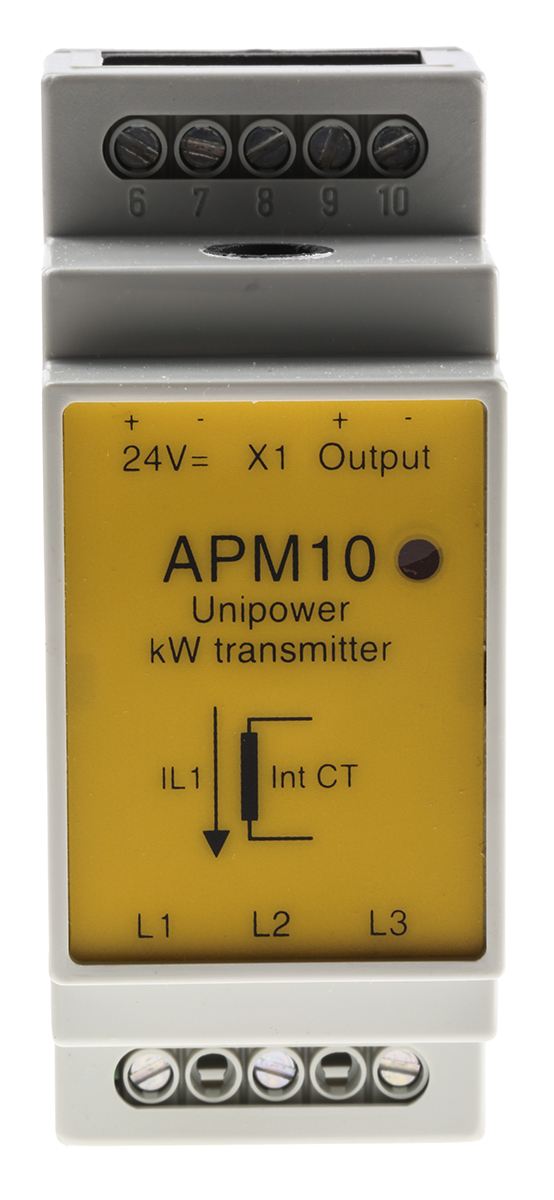

APM10 - kW-Transmitter The APM10 is a monitor- and protection unit for motors. The unit converts kW into an analogue process signal for use in PLC's and other controllers. Transmitter for kW, 3 phase symmetrical load<BR/>For connecting to a 3 phase net of up to 3x500 Vac<BR/>Internal Current Transformer<BR/>Input Current Range 5, 10, 20, 25, 40, 60 Aac<BR/>24 V Power Supply<BR/>Analogue output 0(4)-20mA or 0(2)-10V<BR/>DIP switch settings for output signal<BR/>Galvanic insulation between input and output<BR/>Test Voltage 3 kV

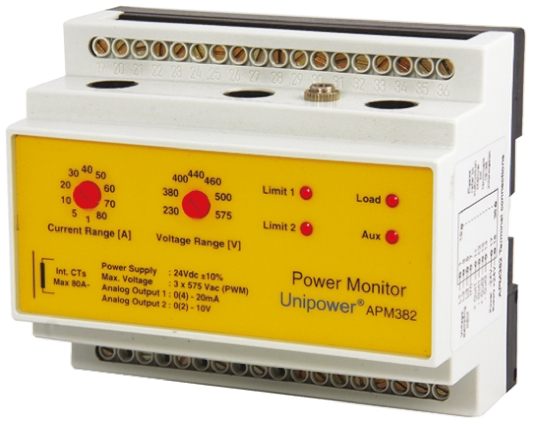

APM382 - Analogue Load Monitor The APM382 is a combined electronic power measurement transducer and load monitor that measures power in kW on 3-phased asymmetric loads, including frequency inverter. Measures after frequency inverters; PWM 10Hz - 1kHz<BR/>10 current measuring ranges up to 80A internally<BR/>Digital scaling of the selected range (Zoom)<BR/>Programmable filter function (analogue and digital)<BR/>2 independent alarm limits plus dP/dt (shock load) alarm<BR/>Alarm inhibit inputs and external reset input<BR/>0(4)-20mA and 0(2)-10V analogue outputs<BR/>Galvanic isolation between mains net and I/O<BR/>Setup of parameters via PC with software 382Mon<BR/>Optocoupled alarm outputs<BR/>An external display (DCU D382; Stock-no.: <a href="/web/p/products/7934124">793-4124</a>) can be connect
