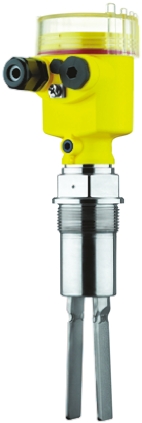

'VEGAWAVE 61' Vibrating Level Switch for Solids Ideal level switch for almost all bulk solids applications. It detects light bulk solids, even those down to 8 g/l, particularly well, the robust construction also makes it possible to use it in very heavy media. Easy set-up without adjustmentProduct-independent switching pointRugged sensor constructionInsensitive to build-up and statically charged productsSolid densities from 8 g/l reliably detectedWear- and maintenance-freeExternal LED switchHousing material PBT (plastic)Housing protection IP66/7Typical applications are overfill and low level detection in media like grain, fine aggregates, sand and heavier powders such as cement and metal oxides

VEGAPULS WL61 Mounting Strap Mounting strap for the VEGAPULS WL61. This mounting strap enables the user to mount the VEGAPULS on many surface types. The mounting strap has pre-drilled holes for ease of attachment. The mounting strap can be adjusted so the unit can be perpendicular to the surface of liquids. Pre drilled mounting holes300mm long

Vega Vibrating Level Switch The Vega vibrating rod level switch has a relay (DPDT), contactless electronic switch andtwo-wire output. Due to its design, jamming and build-up of bulk solid material is avoided. This switch is suitable as a high or low-level switch in vessels detecting foodstuffs, perishable or granulate materials, which can cause problems when retained in fork solids level probes. It has low maintenance costs as well as a simple setup to save you time. Vibrating Liquid/Solid Level Probes - Squings.All of these probes are maintenance-free and have an external LED switch status indication. Features and Benefits The supply voltage ranging from 20VAC to 253VAC and 20VDC to 72VDCProcess fitting material is thread G1 PN16, DIN3852-ALow maintenance costsMinimum time and cost expenditure, simple setup without a mediumReliable function through product-independent switching pointOperating temperature ranges between 50°C and 150°CEasy setup without adjustmentProduct-independent switching pointOptimum rod design avoids build-up and jammingEasy cleaningmaintenance-free and does not wearPower consumption is 0.5W (maximum) Applications Level measurement and point level detection in the grain siloLevel measurement and point level detection in small storage containers Certifications IP66 rated IP68 (0,2bar) ratedIP67 ratingIP68 (1bar) rating ATEX II 1/3 D IP6X T

'VEGAWAVE 61' Vibrating Level Switch for Solids Ideal level switch for almost all bulk solids applications. It detects light bulk solids, even those down to 8 g/l, particularly well, the robust construction also makes it possible to use it in very heavy media. Easy set-up without adjustmentProduct-independent switching pointRugged sensor constructionInsensitive to build-up and statically charged productsSolid densities from 8 g/l reliably detectedWear- and maintenance-freeExternal LED switchHousing material PBT (plastic)Housing protection IP66/7Typical applications are overfill and low level detection in media like grain, fine aggregates, sand and heavier powders such as cement and metal oxides

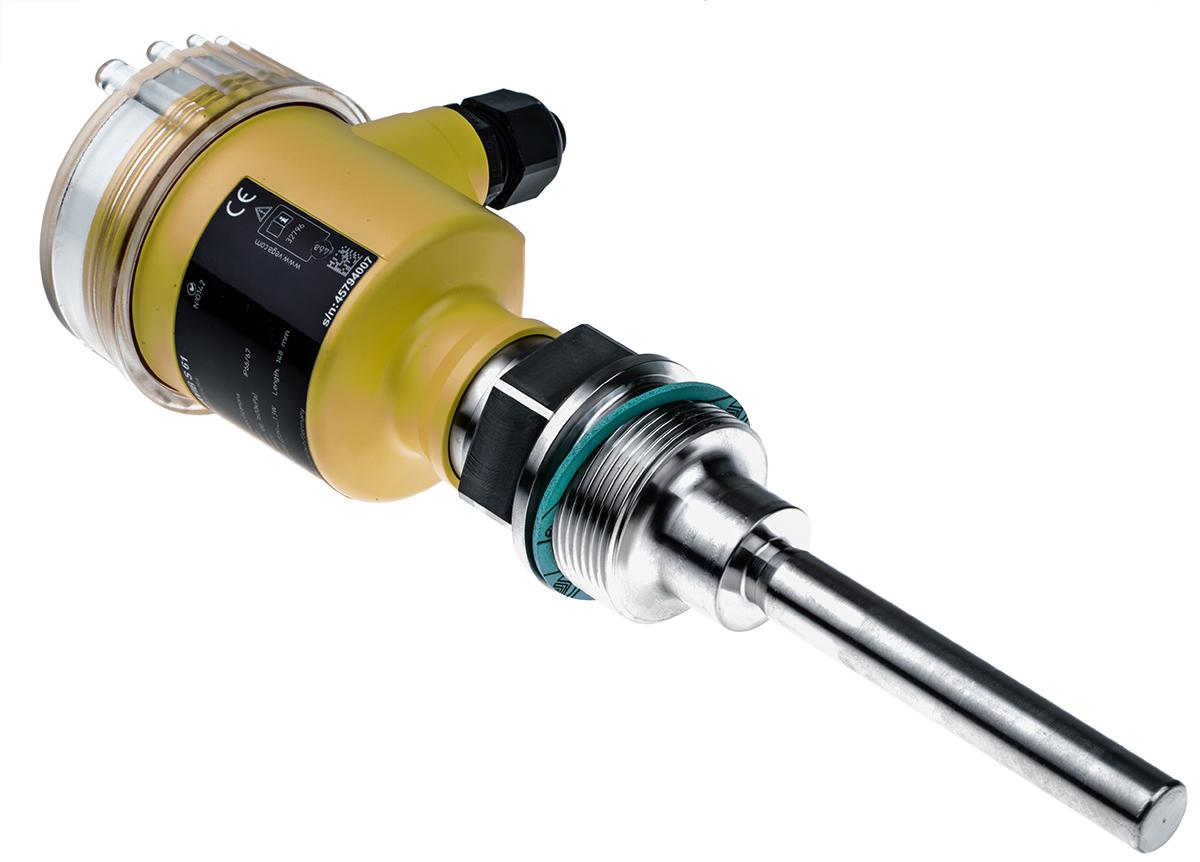

VEGAVIB 61, Vibrating Rod Level Switch for Bulk solids, 1000mm Long The VEGAVIB 61 point level switch measures the min. and max. level accurately and is an excellent choice for granular and coarse grained bulk solids. Extended version is ideal for top mounting as high level switching or side mounting through long nozzles. For Use With Granules and PowdersRod Design Helps to Avoid Product Build-UpGreen/Red LED Switch Indication and Device MonitoringMaintenance and Wear-FreeEasy Set-Up Without Adjustment

VEGAVIB 61, Vibrating Rod Level Switch for Bulk solids, 1000mm Long The VEGAVIB 61 point level switch measures the min. and max. level accurately and is an excellent choice for granular and coarse grained bulk solids. Extended version is ideal for top mounting as high level switching or side mounting through long nozzles. For Use With Granules and PowdersRod Design Helps to Avoid Product Build-UpGreen/Red LED Switch Indication and Device MonitoringMaintenance and Wear-FreeEasy Set-Up Without Adjustment

Vega Vibrating Level Switch The Vega vibrating level switch has a relay (DPDT) output. It is energized by a piezo crystal and it vibrates at a fixed amplitude. If the vibrating rod is covered by the product, the amplitude change is detected by the integral electronics and converted into a switch signal. The switching condition is visible from outside via a two-colour LED. Vibrating Liquid/Solid Level Probes - Squings.All of these probes are maintenance-free and have an external LED switch status indication. Features and Benefits The supply voltage ranging from 20VAC to 253VAC and 20VDC to 72VDCProcess fitting material is thread G1 PN25, DIN3852-AEasy setup without adjustmentProduct-independent switching pointRugged sensor constructionInsensitive to build-up and statically charged productsSolid densities from 8g/l reliably detectedmaintenance-free and does not wear out easilyExternal LED switchHousing material PBT (plastic)Density is greater than 100g/lBreaking capacity maximum 750VA, 54W Applications Typical applications are overfill and low-level detection in media like grain, fine aggregates, sand and heavier powders such as cement and metal oxidesAlmost all the bulk solids applications Certifications IP66 ratedIP67 ratedATEX II 1/3 D IP6X T

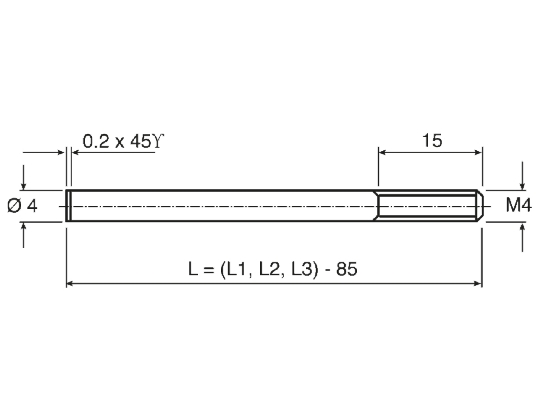

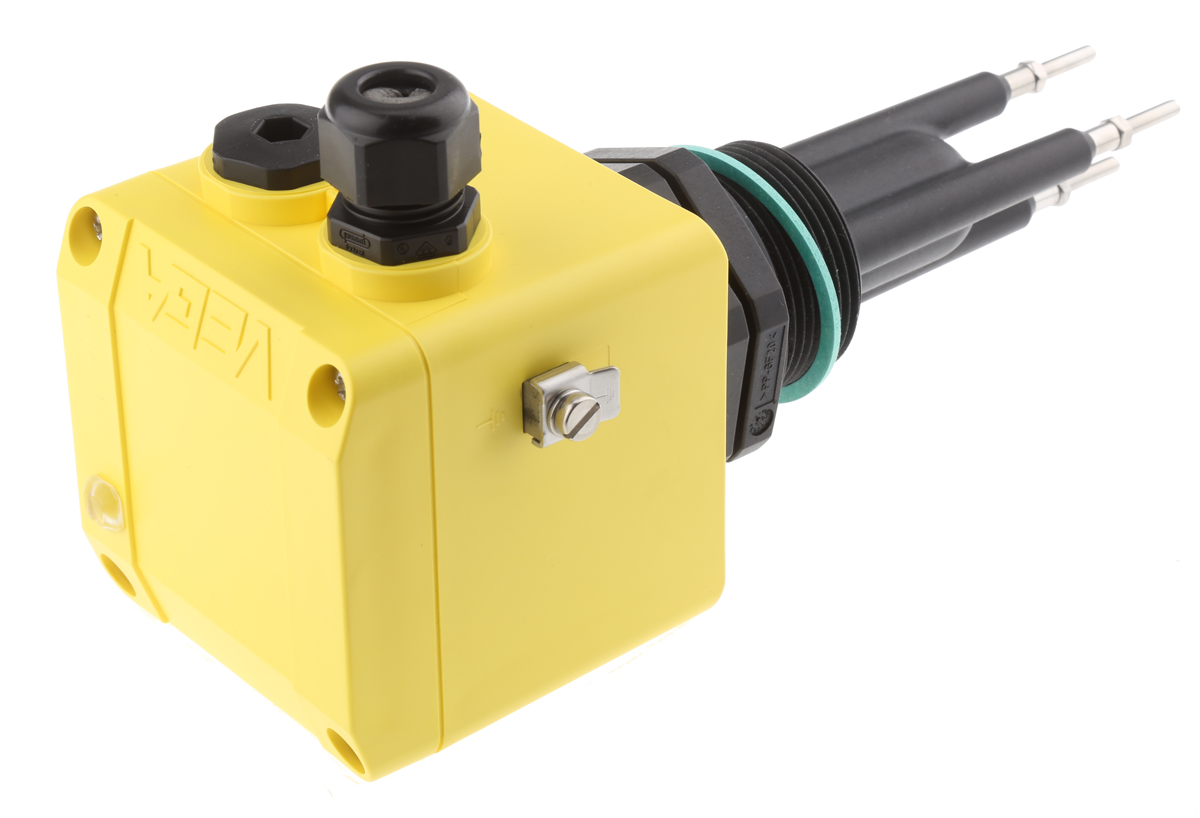

VEGACON 66 Conductivity Level Switch Alarm or pump control for controlling between two levels 3 electrode holdersModes: max detection, overfill (A) or min detection dry run protection (B)External LED switch status3 electrode holdersSelectable sensitivity; 100Ω to 300kΩIntegration time adjustable up to 20 secs1m x 4mm diameter stainless steel electrodes need to be ordered separately (see stock no. 387-0385). These can be cut to length to suit application

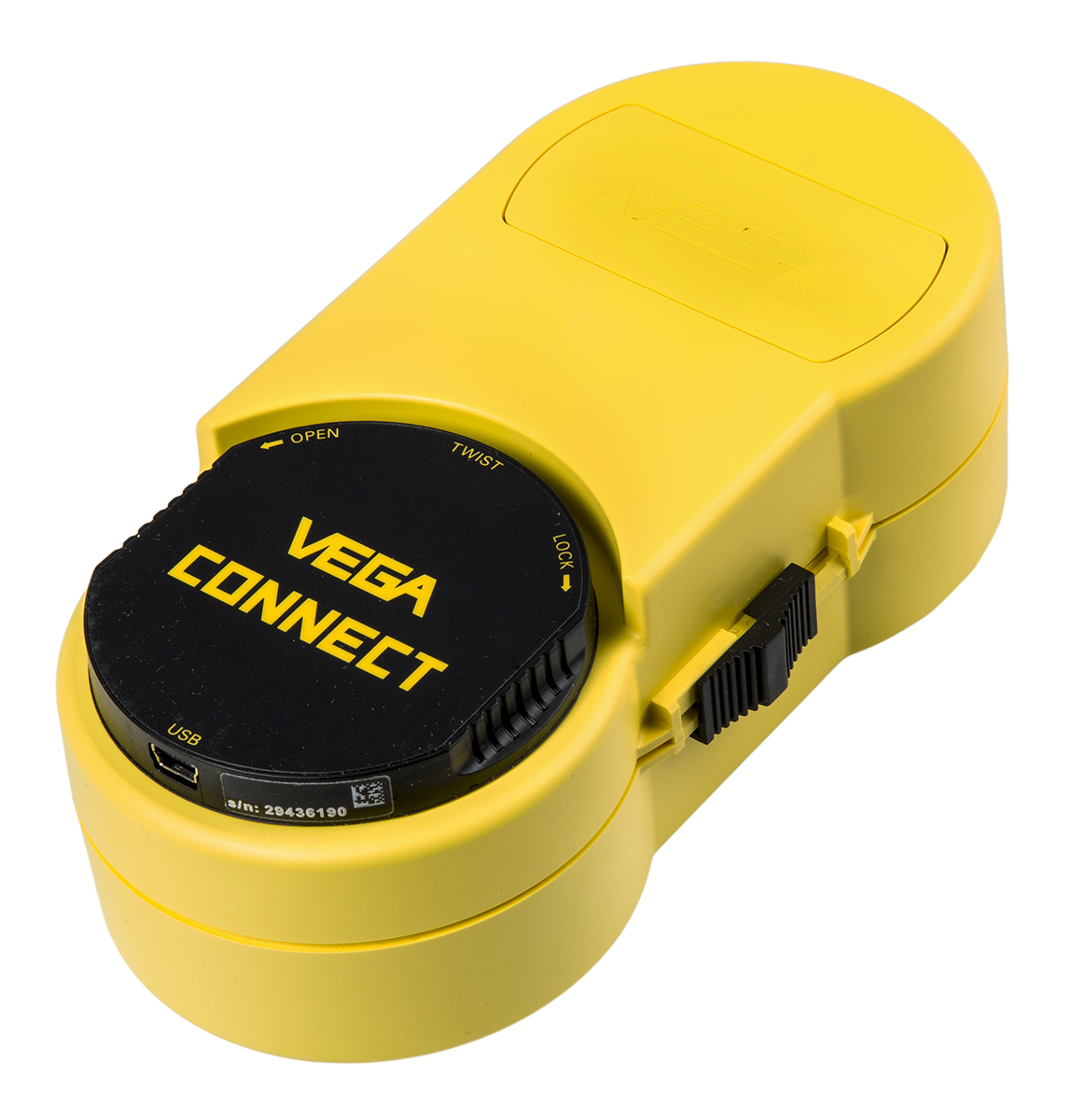

Vega Interface Adapter The Vega interface adapter is a PC to USB allowing the user to connect VEGA instruments to a PC (that is using PACTware software). This interface unit enables users to easily set up and back up commissioning easier and faster enabling the user to see more comprehensive detail and data via the PC screen. It connects to the USB interface of the PC and has communication interfaces of all VEGA plics transmitters and associated signal conditioners. This unit can be plugged directly into the sensor electronics and is connected via USB cable to the PC or use HART protocol and associated DTM’s from any manufacturer. Features and Benefits Connects directly into head of VEGA devices or VEGADIS 61 displayRemote connection via HARTCompatible with any PACTware device with HART communication DTMGeneric HART set up option for non DTM devicesGraphic resolution of 1024 pixel x768 pixel or higherRAM of 128MB or higher memoryPentium processor of 500Mhz or higherMouse is Microsoft compatibleInternet explorer 6.0 or higherWindows 2000/XP/VistaHard disk free memory of 300MBUSB or Ethernet interfaceSoftware extension Net 1.1 framework and Net 1.1 SP1 framework for Pactware 4.0 or higher

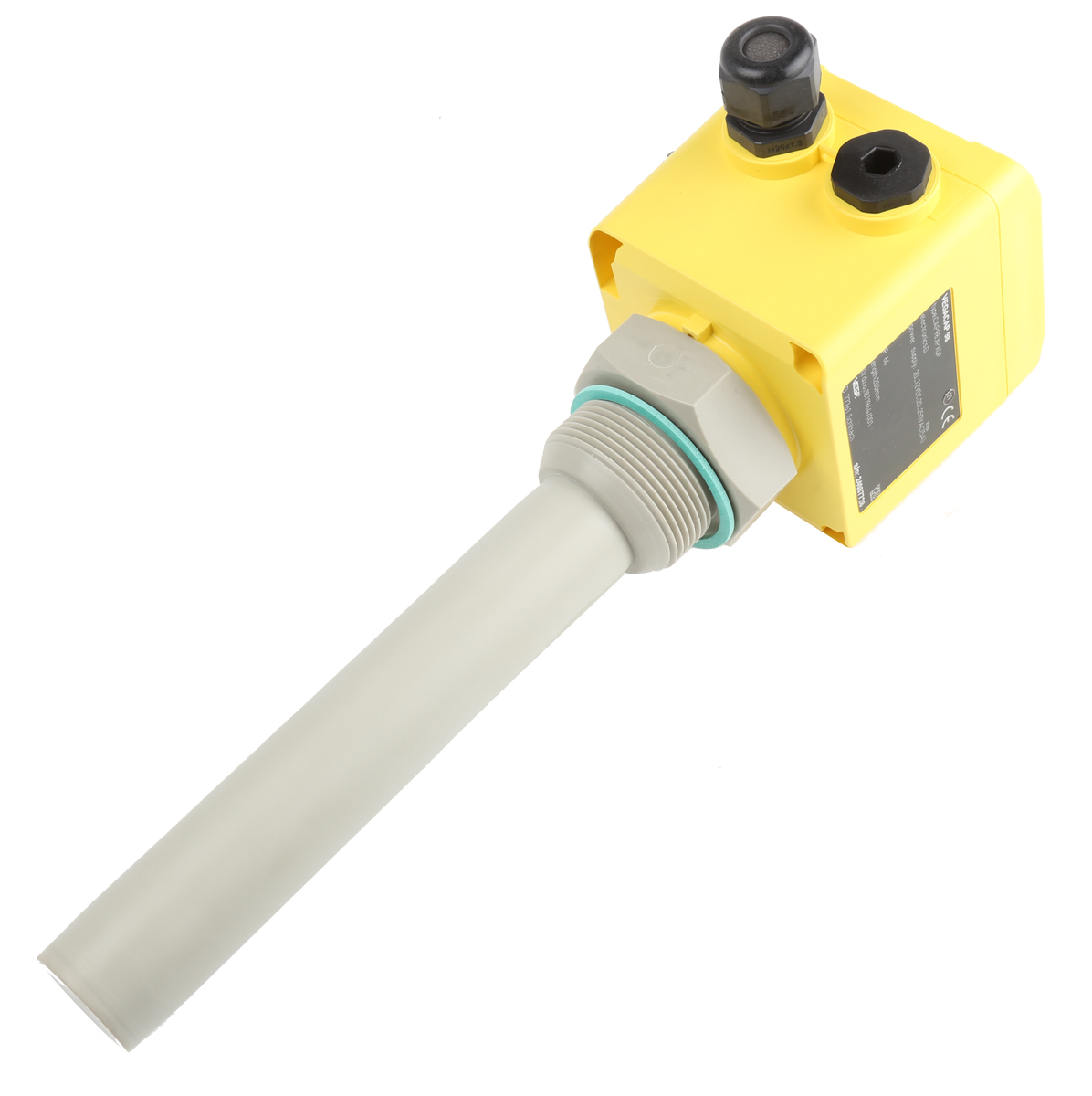

Vega Capacitive Level Switch The Vega capacitive level switch has a relay (DPDT) output with a measuring range of up to 2m. It is an adjustment-free and affordable level switch for liquids and bulk solids. It is particularly suitable as overfill protection or dry running protection system in adhesive, conductive products. Features and Benefits The supply voltage ranging from 20VAC to 250VAC and 20VDC to 72VDCProcess fitting: thread from G1, 1 NPTMinimum time and cost expenditure simple setup without a medium Exact switching point even with strong build-up Long lifetime and low maintenance due to robust mechanical constructionOperating temperature ranges between -40°C and 80°CProcess pressure: unpressurized operationVertical or horizontal mountA/B detection modes, A max. detection or overfill protection, B. min. detection or protection against dry running of pumpsLED for indication of switching modeIntegration time 0.5 secondsAdjustment freePolypropylene probeThread size is 1in BSPCable entry 1 x PG 13.5Mounting kit is available separately. Consists of a 2mm stainless steel angle bracket (D150x H200 x W150mm) and polypropylene locknut Applications Used for detection of maximum and minimum levels in vesselsSuitable for use with liquids, light solids and adhesive materials Certifications IP66 rated

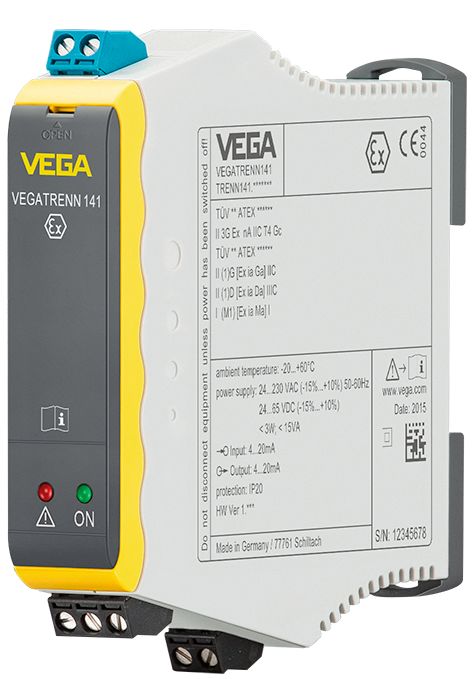

The Vega single channel VEGATRENN 141 is used for the power supply, galvanic separation, intrinsically safe power supply as well as signal transmission to Ex-approved 4 … 20 mA sensors installed in hazardous areas. Universal power supplySimple installation though carrier rail mounting as well as detachable, coded terminalsEX instrument supply in hazardous area with retransmission

Vega Ultrasonic Level Sensor The Vega compact ultrasonic liquid level sensor has an analogue current rating of 4mA to 20mA HART output and it is used for continuous measurement. Its measuring range is up to 5m for liquid and 2m for bulk solid. The time from emission to reception of the signals is proportional to the level in the vessel. This sensor is always mounted at the top. Features and Benefits Transducer of PVDF with EPDM seal and integrated temperature sensor for correction of the running timeECHOFOX signal processing with Fuzzy-LogicAdjustment with PLICSOM, HART handheld or PC (not supplied) Protection: IP66/IP67, cable entry M20 x 1.5, without plug connectionMeasurement is independent to density, opacity, conductivity or dielectric constant of liquidAccuracy better than 0.2% or ±10mmNon-contact measurement Unaffected by product properties Adjustment without a medium Applications Level measurement of liquids and for use in small bulk solids vesselsSuitable for the measurement of liquids and solids in virtually all industries, particularly in the water and waste water sector Certifications ATEX II 1G, 1/2G2G EEx ia IIC T6IP66 rated IP67 rated
