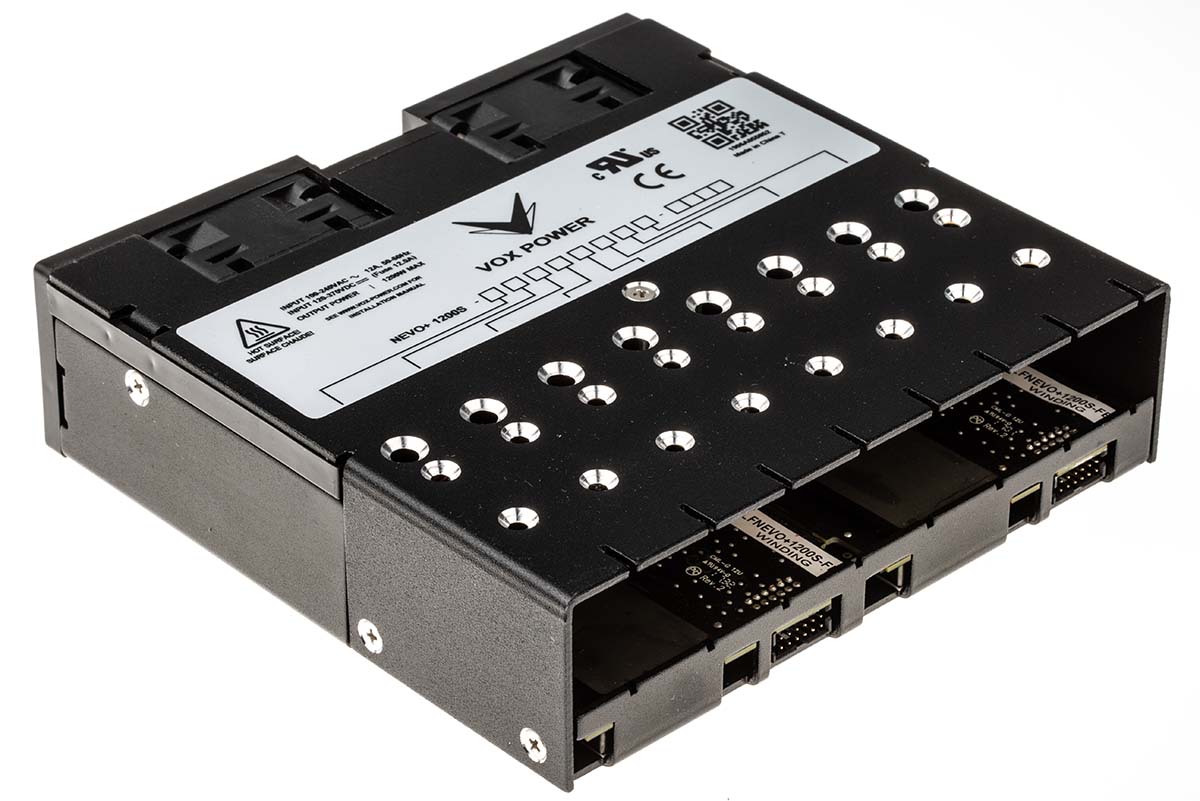

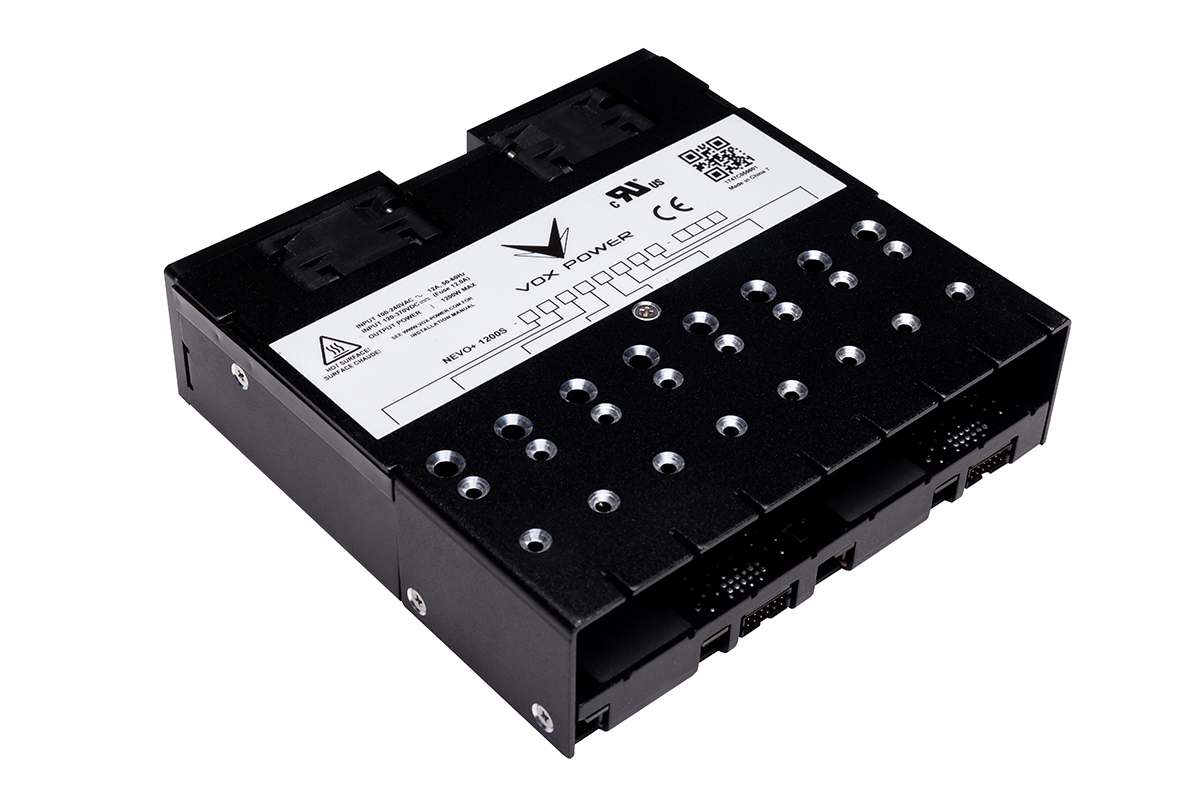

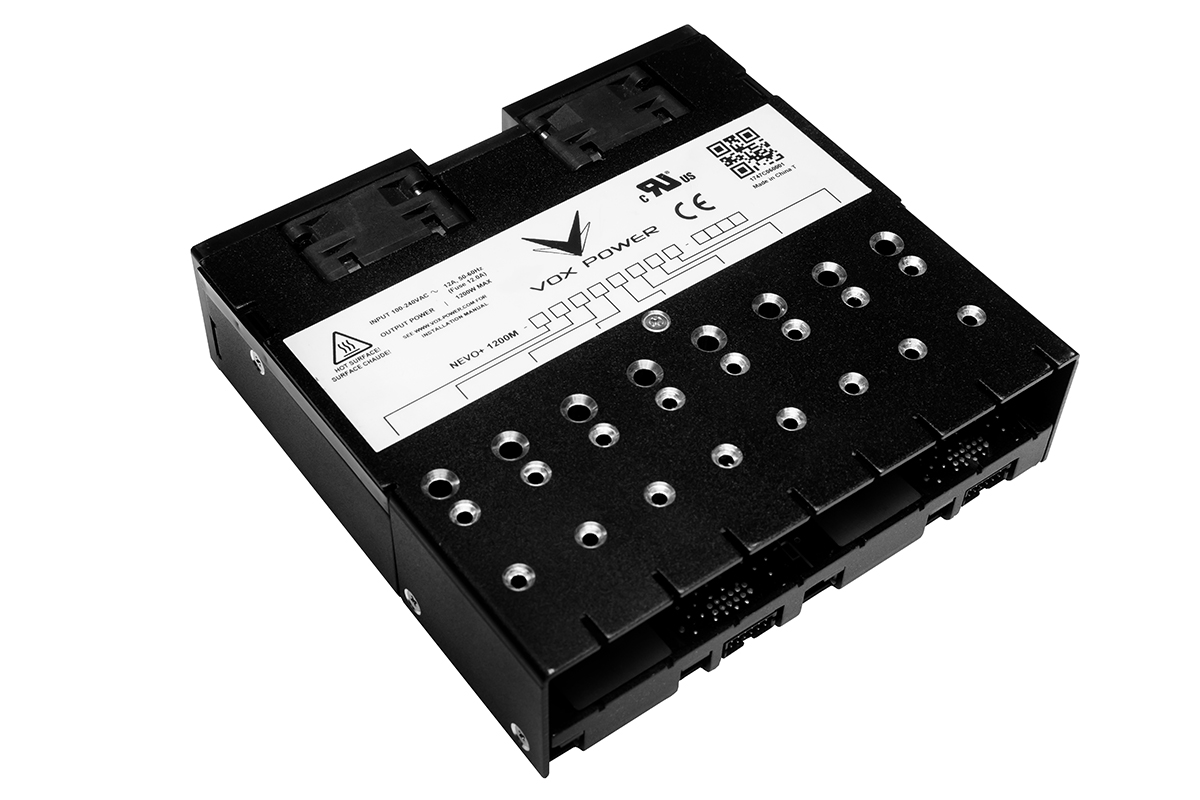

Vox Power AC To DC Power Supply The Vox NEVO+1200S series 1200W octa output isolated modular power supply has an output current rating of 1A at 4.8VDC to 5.2VDC. It has a universal input supply voltage rating from 85VAC to 264VAC. It is an ideal power solution for applications where size and weight are essential aspects. The power supply consists of an input module with 8 slots, where any combination of outputs can be fitted to create a power solution with up to 16 isolated outputs. It boasts maximum power for its minimum size packaged in an amazing 6 x 6in profile. The power supply delivers more than 22W per cubic inch. Features and Benefits Accurate current sharing<BR/>Current output signal<BR/>Field configurable<BR/>High power density<BR/>Primary side remote ON/OFF<BR/>Remote current/voltage programming<BR/>Use any combination of modules 1,2,3,4,5 and 8 in slots A through H Certifications EN550022-B EMC<BR/>EN61000-3<BR/>EN61000-4<BR/>IEC 60950-1(ed.2)<BR/>IEC 60950-1(ed.2) am1<BR/>IEC 60950-1(ed.2) am2

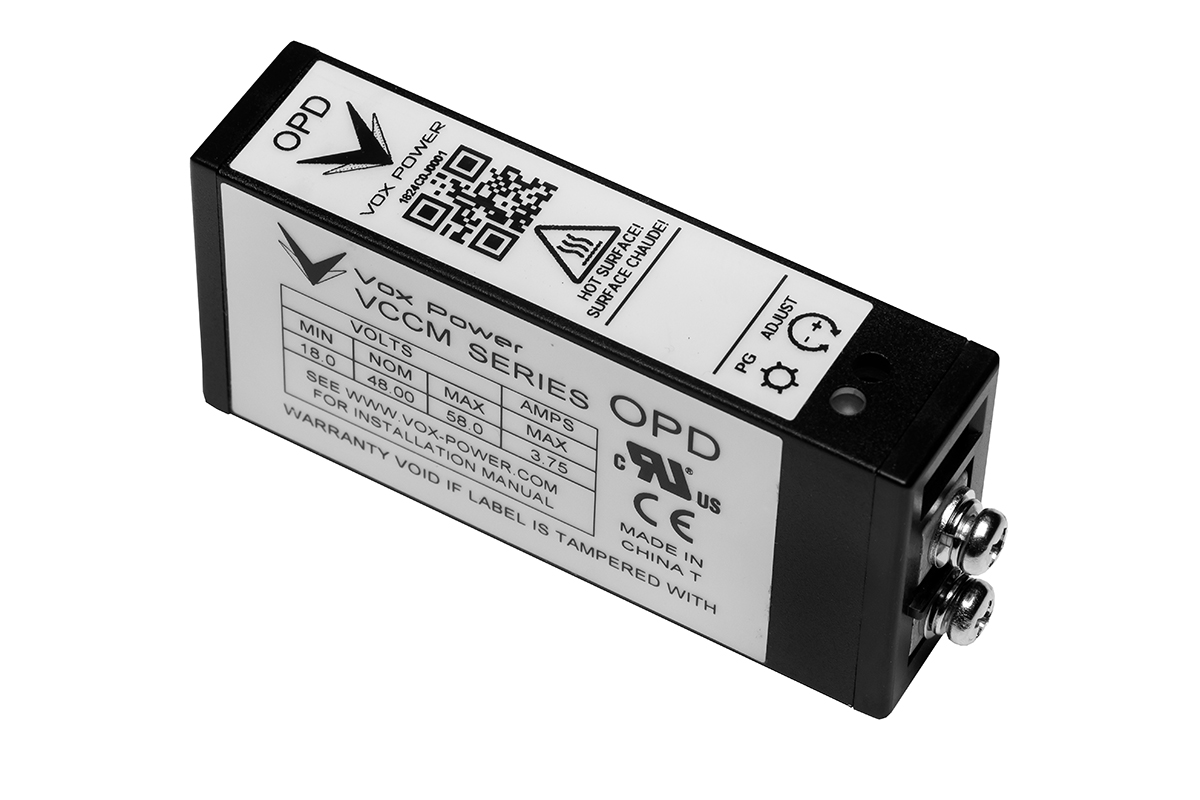

Vox Power AC To DC Modular Power Supply The Vox Power 600W quad output isolated modular power supply has an output current of 3.75A at 18VDC to 58VDC. It has an isolated output module used with an AC-DC front-end input module. The single output isolated module can be connected in parallel and series within the same chassis to achieve higher output current or voltage. It utilises a noise reduction fan through the implementation of a control circuit. The fan speeds up and slows down with variations in temperature and loading which is critical in many applications. Features and Benefits Output voltage range between 30V to 58V<BR/>Power configurable product output module Applications Test and measurement<BR/>LED lighting<BR/>Factory automation<BR/>Broadcast equipment<BR/>Industrial lasers<BR/>Optical inspection

Vox Power Output Module Blanking Plate – O/P 0 Output module blanking plate for use with NEVO+600 & Nevo+1200 AC-DC modular power supplies <B>Features and benefits</B> • Vox Power Configurable Product Accessory<BR/>• Blanking Plate <BR/>• For Use with Nevo+600 & Nevo+1200 Front Ends<BR/>• To be used when all output slots are not used

Vox Power AC To DC Modular Power Supply The Vox Power output-1 series 125W single-output isolated modular power supply has an output current of 25A at 1.5VDC to 7.5VDC. It has an isolated 5V output module used with an AC-DC front-end input module. The single output isolated module can be connected in parallel and series within the same chassis to achieve higher output current or voltage. By selecting the required output modules, a custom power solution can be configured offering high-power density and efficiencies of up to 89%. Features and Benefits Power configurable product output module<BR/>Used with Nevo+600 and Nevo+1200 front ends

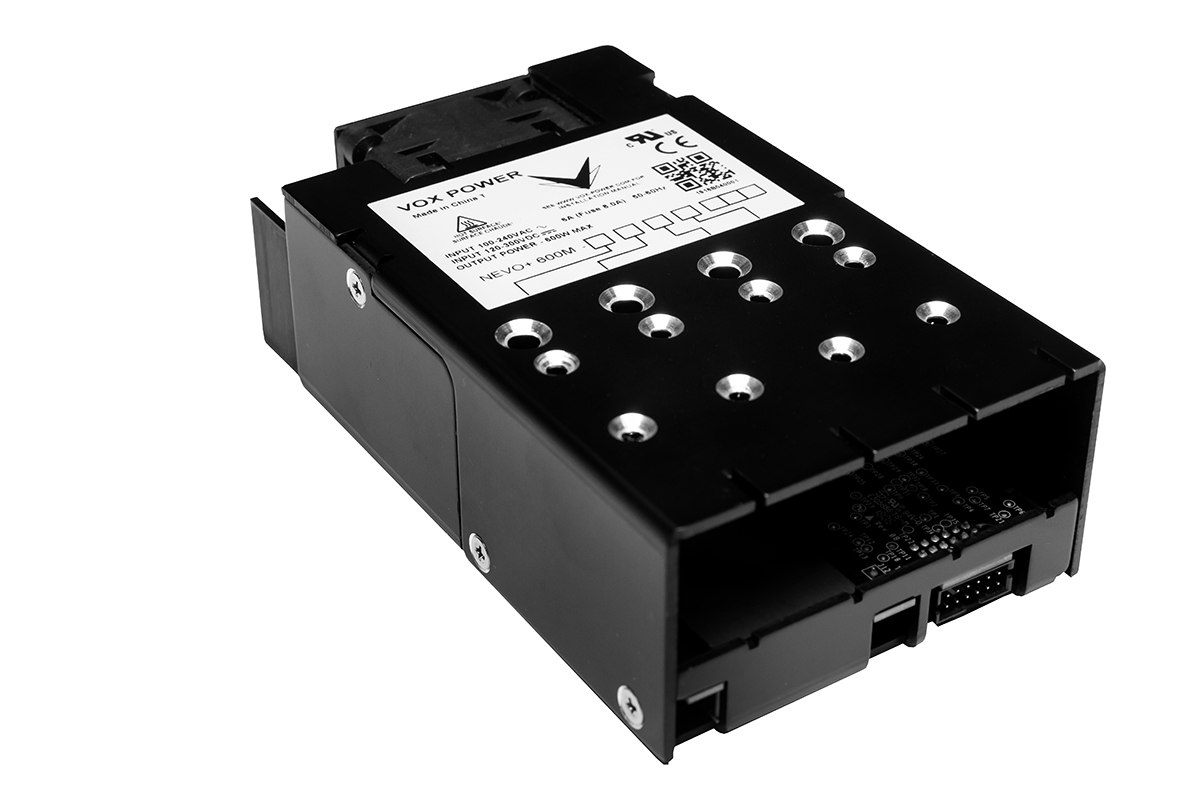

Vox Power 600 W Front End Input Module for AC-DC Medical Modular Power Supply - NEVO+600M NEVO+600M 600 W AC-DC modular power supply front-end input module that delivers a full 600 W at line voltages of ≥ 120 V ac. The front-end input module has four slots into which isolated output modules can be fitted. Output modules can be connected in parallel or series to achieve higher output currents or voltage. By selecting the correct output modules, a custom power solution can be configured offering high-power density and efficiencies of up to 89%. NEVO+600M input module has adjustable voltage control for each output module and a high-power density of 25 W/in³. <BR/>The NEVO+600M module utilises a noise reduction fan through the implementation of a control circuit. The fan speeds up and slows down with variations in temperature and loading which is critical in many applications. <BR/> <B>Features and Benefits </B> • Vox Power Modular Front End<BR/>• 600 Watt Medically Approved Front End. <BR/>• 4 Ouput Module Slots<BR/>• AC Input Voltage Range - 85VAC TO 264VAC<BR/>• 3 X 5 X 1.6 Inches ( 129.7 x 77.7 x 41.5mm)<BR/>• Use any combination of modules 1,2,3,4,5 and 8 in slots A,B C and D <B>Compatible Modules</B> O/P 1, 2, 3, 4, 5, 6, & 7 in Slots A, B, C & D <B>Derate Power</B> Derate power above 50°C<BR/>Derate power below 120 V ac line voltage <B>Output Module</B> For output modules see stock numbers <a href="/web/p/products/7538032">753-8032</a><B> </B><a href="/web/p/products/7538041">753-8041</a><B><a href="JavaScript:showLine(' ')"><span class="inlineLink"> </span></a> </B><a href="/web/p/products/7538044">753-8044</a><B><a href="JavaScript:showLine(' ')"><span class="inlineLink"> </span></a></B> <a href="/web/p/products/7538048">753-8048</a><B> </B><a href="/web/p/products/7538057">753-8057</a><B><a href="JavaScript:showLine(' ')"><span class="inlineLink"> </span></a> </B><a href="/web/p/products/7538050">753-8050</a><B><a href="JavaScript:showLine(' ')"><span class="inlineLink"> </span></a> </B><a href="/web/p/products/7538054">753-8054</a> <B>Accessories</B> Series links see stock number <a href="/web/p/products/7538076">753-8076</a><BR/>Parallel links see stock numbers <a href="/web/p/products/7538060">753-8060 </a>and <a href="/web/p/products/7538072">753-8072</a><BR/>Cable sets see stock numbers <a href="/web/p/products/7538082">753-8082</a> and <a href="/web/p/products/7538091">753-8091</a><BR/>I²C interface see stock number <a href="/web/p/products/7538066">753-8066</a><BR/>S-Track interface see stock number <a href="/web/p/products/7538063">753-8063</a><BR/>Module blanking plate see stock number <a href="/web/p/products/7538038">753-8038</a>

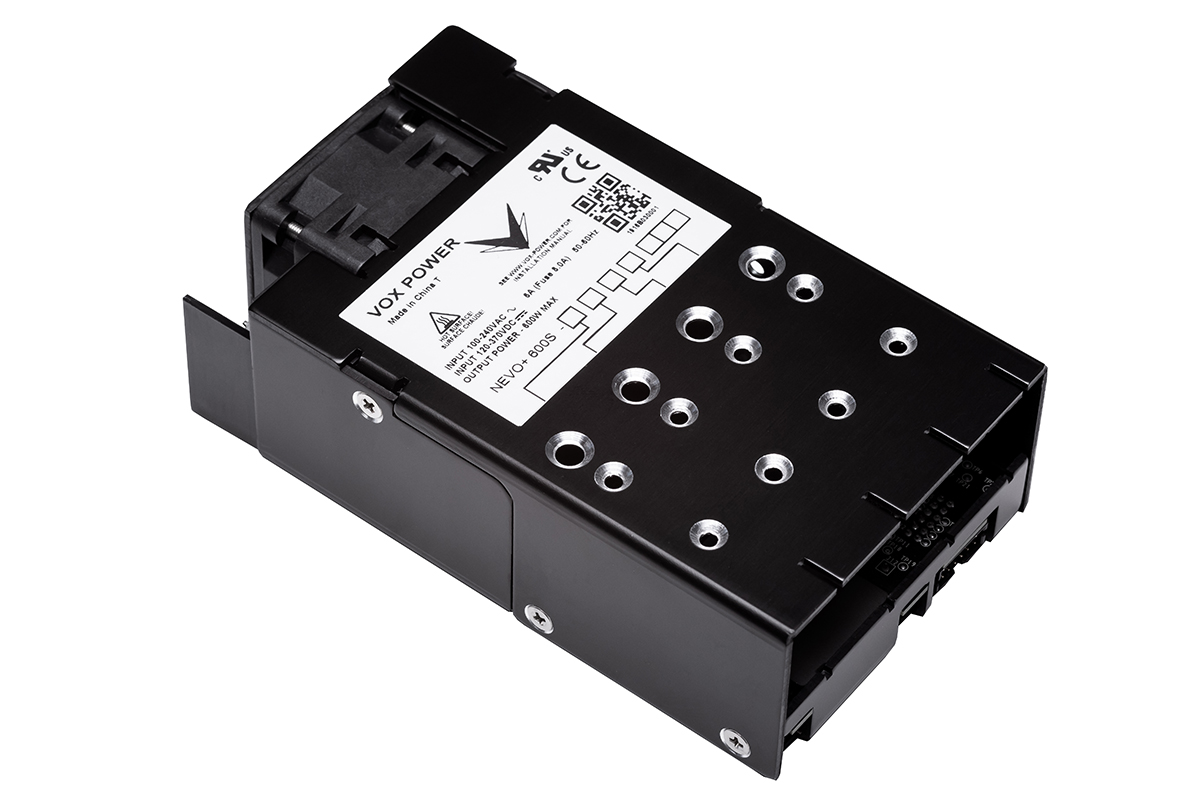

Vox Power 600 W Front-End Input Module for AC-DC Modular Power Supply - NEVO+600S NEVO+600S 600 W AC-DC modular power supply front-end input module that delivers a full 600 W at line voltages of ≥ 120 V ac. The front-end input module has four slots into which isolated output modules can be fitted. Output modules can be connected in parallel or series to achieve higher output currents or voltage. By selecting the correct output modules, a custom power solution can be configured offering high-power density and efficiencies of up to 89%. NEVO+600S input module has adjustable voltage control for each output module and a high-power density of 25 W/in³. <BR/>The NEVO+600S module utilises a noise reduction fan through the implementation of a control circuit. The fan speeds up and slows down with variations in temperature and loading which is critical in many applications. <B>Features and Benefits </B> • Vox Power Modular Front End<BR/>• 600 Watt Standard (ITE Approved) Front End. <BR/>• 4 Ouput Module Slots<BR/>• AC Input Voltage Range - 85VAC TO 264VAC<BR/>• 3 X 5 X 1.6 Inches ( 129.7 x 77.7 x 41.5mm)<BR/>• Use any combination of modules 1,2,3,4,5 and 8 in slots A,B C and D <B>Compatible Modules</B> Use any combination of Modules O/P: 0,1, 2, 3, 4, 5, 6, & 7 in Slots A, B, C & D <B>Derate Power</B> Derate power above 50°C<BR/>Derate power below 120 V ac line voltage <B>Output Module</B> RS Stock numbers <a href="/web/p/products/7538032">753-8032</a><B> </B><a href="/web/p/products/7538041">753-8041</a><B><a href="JavaScript:showLine(' ')"><span class="inlineLink"> </span></a> </B><a href="/web/p/products/7538044">753-8044</a><B><a href="JavaScript:showLine(' ')"><span class="inlineLink"> </span></a></B> <a href="/web/p/products/7538048">753-8048</a><B> </B><a href="/web/p/products/7538057">753-8057</a><B><a href="JavaScript:showLine(' ')"><span class="inlineLink"> </span></a></B><a href="/web/p/products/7538050">753-8050</a><B><a href="JavaScript:showLine(' ')"><span class="inlineLink"> </span></a> </B><a href="/web/p/products/7538054">753-8054</a> <B>Accessories</B> Series links see stock number <a href="/web/p/products/7538076">753-8076</a><BR/>Parallel links see stock numbers <a href="/web/p/products/7538060">753-8060</a>, <a href="/web/p/products/7538079">753-8079</a> and <a href="/web/p/products/7538072">753-8072</a><BR/>Cable sets see stock numbers <a href="/web/p/products/7538082">753-8082</a> and <a href="/web/p/products/7538091">753-8091</a><BR/>I²C interface see stock number <a href="/web/p/products/7538066">753-8066</a><BR/>S-Track interface see stock number <a href="/web/p/products/7538063">753-8063</a><BR/>Module blanking plate see stock number <a href="/web/p/products/7538038">753-8038</a>

Vox Power NEVO600 Modular PSU Cable Set for Dual Output Module Vox Power Configured Product Accessory<BR/>Cable Set to be used with Dual Output Modules<BR/>Includes 1 x J5 Signal Cable Harness (220 mm)<BR/>Includes 1 x Dual Output Power Cable (150 mm)

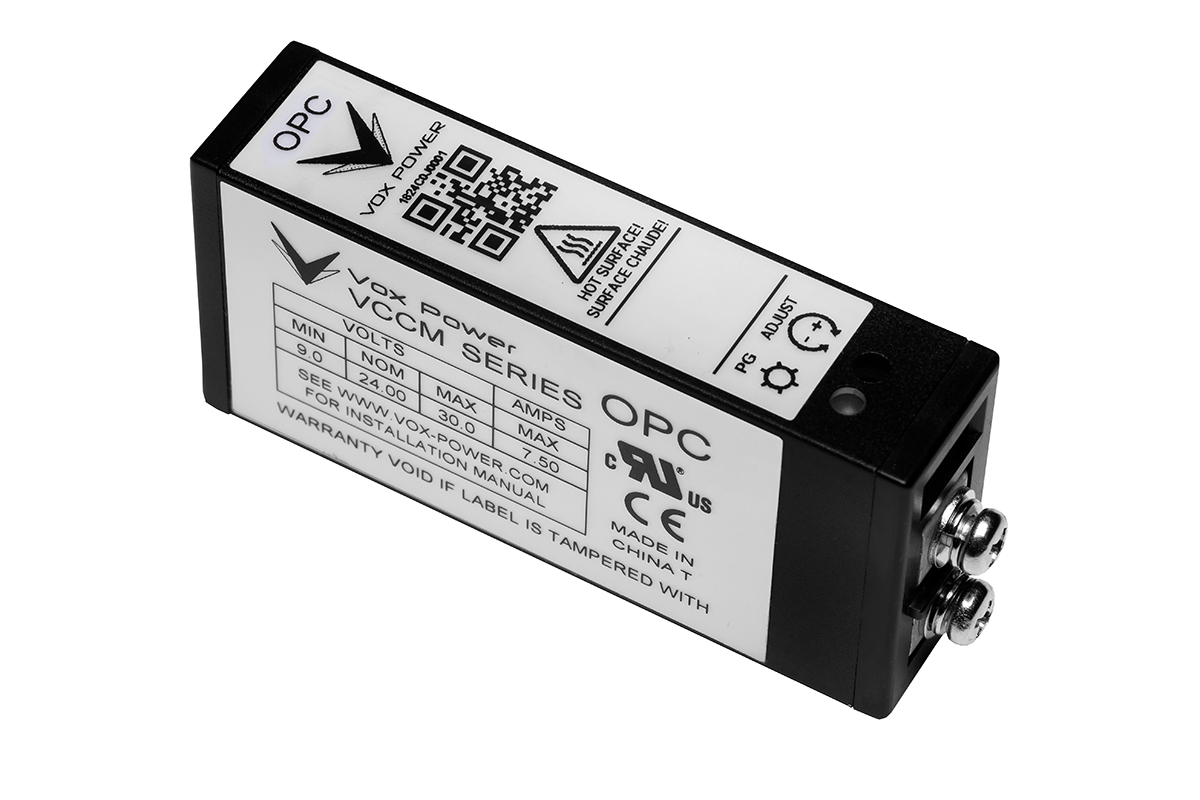

Vox Power Isolated Modular Power Supply The Vox Power output-3 series 150W single-output isolated modular power supply has an output current rating of 7.5A. It has an isolated 24V output module for use with AC-DC front-end input module. The single output isolated module can be connected in parallel and series within the same chassis to achieve higher output current or voltage. By selecting the required output modules, a custom power solution can be configured offering high-power density and efficiencies of up to 89%. Features and Benefits Output voltage ranging between 9V to 30V<BR/>Power configurable product output module<BR/>Used with Nevo+600 and Nevo+1200 front ends

Vox Power 600 W Isolated Dual Output Modules for AC-DC Modular Power Supply – O/P 5 Isolated dual output module for use with Nevo AC-DC front-end input modules. The NEVO dual isolated output modules are floating output modules which means each output can be referenced as positive or negative. The end user can have up to 8 isolated outputs using the Nevo+600S or M front end OR up to 16 isolated outputs by using the Nevo+1200S OR M front end. For electrical data, refer to table. <B>Features and benefits</B> • Vox Power Configurable Product Output Module<BR/>• 150 Watt Dual Output Module<BR/>• Maximum Current: 5A Per Output<BR/>• Number of Outputs: 2<BR/>• Output Voltage Range(s): 3.3V To 15V<BR/>• New Version O/P 5 Module (Replaces the obsolete O/P 6 & 7 modules)<BR/>• To Be Used with Nevo+600 and Nevo+1200 Front Ends

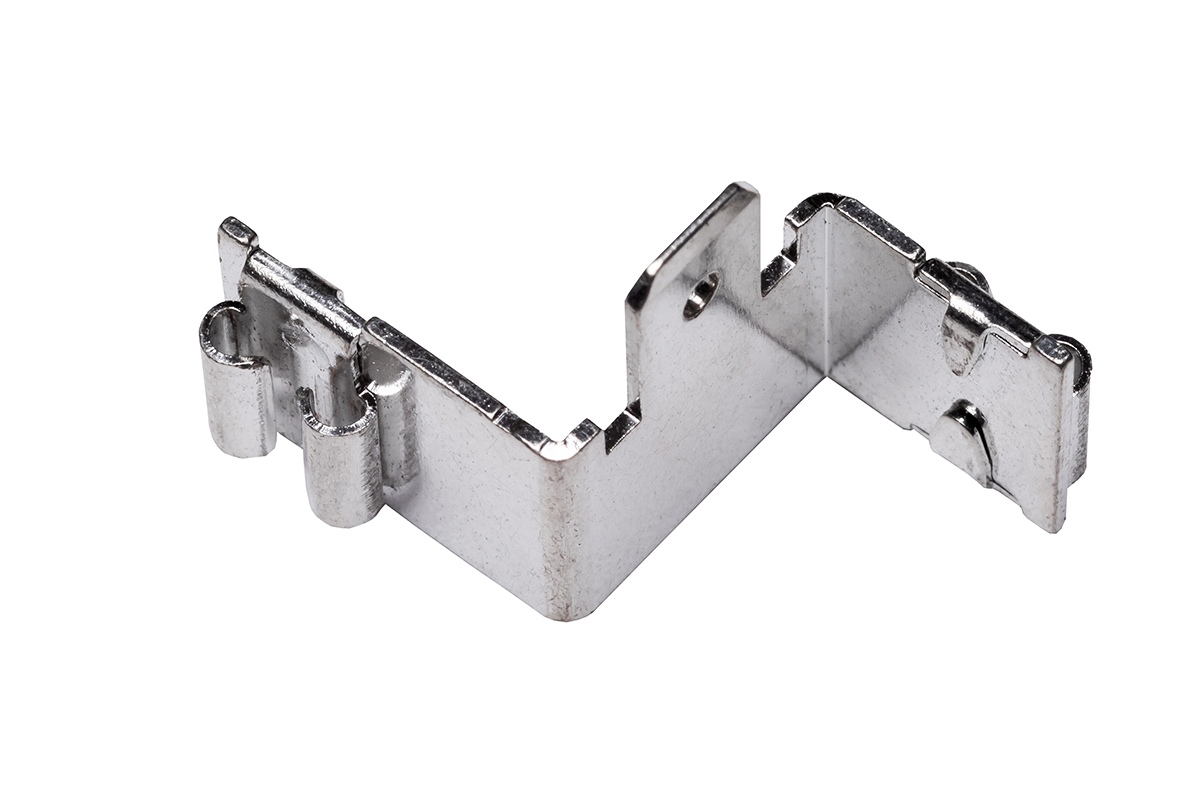

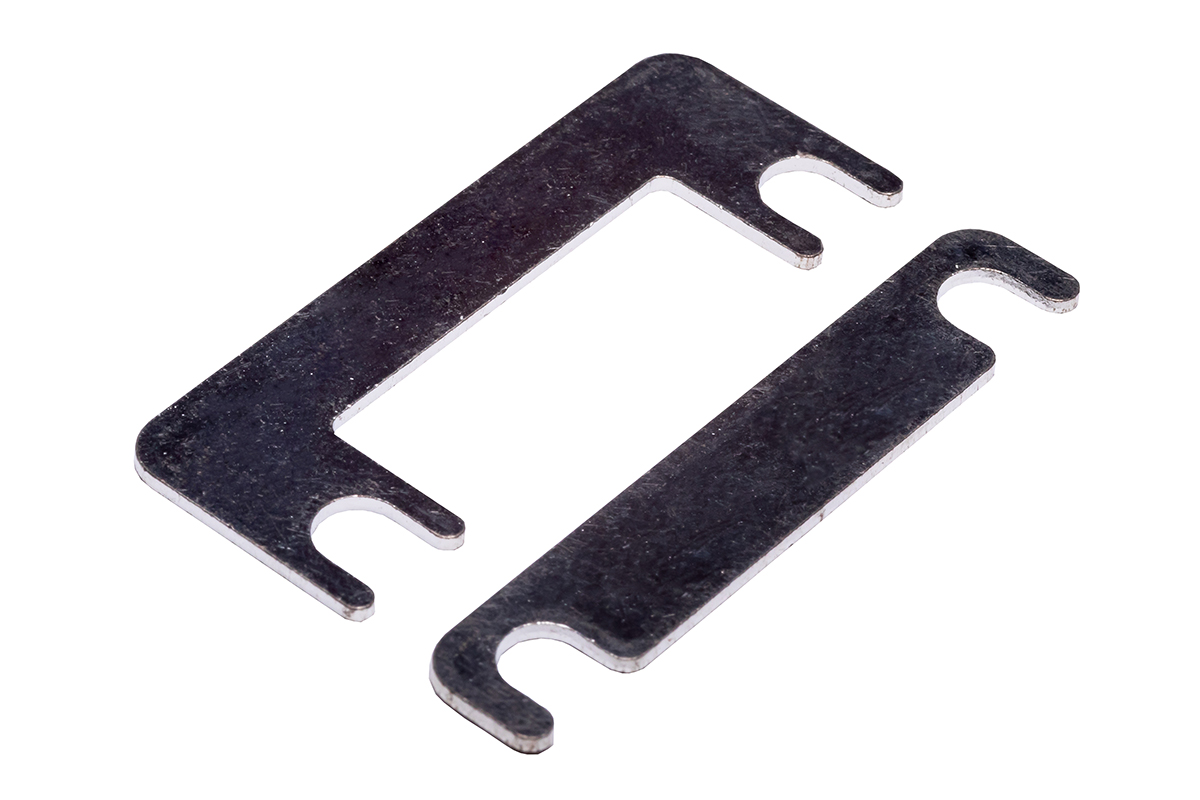

Vox Power Parallel and Series Links for Modular Power Supply – NEVO+600 A range of parallel and series links for enabling the connection of output modules for the NEVO+600 and Nevo+1200 AC-DC modular power supplies either in parallel or in series. These parallel and series links are supplied with M4 screws and are friction locking, the parallel links have a 21.50mm protrusion and the series link has an 11.50mm protrusion with a centre tap point. Vox Power Configured Product Accessory<BR/>Parallel Link for use with Nevo Single Output Modules<BR/>Allows Parallel Connection of 2 Single Output Modules

Vox Power 600 W Pre-Configured Modular AC-DC Power Supply - NEVO+600S-2-2-2-2 NEVO+600S 600 W pre‐configured enclosed modular power supply with a compact 5 x 3 inches x 1 U footprint. Delivering a full 600 W at line voltages of ≥ 120 V ac. Each of these 600 W modular power supplies consists of an input module together with four isolated output modules. They can be connected in series or in parallel to provide higher voltage or current outputs (see table for details). The NEVO+600S module utilises a noise reduction fan through the implementation of a control circuit. The fan speeds up and slows down with variations in temperature and loading which is critical in many applications.<BR/>Typical applications supplies include test and measurement, LED lighting, factory automation, Broadcast equipment, industrial lasers and optical inspection. <B>Features and benefits</B> • Vox Power Configured Product Solution<BR/>• Total Output Power: 600 Watts<BR/>• Number of Outputs: 4<BR/>• Voltage Range (Each Output): 4.5V To 15V<BR/>• AC Range: 85VAC To 264VAC<BR/>• Output Power of each module: 150W<BR/>• Use Accessory Par4Link (753-8072) To Parallel Connect Modules

Vox Power I²C Interface – NEVO+600 and Nevo+1200 I²C interface for enabling the control of NEVO modular power supply single output modules using a microcontroller. This I²C interface can be plugged into each individual single output module to provide a standard I²C bus as an alternative to analogue controls. The output voltage and current limit can then be controlled in +/- 31 steps that are programmed through the I²C interface. <B>Features and Benefits</B> Vox Power Configured Product Accessory<BR/>Allows Voltage or Current Control of Nevo Single Output Modules<BR/>127-step Control via Customer Processor<BR/>Refer to Vox Power User Manual
