The Wieland BASIC size 10 open-bottom bases, double locking lever is available in grey colour. Housing is made up of aluminium. It has IP54 protection class UV resistant Operating temperature range is from -40 °C to 120 °C VDE approved

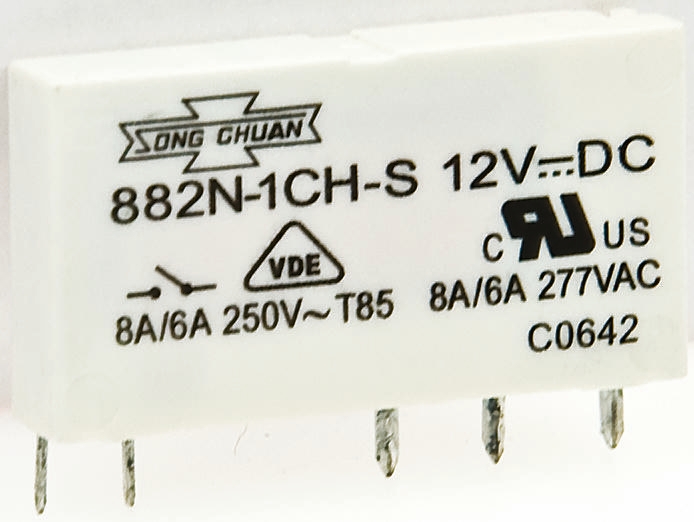

Relay Module Plug-In MOVE DIN rail mounting and only 6.2mm wideReplaceable relayJumper combStatus LEDMarking facilityAvailable as high load silver contacts '0' and Gold Flashed low current '1'

Wieland RST Mini Series Connector The Wieland RST mini-series is a female, 5-pole, one-way mini connector. It is a cable mount and comes with strain relief. It has an electric rating of 400V and 16A. It uses screw connection technology. They represent a complete stand one installation system. It is initial installations, modifications and extensions are realized quickly, while incorrect installations are consistently avoided and the plant's increased protection rating is reliably secured. The successful gesis installation philosophy is not troubled by harsh environments. It is available in black colour. Features and Benefits • Colour coded and mechanically coded• Compact design• It is easy to switch from traditional cable glands to the convenient pluggable alternative• Pollution degree 3• Save up to 80% of installation time • Twist lock technology• Unused slots must be protected against moisture and dirt penetration Applications • Construction sites• Functional buildings• Outdoor lighting• Solar systems Certifications • BV• CSA• DNV/GL• IP66 rated• IP68 rated• IP69 rated• LR• RINA• UL listed• VDE

The electrical installation for outdoor use - RST The successful gesis installation philosophy is not troubled by harsh environments either. Be these in plant technology, in outdoor lighting, on construction sites, in solar systems, or even in, say, functional buildings.: The RST MINI, CLASSIC and POWER series are able to meet the very toughest requirements thanks to their robustness and increased protection rating of IP66/68(3m: 2h)/ IP69. With all their components, they represent complete stand-alone installation systems.: With a broad portfolio of system components, any form of installation, from the distribution unit to any point of use, can be made pluggable throughout.: The plug-and-play principle means that initial installations, modifications and extensions are realized quickly, while incorrect installations are consistently avoided and the plant’s increased protection rating is reliably secured

Wieland RST Lighting Connector The RST Series by Wieland has four series available, offering a complete electrical installation system to meet different requirements. All connectors are fitter-friendly and offer flexible and easy installation, to minimise incorrect connections. The RST Micro is a miniature connector for LED lamps and signals, optimised for the interfaces between voltage or current sources and LED modules to offer an ideal solution for dimming or DMX applications. Features and Benefits • The RST Micro series offers integrated device protection, with an internal water stop with barrier seal contacts. This function prevents water from entering the wiring system and causing moisture damage to wires in incorrectly executed installations.• The RST Micro installation system is comprised of connectors, M14 device connectors, pre-assembled conductors and splitters.• The lighting connectors are available with either 2 or 3 poles. Applications and Uses: • Electrical installations • Lighting applications such as LED signals

The Wieland RST Classic device connector standard straight M25 number of poles 3 model male connection type screw connection rated voltage 250 V rated current 25 A color of coding contact carrier concrete grey. Rated current 25 ARated voltage 250 VPollution degree 3

The Wieland RST Mini connector straight number of poles 3 male connection type screw connection rated voltage 250 V 400 V rated current 16 A cable diameter 5 to 10.6 mm color of coding contact carrier leaves green. Rated current 16 ARated voltage 250 V or 400 VRated impulse voltage 4 kV

The Wieland RST Mini device connector standard straight M16 number of poles 2 model male connection type screw connection rated voltage 250 V 400 V rated current 16 A color of coding contact carrier black. Rated current 16 ARated voltage 250 V or 400 VPollution degree 3

PCB Headers (Wieland) A range of Male PCB Headers on a 5 mm pitch to allow pull-out terminal connections when used with Female cable mount Terminals stock no181-4254 or range with a nominal cable cross section of 2.5 mm².These Male PCB Headers are rated at 10 A / 250 V.Colour: grey

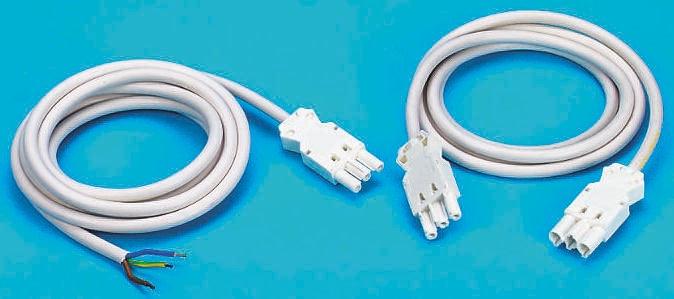

Wieland Electric GST18i Lighting Connector The GST18i series of plug-in building installation connectors are designed for quick, safe and easy connection and disconnection during electrical installation. Features and Benefits • These GST18i plug-in lighting connectors by Wieland have robust solid metal contacts and are IP20 touch rated with a leading ground contact• Mechanical coding enables a clear and safe separation of different applications within the same system, whilst colour coding identifies the connections that belong together allowing ease of assembly and eliminating mismating• The GST18i range is fully compatible with the existing GST18 connectors but benefit from a 20A capacity Applications and Uses These GST18i plug and socket connectors are a versatile connector system ideal for the installation of lighting systems, switches, sunblinds and power sockets.

WT 4 E Multi-Tier Blocks with Screw Connection Multi-tier block for mounting on TS35 DIN railNominal cross-section 4 mm²Connection capacity: 2 wires, equal size 0.14 - 2.5 mm²For the compatible WT 4 E PE earth (ground) block, please see RS 811-3882

Feed-Through Blocks 2.5mm² with Screw Connection for TS35 Mounting, Type WT 2.5 Phoenix Contact Selos WT Series feed-through DIN rail terminal block with screw connection for mounting on TS 35; nominal cross section 2,5 mm²; width 5 mm in a selection of colours.
