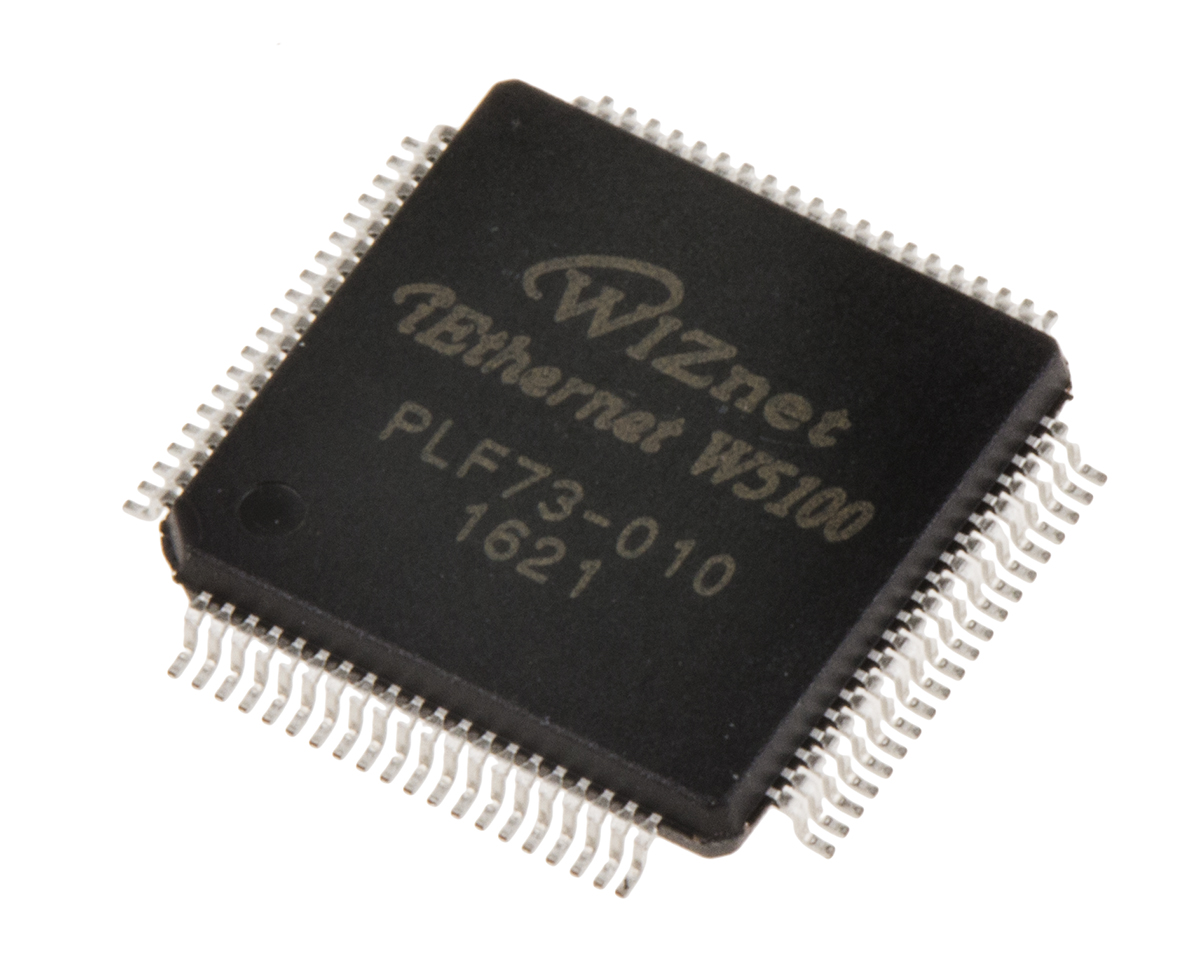

Embedded Ethernet Controllers WIZnet's range of Embedded Ethernet controller Chips, which inlcudes the following: RTL8201CP-VD-LF is a single chip/single port PHYceiver with an MII (Media Independent interface)/SNI(Serial Network Interface) and implements all 10/100M Ethernet Physical-layer functions. A PECL interface is supported to connect with an external 100Base-FX fiber optic tranceiver<BR/>W3100A-LF is a fully hardwired TCP/IP stack supporting TCP, UDP, IP, ARP, ICMP, MAC internet protocols. Features include amazing protocol processing speed depending upon MCU); 8051 (max. 1Mbps), AVR (max.8 Mbps), ARM7 (max. 21Mbps)<BR/>W3150A+ is a fully hardwired TCP/IP stack with support for ADSL connection (with PPPoE) and TCP, UDP, IP, ARP, ICMP, IGMP, PPPoE, MAC protocols. Features include High Throughput speeds; 8051(max. 1Mbps), AVR (max. 8Mbps), ARM7 (max. 21Mbps) and 10/100 Base-T Ethernet (Auto detection) support<BR/>W5100 is a fully hardwired TCP/IP stack with support for TCP, UDP, ICMP, IPv4 ARP, IGMP, PPPoE protocols. Features include 10BaseT/100BaseTX Ethernet MAC/PHY embedded support and ADSL connection (with PPPoE Protocol with PAP/CHAP Authentication mode)<BR/>W5300 is designed for Internet embedded applications. The full hardware logic integrates 10/100 Ethernet controller, MAC, and TCP/IP with communication protocols such as TCP, UDP, IPv4, ICMP, IGMP, ARP and PPPoE. The data communication memory is extended to 128Kbyte and supports 16-bit bus interface.

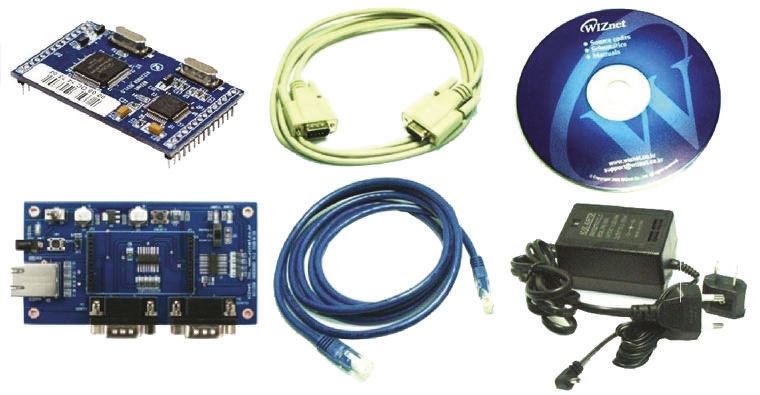

WIZ120SR 2-port Serial-to-Ethernet Gateway Module Direct Connection to Serial Devices that Adds Network Function in a Simple and Quick way, and Provide Firmware Customization<BR/>High stability & reliability by using W5100<BR/>Easy & Powerful configuration program<BR/>Support 2 Serial Ports<BR/>Support DHCP, PPPoE and DNS<BR/>Support PPPoE Connection for ADSL<BR/>Support static as well as dynamic IP setting<BR/>Support Password for the Security<BR/>10/100 Mbps Ethernet Interface, 230Kbps Serial Interface

WIZ105SR Serial-to-Ethernet Gateway Module High speed Serial-to-Ethernet gateway module with an RJ-45 jack<BR/>High stability and reliability Ethernet connection solution<BR/>10/100Mbps Ethernet interface supported with full hardwired TCP/IP stack chip W5100<BR/>Up to 230Kbps serial communication interface<BR/>Serial configuration commands support: Simple command frame format, Comprehensive & readable command set for network and serial settings, On-site configuration without PC<BR/>Powerful remote configuration tool<BR/>Stock no. 698-9132: Bridge Cable 12-pin to connect the RS-232 serial interface of WIZ105SR with the Test Board.<BR/>Stock no. 698-9136: Evaluation Kit contains a WIZ105SR Module, Test Board, Bridge Cable 12-pin, Serial cable, and LAN cable and a Power adaptor DC 5V

WIZ830MJ Network Module (W5300) Plug-in Network Module having W5300 with Transformer and RJ45<BR/>Usable without Hardware design for W5300<BR/>Fast evaluation availabe for W5300 and MCU in the target board<BR/>Supports 8 Independent connections simultaneously<BR/>Supports MCU BUS Interface<BR/>Supports 16/8 bit data bus width<BR/>Support Memory to Memory DMA

WIZ811MJ / WIZ812MJ Network Module (W5100) Plug-in Network Module having W5100<BR/>Useful for Designing Network Interface Part<BR/>Support Easy & Quick Hardware Design<BR/>Usable without H/W design for W5100, transformer and RJ-45<BR/>Fast evaluation available for W5100 and MCU in the target board<BR/>Supports MCU BUS ans SPI Interface<BR/>Supports auto MDI/MDIX (auto detection of crossover)<BR/>Supports network status indicator LEDs FDX, TX, RX, LINK, Collision

WIZnet Inc Wiz820io Internet Offload Network Module The WIZnet Inc WIZ820io is the internet offload network module that includes W5200, MAG-JACK with other glue logics. This can be used as a component and no effort is required to interface W5200 and MagJack. The WIZ820io is an ideal option for users who want to develop their Internet enabling systems rapidly. It requires 3.3V operating supply voltage. Features and Benefits Plug-in network module having W5200 and MagJack<BR/>Usable without hardware design for W5200, Transformer and RJ-45<BR/>Fast evaluation available for W5200 and MCU in the target board<BR/>Supports 8 independent sockets simultaneously<BR/>Support high-speed SPI interface<BR/>Supports power-down mode and Wake-On-Lan function<BR/>Operating temperature ranges between -40℃ and 85℃<BR/>Compact size Certifications ANSI/ESD S20.20:2014<BR/>BS EN 61340-5-1:2007

WIZ108SR RS422/RS485-to-Ethernet Module Compact Sized RS-422 / RS-485 to Ethernet<BR/>Quick and Simple Internet Connection to Serial Devices<BR/>Supporting Firmware Customization according to Customer&#146;s Requirement<BR/>Guarantee Stable and Reliable Data Communication by using W7100 One Chip Solution<BR/>Provide User-Friendly Configuration Tool Program<BR/>Support User Password for Security<BR/>Support Serial Command for Serial Configuration<BR/>10/100Mbps Ethernet & up to 230Kbps RS-422 / RS-485 Interface<BR/>Support IP Configuration - Static, DHCP<BR/>Support DNS (Domain Name System)<BR/>Compact design dimensions 48 x 30 x 18 mm

Module W3150+ (PPPoE) Auto-Crossover Skt WIZnet's NM7010B chip network module features:<BR/>Plug-in module<BR/>Usable without H/W design for W3150A+, PHY Chip, Transformer and RJ-45<BR/>Supports MCU BUS and SPI Interface<BR/>Supports MDIX (auto detection of crossover)

WIZ145SR 4 Port Serial-to-Ethernet Module with RJ-45 Supports four RS-232 serial ports<BR/>Connect with the Serial Device directly<BR/> - Adding network function simply and quickly<BR/> - Providing Firmware customization<BR/>High system stability and reliablilty by using W5300<BR/>Easy and powerful configuration tool program<BR/>Support DHCP and DNS function<BR/>Support static as well as dynamic IP setting<BR/>10/100Mbps Ethernet interface, up to 115200bps serial interface<BR/>Dimensions 48.26 x 61.4 x 24.7 mm

The WIZnet is the serial to Ethernet module using W5100 & 8051 MCU. WIZ110SR is the protocol converter that transmits the data sent by serial equipment as TCP/IP data type, and converts back the TCP/IP data received through the network into serial data to transmit back to the equipment. Serial to Ethernet Module based on W5100 & 8051<BR/>DB-9 & RJ-45 mounted module<BR/>Serial signals : TXD, RXD, RTS, CTS, GND, RS-232 transceiver built-in<BR/>Support the configuration method of AT command & Configuration tool program<BR/>10/100Mbps Ethernet & Max.230kbps serial speed<BR/>Support WIZ VSP (Virtual Serial Port) program

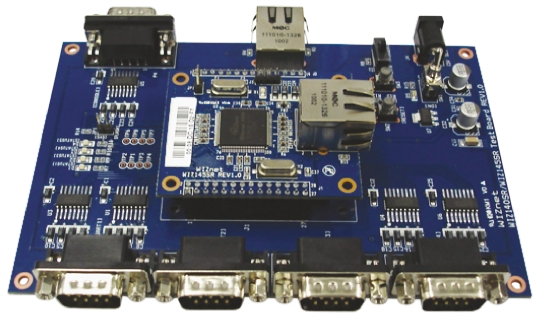

Evaluation Board for WIZ145SR 4 Port Serial-to-Ethernet with RJ-45 WIZ145SR Module + WIZ140SR/WIZ145SR Test Board with RJ-45 Connector<BR/>Supports four RS-232 serial ports<BR/>Connect with the Serial Device directly<BR/> - Adding network function simply and quickly<BR/> - Providing Firmware customization<BR/>High system stability and reliablilty by using W5300<BR/>Easy and powerful configuration tool program<BR/>Support DHCP and DNS function<BR/>Support static as well as dynamic IP setting<BR/>10/100Mbps Ethernet interface, up to 115200bps serial interface<BR/>Dimensions 48.26 x 61.4 x 24.7 mm
