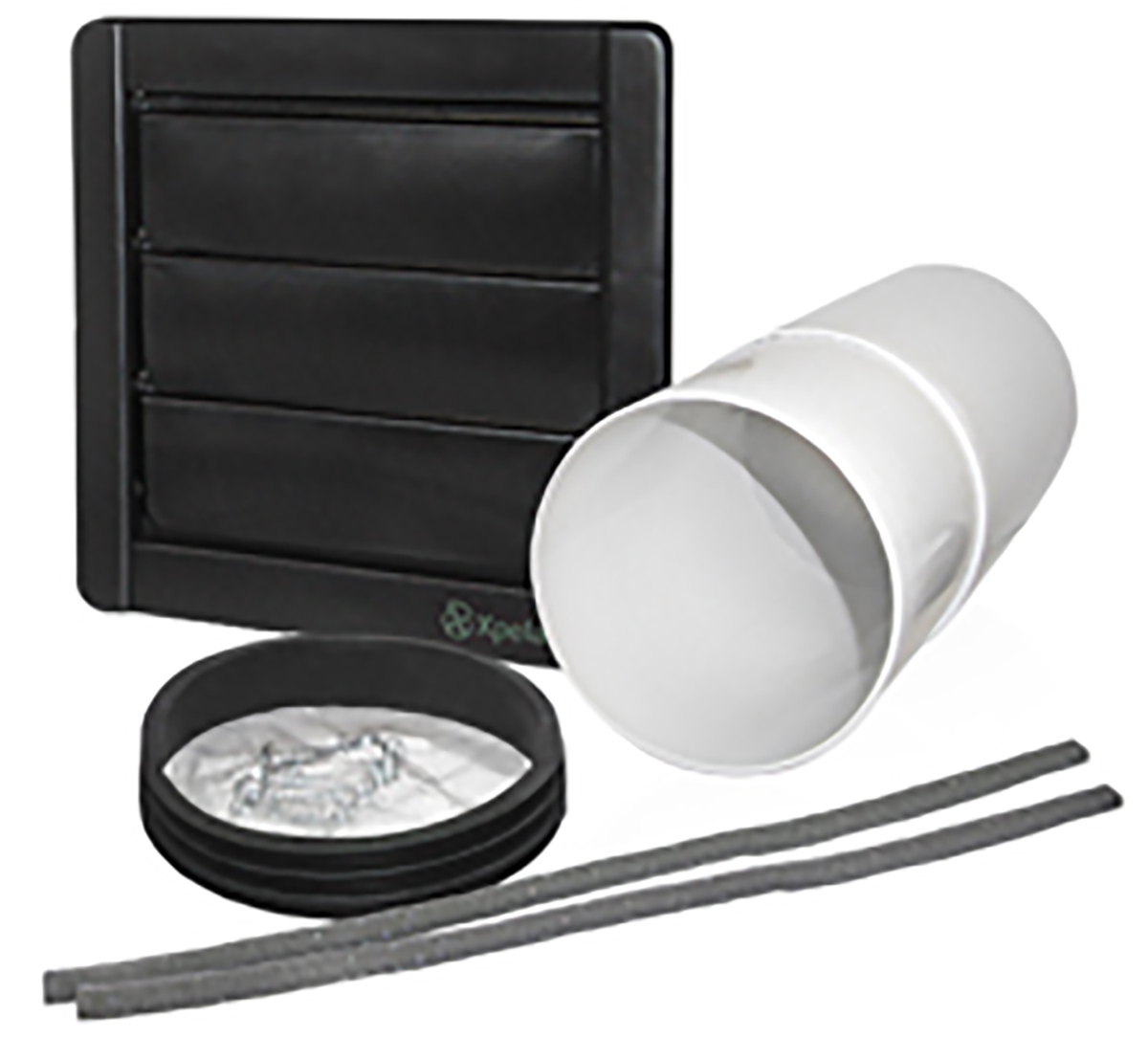

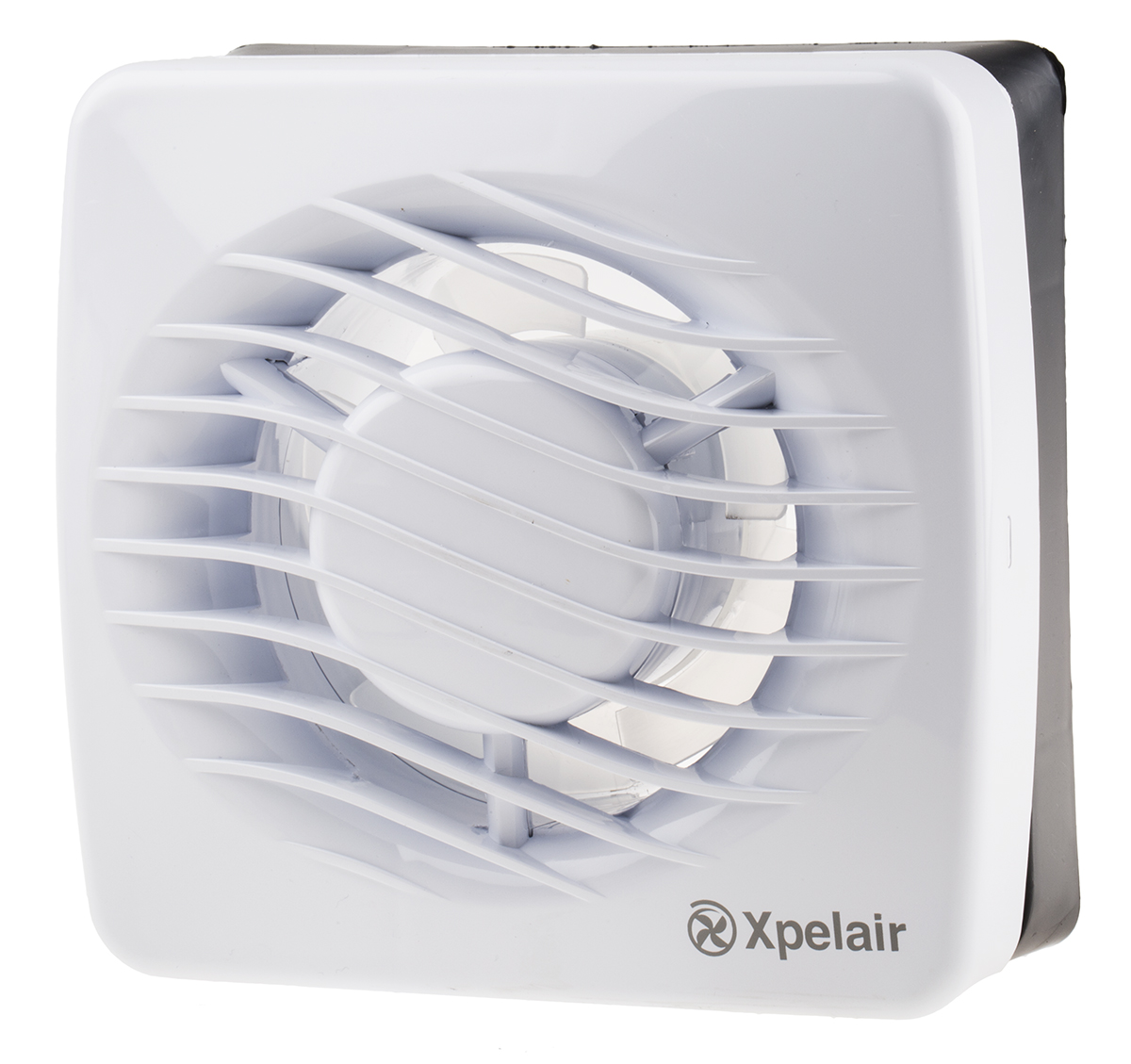

Xpelair Extractor Fan The Xpelair extractor fan has an airflow of 76m³/h. It comes with a universal mounting kit comprising of a wall tube, 2 gaskets, outer grille, and a skirt moulding for window mounting in single glazing up to 6mm. The fane also includes an air operated back draught shutter and ducting. This fan is supplied as a fan unit and requires separate kits for wall, ceiling or window mounting applications. It is available with a face height of 155mm, face width of 165mm and depth of 43mm. Features and Benefits Wall mountedAirflow of 76m³/hLubricated for life motors with thermal cut-out protectionClip-off front cover for ease of cleaningNoise level of 35dB (A)Duct size diameter is 100mm Applications KitchensUtilities Certifications IPX5 ratedBEAB ratedANSI/ESD S20.20:2014BS EN 61340-5-1:2007

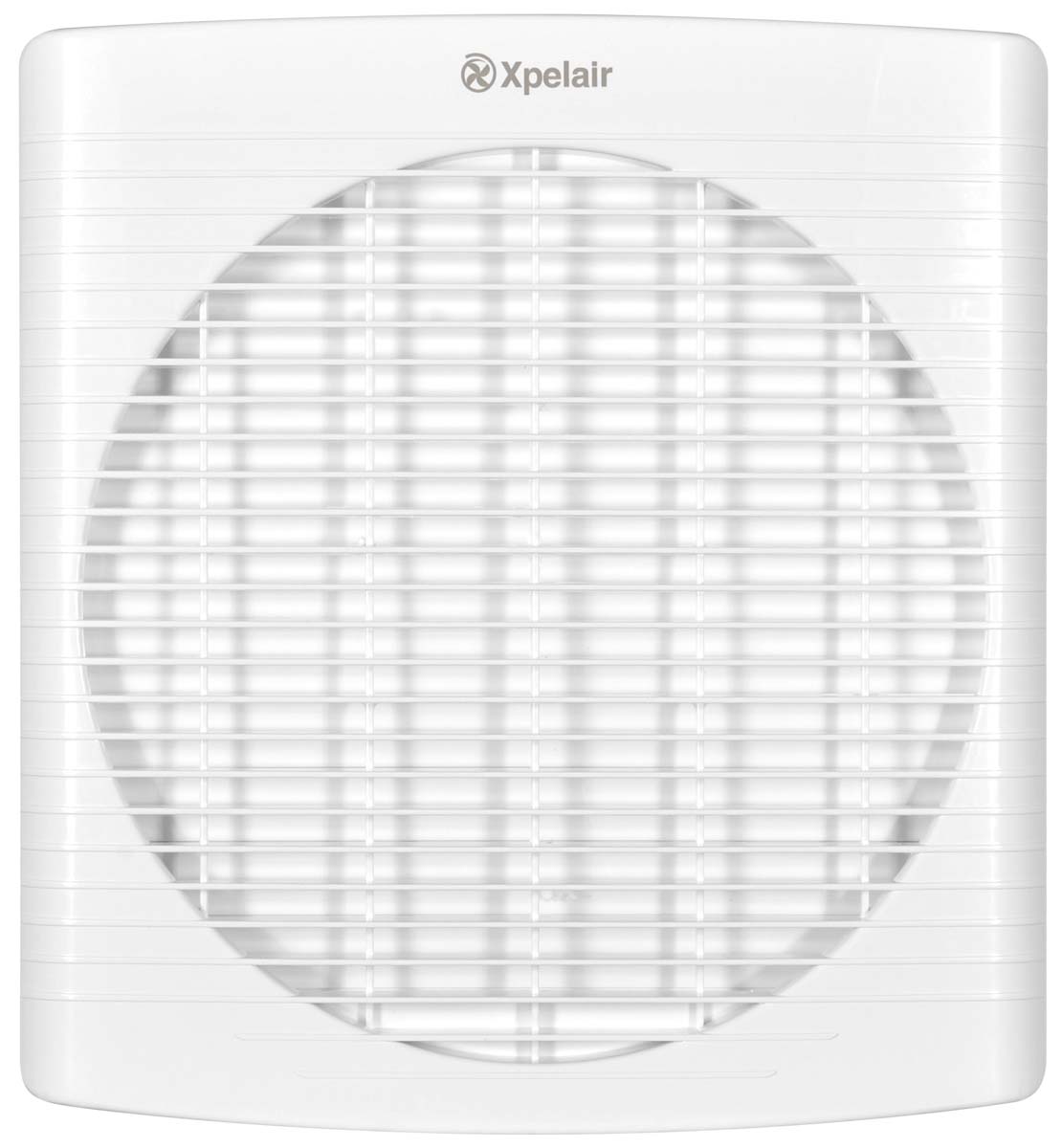

Xpelair Extractor Fan The Xpelair extractor fan has an airflow of 1614 m³/h and has a supply voltage rating of 230VAC. It is a high tech fan enabled with a safety finger-guard integrated into the housing and the window grille. Also, the fan is supplied with longer ladder strips for ease of installation. It has a tamper-proof, positive plug and socket assembly that provides isolation for service access. This fan features an enclosed external rotor motor providing constant volume outputs, even in gusty external conditions.It is available with a face height of 408mm, face width of 380mm and depth of 161mm. Features and Benefits window-mountedNoise level of 55dBMaintenance-free motor with thermal protectionMotor isolated when the cover is removedSilent shutter operation via thermal wax actuatorSnap-fit cover for easy cleaningSuitable for use with Xpelair controllersOn-site warranty Applications KitchensUtilitiesSmall offices Certifications ANSI/ESD S20.20:2014BS EN 61340-5-1:2007

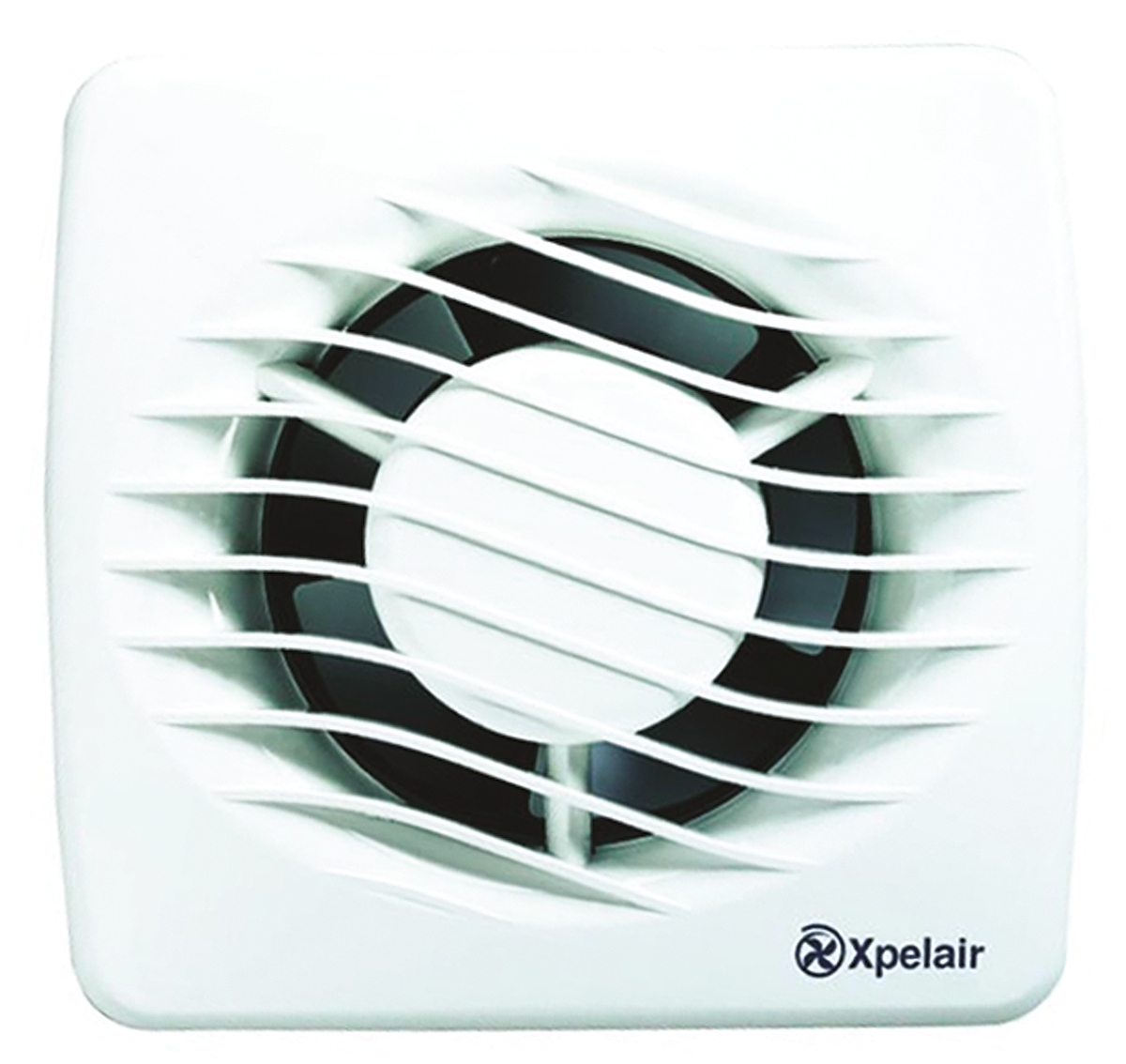

Xpelair Extractor Fan The Xpelair extractor fan has an airflow of 76m³/h and has a supply voltage rating ranging from 220VAC to 230VAC. It comes with a universal mounting kit comprising of a wall tube, 2 gaskets, outer grille, and a skirt moulding for window mounting in single glazing up to 6mm. The fane also includes an air operated back draught shutter and ducting. This fan is supplied as a fan unit and requires separate kits for wall, ceiling or window mounting applications. It is available with a face height of 155mm, face width of 165mm and depth of 43mm. Features and Benefits Wall mountedAirflow of 76m³/hLubricated for life motors with thermal cut-out protectionClip-off front cover for ease of cleaningNoise level of 35dB (A)Duct size diameter is 100mm Applications KitchensUtilities Certifications IPX5 ratedBEAB ratedANSI/ESD S20.20:2014BS EN 61340-5-1:2007
