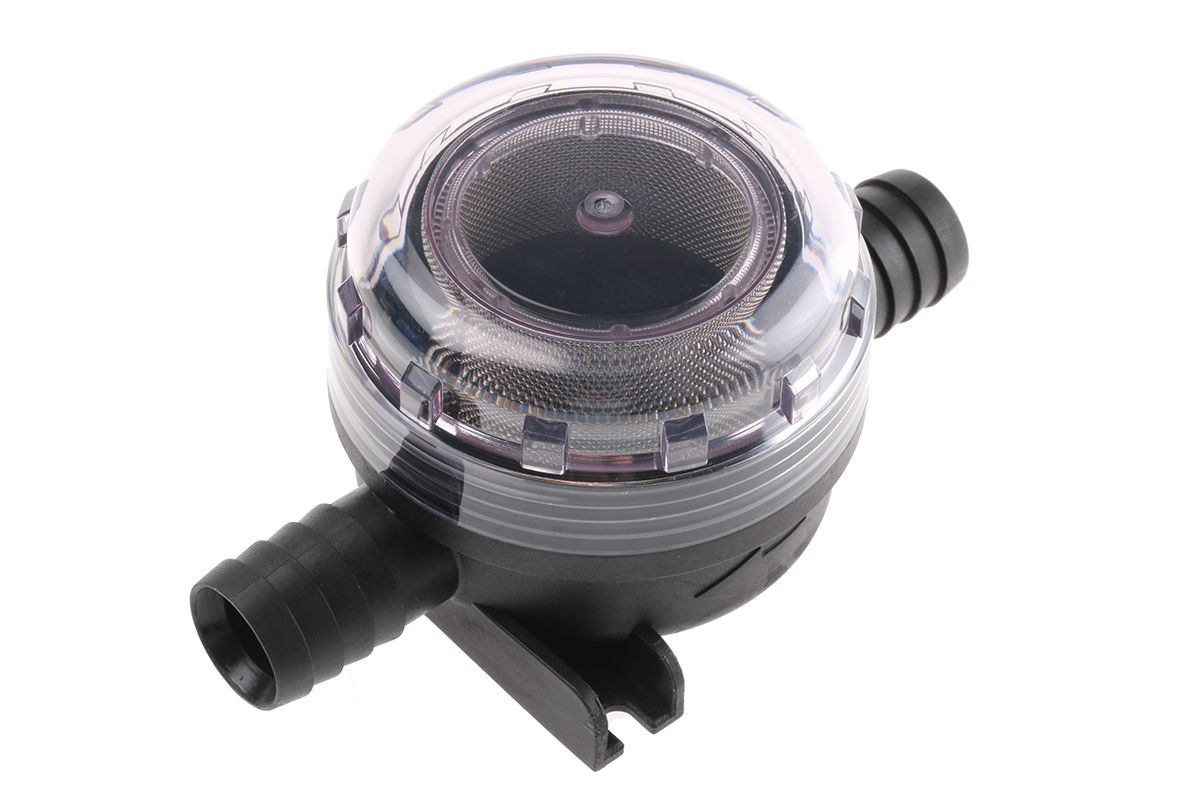

Flojet Inlet Strainers Inlet strainers protect all Flojet Diaphragm pumps from ingress of solid particles Prevents unnecessary pump breakdowns<BR/>Transparent housing allows instant inspection<BR/>Screw-off top allows instant access and removal of debris<BR/>40 mesh stainless steel filter screen

Flojet RLF diaphragm pumps Ultra Compact diaphragm pump uses unique Duplex design to deliver flow and pressure comparable to much larger pumps. Suitable for water and light water based chemicals. Pumps can be situated above water level Self Priming up to 0.75m<BR/>Maximum liquid temperature 43°C<BR/>Can run dry for extended period<BR/>Built-in thermal overload protection<BR/>Low amp draw for battery powered applications<BR/>Pressure switch control for automatic on/off if required<BR/>Built in backflow preventer

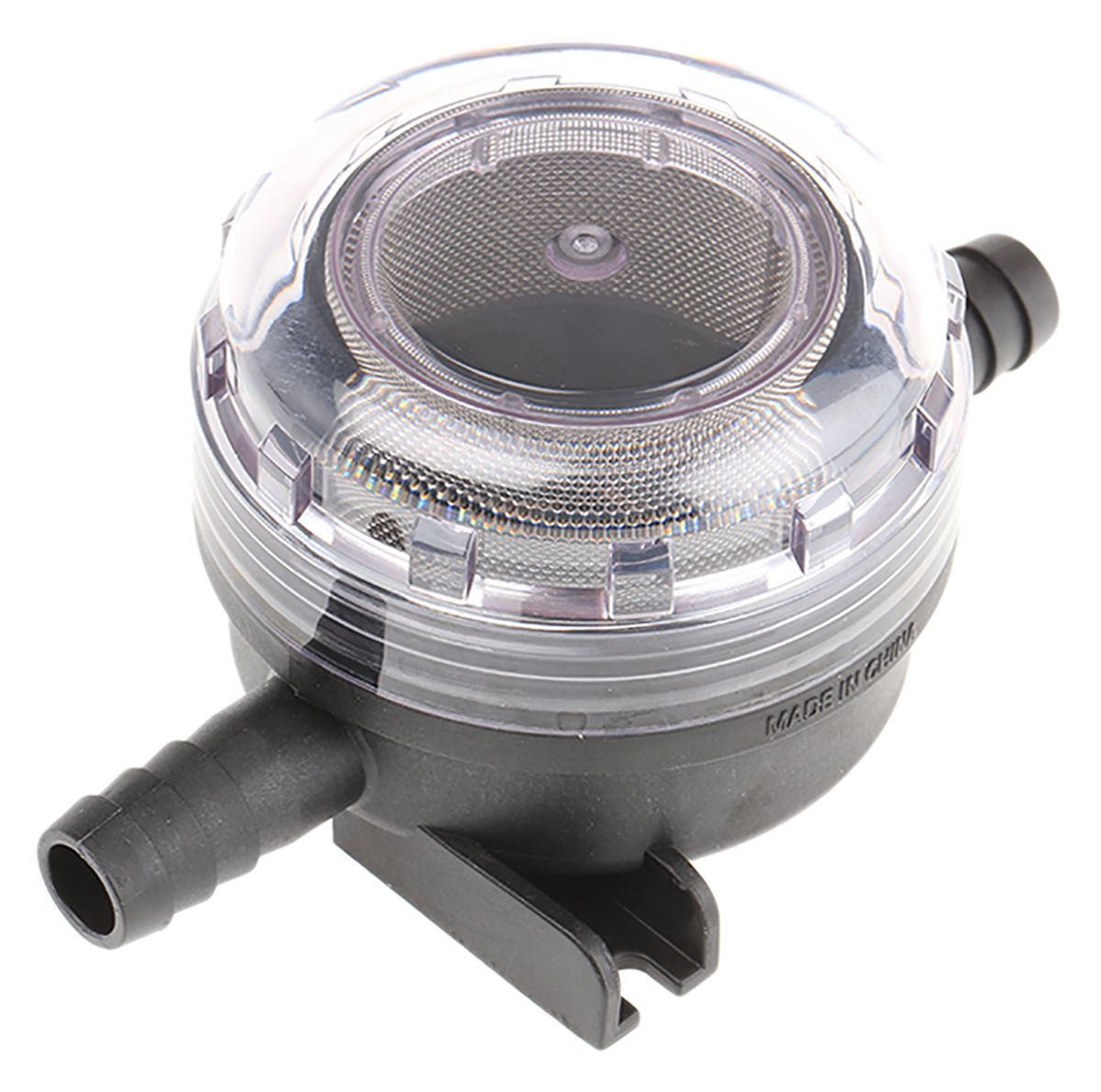

Flojet Inlet Strainers Inlet strainers protect all Flojet Diaphragm pumps from ingress of solid particles Prevents unnecessary pump breakdowns<BR/>Transparent housing allows instant inspection<BR/>Screw-off top allows instant access and removal of debris<BR/>40 mesh stainless steel filter screen

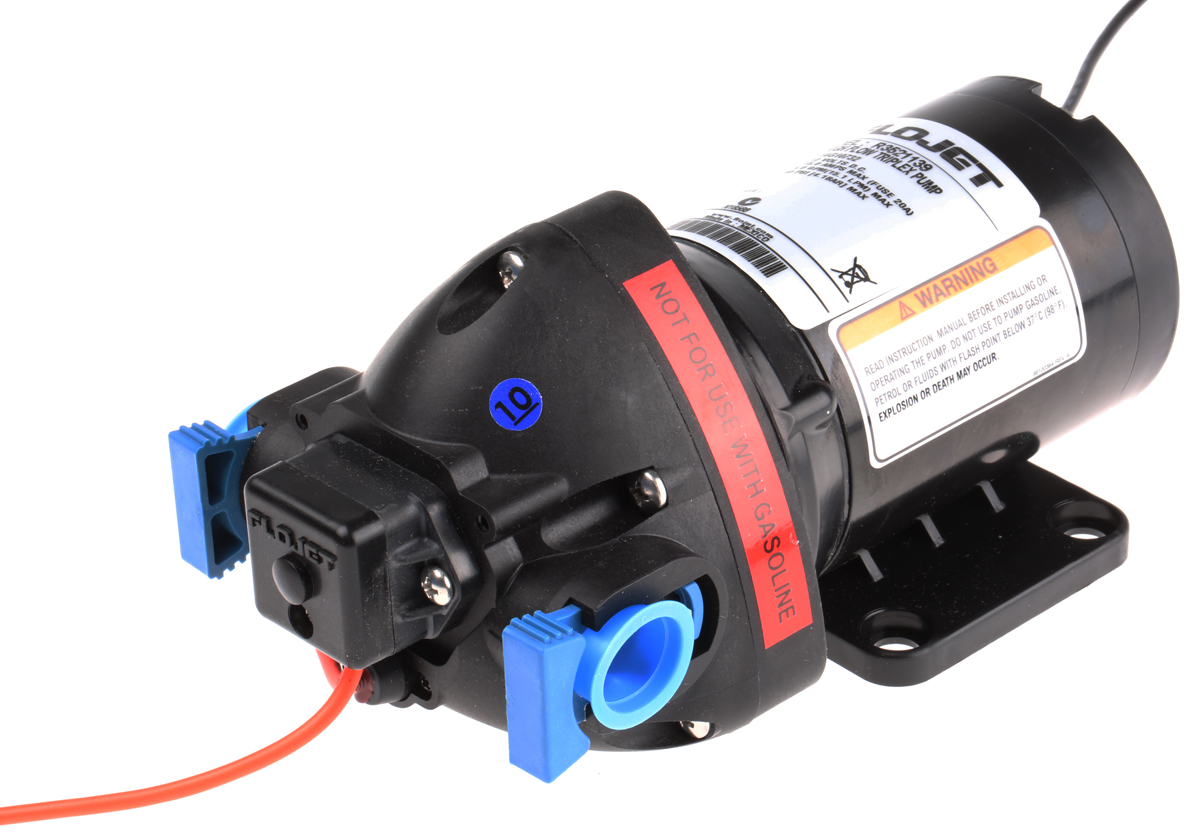

Xylem Flojet Positive Displacement Pump The Xylem Flojet new triplex high flow design positive displacement pump is suitable for water and light water-based chemicals. Its maximum flow rate is 15.1L/min. Features and Benefits The supply voltage rating is 12V<BR/>Input power is 108W<BR/>Maximum working pressure is 4.1bar<BR/>Maximum Fluid temperature is 60°C<BR/>Self-priming capability up to 1.5m<BR/>Can be located above the supply tank<BR/>3-chamber diaphragm pump <BR/>Corrosion-resistant liquid contact parts <BR/>Intermittent duty <BR/>Can running dry for extended periods of time without damage Certifications CE certified<BR/>NSF approved

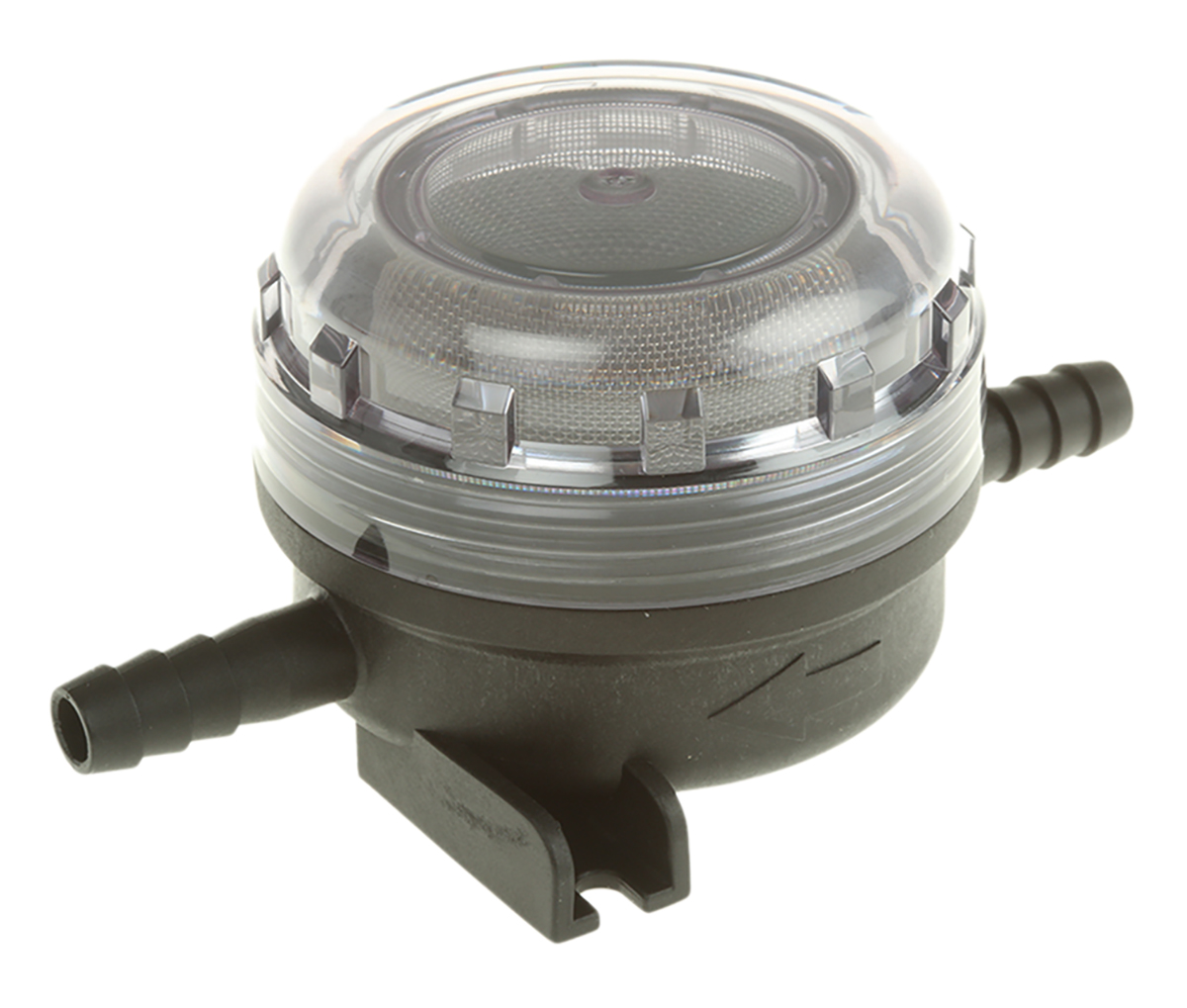

Flojet Inlet Strainers Inlet strainers protect all Flojet Diaphragm pumps from ingress of solid particles Prevents unnecessary pump breakdowns<BR/>Transparent housing allows instant inspection<BR/>Screw-off top allows instant access and removal of debris<BR/>40 mesh stainless steel filter screen

Positive Displacement Pumps New Triplex high flow design delivers up to 15LPM. Suitable water and light-water based chemicals. Pumps can be situated above liquid level. Self-priming up to 0.75 m<BR/>Maximum liquid temperature 60 °C<BR/>Can run dry for extended periods

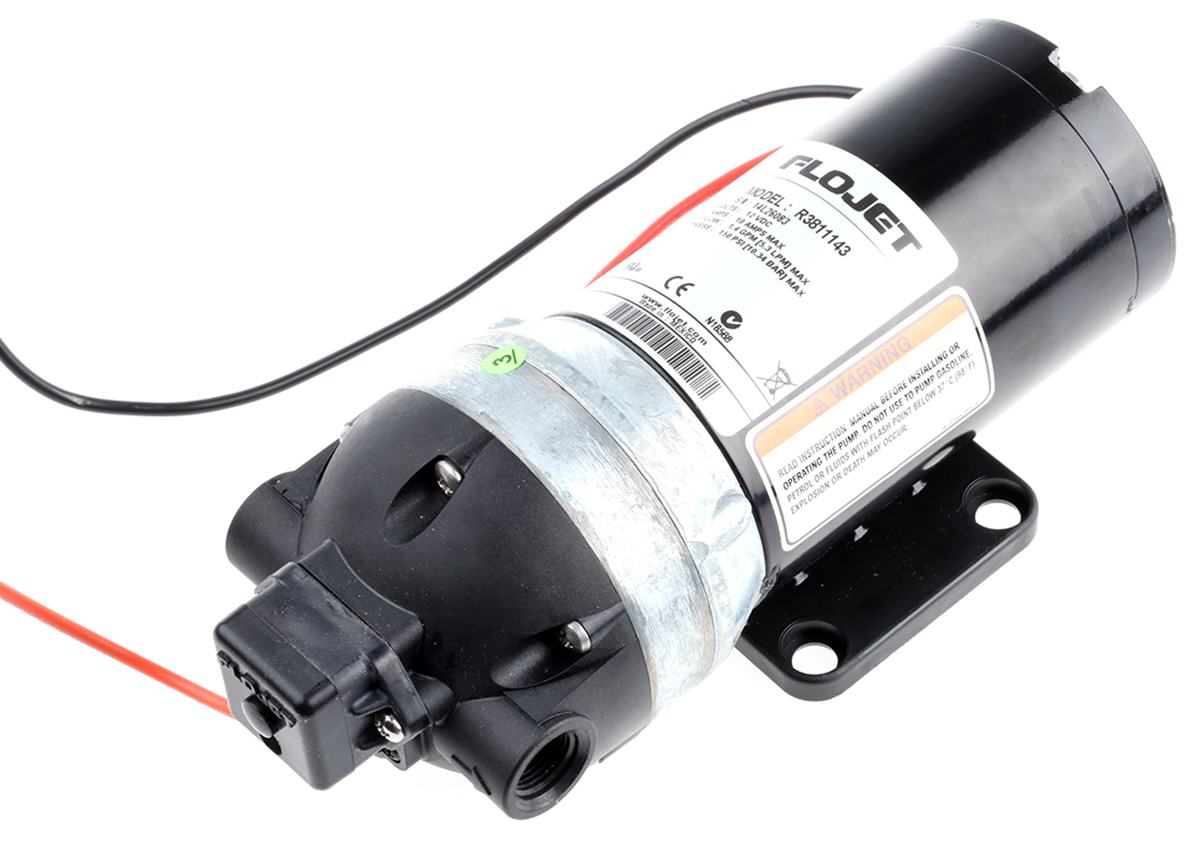

Xylem Flojet Positive Displacement Pump The Xylem Flojet heavy-duty diaphragm positive displacement pump is suitable for many applications including chemical spraying, misting and filtration systems. Its maximum flow rate is 5.5L/min.<BR/><BR/>Caution:<BR/>Do not use for volatile low flash point solvents or fuels, also unsuitable for flammable liquids or to be used in an explosive atmosphere. Features and Benefits The supply voltage rating is 12V<BR/>Input power is 108W<BR/>Maximum working pressure is 10.5bar<BR/>Maximum Fluid temperature is 60°C<BR/>Self-priming capability up to 2m<BR/>Can be located above the supply tank<BR/>3-chamber diaphragm pump <BR/>Corrosion-resistant liquid contact parts <BR/>Intermittent duty <BR/>Can running dry for extended periods of time without damage<BR/>Sealed pressure switch and motor<BR/>Built-in backflow preventer Certifications CE certified<BR/>NSF approved

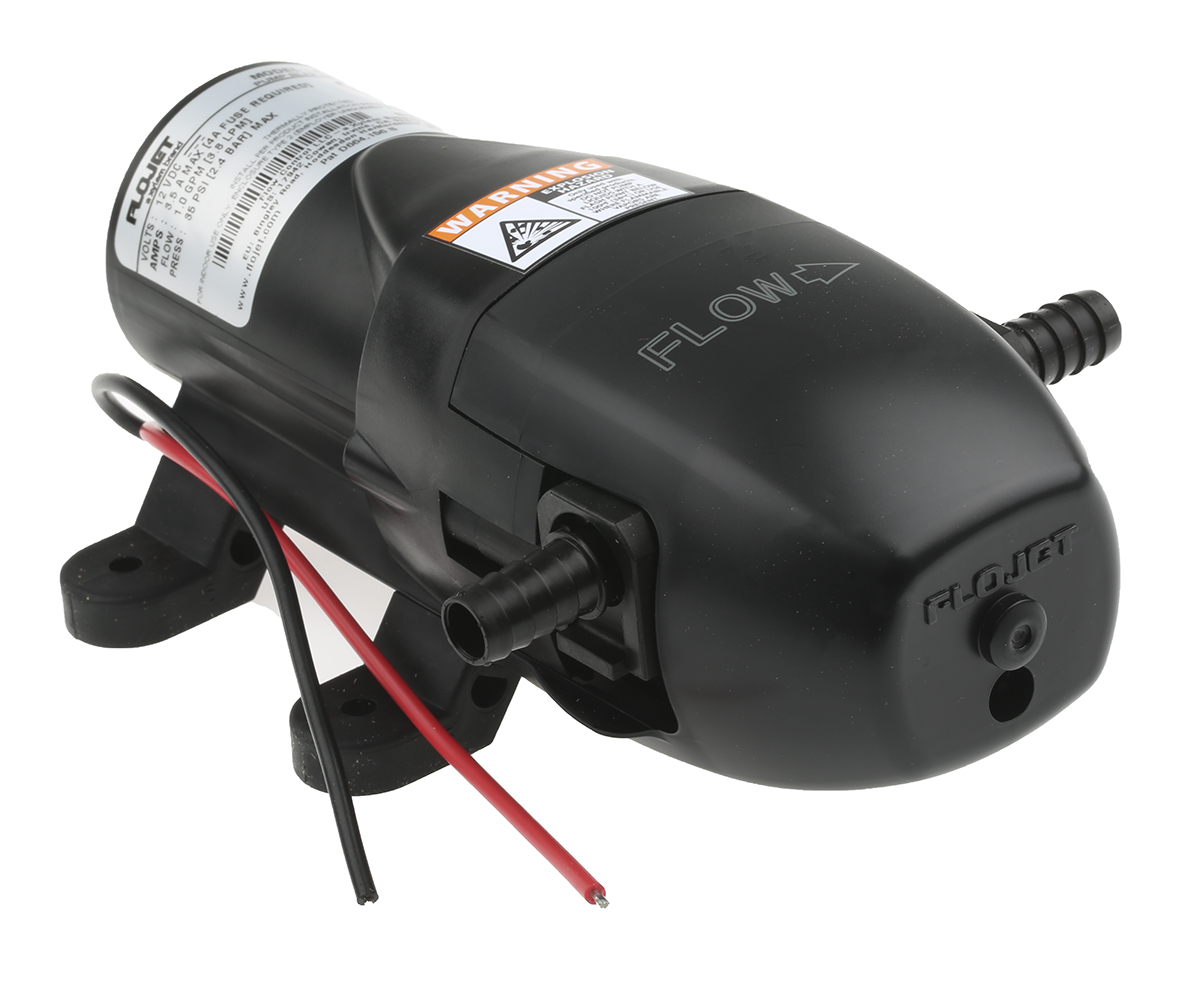

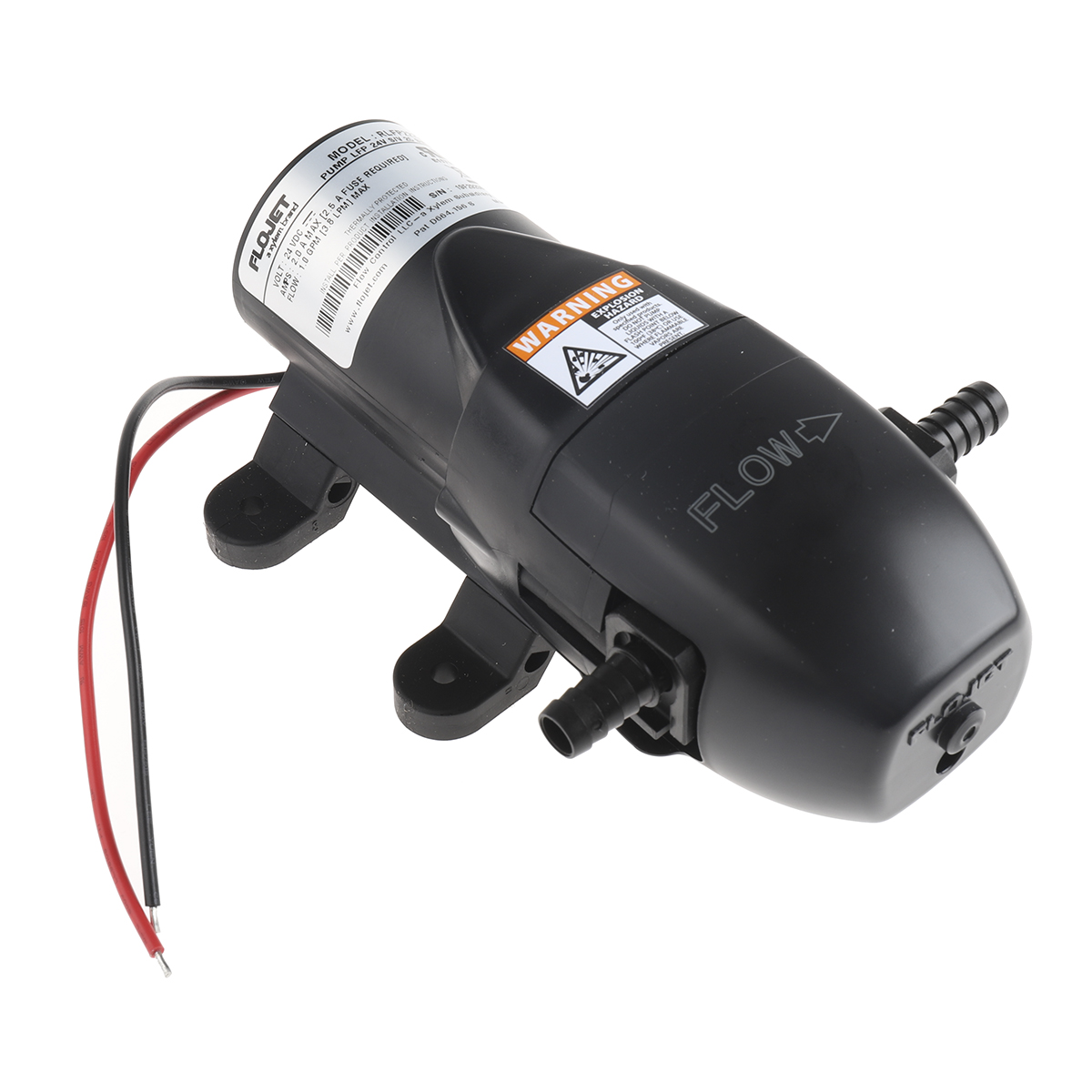

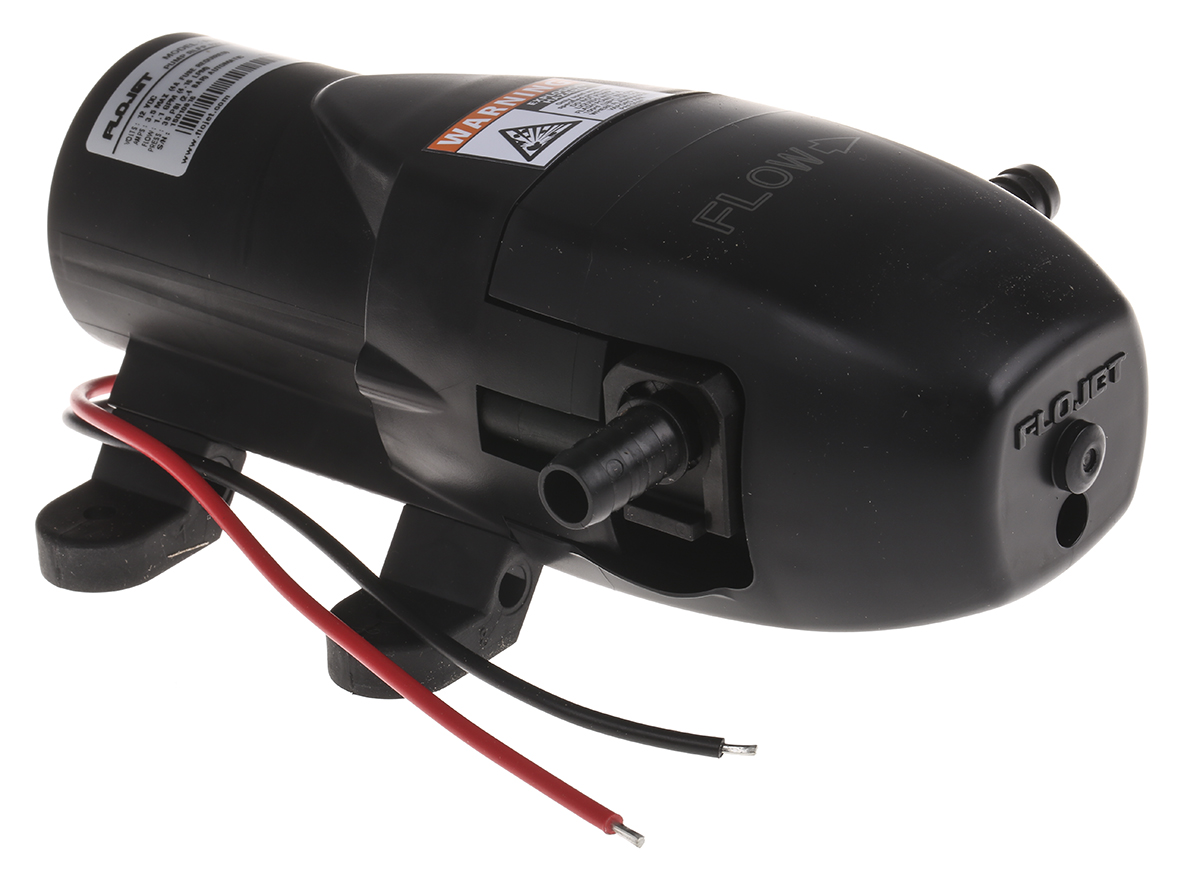

Xylem Flojet Positive Displacement Pump The Xylem Flojet ultra-compact diaphragm positive displacement pump uses a unique duplex design to deliver flow and pressure comparable to much larger pumps. Its maximum flow rate is 3.8L/min. The built-in pressure switch automatically starts and stops the pump when the discharge valve is opened and closed. This pump is suitable for water and light water-based chemicals. <BR/><BR/>Caution:<BR/>Do not use for volatile low flash point solvents or fuels, also unsuitable for flammable liquids or to be used in an explosive atmosphere. Features and Benefits The supply voltage rating is 12VDC<BR/>Input power is 30W<BR/>Maximum working pressure is 2.5bar<BR/>Maximum Fluid temperature is 43°C<BR/>Self-priming capability up to 0.7m <BR/>Can be located above the liquid level<BR/>Duplex diaphragm design allows extended dry running without damage<BR/>Built-in thermal overload protection <BR/>Low amp draw for battery-powered applications<BR/>Can be situated above the liquid level Certifications CE certified<BR/>NSF approved<BR/>IPX4 rated

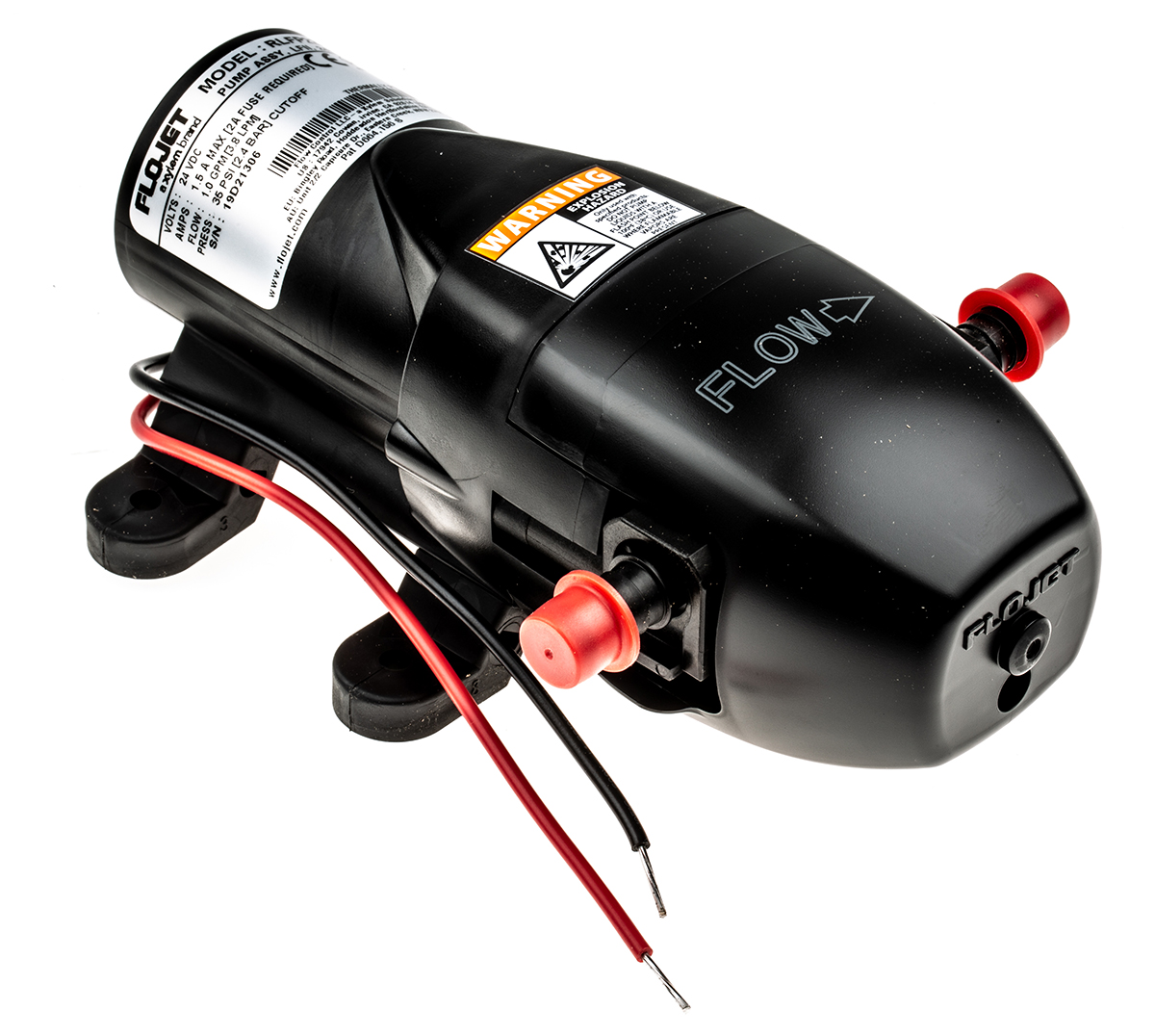

Xylem Flojet Positive Displacement Pump The Xylem Flojet ultra-compact diaphragm positive displacement pump uses a unique duplex design to deliver flow and pressure comparable to much larger pumps. Its maximum flow rate is 3.8L/min. The built-in pressure switch automatically starts and stops the pump when the discharge valve is opened and closed. This pump is suitable for water and light water-based chemicals. <BR/><BR/>Caution:<BR/>Do not use for volatile low flash point solvents or fuels, also unsuitable for flammable liquids or to be used in an explosive atmosphere. Features and Benefits The supply voltage rating is 24VDC<BR/>Input power is 30W<BR/>Maximum working pressure is 2.4bar<BR/>Maximum Fluid temperature is 43°C<BR/>Self-priming capability up to 0.7m <BR/>The pump may be located above the liquid level<BR/>Duplex diaphragm design allows extended dry running without damage<BR/>Built-in thermal overload protection <BR/>Low amp draw for battery-powered applications<BR/>Pumps can be situated above the liquid level Certifications CE certified<BR/>NSF approved<BR/>IPX4 rated

Flojet Compact Air Operated Double Diaphragm Pumps Self-priming, compact diaphragm pumps suitable for water and light water-based chemicals. Pumps can be situated above liquid level. Run dry capability<BR/>Capable of Air or CO² drive pressures up to 6.8 bar<BR/>Shuttle valve eliminates stalling<BR/>Corrosion resistant materials capable of handling a wide range of chemicals<BR/>Self-primes up to 4.5m<BR/>Easy installation<BR/>Santoprene and Viton diaphragms available

Xylem Flojet Positive Displacement Pump The Xylem Flojet compact air-operated double diaphragm positive displacement pump is suitable for water and light water-based chemicals. Its maximum flow rate is 18.9L/min. It is capable of air or CO2 drive pressures up to 100PSI (6.9bar).<BR/> It has Viton extreme check valve seal.<BR/><BR/>Warning:<BR/>Flojet G70K202A (RS stock no. 763-2480) is ATEX approved. Unless specified otherwise, do not use any other Flojet pump with volatile low flash point solvents or fuels, flammable liquids or in an explosive atmosphere. Features and Benefits Maximum fluid temperature is 49°C<BR/>Patented shuttle valve which eliminates stalling<BR/>Run dry capability<BR/>Self-primes up to 4.5m<BR/>Capable of passing solids up to 3.2mm diameter <BR/>Corrosion-resistant materials capable of handling a wide range of chemicals <BR/>Other elastomers available <BR/>Large exhaust silencer <BR/>Ease of Installation with all quick disconnect ports <BR/>Other port sizes are available Certifications CE certified<BR/>NSF approved

Xylem Flojet Water Pump The Xylem Flojet magnetic coupling water pump is a highly efficient pump used for continuous duty. It is ideal for water or chemical transfer and re-circulation applications. It has a maximum flow rate of 14L per minute. It is known for trouble-free pumping of acids and alkalis, mainly found in the photographic and printing industries, hygiene or sterilisation processes.<BR/><BR/>Note:<BR/>Not self-priming requires a flooded suction of approximately 300mm Features and Benefits The supply voltage is 230V<BR/>Maximum working pressure is 1.4bar<BR/>Maximum fluid temperature is 80°C <BR/>Input power is 51W<BR/>Magnetically coupling which offers leak-free pumping<BR/>No Mechanical seal<BR/>Reduced heat transfer from the motor to the fluid<BR/>Hose port connection<BR/>Zero maintenance<BR/>Pump chamber and impeller is made of polypropylene with alumina-ceramic shaft/thrust washers<BR/>Fluoro-elastomer rubber static O-ring seal, and &#146;graph ion&#146; impeller bearings<BR/>The mounting plate offers several fixing options Applications Pure or precious liquids, chilled water<BR/>X-ray machine <BR/>Industrial processing equipment Certifications IPX5 rated<BR/>ANSI/ESD-S20.20:2007
