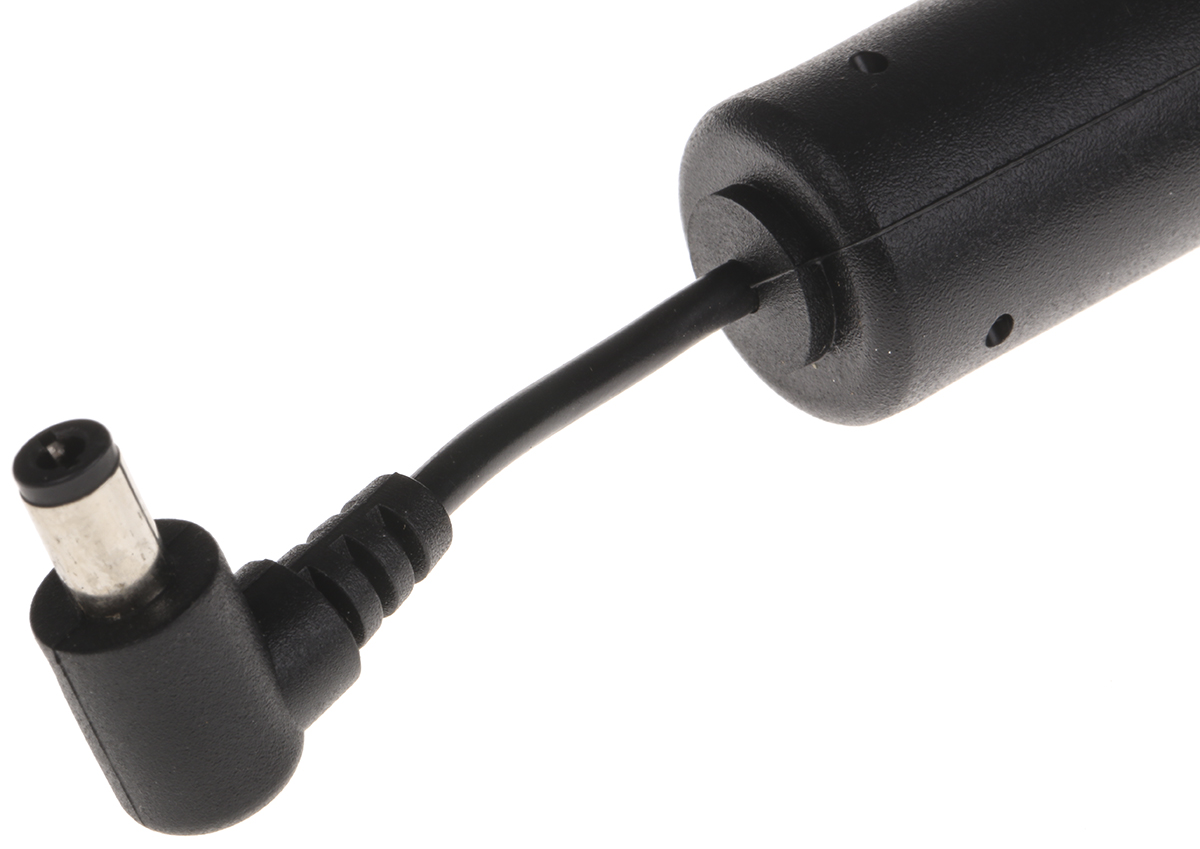

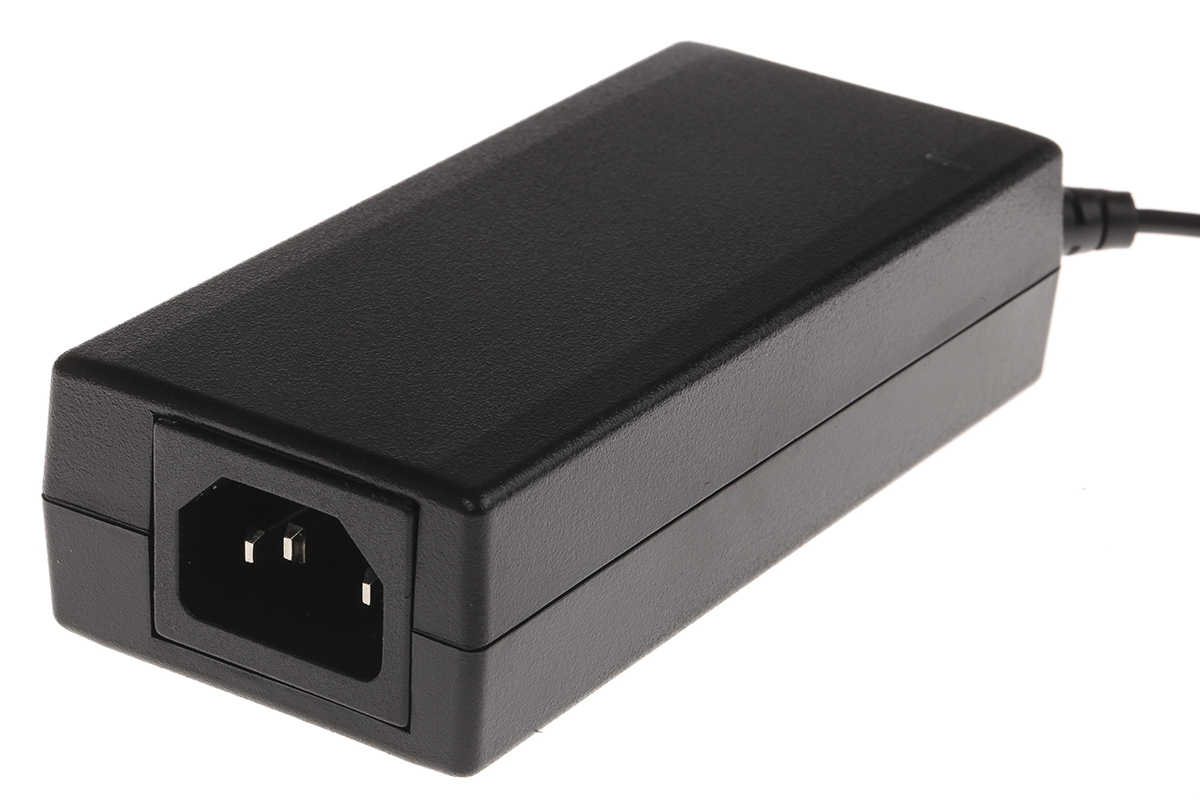

EOS Desktop Power Supply The EOS ZVC series desktop power supply is the latest invention with a high-quality adapter and a voltage rating of 36VDC. It provides 72W of continuous output power in a high-quality, compact enclosure suitable for many general power applications. It has an input frequency range from 47Hz to 63Hz. While the input voltage rating ranging from 90VAC to 132VAC, its maximum input current is 1.8A. The power supply has IEC320 C8 input connector and 1.2m output lead with a right-angled jack plug.
Note:
Non-Compliant for industrial use only, not in the scope of the regulation (EC) No 125 / 2009. MTBF to MIL-HDBK-217F. The current derate to 75% at 50°C Features and Benefits High efficiency
Fully regulated and protected output
Ultra miniature and lightweight design
No load standby power less than 0.5W Applications Netbook power supply
Notebook power supply Certifications VDE
UL approved
NORDICS
MITI
EN5022-B
CISPR22-B
FCC
Part 15 class B
EN50082-1
IEC60950
CSA C22.2 No.60950
EN60950,
UL1950 class 2 SELV
