EOS Power Supply The EOS ZVC30NP series power supply has a regulated output voltage of 12VDC. It supports numerous applications due to a wide range of input (100-240V AC) that complies with the universal standard and changeable input plug for use in Australia/China, European plug, UK, US/Japan. This power supply is fully compliant with CEC and Energy Star IV requirements and provides full output power without the need for fan cooling. The NP series has an interchangeable connector pack allows you to use the NP series globally.
Note:

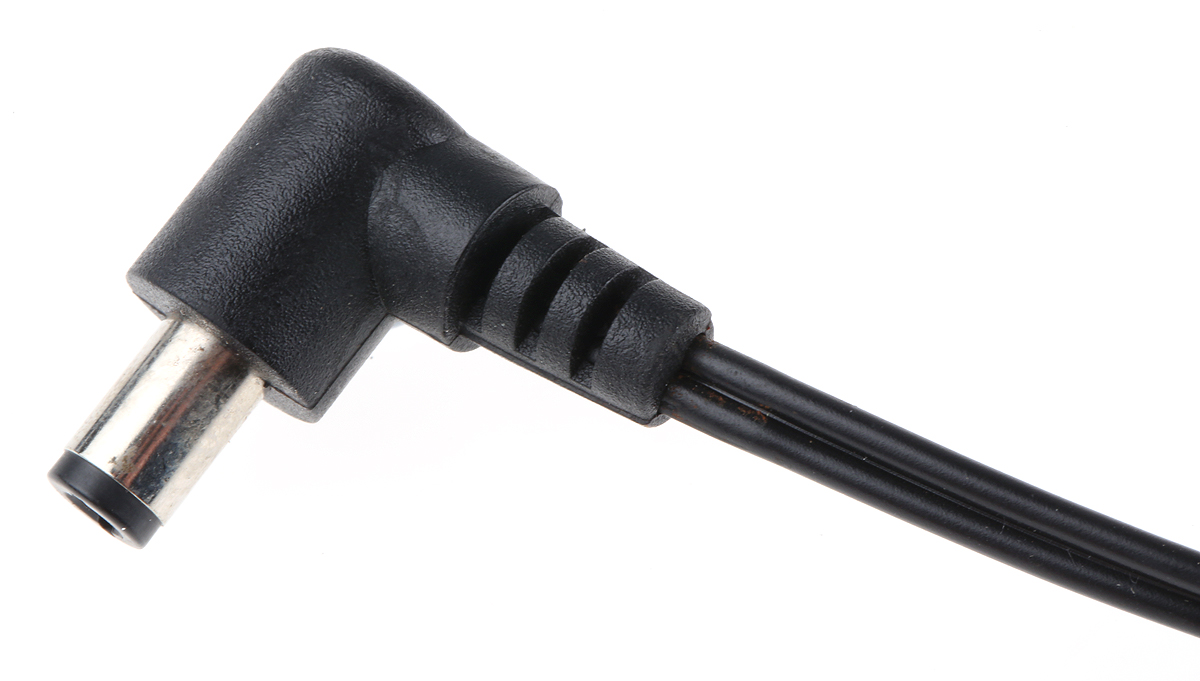

Non-Compliant for industrial use only, not in the scope of Regulation (EC) No 125/2009. Features and Benefits Output lead is 1.2m with right angled jack plug (I/D 2.54 x O/D 5.54 x L 9.5mm, centre pin positive)
Inter-changeable connection plug top design
High efficiency
No load standby power is less than 0.3W
Fully regulated and protected output
Output current is 2.5A
Power rating is 30W
Cable length is 1.52mm
Efficiency is up to 80% Applications Portable computing
Multimedia
Industrial
Networking
Printing and battery charging Certifications UL approved
TUV approved
EN60950-1
CSA approved
EN55022-B
FCC2/15-B
CISPR22-B
