EOS 36W to 180W Single Output Switch Mode Desktop Power Supply - ZVC Series
36 to 180W energy saving switch mode single output desktop power supply with universal input and compact design. This energy saving switch mode single output desktop power supply is ideal for laptops and multimedia, industrial, networking and printing applications. This range of desktop power supplies includes versions that are suitable for use as either a laptop power supply, netbook power supply or notebook power supply.
Ultra miniature and lightweight switch mode power supply
Universal input
High efficiency, no load standby power < 0.5W
Fully regulated and protected output
EMI/RFI filter to EN55022-B, FCC2/15-B, CISPR22-B
Types ZVC36 to ZVC72 are fitted with a 1.2m output lead with right angled jack plug (I/D 2.54 x O/D 5.54 x L 9.5mm, centre pin positive)
Types ZVC150 & ZVC180 are fitted with a 1.2m output lead with a 4 pin DIN connector, for suitable mating connectors use stk nos 667-7283 and 667-7287
Universal input
High efficiency, no load standby power < 0.5W
Fully regulated and protected output
EMI/RFI filter to EN55022-B, FCC2/15-B, CISPR22-B
Types ZVC36 to ZVC72 are fitted with a 1.2m output lead with right angled jack plug (I/D 2.54 x O/D 5.54 x L 9.5mm, centre pin positive)
Types ZVC150 & ZVC180 are fitted with a 1.2m output lead with a 4 pin DIN connector, for suitable mating connectors use stk nos 667-7283 and 667-7287

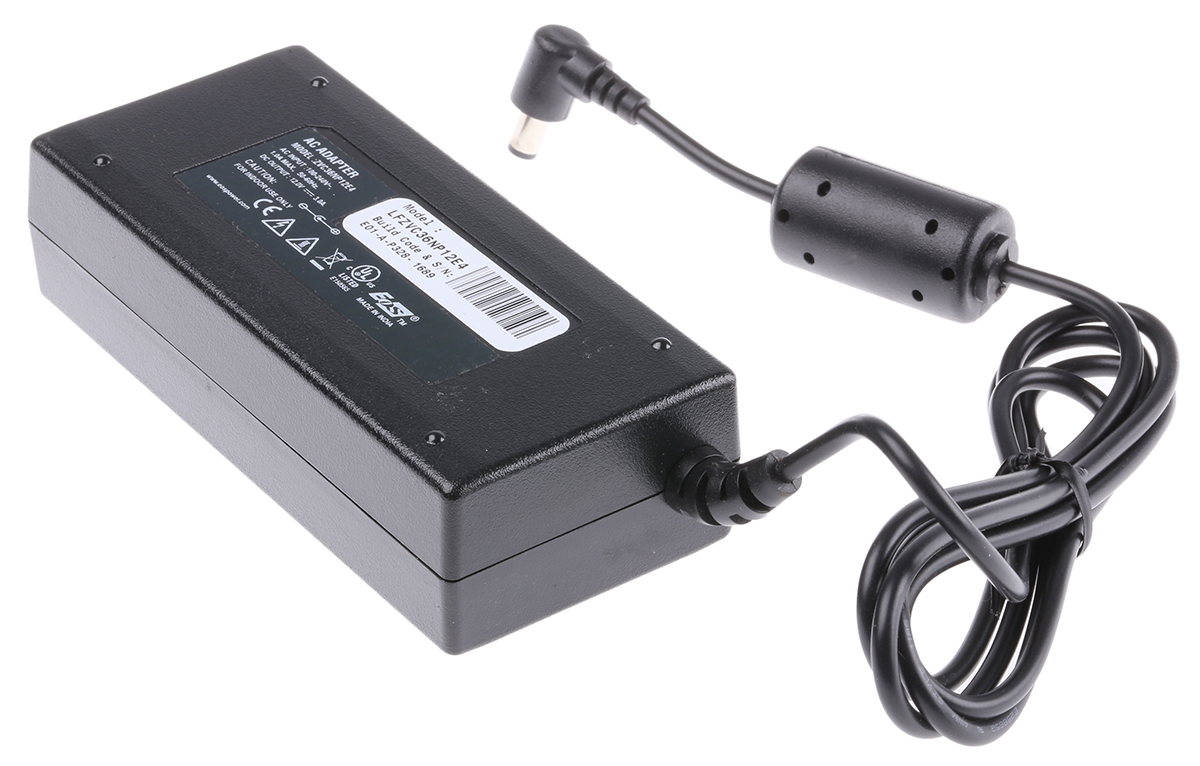

36W Power Brick AC/DC Adapter 12V dc Output, 3A Output
Manufacturer:
EOS
Manufacturer Part No:
LFZVC36NP12E4
Enrgtech Part No:
ET13920428
Warranty:
Manufacturer
£ 32.03
Checking for live stock
Adapter Type:
Power Brick Adapter
Output Voltage:
12V dc
Input Voltage:
90 → 264V ac
Output Current:
3A
Maximum Temperature:
+50°C
Output Connector:
2.54 x 5.54 x 9.5 mm Centre Positive Right Angle Jack Plug
Input Connector:
IEC 320-C14
Number of Outputs:
1
Power Rating:
36W
Cable Length:
1200mm
Standards Met:
ErP Compliant
MTBF:
100000h
