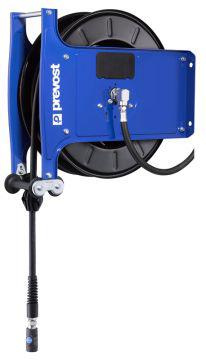

The Prevost DGO hose reels used for compressed air. It has 13 ´ 20 mm hose diameter. It has 12 bar pressure. It has Hot-dip galvanised moulded steel housing with UV-resistant polyester based electrostatic powder paint.
Swivel Bracket: DGO PIV2
Fluid: Air
Inlet Hose: 1 m
Body Material: Hot Galvanised Pressed Steel
Flow @ 7b: 1000L/min
Operating Temperature Range: -15°C → +65°C
Fluid: Air
Inlet Hose: 1 m
Body Material: Hot Galvanised Pressed Steel
Flow @ 7b: 1000L/min
Operating Temperature Range: -15°C → +65°C
Wall Mounted 20m Air Hose Reel, 13mm Inner Diameter, 20mm Outer Diameter, 1000L/min Flow Rate
Manufacturer:
PREVOST
Manufacturer Part No:
DGO 1320IS
Enrgtech Part No:
ET21620289
Warranty:
Manufacturer
£ 919.02
Checking for live stock
Hose Length:
20m
Hose Inner Diameter:
13mm
Hose Outer Diameter:
20mm
Hose Included:
Yes
Operating Pressure:
12bar
Mounting:
Wall Mounted
Inlet Connection:
1/2 in G Male
Outlet Connection:
1/2 in G Male
Retraction Operation:
Spring Return
Coupling Type:
ISI 08
Flow Rate:
1000L/min
3D Model:
https://www.traceparts.com/els/rs-components/en/api/viewer/3d?SupplierID=RS_COMPONENTS&PartNumber=2194383&DisplayLogo=False
