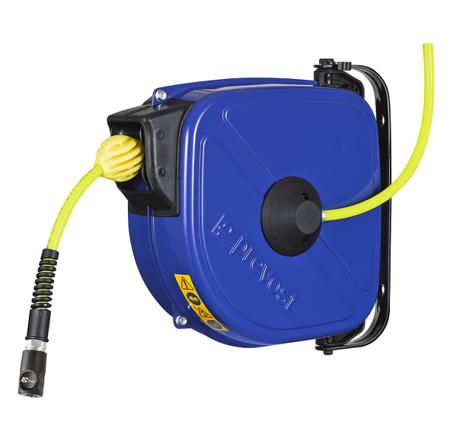

The Prevost hose reels for compressed air has 10 x 14 mm hose diameter. It has 12 bar pressure. It has galvanised steel housing with UV resistant polyester-based electrostatic coating, treated steel spring.
Swivel Bracket: Yes
Particularity: Slow Retract
Fluid: Air
Inlet Hose: 1 m
Body Material: Hot Galvanised Pressed Steel
Flow @ 7b: 833L/min
Operating Temperature Range: -15°C → +65°C
Particularity: Slow Retract
Fluid: Air
Inlet Hose: 1 m
Body Material: Hot Galvanised Pressed Steel
Flow @ 7b: 833L/min
Operating Temperature Range: -15°C → +65°C
Wall Mounted 10m Air Hose Reel, 10mm Inner Diameter, 14mm Outer Diameter, 833L/min Flow Rate
Manufacturer:
PREVOST
Manufacturer Part No:
DRFB 1010CS
Enrgtech Part No:
ET21620350
Warranty:
Manufacturer
£ 323.08
Checking for live stock
Hose Length:
10m
Hose Inner Diameter:
10mm
Hose Outer Diameter:
14mm
Hose Included:
Yes
Operating Pressure:
12bar
Mounting:
Wall Mounted
Retraction Operation:
Spring Return
Flow Rate:
833L/min
3D Model:
https://www.traceparts.com/els/rs-components/en/api/viewer/3d?SupplierID=RS_COMPONENTS&PartNumber=2194445&DisplayLogo=False
