The Nichicon UPS1E470MDD is a compact yet powerful aluminum electrolytic capacitor that delivers a reliable 47 µF capacitance at 25 V, housed in a robust radial can measuring just 5 × 11 mm. Designed for demanding electronics, it operates smoothly between –55°C and +105°C and offers a ripple current handling of 160 mA (100 kHz), ensuring stable performance in power supplies, industrial systems, and audio applications. Boasting a 2000-hour lifespan at 105 °C and RoHS3 compliance, it’s a dependable and environmentally conscious choice for your designs.

Why Buy the Nichicon Aluminium Electrolytic Capacitor?

Investing in the UPS1E470MDD means choosing durability and reliability. With a long operational life of 2000 hours at high temperatures and low leakage current (4 µA), this capacitor ensures consistent performance and longevity. Its small form factor and radial mounting make PCB integration simple and heat dissipation efficient, while Nichicon's strong reputation underscores its quality and dependability for critical electronics projects.

Product Highlights:

  • Capacitance: 47 µF ±20% at 25 V
  • Compact Size: Ø 5 mm × length 11 mm – ideal for space-constrained layouts
  • High Temperature Range: Operates from –55 °C up to +105 °C
  • Ripple Current Capacity: 160 mA at 100 kHz (27.2 mA @ 120 Hz)
  • Leakage Current: Ultra-low 4 µA
  • Long Lifespan: Rated for 2000 operating hours at full temperature
  • Mounting Style: Through-hole radial can – easy to solder and replace
  • Environmental Compliance: RoHS3 and REACH-friendly.

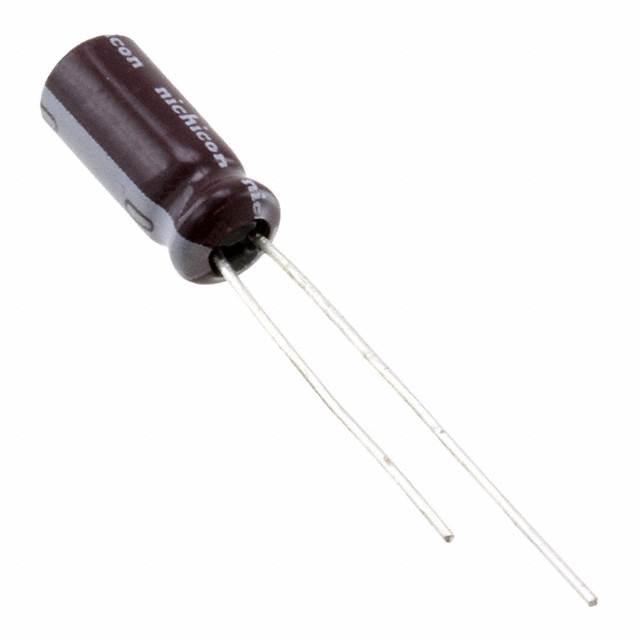

Nichicon UPS1E470MDD Aluminium Electrolytic Capacitor

Manufacturer:
Manufacturer Part No:
UPS1E470MDD
Enrgtech Part No:
ET11548338
Warranty:
Manufacturer
£ 0.28 £ 0.24
Checking for live stock
Diameter:
5mm
Ripple Current:
160mA
Dimensions:
5 (Dia.) x 11mm
Mounting Type:
Through Hole
Series:
PS
Height:
11mm
Capacitance:
47µF
Voltage:
25V dc
Leakage Current:
4 μA
Lifetime:
2000h
Lead Pitch:
2mm
Maximum Operating Temperature:
+105°C
Tolerance:
±20%
Minimum Operating Temperature:
-55°C
Technology:
Aluminium Electrolytic
Ratings:
-
HTSUS:
8532.22.0020
RoHS Status:
ROHS3 Compliant
ESR (Equivalent Series Resistance):
-
Polarization:
Polar
Capacitance:
47 µF
Operating Temperature:
-55°C ~ 105°C
Package / Case:
Radial, Can
Tolerance:
±20%
Voltage - Rated:
25 V
Height - Seated (Max):
0.492" (12.50mm)
Ripple Current @ High Frequency:
160 mA @ 100 kHz
REACH Status:
REACH Unaffected
Ripple Current @ Low Frequency:
27.2 mA @ 120 Hz
edacadModel:
UPS1E470MDD Models
Applications:
General Purpose
Surface Mount Land Size:
-
edacadModelUrl:
/en/models/2599942
Impedance:
1.5 Ohms
Size / Dimension:
0.197" Dia (5.00mm)
Moisture Sensitivity Level (MSL):
Not Applicable
Mounting Type:
Through Hole
Series:
UPS
Packaging:
Bulk
Lifetime @ Temp.:
2000 Hrs @ 105°C
Lead Spacing:
0.079" (2.00mm)
ECCN:
EAR99
pdf icon
Aluminium Electrolytic Capacitor Series PS(Technical Reference)
pdf icon
Mult Devs 26/Oct/2022(PCN Obsolescence/ EOL)
pdf icon
Miniature Type Taping Spec(Datasheets)
pdf icon
UPS Series Datasheet(Datasheets)
pdf icon
Aluminum Electrolytic Land, Reflow(Datasheets)
pdf icon
Mult Series NRND 23/Jun/2022(PCN Part Status Change)



Product Reviews
