Presentor Range DC Meters
Electrical connections via 6mm tag terminals
Accuracy classes BS89; IEC51 and EN60051
Operating temperature range –25 to +55°C
Front mounting panel cut-out 27mm diameter in maximum panel thickness of 4mm
Rear mounting panel cut-outs (with bezel) in a maximum panel thickness of 6mm
Fixing stud sizes: M2 x 10.0mm (for 43.9 x37.9mm), M2.5 x 10.0mm (for other sizes)
Accuracy classes BS89; IEC51 and EN60051
Operating temperature range –25 to +55°C
Front mounting panel cut-out 27mm diameter in maximum panel thickness of 4mm
Rear mounting panel cut-outs (with bezel) in a maximum panel thickness of 6mm
Fixing stud sizes: M2 x 10.0mm (for 43.9 x37.9mm), M2.5 x 10.0mm (for other sizes)

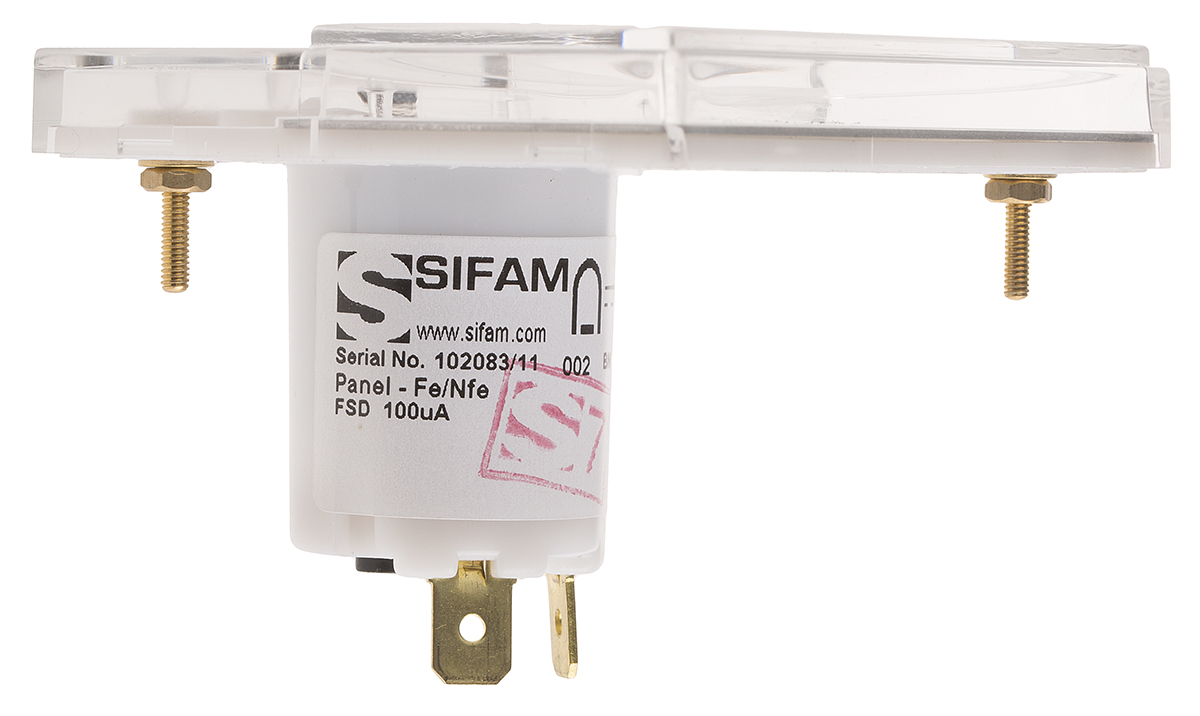

Analogue Panel Ammeter 100μA DC, 32.3mm x 73.7mm, ±1.5 % Moving Coil
Manufacturer:
Sifam Tinsley
Manufacturer Part No:
IS 11002
Enrgtech Part No:
ET16807691
Warranty:
Manufacturer
NA
Checking for live stock
Maximum Value:
100µA
Current Type:
DC
Moving Element:
Moving Coil
Cutout Height:
32.3mm
Cutout Width:
73.7mm
Depth:
30.5mm
Meter Accuracy:
±1.5 %
Minimum Temperature:
-25°C
Maximum Temperature:
+55°C
