Male-Female Mounts
VD Bobbin Mounts have been designed to be used in a wide number of applications including compression and shear. Made from natural rubber and available in a variety of hardnesses depending on the application.
Male To Female

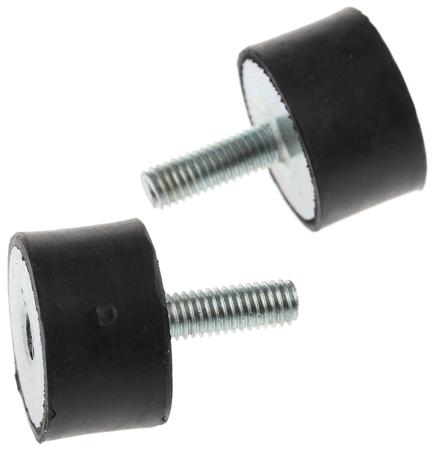

M6 Anti Vibration Mount, Male to Female Bobbin with 87.6kg Compression Load
Manufacturer:
FIBET
Manufacturer Part No:
2515VD18-60
Enrgtech Part No:
ET13878297
Warranty:
Manufacturer
£ 3.44
Checking for live stock
Anti Vibration Mount Type:
Male to Female Bobbin
Thread Size:
M6
Diameter:
25mm
Overall Height:
33mm
Material:
Natural Rubber
Compression Load:
87.6kg
Metalwork:
Zinc Plated Steel
Compression Deflection:
3mm
