Male-Female Mounts
VD Bobbin Mounts have been designed to be used in a wide number of applications including compression and shear. Made from natural rubber and available in a variety of hardnesses depending on the application.
Male To Female

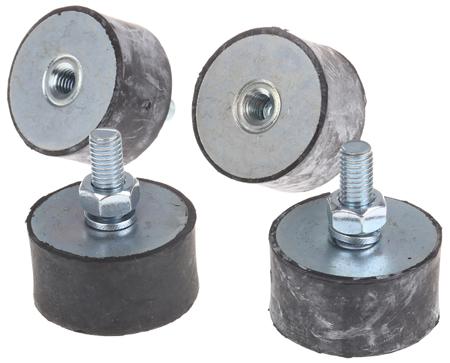

M8 Anti Vibration Mount, Male to Female Bobbin with 105.2kg Compression Load
Manufacturer:
FIBET
Manufacturer Part No:
4020VD23-45
Enrgtech Part No:
ET13928914
Warranty:
Manufacturer
£ 5.99
Checking for live stock
Anti Vibration Mount Type:
Male to Female Bobbin
Thread Size:
M8
Diameter:
40mm
Overall Height:
40mm
Material:
Natural Rubber
Metalwork:
Zinc Plated Steel
Compression Load:
105.2kg
Compression Deflection:
4mm
3D Model:
https://www.traceparts.com/els/rs-components/en/api/viewer/3d?SupplierID=RS_COMPONENTS&PartNumber=35345&DisplayLogo=False
