Male-Male Mounts - Type VV
VV Bobbin Mounts have been designed to be used in a wide number of applications including compression and shear. Made from natural rubber and available in a variety of hardnesses depending on the application.
Male Thread On Each End

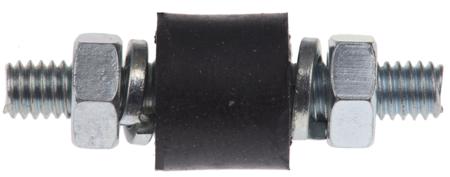

M4 Anti Vibration Mount, Male to Male Bobbin with 11.5kg Compression Load
£ 2.27
Checking for live stock
Anti Vibration Mount Type:
Male to Male Bobbin
Thread Size:
M4
Diameter:
10mm
Overall Height:
28mm
Material:
Natural Rubber
Metalwork:
Zinc Plated Steel
Compression Load:
11.5kg
Shearing Load:
1.7kg
Compression Deflection:
1.6mm
3D Model:
https://www.traceparts.com/els/rs-components/en/api/viewer/3d?SupplierID=RS_COMPONENTS&PartNumber=35301&DisplayLogo=False
