Male-Female Mounts
VD Bobbin Mounts have been designed to be used in a wide number of applications including compression and shear. Made from natural rubber and available in a variety of hardnesses depending on the application.
Male To Female

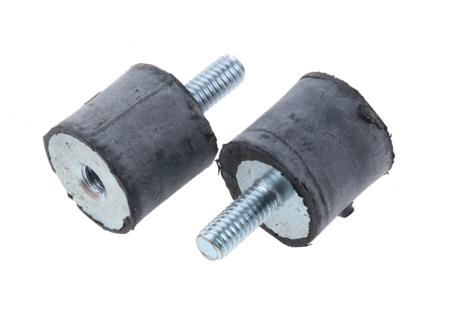

M4 Anti Vibration Mount, Male to Female Bobbin with 9.62kg Compression Load
Manufacturer:
FIBET
Manufacturer Part No:
1413VD10-45
Enrgtech Part No:
ET14037108
Warranty:
Manufacturer
£ 7.77
Checking for live stock
Anti Vibration Mount Type:
Male to Female Bobbin
Thread Size:
M4
Diameter:
14mm
Overall Height:
13mm
Material:
Natural Rubber
Compression Load:
9.62kg
Metalwork:
Zinc Plated Steel
Compression Deflection:
2.6mm
Minimum Operating Temperature:
-45°C
Maximum Operating Temperature:
+100°C
3D Model:
https://www.traceparts.com/els/rs-components/en/api/viewer/3d?SupplierID=RS_COMPONENTS&PartNumber=35302&DisplayLogo=False
