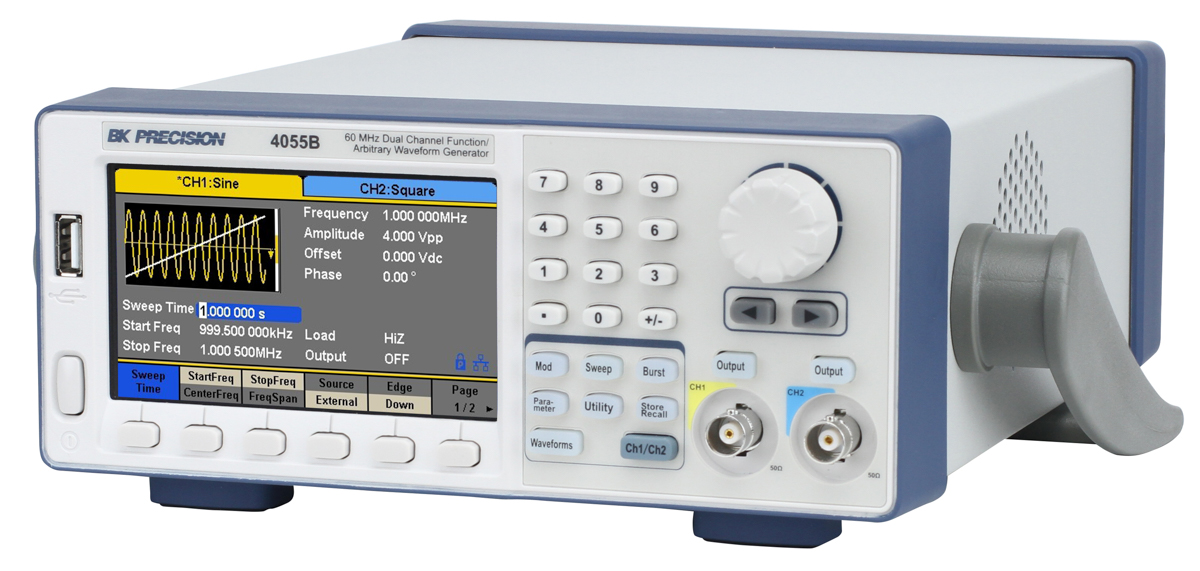

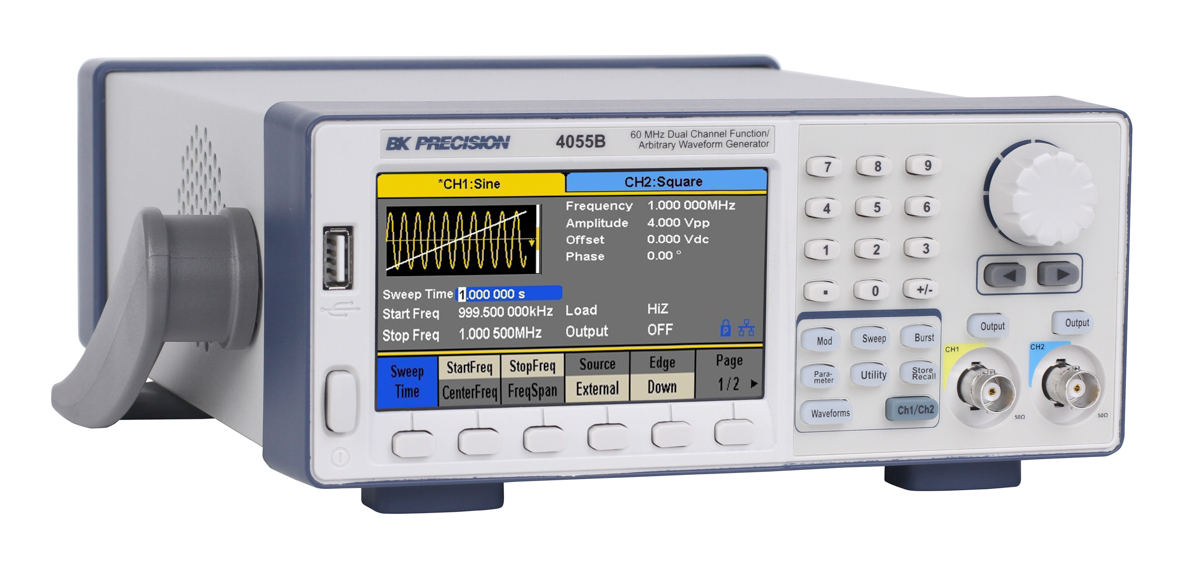

The 4050B Series Dual Channel Function/Arbitrary Waveform Generators are capable of generating stable and precise sine, square, triangle, pulse, and arbitrary waveforms. With an easy-to-read color display and intuitive user interface with numeric keypad, these instruments offer plenty of features including linear/logarithmic sweep, built-in counter, extensive modulation and triggering capabilities, a continuously variable DC offset, and a high performance 14-bit, 150 MSa/s arbitrary waveform generator. CH1 and CH2 outputs can both be varied from 0 to 10 Vpp into 50 ohms. Features and Benefits: • 14-bit, 150 MSa/s, 16k point arbitrary waveform generator
• Two independent channels with individual output On/Off buttons
• Convenient channel copy, track and combine functions
• Synchronize the phase of both channels with the push of a button
• Low-jitter square wave generation for simulating reliable clock signals, generating triggers, or validating serial data buses
• Large 4.3-inch LCD color display
• AM/DSB-AM/ASK/FM/FSK/PM/PSK/PWM modulation functions
• Variable DC offset and adjustable duty cycle
• Internal/external triggering
• Gate and burst mode
• 196 built-in predefined arbitrary waveforms
• Built-in frequency counter
• Harmonics generator function

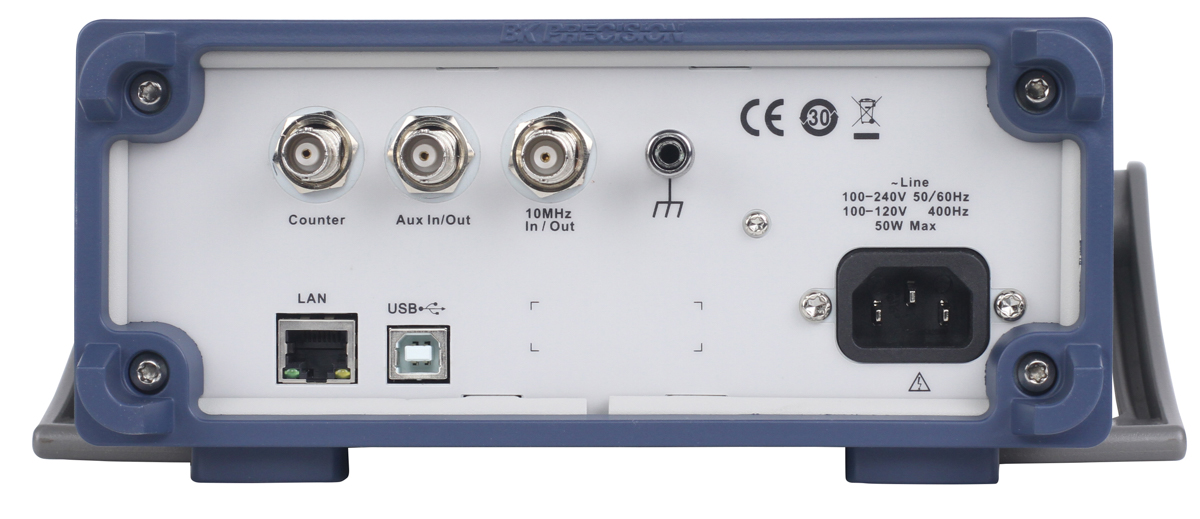

• LAN, USB device port (USBTMC-compliant), and front panel
• USB host port
• GPIB connectivity with optional USB-to-GPIB adapter
• PC software provided for arbitrary waveform editing
• Short circuit output protection
