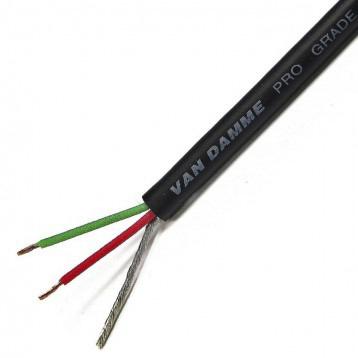

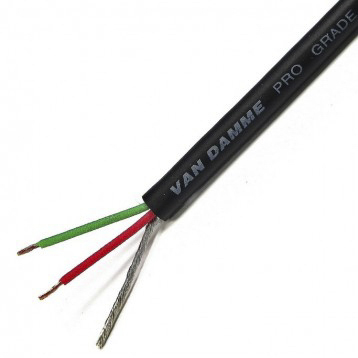

Microphone Cable, 0.22 mm² CSA Screened, 4.85mm od, 100m, Black

Audio Cable Type:

Microphone Cable

Cross Sectional Area:

0.22 mm²

Screened/Unscreened:

Screened

Insulation Material:

PE

Outer Diameter:

4.85mm

Length:

100m

Minimum Operating Temperature:

-25°C

Maximum Operating Temperature:

+70°C

Sheath Colour:

Black

American Wire Gauge:

24 AWG

Conductor Resistance:

85 Ω/km

Conductor Strand Type:

Stranded

Sheath Material:

PVC/Neoprene

Number of Strands:

28

Cable Shape:

Multicore

Screen Type:

Tinned Copper Braid

Capacitance Core To Screen:

95pF/m

Capacitance Core To Core:

50pF/m

Size of Strands:

0.1 mm

Voltage Rating:

250 V

Conductor Material:

Copper

Core Strands:

28/0.1 mm

Balanced:

Yes
