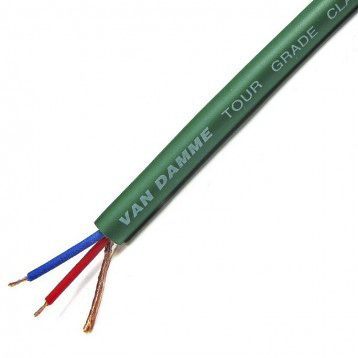

Microphone Cable, 0.22 mm² CSA Screened, 6.35mm od, 100m, Green

Audio Cable Type:

Microphone Cable

Cross Sectional Area:

0.22 mm²

Screened/Unscreened:

Screened

Insulation Material:

PE

Outer Diameter:

6.35mm

Length:

100m

Minimum Operating Temperature:

-25°C

Maximum Operating Temperature:

+70°C

Sheath Colour:

Green

American Wire Gauge:

23 AWG

Capacitance Core To Screen:

165pF/m

Sheath Material:

PVC/Neoprene

Filler Material:

Cotton

Cable Shape:

Multicore

Screen Type:

Close Lap

Capacitance Core To Core:

56pF/m

Size of Strands:

0.1 mm

Voltage Rating:

250 V

Conductor Material:

Oxygen Free Copper

Balanced:

Yes

Conductor Resistance:

85 Ω/km

Conductor Strand Type:

Stranded

Core Strands:

28/0.1 mm

Number of Strands:

28
