Blue Series Studio Grade Analogue Multicore Cable
This analogue multicore cable is designed as a tough and flexible high purity oxygen free copper multicore cable for microphone and line level audio signals. It is ideally suited for studio installation use and inter-connection of professional audio equipment
Features and Benefits
• Each pair is shielded with aluminium polyester foil tape bonded to the pair jacket for stripping easily
• Pre-jacketed and numbered cores to reduce preparation and termination time
• 24 AWG conductors for reliable crimp terminations
• Conductor: 28x0.10mm (0.22mm2) 24 AWG high purity OFC
• Polypropylene pair insulation
• Temperature range -25°C to +70°C
• DC Resistance <90Ω/km
• Capacitance <100pF/m core to core, <200pF/m core to screen Applications: • Audio multicore looms for 2-48 pairs
• Multipin breakout cables
• Static stage box systems - schools, colleges and places of worship
• Fixed installations in places not requiring LSZH cables
• Interconnects recording and post production equipment
• Wiring of B Guage and Bantam patchbays for individual screen requirements
• Flexible requirements includeprovison of industrial paired transmission
• Each pair is shielded with aluminium polyester foil tape bonded to the pair jacket for stripping easily
• Pre-jacketed and numbered cores to reduce preparation and termination time
• 24 AWG conductors for reliable crimp terminations
• Conductor: 28x0.10mm (0.22mm2) 24 AWG high purity OFC
• Polypropylene pair insulation
• Temperature range -25°C to +70°C
• DC Resistance <90Ω/km
• Capacitance <100pF/m core to core, <200pF/m core to screen Applications: • Audio multicore looms for 2-48 pairs
• Multipin breakout cables
• Static stage box systems - schools, colleges and places of worship
• Fixed installations in places not requiring LSZH cables
• Interconnects recording and post production equipment
• Wiring of B Guage and Bantam patchbays for individual screen requirements
• Flexible requirements includeprovison of industrial paired transmission

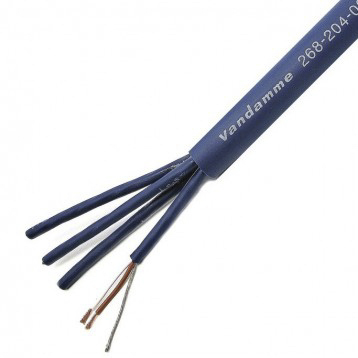

Audio & Control Cable, 0.22 mm² CSA Screened, 9.6mm od, 50m, Blue
Manufacturer:
Van DammeManufacturer Part No:
268-204-060
Enrgtech Part No:
ET14079064
Warranty:
Manufacturer
£ 382.26
Checking for live stock
Audio Cable Type:
Audio & Control Cable
Cross Sectional Area:
0.22 mm²
Screened/Unscreened:
Screened
Insulation Material:
PP
Outer Diameter:
9.6mm
Length:
50m
Sheath Colour:
Blue
American Wire Gauge:
24 AWG
Number of Strands:
28
Sheath Material:
PVC
Screen Type:
Aluminium/PET Foil
Capacitance Core To Screen:
200pF/m
