100V Line Transformer These 100V line transformers are brought to your by OEP, and are designed to match loudspeakers to the 100V line output of PA amplifiers. The OEP range of 100V Line Transformers includes the following products: • 210-6497 is a 2W Line Transformer for 8Ω speakers. • 210-6504 is a 5W Line Transformer for 8Ω speaker. • 210-6526 is a 10W Line Transformer for 8Ω speaker. • 210-6532 is a universal type suitable for 4, 8 or 16Ω speakers and provided with taps to deliver 1, 2, 5, 15 or 30W. Warning These transformers are for 100V line matching; they are not suitable for other output matching situations.

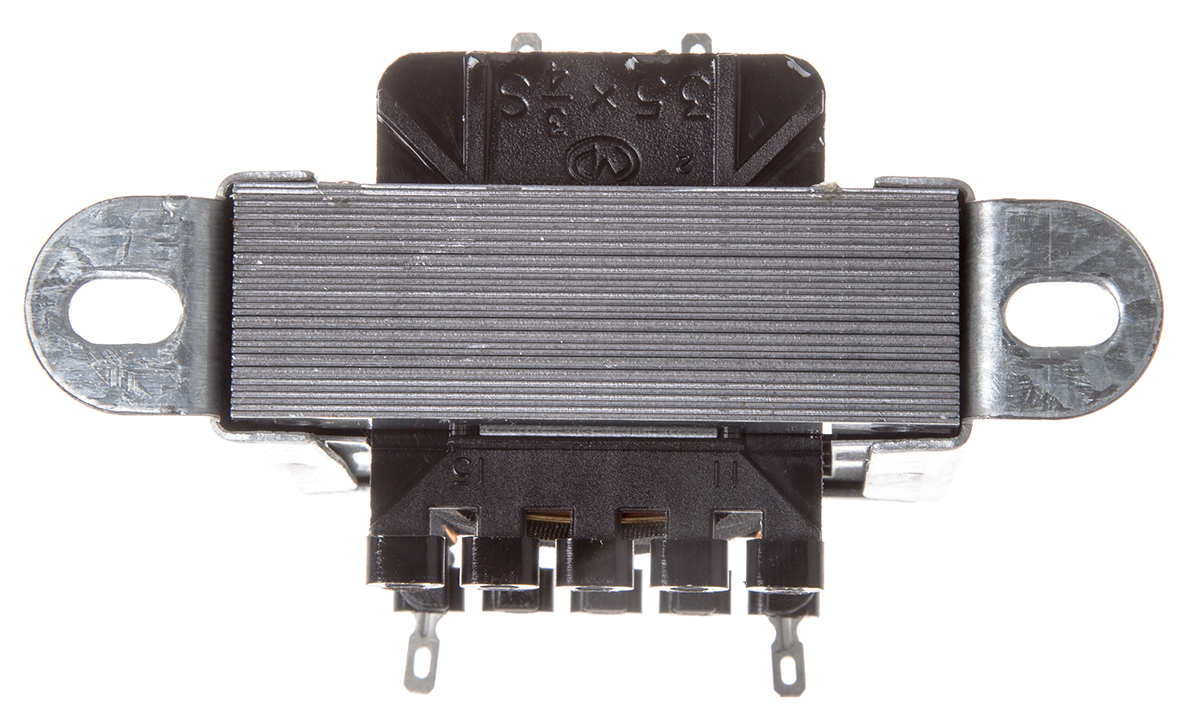

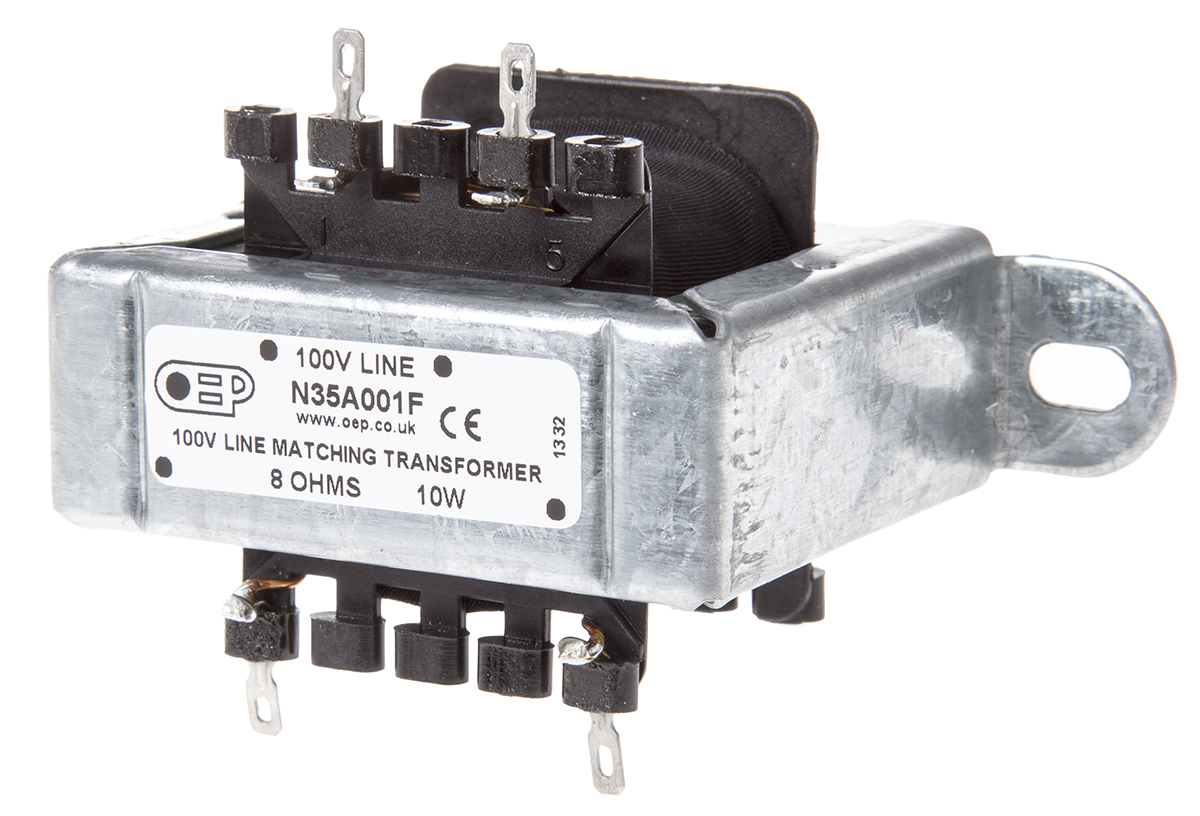

OEP Chassis Mount Audio Transformer 8Ω 10W

Manufacturer:
Manufacturer Part No:
N35A001F
Enrgtech Part No:
ET13966434
Warranty:
Manufacturer
£ 21.35
Checking for live stock
Primary DC Resistance:
37Ω
Dimensions:
88 x 50 x 44mm
Weight:
400g
Length:
88mm
Width:
50mm
Depth:
44mm
Mounting Type:
Chassis Mount
Power Rating:
10W
Secondary Impedance:
Secondary DC Resistance:
0.5Ω
pdf icon
Dimensional Drawing(Technical Reference)
